8-90 — RADIO AND TV (#74834) — 63 parça

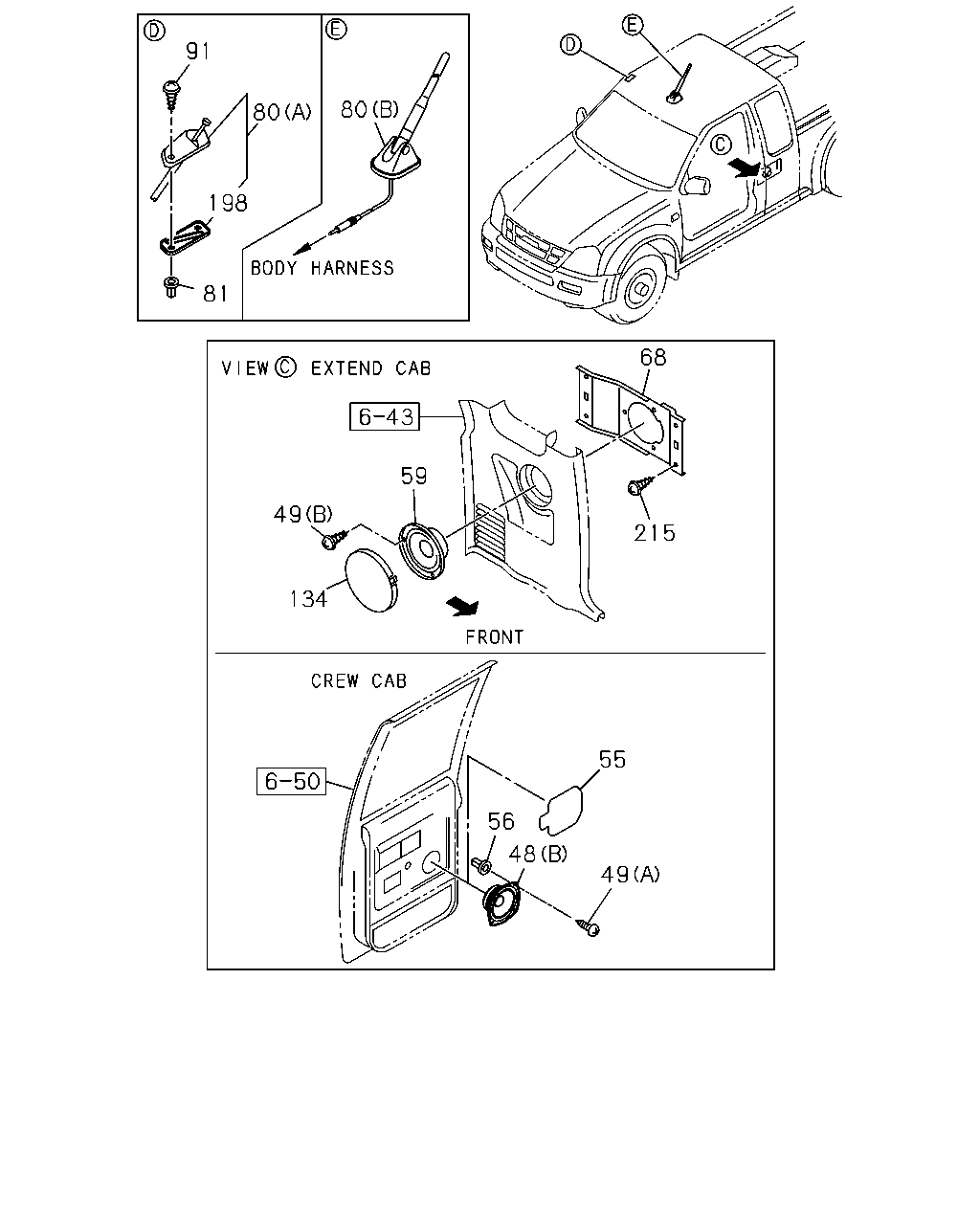

çizim 14411
91 80 80 198 81 68 49 215 134 55 56 48 49 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-98061-046-0 02 1 0805- ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-044-0 01 1 0805- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-044-0 01 1 0805- ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-045-0 01 1 0805- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-045-0 01 1 0805- ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-98061-047-0 02 1 0805- ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 12.182 (A) M5X14 		8-94152-495-0 02 1 0805- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95> 12.182 (A) M5X14 		8-94152-495-0 02 1 0805- ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 12.182 (A) M5X14 		8-94152-495-0 02 1 0805- ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (C) M4X10 		0-34218-410-0 06 1 0805- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10 		0-34218-410-0 06 1 0805- ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98061-685-0 06 1 0805-1004 ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 06 1 1005- ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> 		8-97238-485-1 02 1 0805- ● ● ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95> 		8-97238-485-1 02 1 0805- ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-97238-485-1 02 1 0805- ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 10.565 		8-94152-494-0 02 1 0805- ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95> 10.565 		8-94152-494-0 02 1 0805- ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 10.565 		8-94152-494-0 02 1 0805- ● ●
59 09.665 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-98061-043-0 02 1 0805- ● ● ●
68 09.667 BRACKET; RR SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-97238-486-1 02 1 0805- ● ● ●
80 09.645 ANTENNA
(A) 		8-98044-180-0 01 1 0805- ● ● ● ● ●
80 09.645 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (A) 		8-98044-180-0 01 1 0805- ● ● ●
80 09.645 ANTENNA
ROOF RADIO ANTENNA<U71> (B) 		8-98053-513-0 01 1 0805- ● ● ●
81 09.647 NUT; ANTENNA POLE
M5 POP NUT 		8-97249-574-0 02 1 0805- ● ● ● ● ●
81 09.647 NUT; ANTENNA POLE
EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT 		8-97249-574-0 02 1 0805- ● ● ●
91 09.663 BOLT; ANTENNA
M5X16 		8-97375-569-0 02 1 0805- ● ● ● ● ●
91 09.663 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 0805- ● ● ●
134 09.665 GRILLE; SPEAKER,RR
DARK GRAY 		8-97403-886-1 02 1 0805- ● ● ●
198 09.647 SHEET; ANTENNA 8-97354-772-0 01 1 0805- ● ● ● ● ●
198 09.647 SHEET; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> 		8-97354-772-0 01 1 0805- ● ● ●
215 09.645 SCREW; BRKT,SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 09.242 M6X12 		9-09829-330-1 08 1 0805- ● ● ●

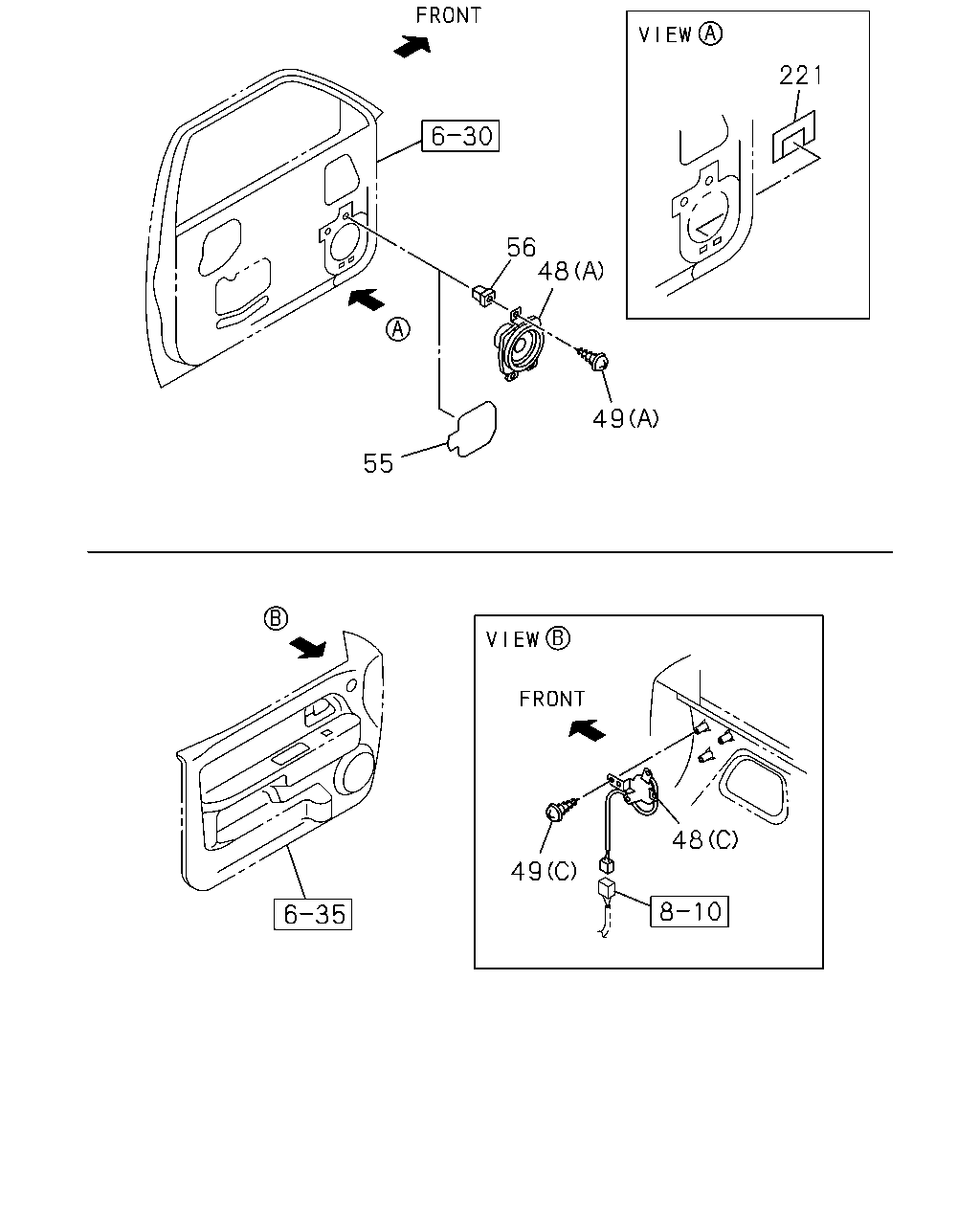

çizim 185864
221 56 48 49 55 48 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> (A) 		8-98061-046-0 02 1 0805- ● ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-044-0 01 1 0805- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-044-0 01 1 0805- ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98061-045-0 01 1 0805- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (C) 		8-98061-045-0 01 1 0805- ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> (B) 		8-98061-047-0 02 1 0805- ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 12.182 (A) M5X14 		8-94152-495-0 02 1 0805- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95> 12.182 (A) M5X14 		8-94152-495-0 02 1 0805- ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 12.182 (A) M5X14 		8-94152-495-0 02 1 0805- ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (C) M4X10 		0-34218-410-0 06 1 0805- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> (C) M4X10 		0-34218-410-0 06 1 0805- ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98061-685-0 06 1 0805-1004 ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 06 1 1005- ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> 		8-97238-485-1 02 1 0805- ● ● ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95> 		8-97238-485-1 02 1 0805- ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 		8-97238-485-1 02 1 0805- ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 10.565 		8-94152-494-0 02 1 0805- ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95> 10.565 		8-94152-494-0 02 1 0805- ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> 10.565 		8-94152-494-0 02 1 0805- ● ●
221 16.165 SEAL; SPEAKER PANEL
4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEMBASE<U95> 		8-97328-113-0 02 1 0805- ● ● ● ● ● ● ● ●

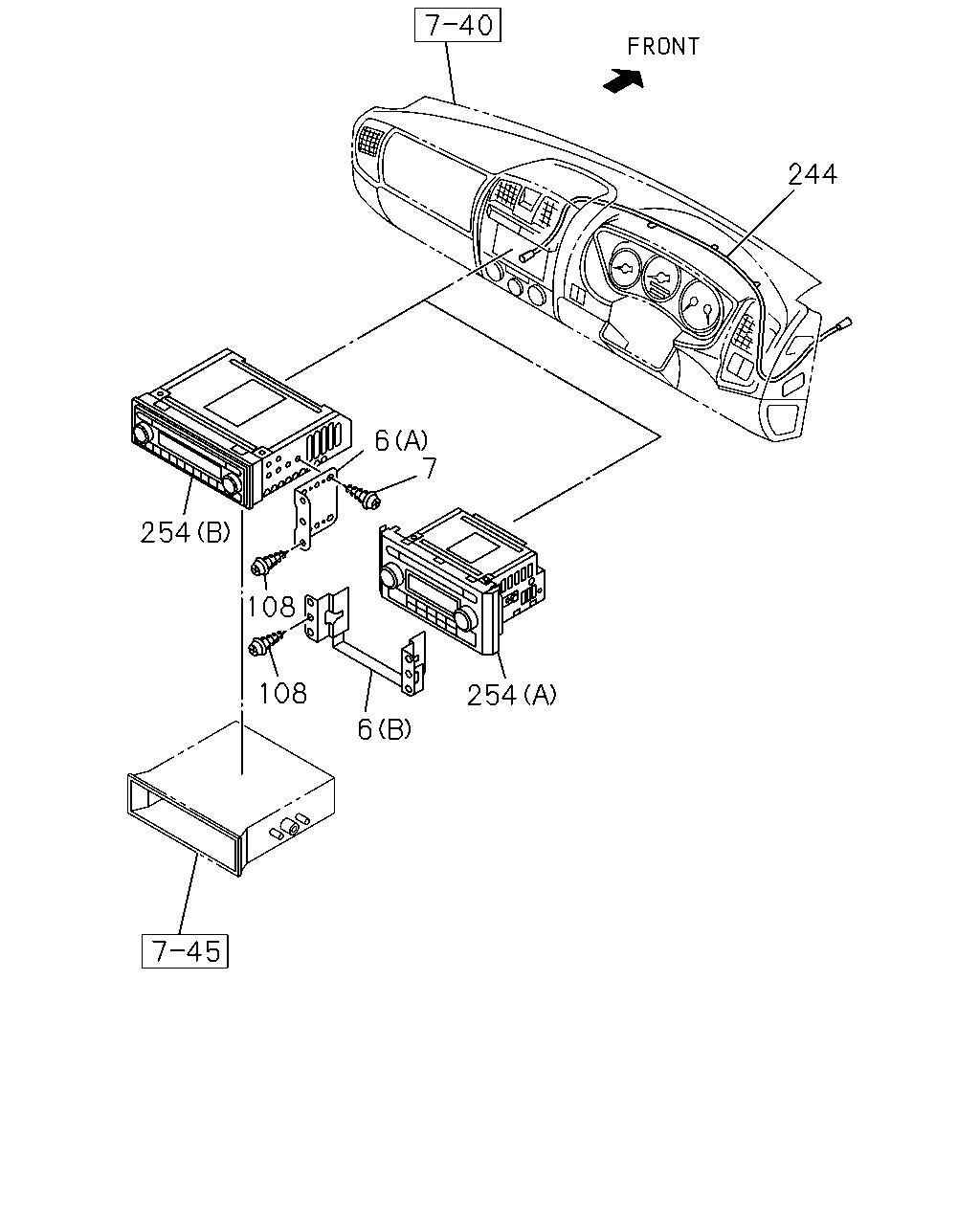

çizim 185866
244 6 7 254 108 108 254 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
6 09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (A) 		8-98007-736-0 02 1 0805-0809 ● ● ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(A) 		8-98007-736-0 02 1 0810- ● ● ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CD,W/MP3(ULA) (B) 		8-98004-773-0 01 1 0805-0809 ● ● ●
7 09.650 SCREW; RADIO
AM/FM W/CASSETTE 2 SPEAKERS(UN6), RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0805-0809 ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO DELETE(UL5),AM/FM W/CASSETTE 2 SPEAKERS(UN6),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) 08.083 M5X16 TAPPING 		8-98061-685-0 04 1 0805-0809 ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
08.083 M5X16 TAPPING 		8-98061-685-0 04 1 0810-1004 ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1005- ● ● ● ● ● ● ● ●
108 09.645 SCREW; BRKT
RADIO AM/FM W/CD,W/MP3(ULA) 08.083 M5X16 TAPPING 		8-98061-685-0 08 1 0805-0809 ● ● ●
244 09.647 CABLE; FEEDER 8-97238-487-1 01 1 0805- ● ● ● ● ● ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) (B) 		8-98007-739-0 01 1 0805-0809 ● ● ● ● ● ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/MP3(ULA) (A) LIGHT GRAY 		8-97409-206-0 01 1 0805-0809 ● ● ●
