8-80 — WINDSHIELD WIPER AND WASHER (#74833) — 50 parça

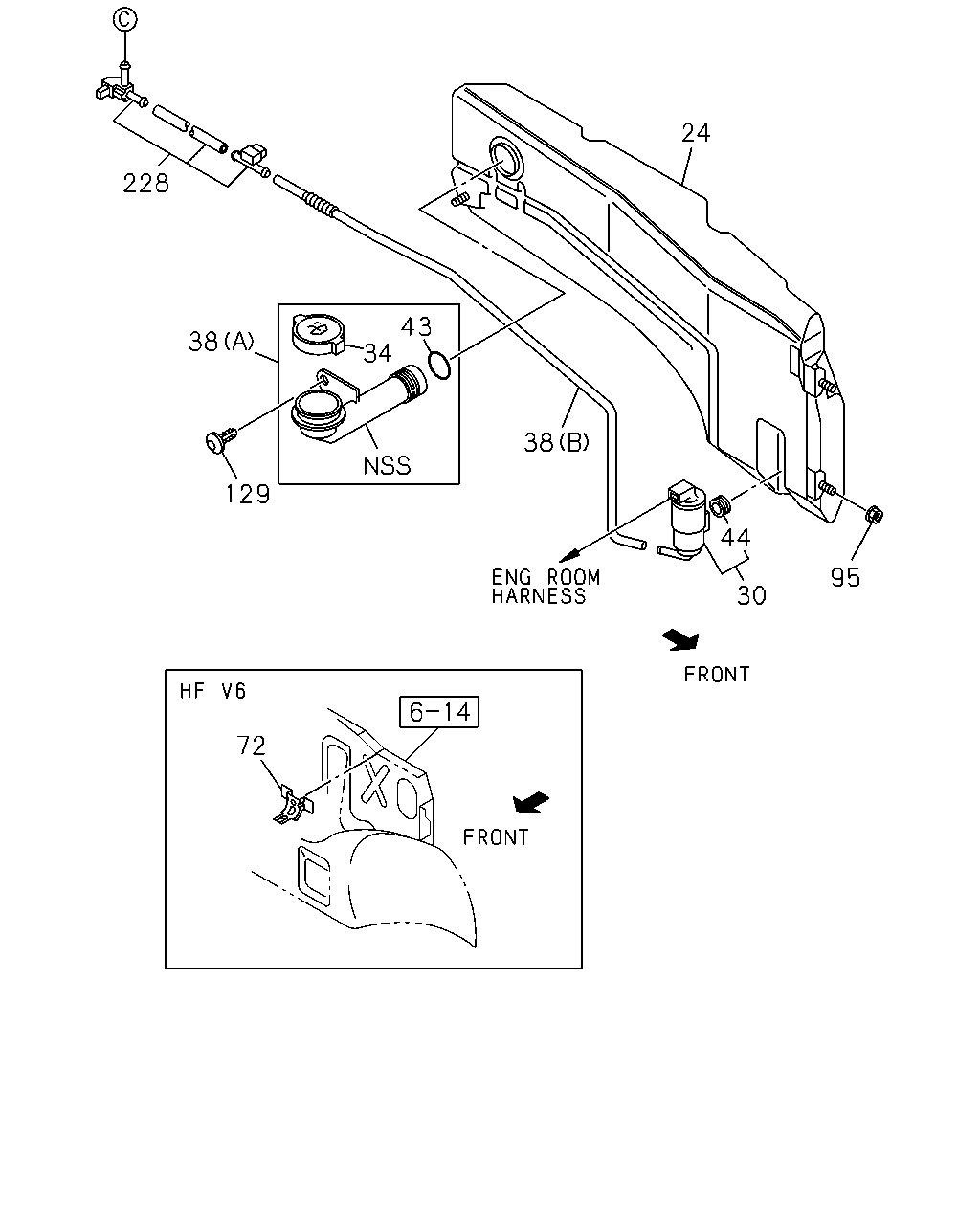

çizim 158334
24 228 43 34 38 38 129 44 95 30 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
24 16.065 TANK ASM; WASHER 8-98057-609-0 01 1 0805- ● ● ● ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97314-350-0 01 1 0805- ● ● ● ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97349-905-0 01 1 0805- ● ● ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 0805- ● ● ● ● ● ● ● ●
38 16.065 HOSE; JOINT,TANK
(B) 		8-98011-321-0 01 1 0805- ● ● ● ● ● ● ● ●
43 16.065 RUBBER; GASKET,TANK 8-97349-906-0 01 1 0805- ● ● ● ● ● ● ● ●
44 16.065 GASKET; MOTOR TO TANK
10.154 		8-94352-050-0 01 1 0805- ● ● ● ● ● ● ● ●
72 16.064 BRACKET; WIPER MOTOR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-97309-543-1 01 1 0805- ● ● ● ●
72 16.064 BRACKET; WIPER MOTOR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-97309-543-1 01 1 0805- ●
95 16.065 NUT; WASHER TANK
M6 W/DISHED WASHER 		8-98049-368-0 03 1 0805- ● ● ● ● ● ● ● ●
129 16.065 CLIP; JOINT HOSE
16.800 L=19 BLACK 		8-94363-776-0 01 1 0805- ● ● ● ● ● ● ● ●
228 16.065 HOSE ASM; WASHER 8-98115-892-0 01 1 0805- ● ● ● ● ● ● ● ●

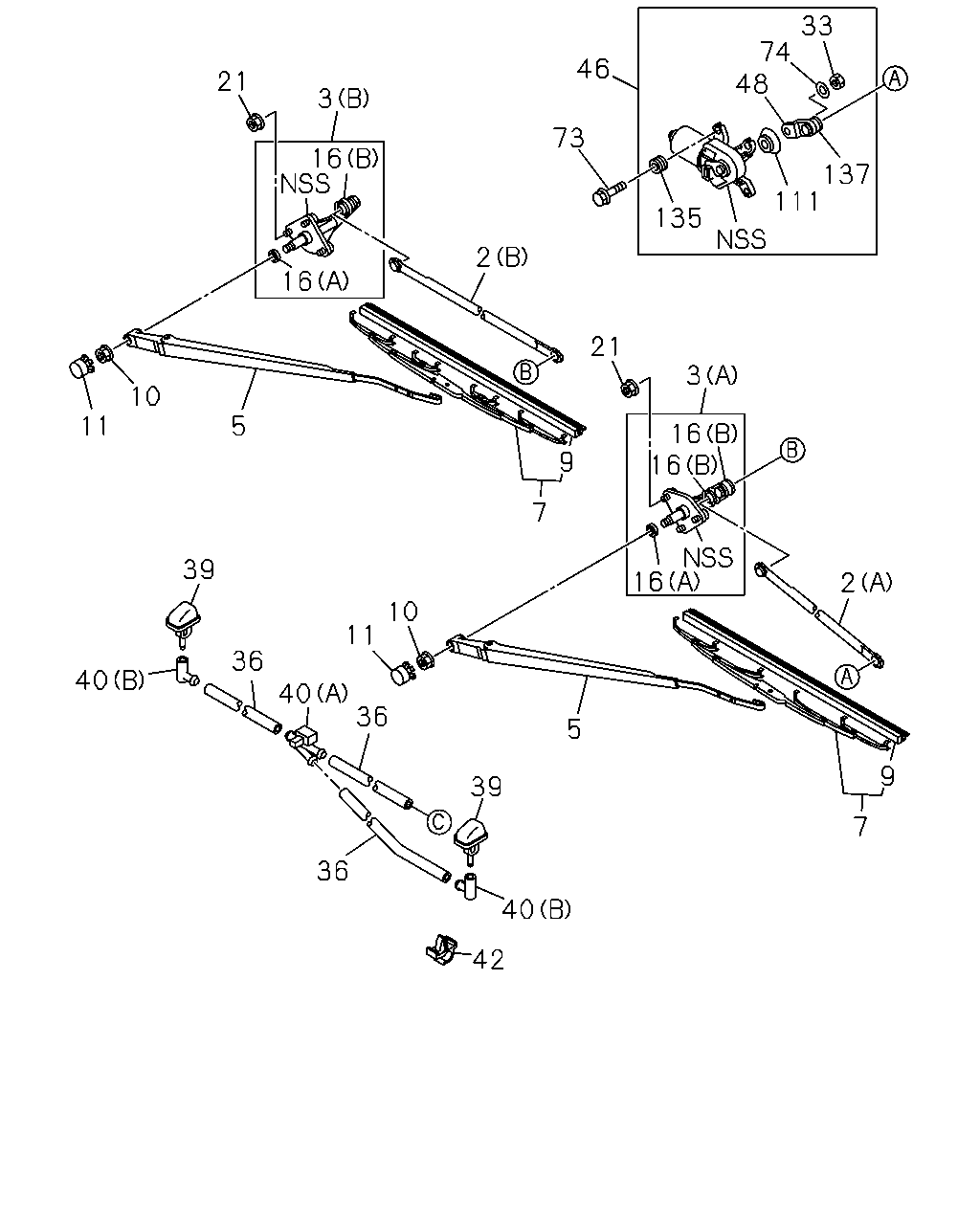

çizim 185865
33 74 48 46 21 3 73 16 137 111 135 2 16 21 3 10 11 5 16 16 9 7 16 39 2 10 11 36 40 40 36 5 9 39 7 36 40 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.063 LINK; FRT WIPER
(A) 		8-97349-892-0 01 1 0805- ● ● ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97349-893-0 01 1 0805- ● ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-98057-712-0 01 1 0805- ● ● ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 0805- ● ● ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97349-902-0 01 1 0805- ● ● ● ● ● ● ● ●
5 16.063 ARM; WIPER 8-97349-899-0 01 1 0805- ● ● ● ● ● ● ● ●
7 16.062 BLADE; WIPER
L=475 		8-97349-903-0 01 1 0805- ● ● ● ● ● ● ● ●
7 16.062 BLADE; WIPER
L=550 		8-97349-900-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=550 		8-97349-901-0 01 1 0805- ● ● ● ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE 		8-98049-367-0 02 1 0805- ● ● ● ● ● ● ● ●
11 16.063 COVER; WIPER ARM
10.147 		8-94367-999-0 02 1 0805- ● ● ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0805- ● ● ● ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 0805- ● ● ● ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
01.062 M6 FLANGE 		0-91180-106-0 06 1 0805- ● ● ● ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM 8-97349-898-0 01 1 0805- ● ● ● ● ● ● ● ●
36 16.065 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
36 16.065 HOSE; WASHER
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) SERVICED BY L=10000 		8-97349-607-0 01 1 1004- ● ● ● ● ● ● ●
36 16.065 HOSE; WASHER
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) SERVICED BY L=10000 		8-97349-607-0 01 1 1004- ●
36 16.065 HOSE; WASHER
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) SERVICED BY L=10000 		8-97349-607-0 01 1 1004- ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97375-442-0 02 1 0805- ● ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) 		8-97178-847-0 02 1 1004- ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) 		8-97178-847-0 02 1 1004- ●
40 16.065 JOINT; WASHER HOSE
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) (B) 		8-97178-847-0 02 1 1004- ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97215-337-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) 		8-97215-337-0 01 1 1004- ● ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (A) 		8-97215-337-0 01 1 1004- ●
40 16.065 JOINT; WASHER HOSE
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 4JJ1-TCX ENG(LS0) (A) 		8-97215-337-0 01 1 1004- ●
42 16.065 CLIP; WASHER HOSE
HF V6 ENG(LCA),C24SE ENG(LG1) 10.156 ID=5.8 L=8 		8-94155-681-0 01 1 0805- ● ● ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
4JJ1-TCX ENG(LS0) 10.156 ID=5.8 L=8 		8-94155-681-0 03 1 0805- ● ● ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-621-0 01 1 0805- ● ● ● ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-98057-654-0 01 1 0805- ● ● ● ● ● ● ● ●
73 16.063 BOLT
M6X33 W/PL WASHER 		8-98048-997-0 04 1 0805- ● ● ● ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 0805- ● ● ● ● ● ● ● ●
111 16.064 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 0805- ● ● ● ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 0805- ● ● ● ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.159 		8-97025-889-0 01 1 0805- ● ● ● ● ● ● ● ●
