8-75 — CONDENSER (#74832) — 66 parça

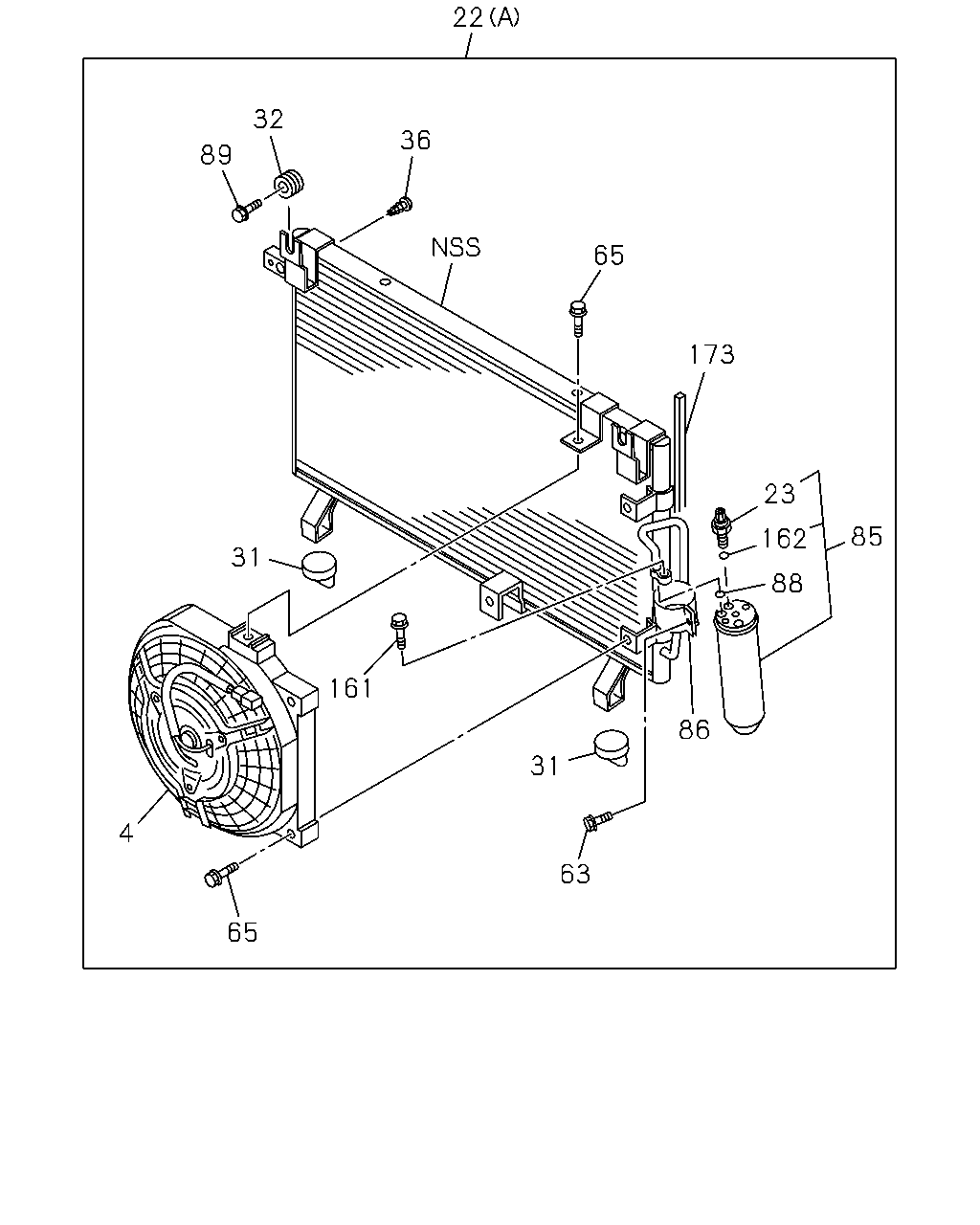

22 32 36 89 65 173 23 85 162 31 88 161 86 31 4 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0805-1003	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	1004-	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0805-1201	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98176-437-0	01	1	1202-	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-123-0	01	1	0805-1003				●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0805-1003	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	1004-	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0805-1003	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	1004-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0805-1003	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	1004-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0805-1003	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	1004-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0805-1003	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	1004-	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0805-1003	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	1004-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0805-1201	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-576-0	01	1	1202-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97381-576-0	01	1	0805-1003				●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0805-	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-98071-269-0	01	1	0805-1003				●	●
88	09.190 GASKET; PRESSURE SW C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0805-1003	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	1004-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0805-1003	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	1004-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.175 M6X16	8-98071-146-0	01	1	0810-1003	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.175 M6X16	8-98071-146-0	01	1	1004-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0805-0809	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0805-1003	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	1004-	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0805-1003	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	1004-	●	●	●	●	●	●	●	●

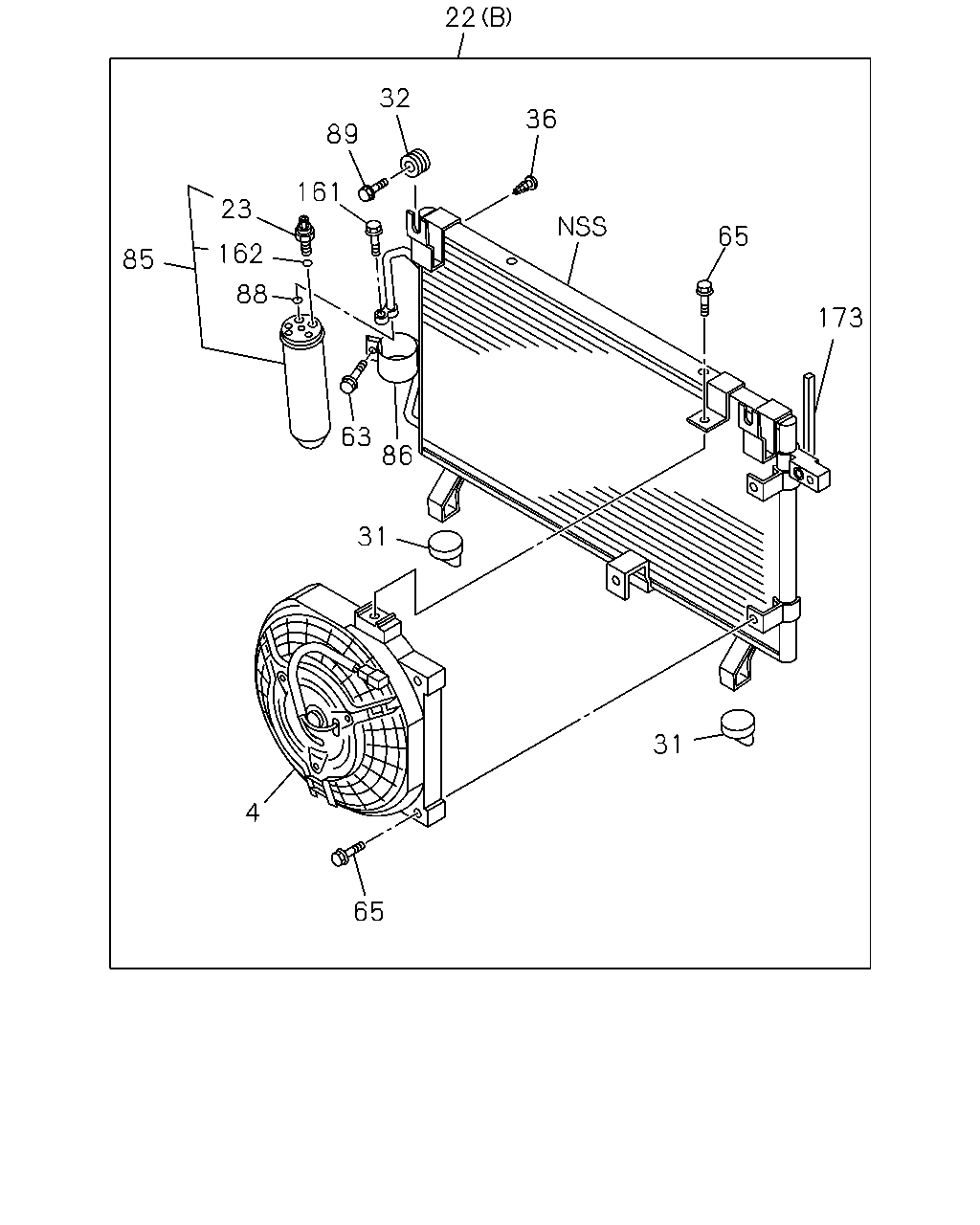

22 32 36 89 161 23 65 162 85 88 173 63 86 31 31 4 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	09.216 MOTOR ASM; FAN C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	0805-1003	●	●	●	●	●	●	●	●
4	09.216 MOTOR ASM; FAN 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97356-646-0	01	1	1004-	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98071-120-0	01	1	0805-1201	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98176-437-0	01	1	1202-	●	●	●	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98071-123-0	01	1	0805-1003				●	●
23	09.172 SWITCH; PRESSURE,CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	0805-1003	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-465-0	01	1	1004-	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	0805-1003	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-319-0	02	1	1004-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	0805-1003	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-320-0	02	1	1004-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	0805-1003	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M4X25	8-98071-148-0	09	1	1004-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	0805-1003	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X16	8-98071-146-0	03	1	1004-	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	0805-1003	●	●	●	●	●	●	●	●
65	09.216 BOLT; SHROUD 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X18	8-98071-145-0	04	1	1004-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-448-2	01	1	0805-1201	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97381-576-0	01	1	1202-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97381-576-0	01	1	0805-1003				●	●
86	09.196 BRACKET; RECEIVER DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97380-437-0	01	1	0805-	●	●	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-98071-269-0	01	1	0805-1003				●	●
88	09.190 GASKET; PRESSURE SW C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	0805-1003	●	●	●	●	●	●	●	●
88	09.190 GASKET; PRESSURE SW 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97333-321-0	01	1	1004-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	0805-1003	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X35	8-98071-149-0	02	1	1004-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.175 M6X16	8-98071-146-0	01	1	0810-1003	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.175 M6X16	8-98071-146-0	01	1	1004-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M6X20	8-98071-147-0	01	1	0805-0809	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	0805-1003	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97333-321-0	01	1	1004-	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	0805-1003	●	●	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98034-693-0	02	1	1004-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
