◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#74831) — 27 parça

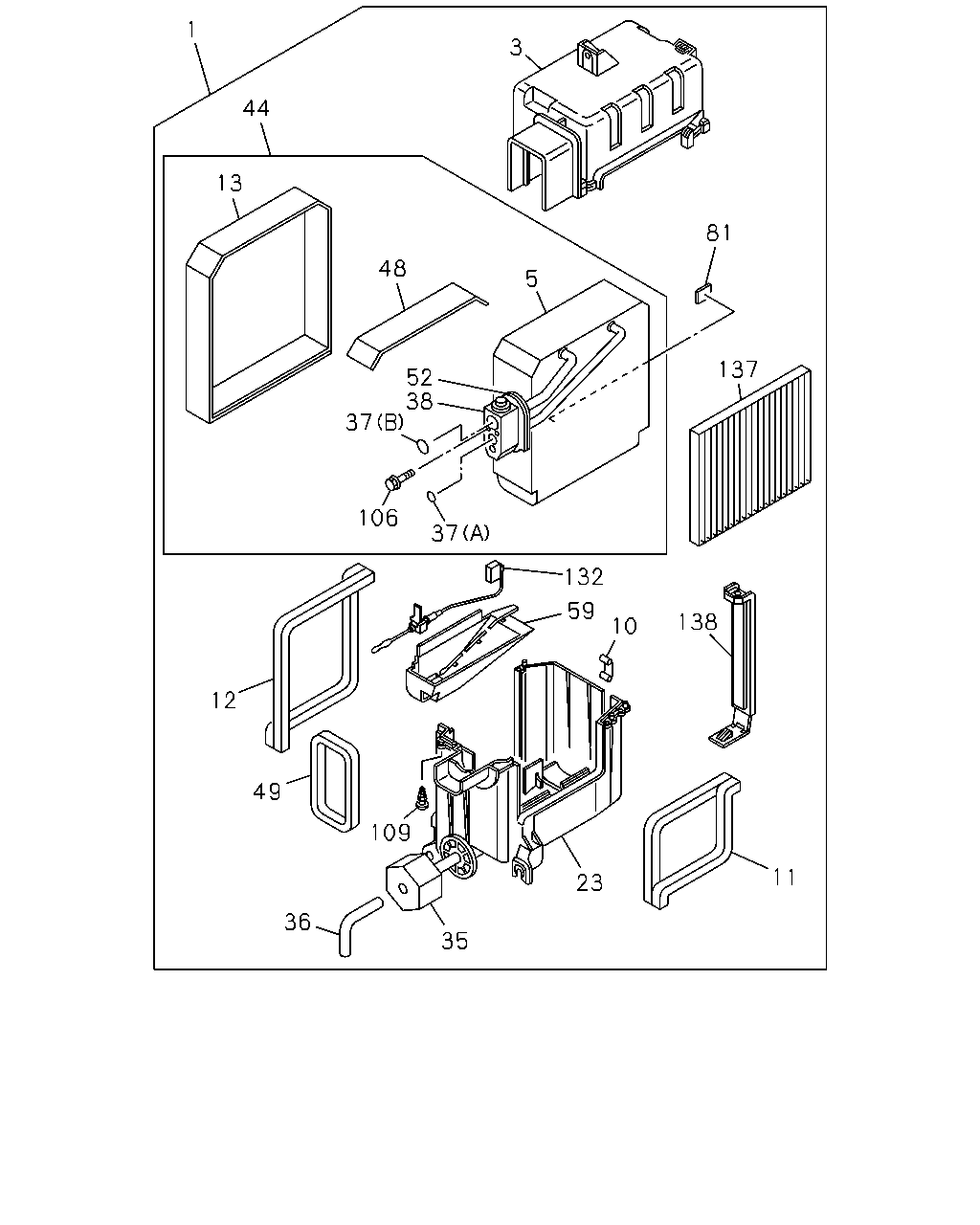

çizim 158378
1 3 44 13 81 48 5 137 52 38 37 106 37 132 59 138 10 12 49 109 11 23 36 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.210 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98086-171-0 01 1 0805- ● ● ● ● ● ● ● ●
1 09.210 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM> 		8-98086-169-0 01 1 0805- ● ● ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98055-333-0 01 1 0805- ● ● ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM> 		8-98055-332-0 01 1 0805- ● ● ● ● ● ● ● ●
5 09.210 EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98063-687-0 01 1 0805- ● ● ● ● ● ● ● ●
10 09.211 CLIP; EVAP CASE
AIR CONDITIONER MANUAL CONT(C60) 09.262 		8-98088-089-0 01 1 0805- ● ● ● ● ● ● ● ●
11 09.211 LINING; EVAP A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-159-0 01 1 0805- ● ● ● ● ● ● ● ●
12 09.211 LINING; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-98063-684-0 01 1 0805- ● ● ● ● ● ● ● ●
13 09.211 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-98055-345-0 01 1 0805- ● ● ● ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98055-337-0 01 1 0805- ● ● ● ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM> 		8-98055-336-0 01 1 0805- ● ● ● ● ● ● ● ●
35 09.211 GROMMET; EVAP,LOW
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-157-0 01 1 0805- ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97370-352-0 01 1 0805- ● ● ● ● ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97321-154-0 01 1 0805- ● ● ● ● ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-155-0 01 1 0805- ● ● ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98063-690-0 01 1 0805- ● ● ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-235-0 01 1 0805- ● ● ● ● ● ● ● ●
48 09.214 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-228-0 01 1 0805- ● ● ● ● ● ● ● ●
49 09.211 GROMMET; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-158-1 01 1 0805- ● ● ● ● ● ● ● ●
52 09.242 GROMMET; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-152-0 01 1 0805- ● ● ● ● ● ● ● ●
59 09.211 LINING; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-146-0 01 1 0805- ● ● ● ● ● ● ● ●
81 09.211 CLIP; THERMOSTAT A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-161-0 01 1 0805- ● ● ● ● ● ● ● ●
106 09.214 BOLT; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-395-0 02 1 0805- ● ● ● ● ● ● ● ●
109 09.211 BOLT; EVAP
AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-98071-323-0 04 1 0805- ● ● ● ● ● ● ● ●
132 09.210 AMPLIFIER; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-325-0 01 1 0805- ● ● ● ● ● ● ● ●
137 09.210 FILTER; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98008-442-0 01 1 0805- ● ● ● ● ● ● ● ●
138 09.211 COVER; CASE
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98063-694-0 01 1 0805- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
