Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

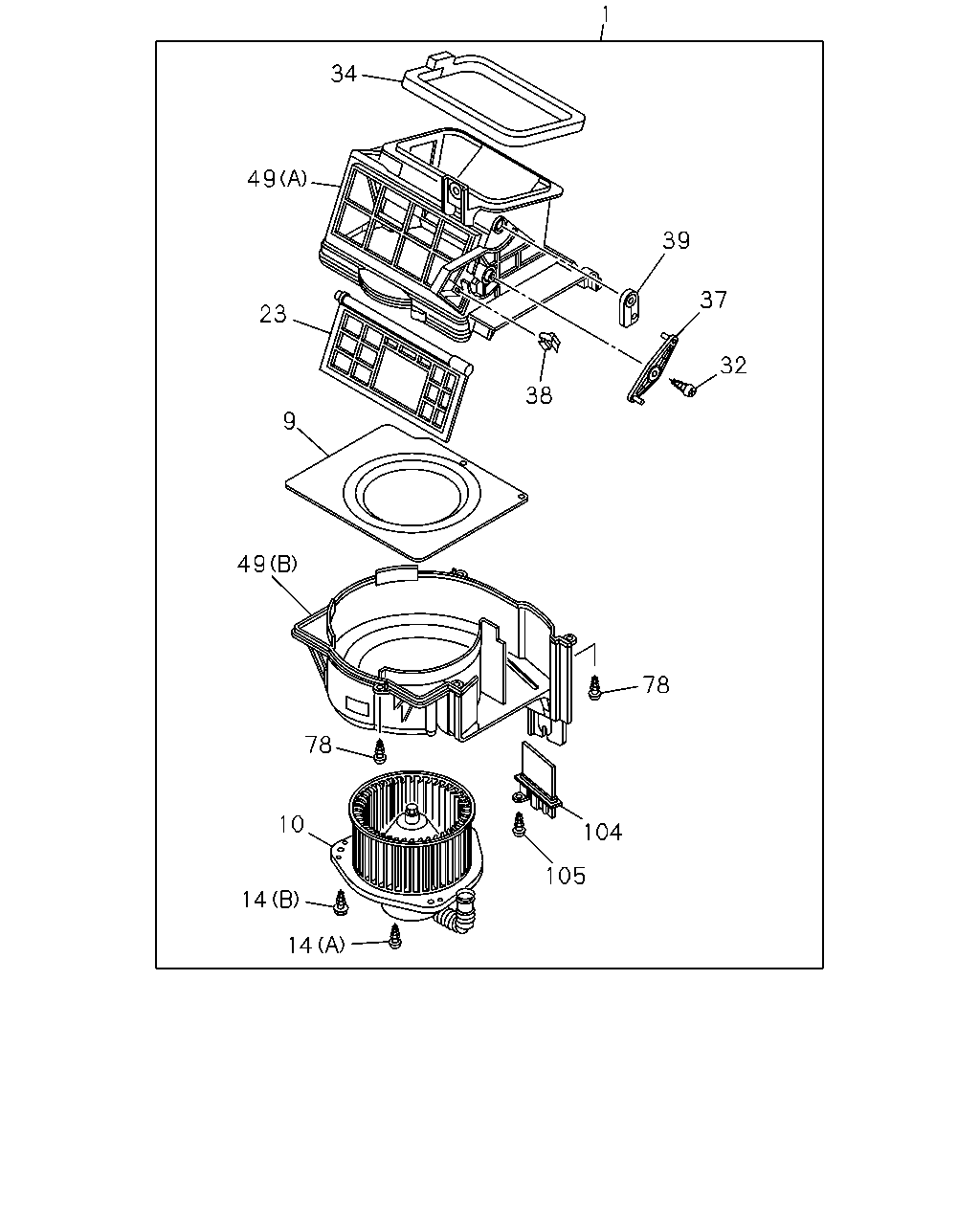

8-73 — BLOWER UNIT
(#74830) — 16 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFB5SF
D - TFB5SK
E - TFB5WF
F - TFS5C
G - TFS5SK
H - TFS5W
1
34
49
39
37
23
32
38
9
49
78
78
10
104
105
14
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
08.855 BLOWER ASM
8-98070-130-0
01
1
0805-
●
●
●
●
●
●
●
●
9
08.856 GUIDE; BELL MOUTH HTR
8-98072-803-0
01
1
0805-
●
●
●
●
●
●
●
●
10
08.855 MOTOR ASM; FAN,BLOWER UNIT
8-98008-893-0
01
1
0805-
●
●
●
●
●
●
●
●
14
08.857 SCREW; COVER TO CASE
(B)
8-98070-134-0
03
1
0805-
●
●
●
●
●
●
●
●
14
08.857 SCREW; COVER TO CASE
(A)
8-98070-135-0
01
1
0805-
●
●
●
●
●
●
●
●
23
08.857 SHUTTER; BLOWER UNIT
8-98039-835-0
01
1
0805-
●
●
●
●
●
●
●
●
32
08.856 SCREW; LEVER
8-98070-136-0
01
1
0805-
●
●
●
●
●
●
●
●
34
08.856 LINING; BLOWER UNIT
8-97321-269-0
01
1
0805-
●
●
●
●
●
●
●
●
37
09.786 LEVER; MODE LEVER
8-97321-268-0
01
1
0805-
●
●
●
●
●
●
●
●
38
09.787 CLIP; BLOWER UNIT
8-97321-274-0
01
1
0805-
●
●
●
●
●
●
●
●
39
09.786 LEVER; SHUTTER,BLOWER UNIT
8-97321-267-0
01
1
0805-
●
●
●
●
●
●
●
●
49
08.857 CASE; BLOWER UNIT
(A)
8-97321-263-0
01
1
0805-
●
●
●
●
●
●
●
●
49
08.857 CASE; BLOWER UNIT
(B)
8-97321-264-0
01
1
0805-
●
●
●
●
●
●
●
●
78
08.857 SCREW; CASE TO CASE
8-98070-135-0
05
1
0805-
●
●
●
●
●
●
●
●
104
08.855 RESISTOR; BLOWER UNIT
8-98049-394-0
01
1
0805-
●
●
●
●
●
●
●
●
105
08.855 SCREW; RESISTOR
08.857
8-98070-135-0
02
1
0805-
●
●
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
