Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶

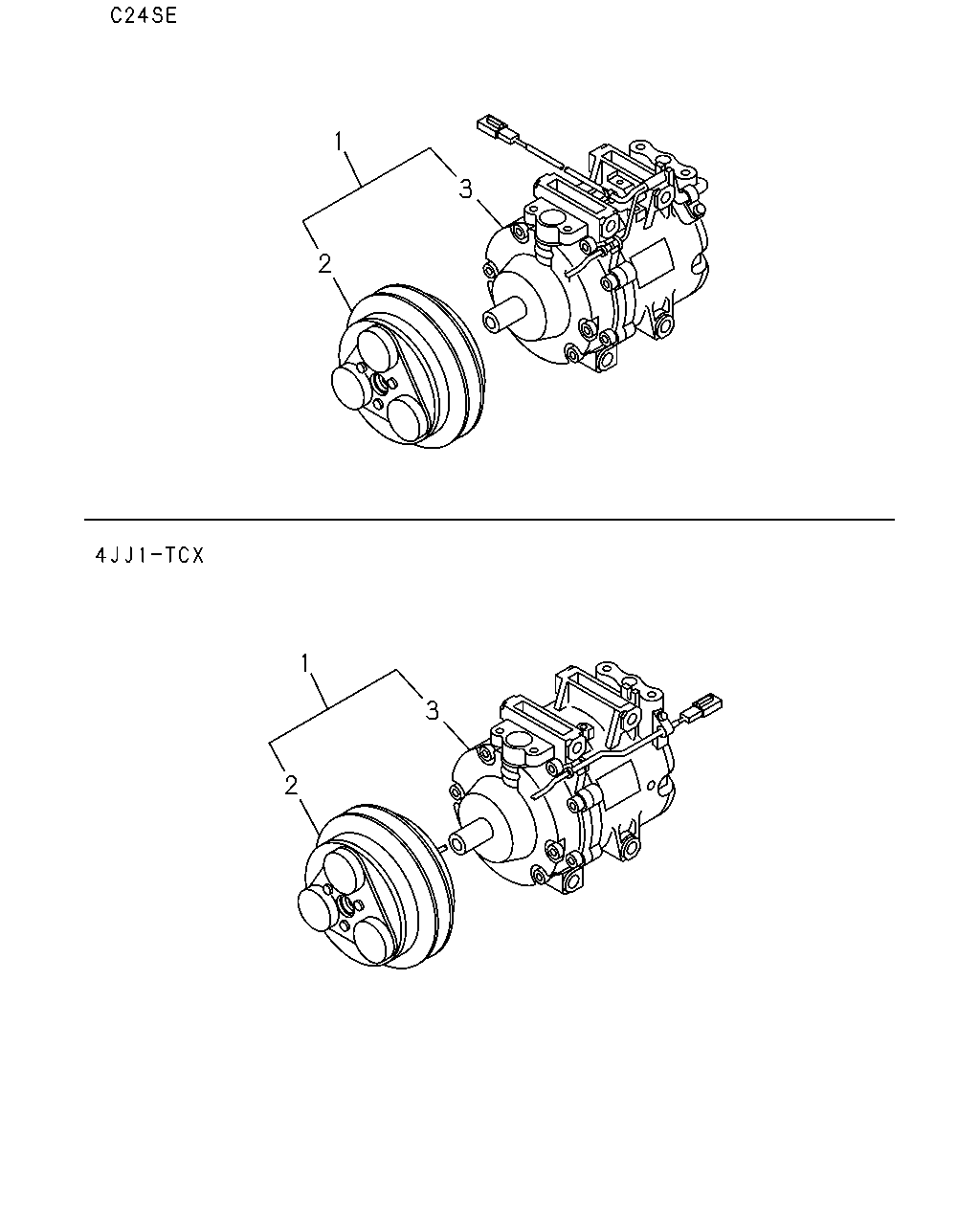

8-71 — COMPRESSOR; AIR CONDITIONING
(#74829) — 10 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFB5SF
D - TFB5SK
E - TFB5WF
F - TFS5C
G - TFS5SK
H - TFS5W
1
3
2
1
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
09.170 COMPRESSOR ASM; A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)
8-97370-661-3
01
1
0805-1109
●
●
●
●
●
●
●
●
1
09.170 COMPRESSOR ASM; A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)
8-98199-292-1
01
1
1110-
●
●
●
●
●
●
●
●
1
09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)
8-97369-417-0
01
1
0805-1003
●
●
2
09.188 CLUTCH; MAGNET,A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)
8-97372-920-0
01
1
0805-1402
●
●
●
●
●
●
●
●
2
09.188 CLUTCH; MAGNET,A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)
8-98252-777-0
01
1
1403-
●
●
●
●
●
●
●
●
2
09.188 CLUTCH; MAGNET,A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)
8-97371-581-0
01
1
0805-1003
●
●
3
09.170 COMPRESSOR ASM; A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)
8-98070-188-0
01
1
0805-1109
●
●
●
●
●
●
●
●
3
09.170 COMPRESSOR ASM; A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)
8-98204-874-0
01
1
1110-1402
●
●
●
●
●
●
●
●
3
09.170 COMPRESSOR ASM; A/C
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)
8-98258-533-0
01
1
1403-
●
●
●
●
●
●
●
●
3
09.170 COMPRESSOR ASM; A/C
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)
8-97371-578-0
01
1
0805-1003
●
●
