◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#74828) — 17 parça

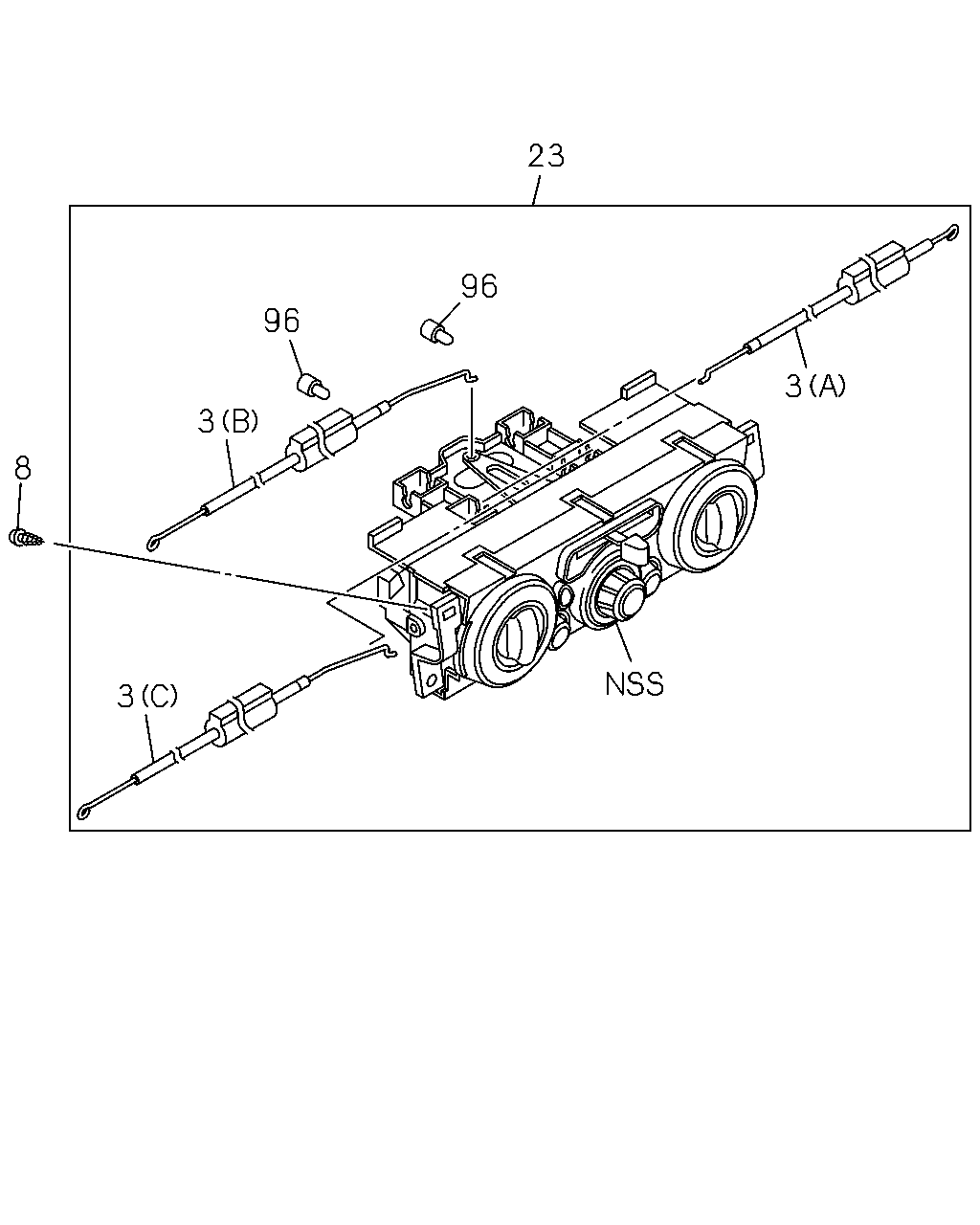

çizim 185863
23 96 96 3 3 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98029-143-0 01 1 0805- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) TEMP 		8-98029-144-0 01 1 0805- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-145-0 01 1 0805- ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0805-1004 ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER 8-98038-111-0 01 1 0805- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98038-111-0 01 1 0805- ● ● ●
23 08.852 BEZEL; CONT LEVER 8-98038-112-0 01 1 0805-0809 ● ● ●
23 08.852 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> 		8-98038-112-0 01 1 0805-0809 ●
23 08.852 BEZEL; CONT LEVER 8-98038-112-0 01 1 0810-1007 ● ● ●
23 08.852 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> 		8-98038-112-0 01 1 0810-1007 ● ● ●
23 08.852 BEZEL; CONT LEVER 8-98038-112-0 01 1 1008- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> 		8-98038-130-0 01 1 0805-0809 ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> 		8-98038-130-0 01 1 0810-0910 ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> 		8-98038-130-0 01 1 0911-1003 ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> 		8-98038-129-0 01 1 0805- ● ● ●
96 08.852 BULB ASM; BEZEL 8-98029-142-0 02 1 0805- ● ● ● ● ● ● ● ●
