Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

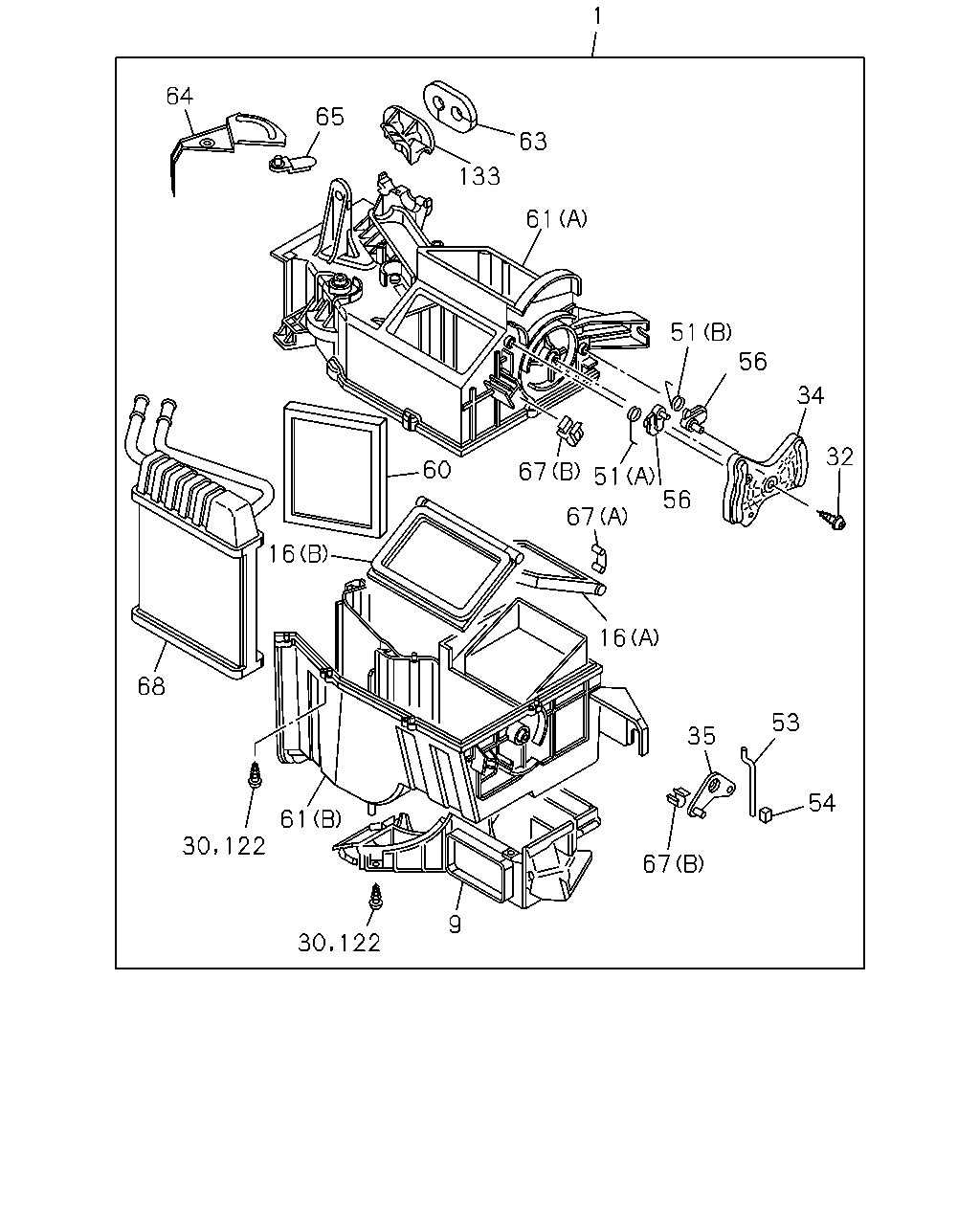

8-60 — HEATER UNIT; FRONT
(#74827) — 30 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFB5SF
D - TFB5SK
E - TFB5WF
F - TFS5C
G - TFS5SK
H - TFS5W
1
64
65
63
133
61
51
56
34
32
60
67
51
56
67
16
16
68
53
35
54
61
122
67
9
122
30
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
08.845 HEATER UNIT
PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C>
8-98086-150-0
01
1
0805-
●
●
●
●
●
●
●
●
1
08.845 HEATER UNIT
EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW>
8-98086-151-0
01
1
0805-
●
●
●
●
●
●
1
08.845 HEATER UNIT
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW>
8-98086-152-0
01
1
0805-
●
●
1
08.845 HEATER UNIT
REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW>
8-98086-153-0
01
1
0805-
●
●
9
08.854 DUCT; HTR UNIT
8-97321-338-0
01
1
0805-
●
●
●
●
●
●
9
08.854 DUCT; HTR UNIT
EXC. REAR HEATER DUCT<S8C>
8-97321-338-0
01
1
0805-
●
●
9
08.854 DUCT; HTR UNIT
REAR HEATER DUCT<S8C>
8-97364-987-0
01
1
0805-
●
●
16
09.786 SHUTTER; HTR UNIT,CENTER UPR
08.845 (B)
8-97321-340-0
01
1
0805-
●
●
●
●
●
●
●
●
16
09.786 SHUTTER; HTR UNIT,CENTER UPR
(A)
8-97321-342-0
01
1
0805-
●
●
●
●
●
●
●
●
30
08.845 SCREW; HTR UNIT
09.786
8-98071-323-0
08
1
0805-
●
●
●
●
●
●
●
●
32
08.852 SCREW; HTR UNIT
PARKING BRAKE FLOOR<7XW> 08.845
8-98071-324-0
02
1
0805-
●
●
●
●
●
●
●
●
32
08.852 SCREW; HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW> 08.845
8-98071-324-0
03
1
0805-
●
●
●
●
●
●
34
09.786 LEVER; SHUTTER,HTR UNIT
8-97321-343-0
01
1
0805-
●
●
●
●
●
●
●
●
35
08.852 LEVER; SHUTTER,HTR UNIT
EXC. PARKING BRAKE FLOOR<7XW>
8-97321-344-0
01
1
0805-
●
●
●
●
●
●
51
08.846 SPRING; HTR UNIT
(A)
8-97321-368-0
01
1
0805-
●
●
●
●
●
●
●
●
51
08.846 SPRING; HTR UNIT
(B)
8-97321-369-0
01
1
0805-
●
●
●
●
●
●
●
●
53
08.866 ROD; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW>
8-97321-345-0
01
1
0805-
●
●
●
●
●
●
54
08.854 CLIP; SHUTTER LEVER
EXC. PARKING BRAKE FLOOR<7XW>
8-97321-371-0
01
1
0805-
●
●
●
●
●
●
56
09.786 LEVER; SHUTTER,HTR UNIT
8-97321-341-0
02
1
0805-
●
●
●
●
●
●
●
●
60
08.854 DOOR; MIX,HTR UNIT
8-97333-330-0
01
1
0805-
●
●
●
●
●
●
●
●
61
08.854 CASE; HTR UNIT
(A)
8-97333-326-0
01
1
0805-
●
●
●
●
●
●
●
●
61
08.854 CASE; HTR UNIT
(B)
8-97333-327-0
01
1
0805-
●
●
●
●
●
●
●
●
63
08.856 LINING; HTR UNIT
8-97333-328-0
01
1
0805-
●
●
●
●
●
●
●
●
64
09.786 LEVER; MIX,DOOR
8-98072-806-0
01
1
0805-
●
●
●
●
●
●
●
●
65
09.786 LEVER; MIX,DOOR
8-97333-331-0
01
1
0805-
●
●
●
●
●
●
●
●
67
08.854 CLIP; HTR UNIT
09.787 (B)
8-97321-274-0
02
1
0805-
●
●
●
●
●
●
●
●
67
08.854 CLIP; HTR UNIT
09.262 (A)
8-98088-089-0
01
1
0805-
●
●
●
●
●
●
●
●
68
08.854 CORE; HTR UNIT
8-97333-329-0
01
1
0805-
●
●
●
●
●
●
●
●
122
08.845 SCREW; DUCT
09.786
8-98071-323-0
02
1
0805-
●
●
●
●
●
●
●
●
133
08.845 CLIP; PIPE
8-97321-366-0
01
1
0805-
●
●
●
●
●
●
●
●
