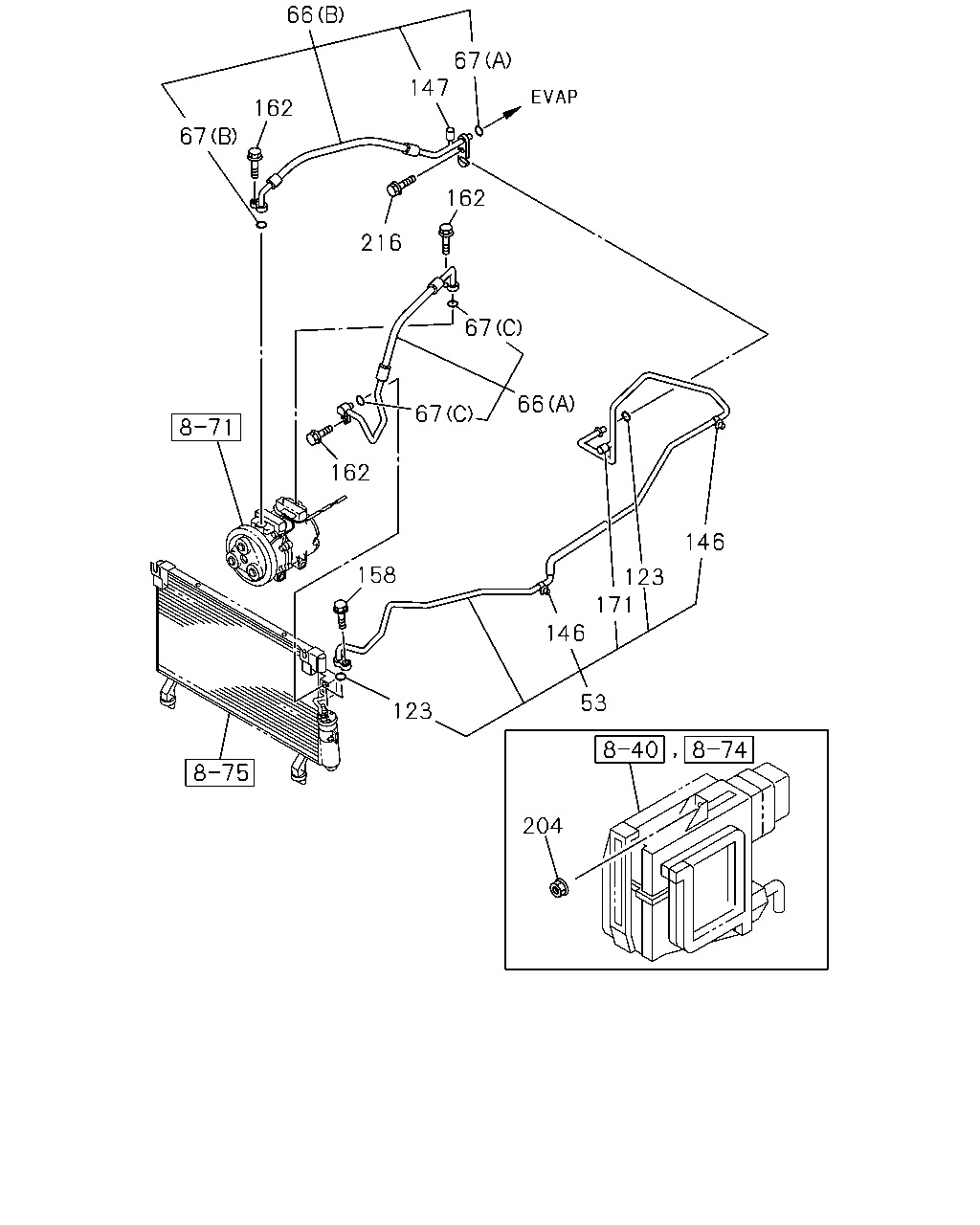

8-52 — PIPING; AIR CONDITIONING (#74826) — 48 parça

66 67 147 162 67 162 216 67 66 67 162 146 158 123 171 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	0805-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0805-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0805-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-526-0	01	1	0805-1003				●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-535-0	01	1	0805-1003				●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0805-1003	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	1004-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0805-1003	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	1004-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0805-1003	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	1004-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0805-1003	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	1004-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	01	1	0805-1003				●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0805-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	01	1	0805-1003				●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	03	1	0805-1003				●	●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0805-1003	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	1004-	●	●	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0805-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0805-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	0805-	●	●	●	●	●	●	●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0805-	●	●	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0805-	●	●	●	●	●	●	●	●

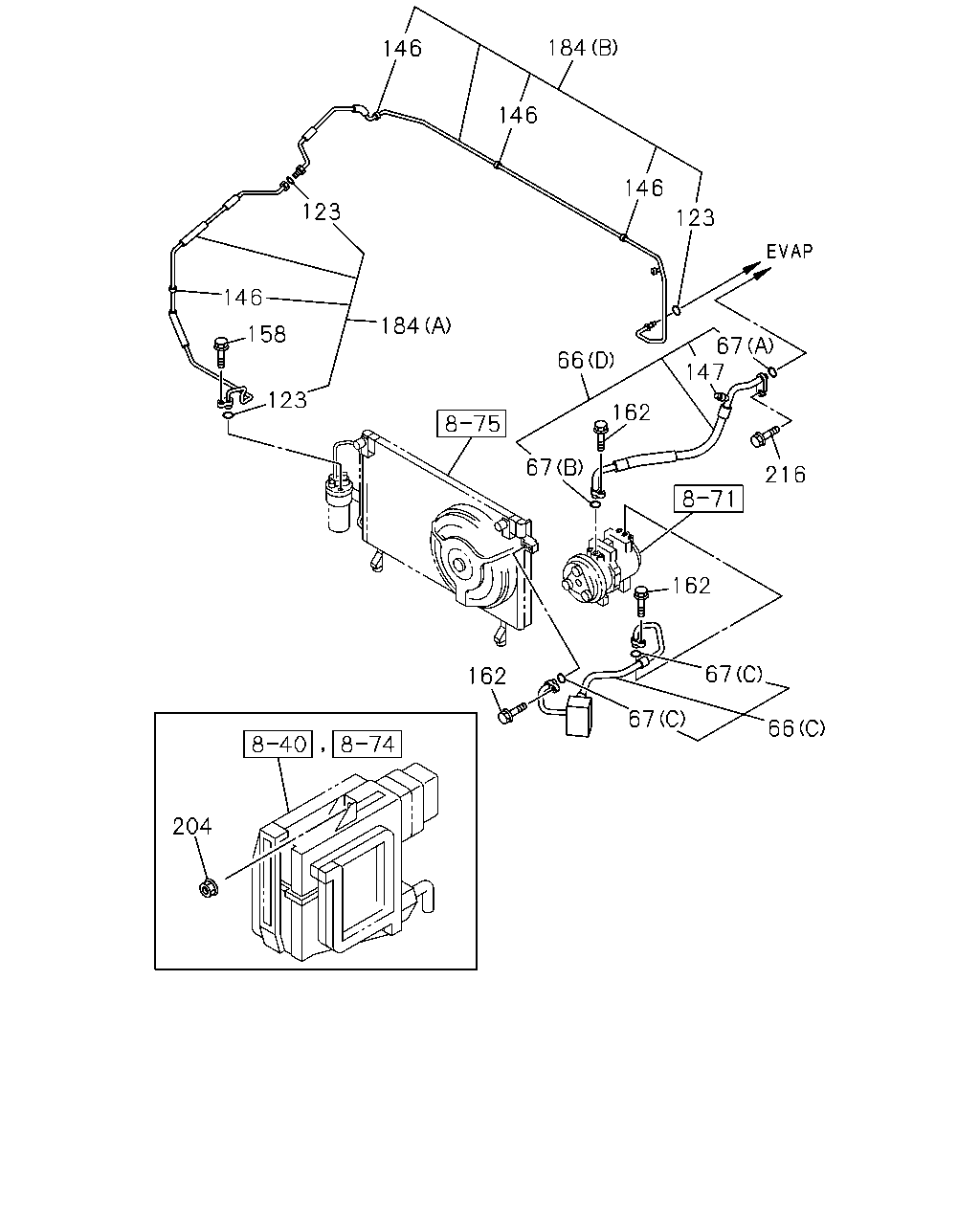

184 146 146 146 123 123 146 184 158 67 147 66 123 162 67 216 162 67 162 67 66 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	0805-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	0805-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-526-0	01	1	0805-1003				●	●
66	09.225 HOSE; FLEX,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-535-0	01	1	0805-1003				●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	0805-1003	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	1004-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	0805-1003	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	1004-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	0805-1003	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	1004-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	0805-1003	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	1004-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	01	1	0805-1003				●	●
146	09.196 CLIP; RECEIVER PIPE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	0805-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	01	1	0805-1003				●	●
146	09.196 CLIP; RECEIVER PIPE C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	03	1	0805-1003				●	●
147	09.242 CAP; FLEX HOSE C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	0805-1003	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	1004-	●	●	●	●	●	●	●	●
158	09.220 BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0805-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0805-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97248-979-1	01	1	0805-1003				●	●
184	09.220 PIPE; PIPE TO EVAP C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98089-489-0	01	1	0805-1003				●	●
204	09.216 NUT 08.915 M6 FLANGE	8-98055-704-0	02	1	0805-	●	●	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0805-	●	●	●	●	●	●	●	●
