Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#74825) — 28 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFB5SF
D - TFB5SK
E - TFB5WF
F - TFS5C
G - TFS5SK
H - TFS5W
◀
[850A] 4JJ1-TCX (14 parça)
[850A] C24SE (14 parça)
▶

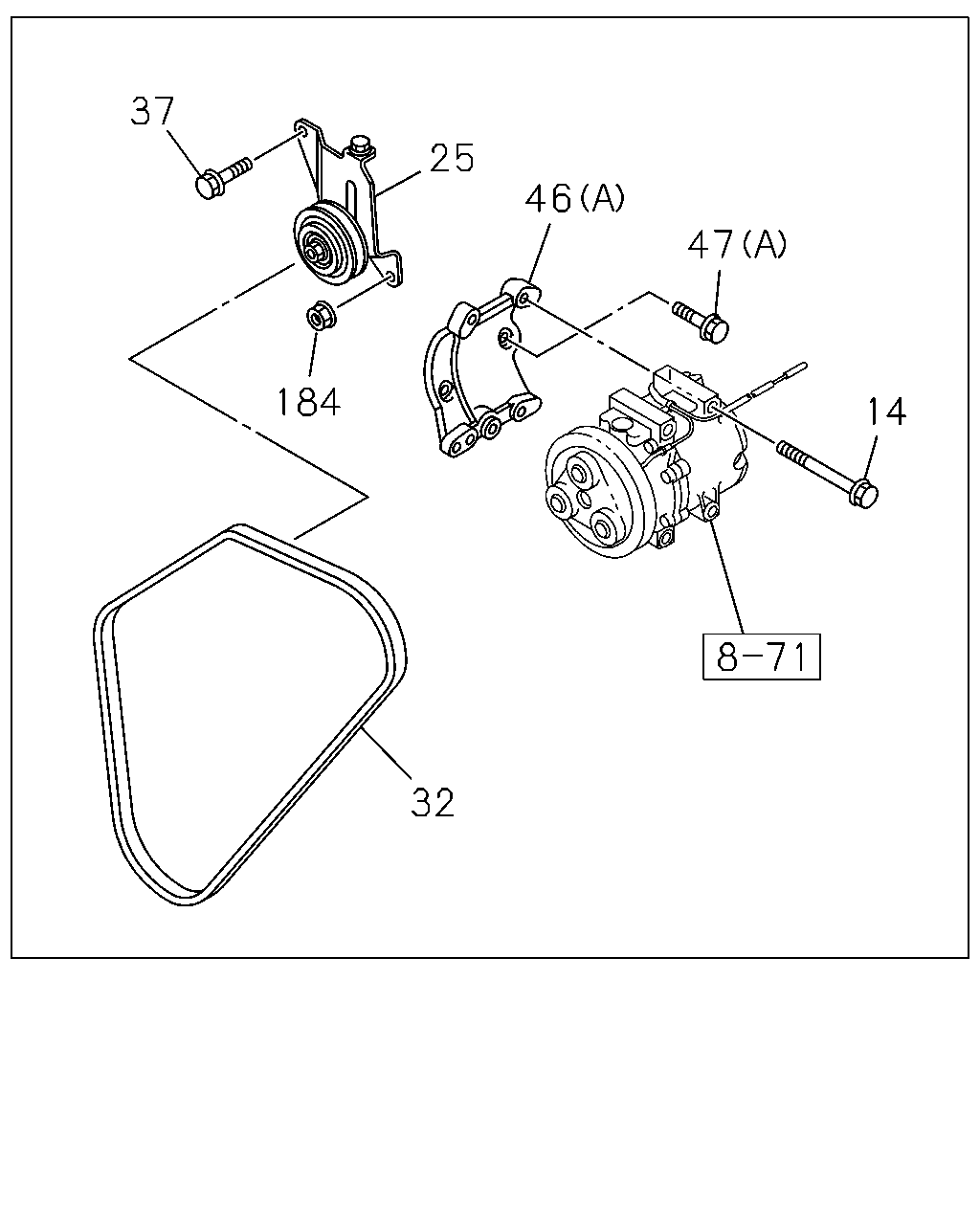

37
25
46
47
184
14
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
14
09.171 BOLT; CMPR
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE
0-28151-000-0
04
1
0805-1003
●
●
●
●
●
●
●
●
14
09.171 BOLT; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE
0-28151-000-0
04
1
1004-
●
●
●
●
●
●
●
●
25
09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE
8-98051-011-0
01
1
0805-
●
●
●
●
●
●
●
●
25
09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)
8-92066-142-0
01
1
0805-1003
●
●
32
01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) BANDO
8-97944-138-0
01
1
0805-
●
●
●
●
●
●
●
●
32
01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI
8-98088-385-0
01
1
0805-
●
●
●
●
●
●
●
●
32
01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) L=918
8-92063-696-0
01
1
0805-1003
●
●
37
09.173 BOLT; PULLEY BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE
0-28650-820-0
01
1
0805-
●
●
●
●
●
●
●
●
46
09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)
8-98039-618-0
01
1
0805-
●
●
●
●
●
●
●
●
46
09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 09.180 (B)
8-92065-518-0
01
1
0805-1003
●
●
47
09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE
0-28650-825-0
03
1
0805-
●
●
●
●
●
●
●
●
47
09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE
8-98049-562-0
01
1
0805-
●
●
●
●
●
●
●
●
47
09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X35 FLANGE
0-28751-035-0
03
1
0805-1003
●
●
184
09.242 NUT; A/C PIPE BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE
0-91180-208-0
01
1
0805-
●
●
●
●
●
●
●
●

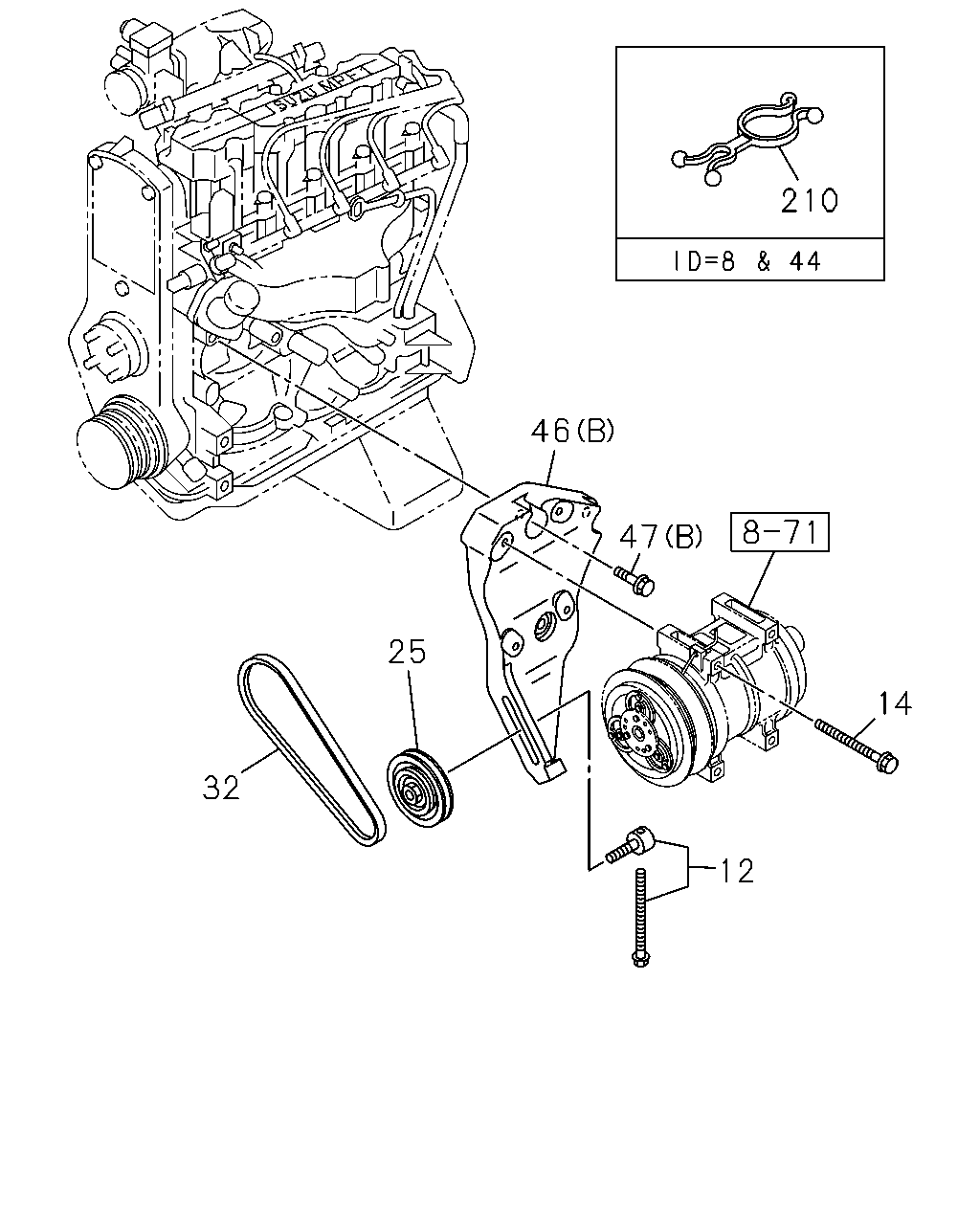

210
46
47
25
14
32
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
12
09.181 BOLT; ADJ,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)
8-92066-139-0
01
1
0805-1003
●
●
14
09.171 BOLT; CMPR
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE
0-28151-000-0
04
1
0805-1003
●
●
●
●
●
●
●
●
14
09.171 BOLT; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE
0-28151-000-0
04
1
1004-
●
●
●
●
●
●
●
●
25
09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE
8-98051-011-0
01
1
0805-
●
●
●
●
●
●
●
●
25
09.180 PULLEY ASM; IDLER,CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)
8-92066-142-0
01
1
0805-1003
●
●
32
01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) BANDO
8-97944-138-0
01
1
0805-
●
●
●
●
●
●
●
●
32
01.066 BELT; A/C CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI
8-98088-385-0
01
1
0805-
●
●
●
●
●
●
●
●
32
01.066 BELT; A/C CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) L=918
8-92063-696-0
01
1
0805-1003
●
●
46
09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A)
8-98039-618-0
01
1
0805-
●
●
●
●
●
●
●
●
46
09.171 BRACKET; CMPR
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 09.180 (B)
8-92065-518-0
01
1
0805-1003
●
●
47
09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE
0-28650-825-0
03
1
0805-
●
●
●
●
●
●
●
●
47
09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) M8X35 FLANGE
8-98049-562-0
01
1
0805-
●
●
●
●
●
●
●
●
47
09.173 BOLT; BRKT TO BODY
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X35 FLANGE
0-28751-035-0
03
1
0805-1003
●
●
210
09.242 CLIP; HARNESS
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 02.559
8-94109-862-0
01
1
0805-1003
●
●
