8-40 — HEATER SYSTEM (#74822) — 32 parça

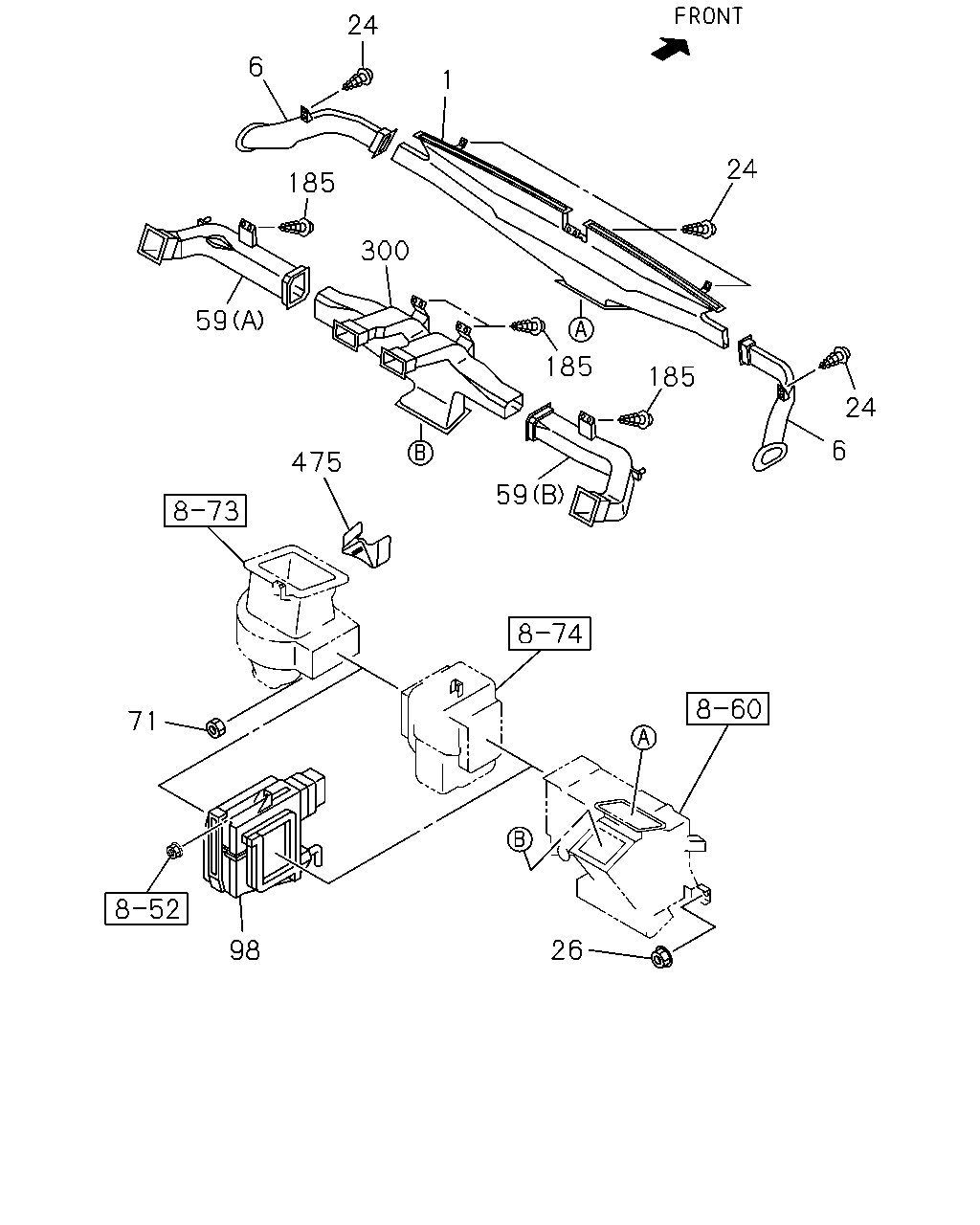

çizim 143796
24 6 1 24 185 300 59 185 185 24 6 475 59 71 26 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.779 NOZZLE; DEFROSTER,INST PNL 8-97235-773-1 01 1 0805- ● ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-878-0 01 1 0805- ● ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-874-0 01 1 0805- ● ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 05 1 0805-1003 ● ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 05 1 1004- ● ● ● ● ● ● ● ●
26 08.845 NUT; HTR
08.915 M6 FLANGE 		8-98055-704-0 04 1 0805- ● ● ● ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98007-083-0 01 1 0805- ● ● ● ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98007-084-0 01 1 0805- ● ● ● ● ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
08.915 M6 FLANGE 		8-98055-704-0 03 1 0805- ● ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0805- ● ● ● ● ● ● ● ●
185 09.262 SCREW; VENT DUCT
08.083 M5X16 TAPPING 		8-98061-685-0 04 1 0805-1003 ● ● ● ● ● ● ● ●
185 09.262 SCREW; VENT DUCT
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1004- ● ● ● ● ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-98007-074-0 01 1 0805- ● ● ● ● ● ● ● ●
475 09.277 BRACKET; BLOWER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-97254-449-1 01 1 0805- ● ● ● ●
475 09.277 BRACKET; BLOWER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-97254-449-1 01 1 0805- ●

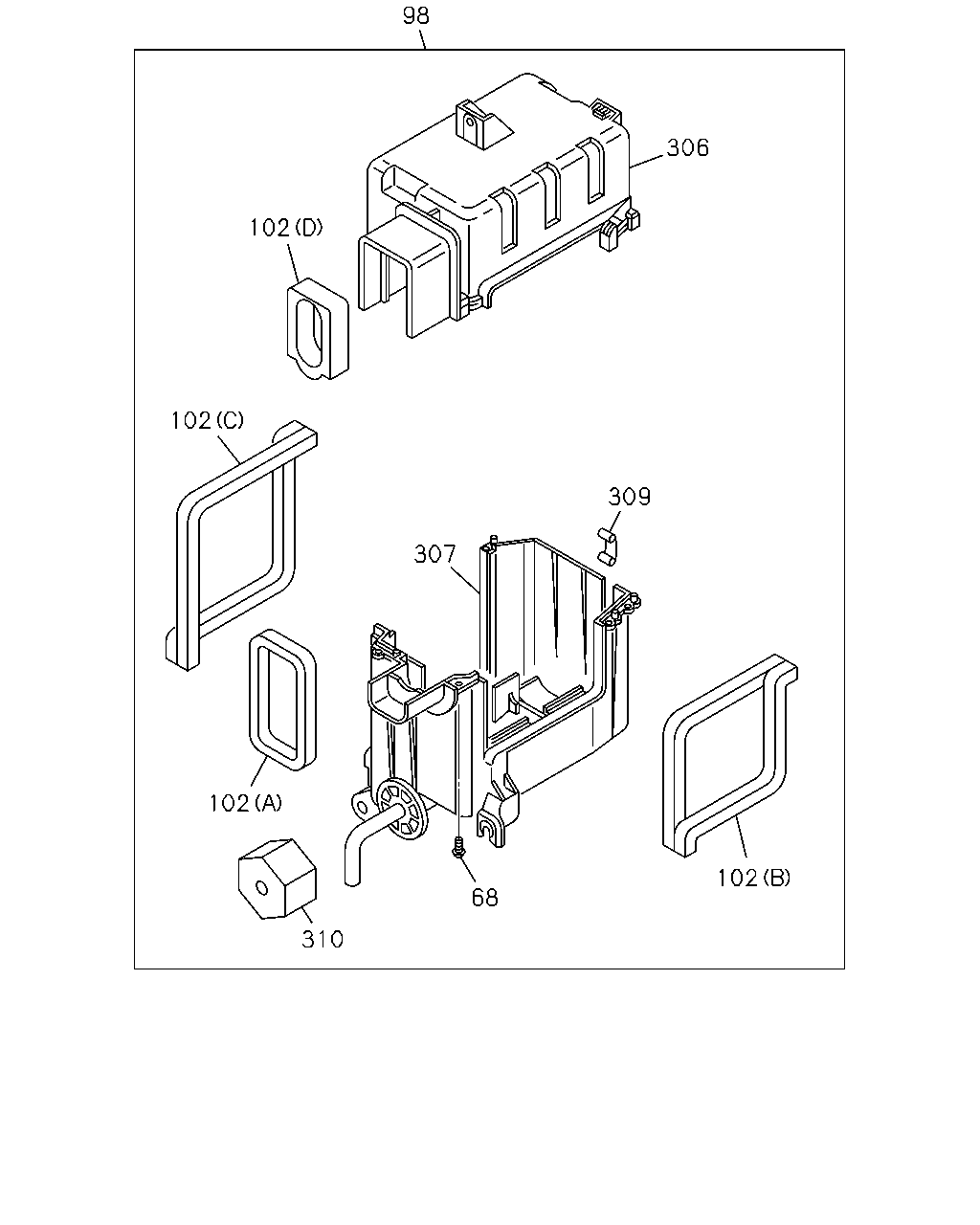

çizim 148020
98 306 102 102 309 307 102 102 68 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
68 09.786 SCREW; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-97321-165-0 04 1 0805- ● ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42) 		8-98086-178-0 01 1 0805- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (A) 		8-97321-158-1 01 1 0805- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (B) 		8-97321-159-0 01 1 0805- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) (D) 		8-97355-831-0 01 1 0805- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 (C) 		8-98063-684-0 01 1 0805- ● ● ● ● ● ● ● ●
306 08.845 CASE; UPR,HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-98055-332-0 01 1 0805- ● ● ● ● ● ● ● ●
307 08.845 CASE; LWR,HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-98055-336-0 01 1 0805- ● ● ● ● ● ● ● ●
309 09.262 CLIP; CASE,HTR DUCT
HEATER & DEFROSTER(C42) 		8-98088-089-0 01 1 0805- ● ● ● ● ● ● ● ●
310 08.845 GROMMET; HTR DUCT
HEATER & DEFROSTER(C42) 09.211 		8-97321-157-0 01 1 0805- ● ● ● ● ● ● ● ●

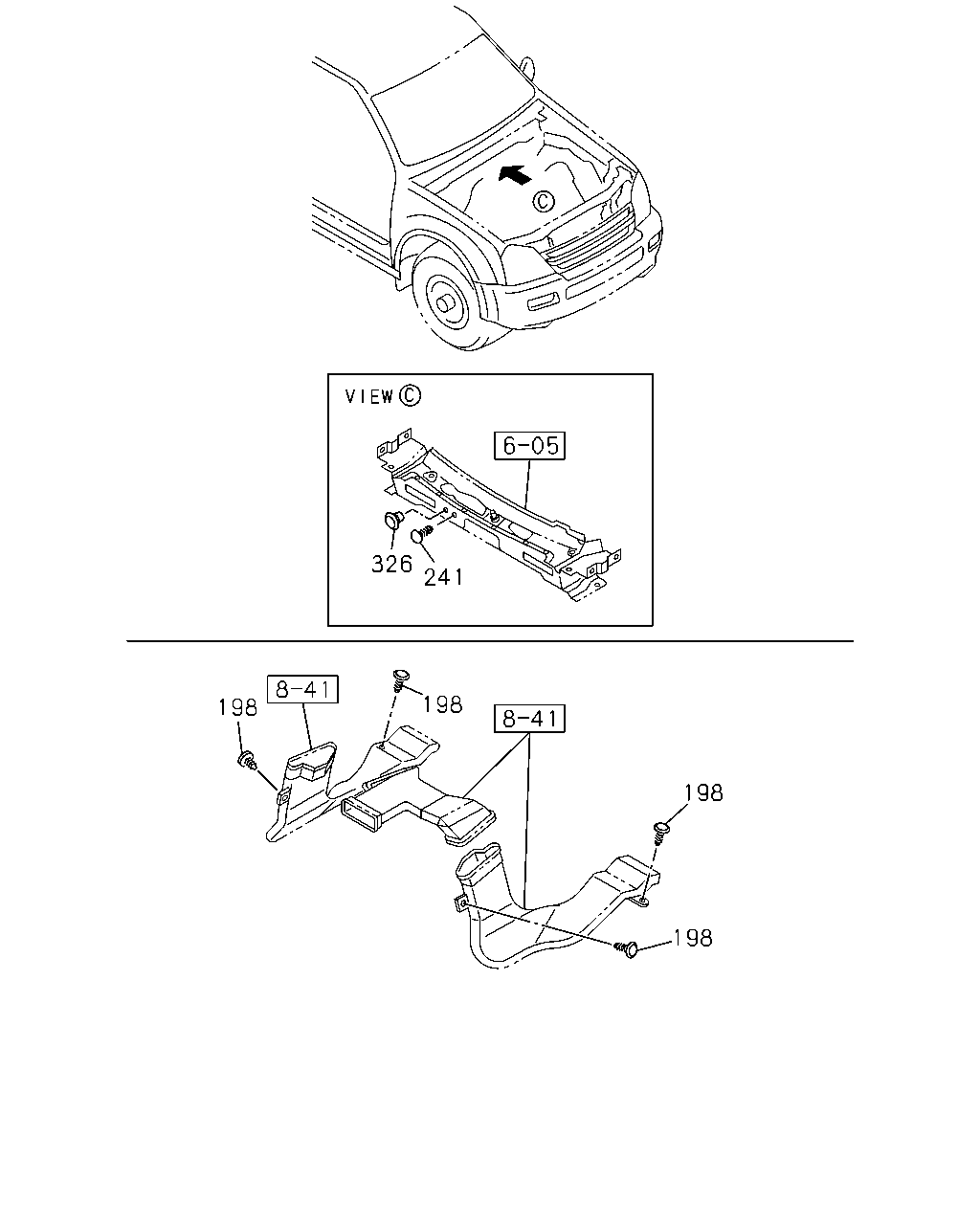

çizim 185861
326 241 198 198 198 198
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
198 09.787 CLIP; DUCT
REAR HEATER DUCT<S8C> 16.800 L=19 BLACK 		8-94363-776-0 04 1 0805- ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
HF V6 ENG(LCA),C24SE ENG(LG1) HEATER & DEFROSTER(C42) 16.067 		8-94279-922-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 16.067 		8-94279-922-0 02 1 0805-1003 ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
HF V6 ENG(LCA),C24SE ENG(LG1) HEATER & DEFROSTER(C42) 16.067 		8-94279-922-0 02 1 1004- ● ● ● ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 16.067 		8-94279-922-0 02 1 1004- ● ● ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 02 1 0805- ● ● ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
HEATER & DEFROSTER(C42) 16.550 OD=12 		9-09956-122-0 02 1 0805- ● ● ● ● ● ● ● ●
