◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#74821) — 82 parça

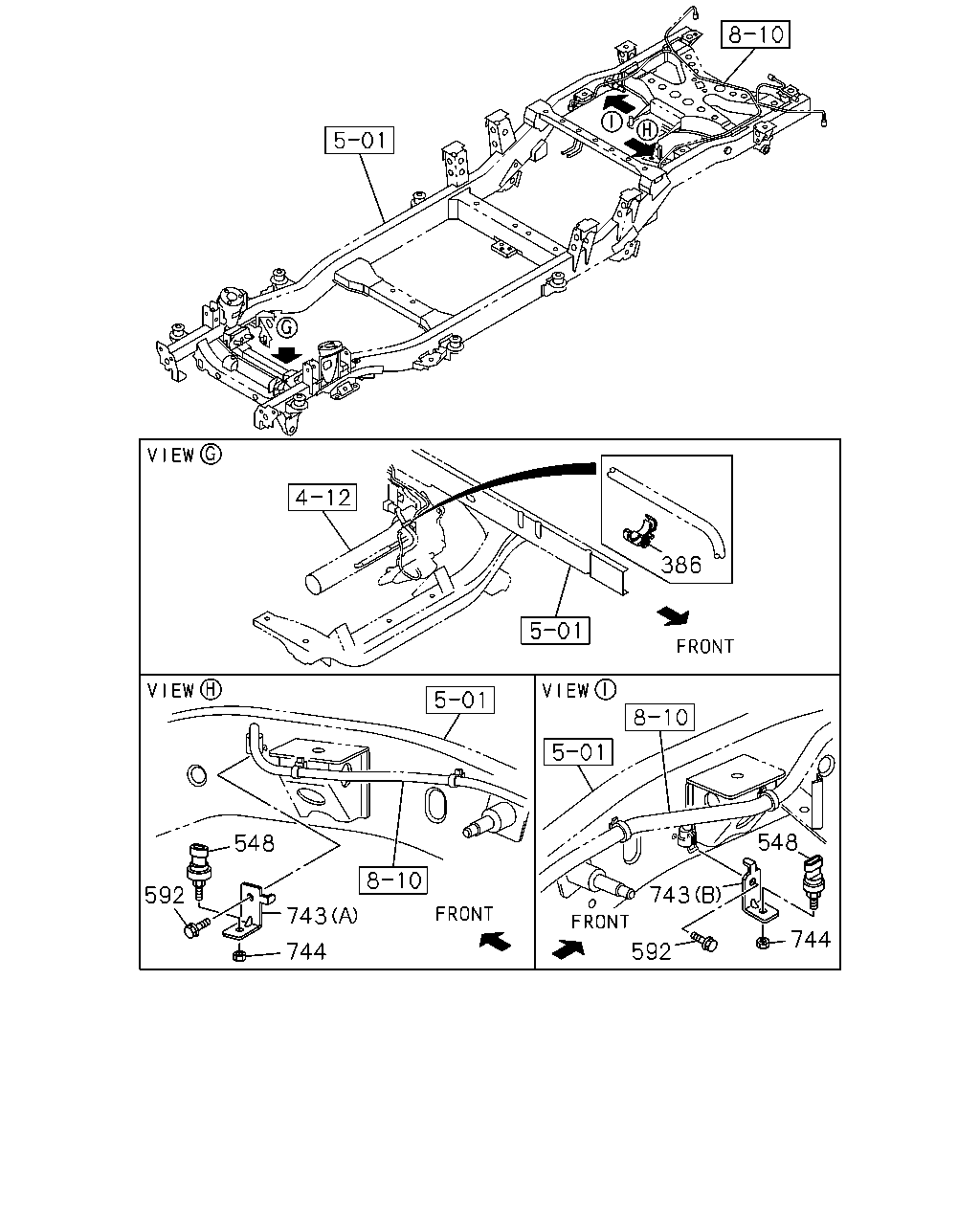

çizim 143740
386 548 548 743 592 743 744 592 744
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
386 02.559 CLIP; HARNESS
4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=7-10 		8-94472-578-0 01 1 0805- ● ● ●
548 03.425 SENSOR; ACCELERATION
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-98004-467-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
548 03.425 SENSOR; ACCELERATION
HF V6 ENG(LCA) 		8-98004-467-0 01 1 1004- ● ● ● ● ● ● ● ●
592 02.490 BOLT; SENSOR
HF V6 ENG(LCA),C24SE ENG(LG1) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
592 02.490 BOLT; SENSOR
HF V6 ENG(LCA) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1004- ● ● ● ● ● ● ● ●
743 09.196 BRACKET; SENSOR
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98052-190-0 01 1 0805- ● ● ● ● ● ● ● ●
743 09.196 BRACKET; SENSOR
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98052-188-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
743 09.196 BRACKET; SENSOR
C24SE ENG(LG1) (A) 		8-98052-188-0 01 1 0805-1003 ● ●
743 09.196 BRACKET; SENSOR
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98052-188-0 01 1 1004- ● ● ● ● ● ● ●
743 09.196 BRACKET; SENSOR
4X4 EXTEND CAB LONG(TFS*CF) HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98052-188-0 01 1 1004- ●
744 09.277 NUT; SENSOR
HF V6 ENG(LCA),C24SE ENG(LG1) 03.604 		8-11082-413-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
744 09.277 NUT; SENSOR
HF V6 ENG(LCA) 03.604 		8-11082-413-0 01 1 1004- ● ● ● ● ● ● ● ●

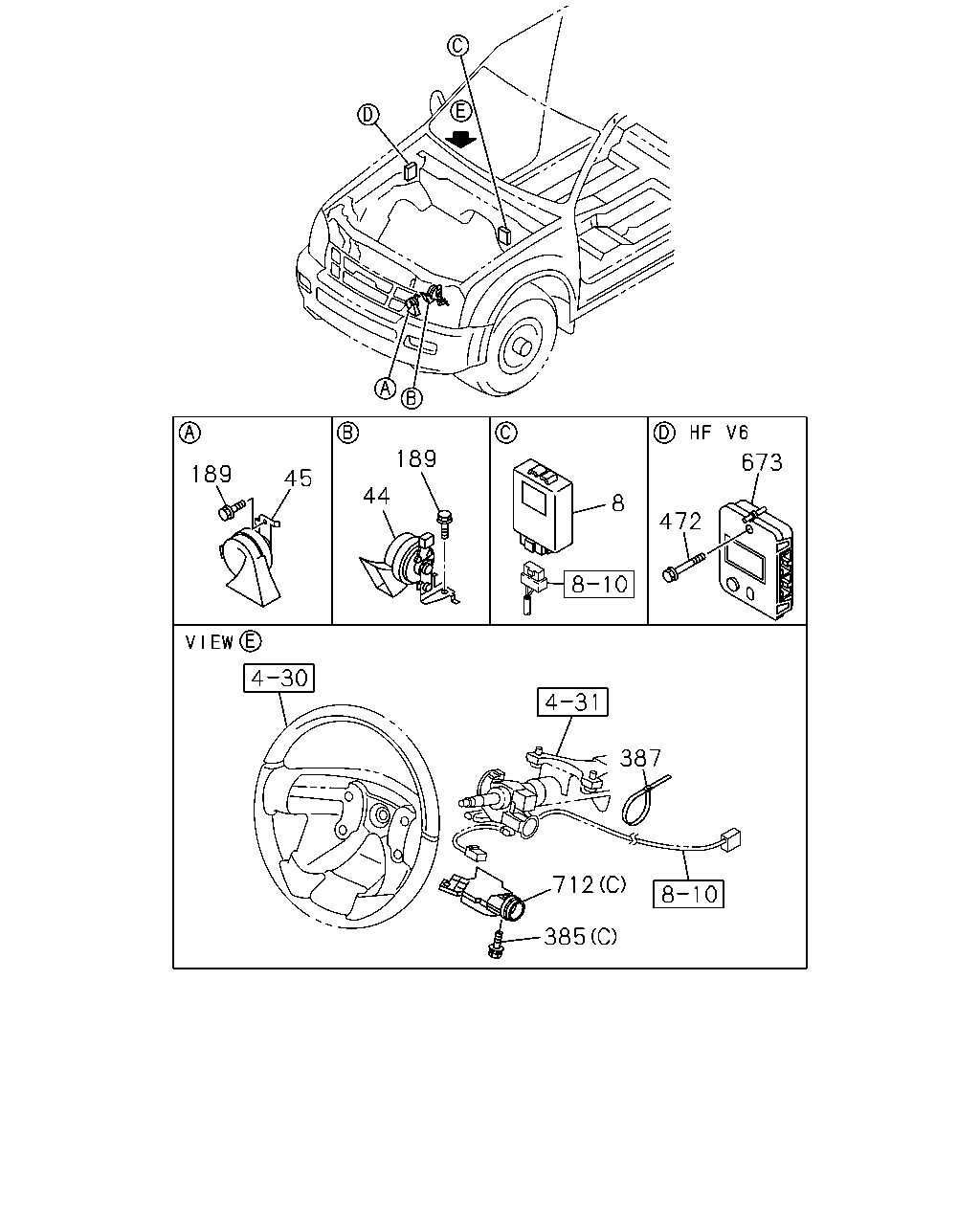

çizim 143927
189 673 189 45 44 8 472 387 712 385
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 12V 		8-97302-100-0 01 1 0805- ● ● ● ● ● ● ● ●
8 16.067 RELAY; WIPER
VARIABLE INTERMITTENT WIPER<CD4> 12V 		8-97302-101-0 01 1 0805- ● ● ●
44 02.810 HORN; HIGH NOTE
07.505 		8-97363-624-0 01 1 0805-1010 ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE 8-98154-696-0 01 1 1011- ● ● ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97374-040-0 01 1 0805- ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0805- ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98061-685-0 02 1 0805-1004 ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0805- ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0805-1003 ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0805-1003 ● ●
387 02.363 CLIP; BAND
L=140 		8-97920-656-0 01 1 0805- ● ● ● ● ● ● ● ●
472 09.766 BOLT; PCM
HF V6 ENG(LCA) 04.866 M6X40 FLANGE 		0-28050-640-0 02 1 0805- ● ● ● ● ● ● ● ●
673 09.765 CONTROL UNIT; PCM
HF V6 ENG(LCA) 		8-98031-147-0 01 1 0805- ● ● ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
HF V6 ENG(LCA) (C) 		8-98114-768-0 01 1 0805- ● ● ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCX ENG(LS0) (A) 		8-98008-412-0 01 1 0805- ● ● ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) 06.500 (B) 		8-97251-755-0 01 1 0805-1003 ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) (A) 		8-97377-323-0 01 1 0805-1003 ● ●

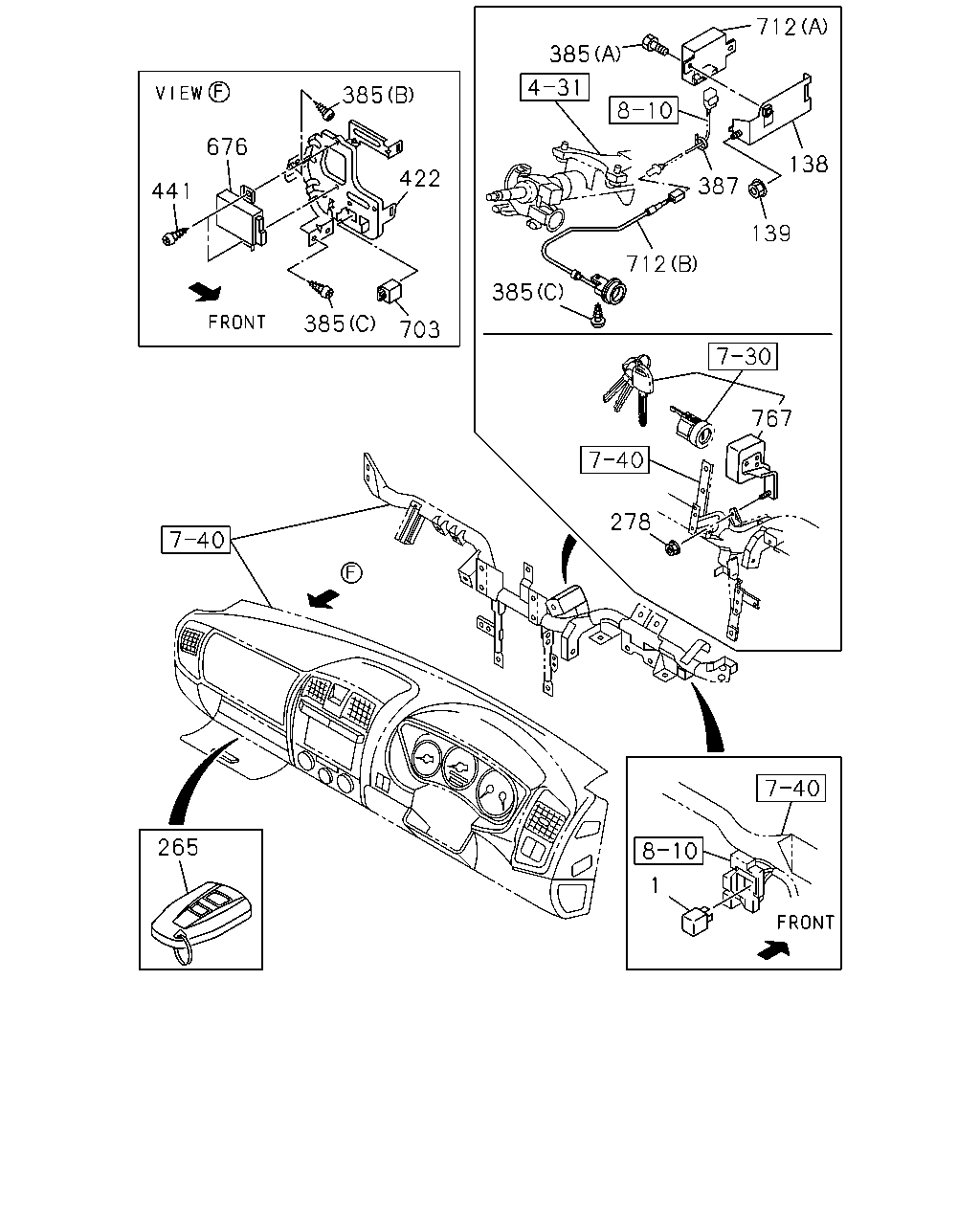

çizim 144130
712 385 385 676 138 422 387 441 139 712 385 385 703 767 278 265 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.575 UNIT; FLASHER
12V DENSO 		8-98032-675-0 01 1 0805-1404 ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
DENSO 		8-97202-225-1 01 1 1405- ● ● ● ● ● ● ● ●
138 02.810 BRACKET; ANTI THEFT CONT
C24SE ENG(LG1) 		8-97357-768-0 01 1 0805-1003 ● ●
139 02.810 NUT; ANTI THEFT BRKT
C24SE ENG(LG1) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0805-1003 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> 		8-98000-035-0 02 1 0805-1003 ● ●
278 03.415 NUT; CONT UNIT
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0805- ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98061-685-0 02 1 0805-1004 ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
08.083 (B) M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0805- ● ● ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 0805-1003 ● ●
385 03.670 BOLT; CONT UNIT
C24SE ENG(LG1) 02.510 (C) M4X12 W/LK&PL WASHER 		0-36230-412-0 01 1 0805-1003 ● ●
387 02.363 CLIP; BAND
L=140 		8-97920-656-0 01 1 0805- ● ● ● ● ● ● ● ●
422 03.415 BRACKET; CONT UNIT 8-97381-410-0 01 1 0805- ● ● ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0805-0809 ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0805-0809 ● ● ●
441 02.575 SCREW; CONT UNIT
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0810-0910 ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0810-0910 ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0911-1003 ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0911-1003 ● ● ●
441 02.575 SCREW; CONT UNIT
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1004-1004 ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1004-1004 ● ● ●
441 02.575 SCREW; CONT UNIT
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ●
441 02.575 SCREW; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> 		8-98053-167-0 01 1 0805- ● ● ● ● ● ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
C24SE ENG(LG1) REMOTE CONT DOOR LOCK<AP5> 		8-98000-034-0 01 1 0805-1003 ● ●
703 09.778 TIMER; DEFOGGER
12V 		8-97301-600-0 01 1 0805-0809 ● ● ● ●
703 09.778 TIMER; DEFOGGER
REAR DEFOGGER<C49> 12V 		8-97301-600-0 01 1 0805-0809 ●
703 09.778 TIMER; DEFOGGER
12V 		8-97301-600-0 01 1 0810-0910 ● ●
703 09.778 TIMER; DEFOGGER
REAR DEFOGGER<C49> 12V 		8-97301-600-0 01 1 0810-0910 ● ● ●
703 09.778 TIMER; DEFOGGER
12V 		8-97301-600-0 01 1 0911-1003 ● ● ● ●
703 09.778 TIMER; DEFOGGER
REAR DEFOGGER<C49> 12V 		8-97301-600-0 01 1 0911-1003 ●
703 09.778 TIMER; DEFOGGER
12V 		8-97301-600-0 01 1 1004- ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
HF V6 ENG(LCA) (C) 		8-98114-768-0 01 1 0805- ● ● ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCX ENG(LS0) (A) 		8-98008-412-0 01 1 0805- ● ● ● ● ● ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) 06.500 (B) 		8-97251-755-0 01 1 0805-1003 ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
C24SE ENG(LG1) (A) 		8-97377-323-0 01 1 0805-1003 ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY 8-98053-170-2 01 1 0805-0809 ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. LOCK END GATE<8CW> 		8-98053-170-2 01 1 0805-0809 ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98053-170-2 01 1 0805-0809 ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. LOCK END GATE<8CW> 		8-98053-170-2 01 1 0810-0910 ● ● ● ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
HF V6 ENG(LCA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK END GATE<8CW> 		8-98053-170-2 01 1 0810-0910 ● ● ● ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98053-170-2 01 1 0810-0910 ● ● ● ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98053-170-2 01 1 0911- ● ● ● ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> AUSTRALIA EQUIPMENT(B13) FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK END GATE<8CW> 		8-98053-170-2 01 1 0911- ● ● ● ● ● ● ● ●
çizim 185869
25 25 25 551 123 123 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
25 02.100 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0805- ● ● ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
123 02.270 RELAY; HTR
03.670 12V YAZAKI 		8-98146-834-0 01 1 0810- ● ● ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.510 12V OMRON 		8-97125-441-1 01 1 0805-0809 ● ● ● ● ● ● ● ●
123 02.270 RELAY; HTR
02.485 12V YAZAKI 		8-97309-294-0 01 1 0805-0809 ● ● ● ● ● ● ● ●
123 02.270 RELAY; HTR
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-294-0 01 1 0810-1003 ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0805- ● ● ● ● ● ● ● ●
551 02.510 RELAY; TRANSMISSION
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
