◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#74820) — 8 parça

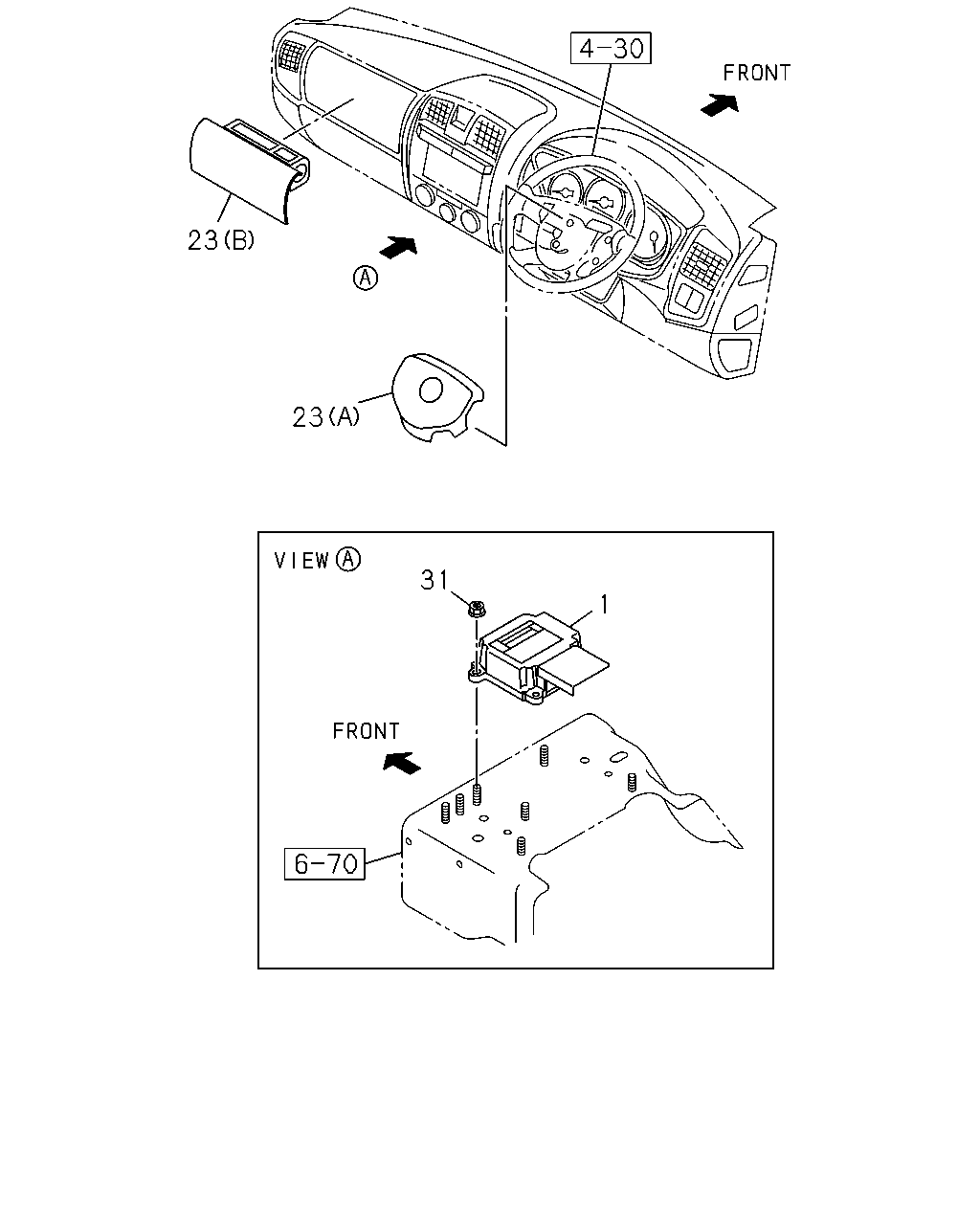

çizim 185860
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98039-724-0 01 1 0805-0905 ● ● ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98122-210-0 01 1 0906- ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97408-901-1 01 1 0805-1007 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 		8-97422-062-0 01 1 1008- ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97408-899-0 01 1 0805-0904 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97417-275-0 01 1 0905-0906 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY 		8-97418-297-0 01 1 0907- ● ● ● ● ● ● ● ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5) 01.540 M6 FLANGE 		0-91180-206-0 03 1 0805- ● ● ● ● ● ● ● ●
