◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#7482) — 53 parça

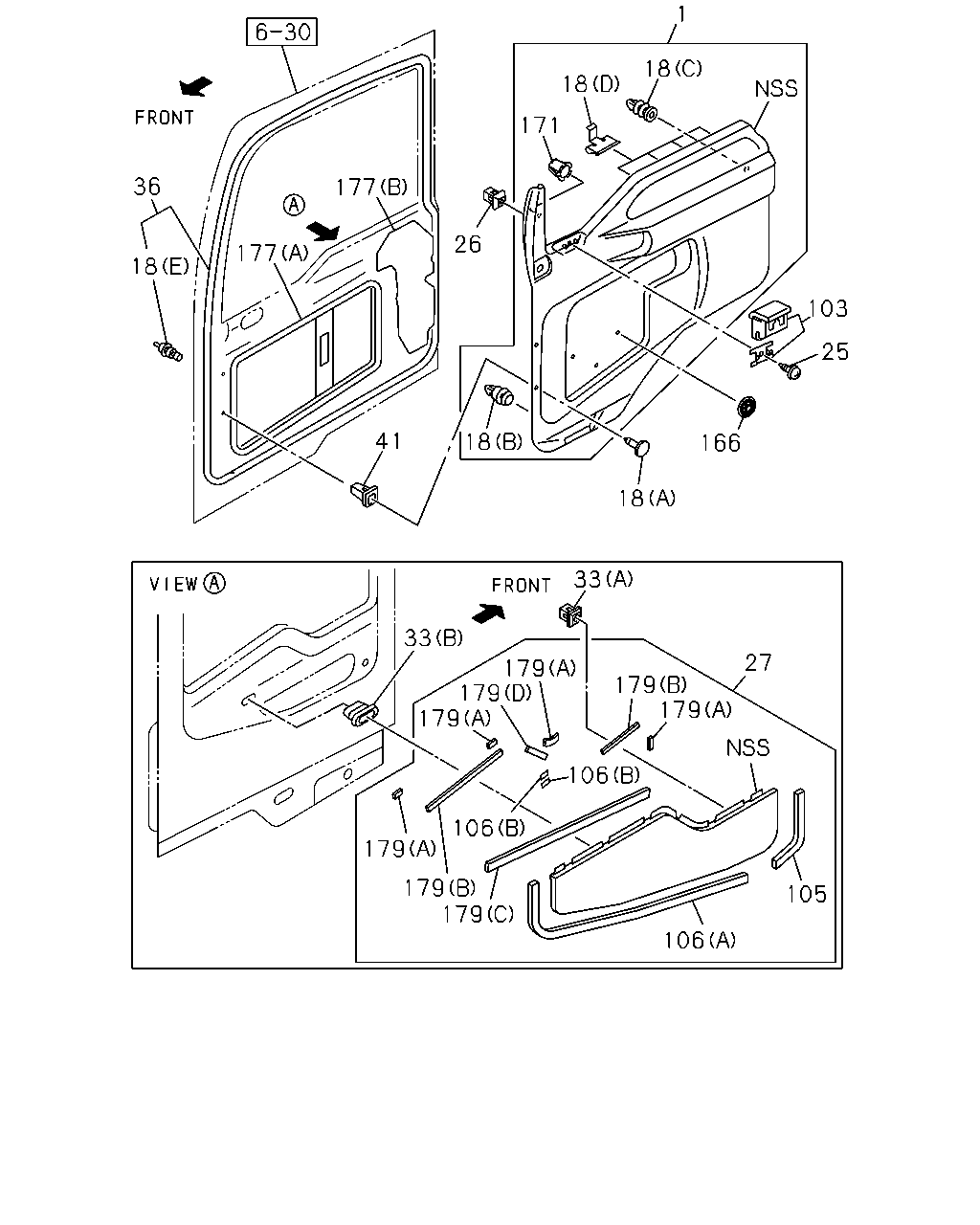

çizim 25996
1 18 18 171 36 177 26 177 18 103 25 41 18 166 18 33 33 27 179 179 179 179 179 106 106 179 179 179 105 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
TAI 		8-97910-698-0 01 1 9811-9902 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-466-4 01 1 9903-9906 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-509-0 01 1 9907-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-539-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-516-0 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
TAI 		8-97910-697-0 01 1 9811-9902 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-465-4 01 1 9903-9906 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-484-0 01 1 9907-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-509-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-513-0 01 1 0703- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9811-9906 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 9907- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9811-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK TAI 		8-94279-974-1 02 1 9811- ● ●
18 CLIP; DOOR PAD
(E) NATURAL TAI 		1-09987-257-0 23 1 9811- ● ●
18 CLIP; DOOR PAD
(E) NATURAL TAI 		1-09987-257-0 23 1 9811- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9903-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING TAI 		8-94279-123-0 02 1 9811- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 02 1 9811- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 0611-0702 ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9811- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 9811-0610 ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 0611-0702 ●
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 0703- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9811- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9811- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9811- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9811- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9811- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9811-9906 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 9907-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9811-9906 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 9907-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9811- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0611-0702 ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9811- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9811-0610 ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0611-0702 ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0703- ● ●
166 PLUG; HOLE
TAI 		8-97535-039-0 02 1 9811-9906 ● ●
166 PLUG; HOLE
TAI 		8-97535-108-0 02 1 9907- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9903- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9811- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 9811- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 9811- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 9811- ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 9811- ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 9811- ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 9811- ● ●
