◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#74818) — 97 parça

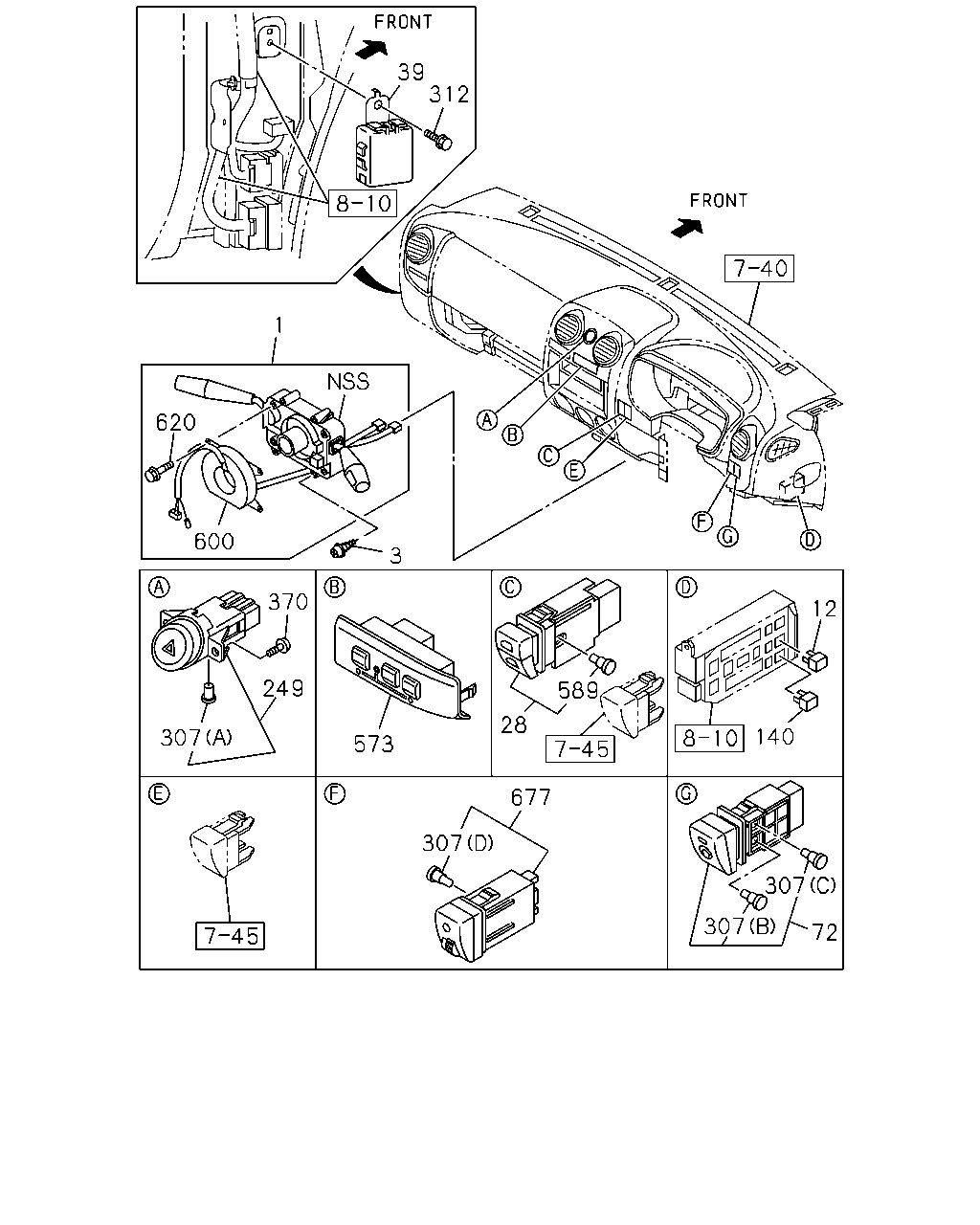

çizim 137769
39 312 1 620 600 3 370 12 249 589 28 140 307 573 677 307 307 307 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-98007-706-0 01 1 0805- ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97363-411-0 01 1 0805- ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97363-412-0 01 1 0805- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. AUTO CRUISE CONT<K30> 		8-97363-414-0 01 1 0805- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> AUTO CRUISE CONT<K30> FOG LAMP<T96> 		8-98007-713-0 01 1 0805- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-98007-707-0 01 1 0805- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> EXC. AUTO CRUISE CONT<K30> 		8-98007-711-0 01 1 0805- ● ● ●
3 02.897 SCREW; COMB SW
M5X14 W/LK&PL WASHER 		0-36230-514-0 02 1 0805- ● ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> DARK GRAY 		8-97403-695-0 01 1 0805-0809 ● ● ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> DARK GRAY 		8-97403-695-0 01 1 0810-1003 ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> DARK GRAY 		8-97403-695-0 01 1 1004- ● ●
39 16.341 RELAY; DOOR LK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-97385-923-0 01 1 0805-0809 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-97385-923-0 01 1 0810-1003 ● ● ●
39 16.341 RELAY; DOOR LK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-97385-923-0 01 1 1004- ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> DARK GRAY 		8-97403-884-0 01 1 0805- ● ● ●
140 09.778 RELAY; RR DEFOGGER
02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-98046-194-0 01 1 0805- ● ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97329-092-0 01 1 0805- ● ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
(A) 		8-98057-959-0 01 1 0805- ● ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97327-317-0 01 1 0805- ● ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (C) 14V 0.91W 		8-97355-451-0 01 1 0805- ● ● ●
312 02.483 BOLT; RELAY
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0805-0809 ● ● ● ● ●
312 02.483 BOLT; RELAY
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0810-1003 ● ● ●
312 02.483 BOLT; RELAY
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1004- ● ●
370 16.495 BOLT; SW
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0805-1004 ● ● ● ● ● ● ● ●
370 16.495 BOLT; SW
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ● ● ●
573 09.755 SWITCH; 4WD
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-364-0 01 1 0805- ● ● ●
573 09.755 SWITCH; 4WD
INTERIOR SILVER BEZEL<BY9> LIGHT GRAY 		8-97407-362-0 01 1 0805- ● ●
589 08.991 BULB; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 14V 0.84W 		8-97327-317-0 01 1 0805-0809 ● ● ● ● ●
589 08.991 BULB; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 14V 0.84W 		8-97327-317-0 01 1 0810-1003 ● ● ●
589 08.991 BULB; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 14V 0.84W 		8-97327-317-0 01 1 1004- ● ●
600 02.895 COIL ASM; SIR
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> 		8-98014-766-0 01 1 0805- ● ● ●
620 02.895 SCREW; COIL,COMB SW
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> 		8-97166-506-0 06 1 0805- ● ● ●
677 02.485 SWITCH; ILLUMINATION
DARK GRAY 		8-97403-903-0 01 1 0805- ● ● ● ● ● ● ● ●

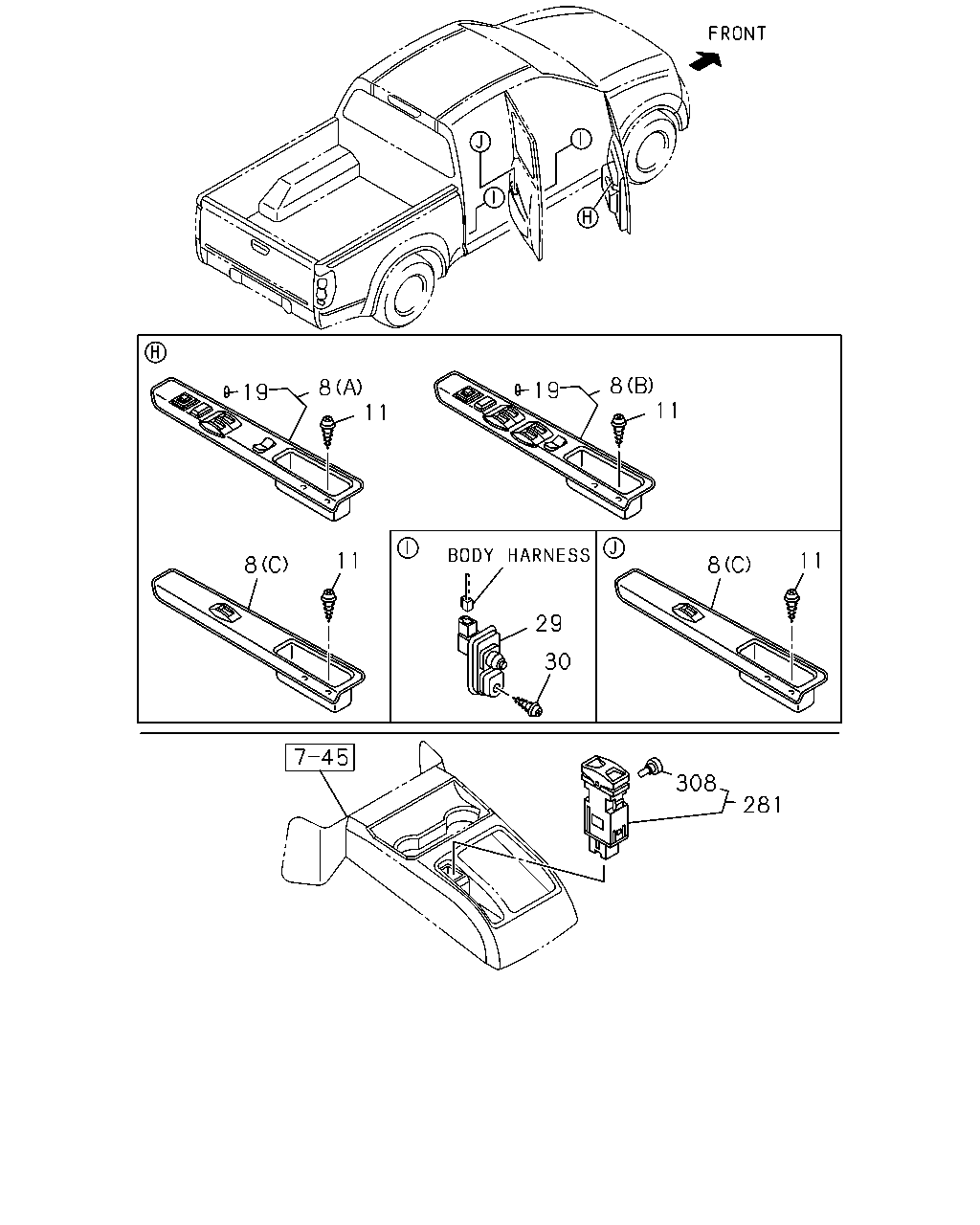

çizim 137972
8 11 8 11 19 19 11 11 8 8 29 30 308 281
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (B) DRIVER DARK GRAY 		8-97416-169-0 01 1 0805- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER DARK GRAY 		8-97403-617-0 01 1 0810- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9> (A) DRIVER DARK GRAY 		8-97415-664-0 01 1 0805-0809 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY 		8-97415-664-0 01 1 0805-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. INTERIOR SILVER BEZEL<BY9> (A) DRIVER DARK GRAY 		8-97415-664-0 01 1 0810- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) PASSENGER DARK GRAY 		8-97400-752-0 01 1 0805- ● ● ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) PASSENGER LIGHT GRAY 		8-97403-893-0 01 1 0805- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY 		8-97403-896-0 01 1 0805- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> (C) REAR LIGHT GRAY 		8-97403-897-0 01 1 0805- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) DRIVER LIGHT GRAY 		8-97403-626-0 01 1 0805- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY 		8-97400-753-0 01 1 0805- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9> (C) REAR DARK GRAY 		8-97400-754-0 01 1 0805- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) DRIVER DARK GRAY 		8-97398-502-0 01 1 0805- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER LIGHT GRAY 		8-97403-625-0 01 1 0805-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) DRIVER LIGHT GRAY 		8-97403-625-0 01 1 0810- ●
11 03.885 BOLT; POWER WINDOW
POWER WINDOW<A31> 12.182 M5X14 		8-94152-495-0 04 1 0805- ● ● ● ● ● ● ● ●
11 03.885 BOLT; POWER WINDOW
POWER WINDOW<A31> 12.182 M5X14 		8-94152-495-0 04 1 0805- ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 0805-0805 ● ● ● ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 0805-0805 ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 0805-0805 ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 0805-0809 ● ● ● ● ● ● ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 0805-0809 ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) 		8-97327-881-0 01 1 0810-1003 ● ● ● ● ● ● ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 0810-1003 ● ● ● ● ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 0810-1003 ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> EXC. INTERIOR SILVER BEZEL<BY9>, DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97327-881-0 01 1 1004- ● ● ● ● ● ● ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) EXC. INTERIOR SILVER BEZEL<BY9> 		8-97327-881-0 01 1 1004- ● ● ● ● ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> INTERIOR SILVER BEZEL<BY9> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) 		8-97327-881-0 01 1 1004- ● ● ●
19 08.991 BULB; POWER WINDOW SW
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) 		8-97327-881-0 01 1 1004- ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 0805- ● ● ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 0805- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 0805- ● ● ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 0805- ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) DARK GRAY 		8-97396-692-0 01 1 0805- ● ● ● ● ●
308 08.991 BULB; SELECT SW
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30),A/T AISIN(RMD) 14V 0.84W 		8-97329-092-0 01 1 0805- ● ● ● ● ●
çizim 138082
99 99 277 45 45 45 208 208 208 85 85 85 99 154 154 277 277 164 164 164 490 490
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
45 02.252 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 0805- ● ● ● ● ● ● ● ●
45 02.252 RELAY; HORN
02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1004- ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
02.575 12V OMRON 		8-98005-407-0 01 1 1004- ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 12V YAZAKI 		8-97309-292-0 01 1 0805-0809 ● ●
85 02.485 RELAY; HEADLAMP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) 12V YAZAKI 		8-97309-292-0 01 1 0810-1003 ● ●
99 02.485 RELAY; FOG LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0805- ● ● ● ● ● ● ● ●
99 02.485 RELAY; FOG LAMP
02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1004- ● ● ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) 02.575 12V OMRON 		8-98005-407-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 1004- ● ● ● ● ● ● ● ●
164 02.510 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 0805- ● ● ● ● ● ● ● ●
164 02.510 RELAY; A/C COMPRESSOR
02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
208 02.485 RELAY; DIMMER & PASSING
12V YAZAKI 		8-97309-292-0 01 1 0805- ● ● ● ● ● ● ● ●
277 03.900 RELAY; FUEL PUMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 0805- ● ● ● ● ● ● ● ●
277 03.900 RELAY; FUEL PUMP
02.575 12V OMRON 		8-98005-407-0 01 1 0805- ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0805-1003 ● ●
490 09.277 RELAY; THERMO
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0805-1003 ●
490 09.277 RELAY; THERMO
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1004- ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> 02.575 12V OMRON 		8-98005-407-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 02.575 12V OMRON 		8-98005-407-0 01 1 0805-1003 ● ●
490 09.277 RELAY; THERMO
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 02.575 12V OMRON 		8-98005-407-0 01 1 0805-1003 ●
490 09.277 RELAY; THERMO
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 1004- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
