◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#74817) — 32 parça

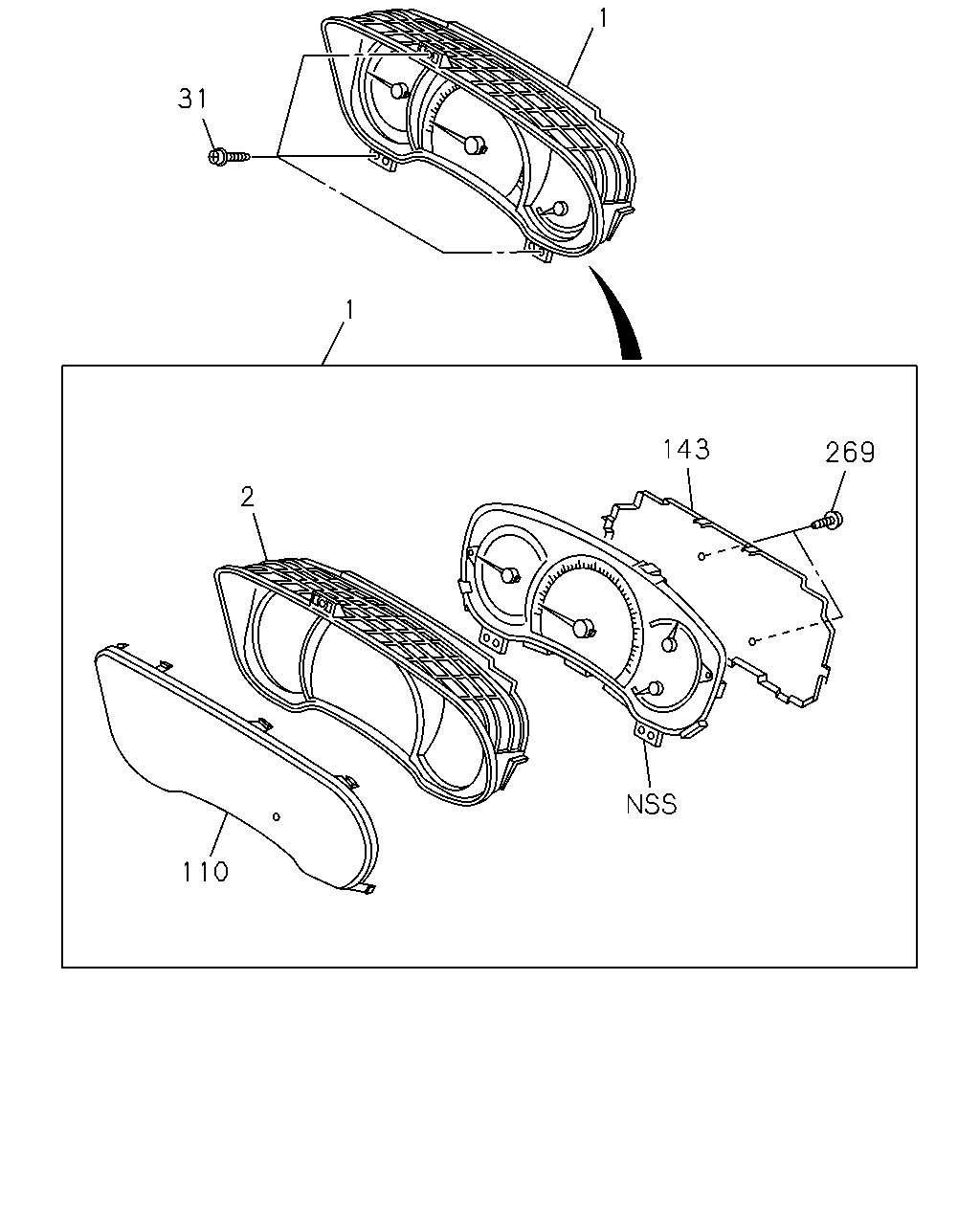

çizim 138046
1 31 1 143 269 2 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.735 METER COMPL; CLUSTER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98089-047-0 01 1 0805- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98089-042-0 01 1 0805- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98089-049-0 01 1 0805- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. TACHOMETER<U16> 		8-98089-050-0 01 1 0805-1003 ● ●
1 09.735 METER COMPL; CLUSTER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA>,TACHOMETER<U16> 		8-98089-048-0 01 1 0805- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA>,TACHOMETER<U16> 		8-98089-043-0 01 1 0805- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> 		8-98089-045-0 01 1 0805- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> 		8-98089-041-0 01 1 0805- ● ● ●
1 09.735 METER COMPL; CLUSTER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> 		8-98089-046-0 01 1 0805- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> TACHOMETER<U16> 		8-98089-040-0 01 1 0805- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98089-044-0 01 1 0805- ● ●
2 09.735 PANEL; CLUSTER
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98047-113-0 01 1 0805- ● ● ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98047-113-0 01 1 0805- ● ● ● ● ●
2 09.735 PANEL; CLUSTER
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. TACHOMETER<U16> 		8-98047-113-0 01 1 0805- ● ●
2 09.735 PANEL; CLUSTER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98047-113-0 01 1 0805- ● ●
2 09.735 PANEL; CLUSTER
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD) TACHOMETER<U16> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98047-112-0 01 1 0805- ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98061-685-0 03 1 0805-1003 ● ● ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1004- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98047-111-0 01 1 0805- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98047-111-0 01 1 0805- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EXC. TACHOMETER<U16> 		8-98047-111-0 01 1 0805- ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) TACHOMETER<U16> EXC. ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA> 		8-98047-111-0 01 1 0805- ● ●
110 09.748 GLASS; CLUSTER METER
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD) TACHOMETER<U16> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98047-110-0 01 1 0805- ● ● ●
143 09.715 COVER; CLUSTER METER
TACHOMETER<U16> 		8-98047-114-0 01 1 0805- ● ● ● ● ● ● ● ●
143 09.715 COVER; CLUSTER METER
EXC. TACHOMETER<U16> 		8-98047-115-0 01 1 0805- ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER 8-98047-116-0 03 1 0805- ● ● ● ● ● ● ● ●

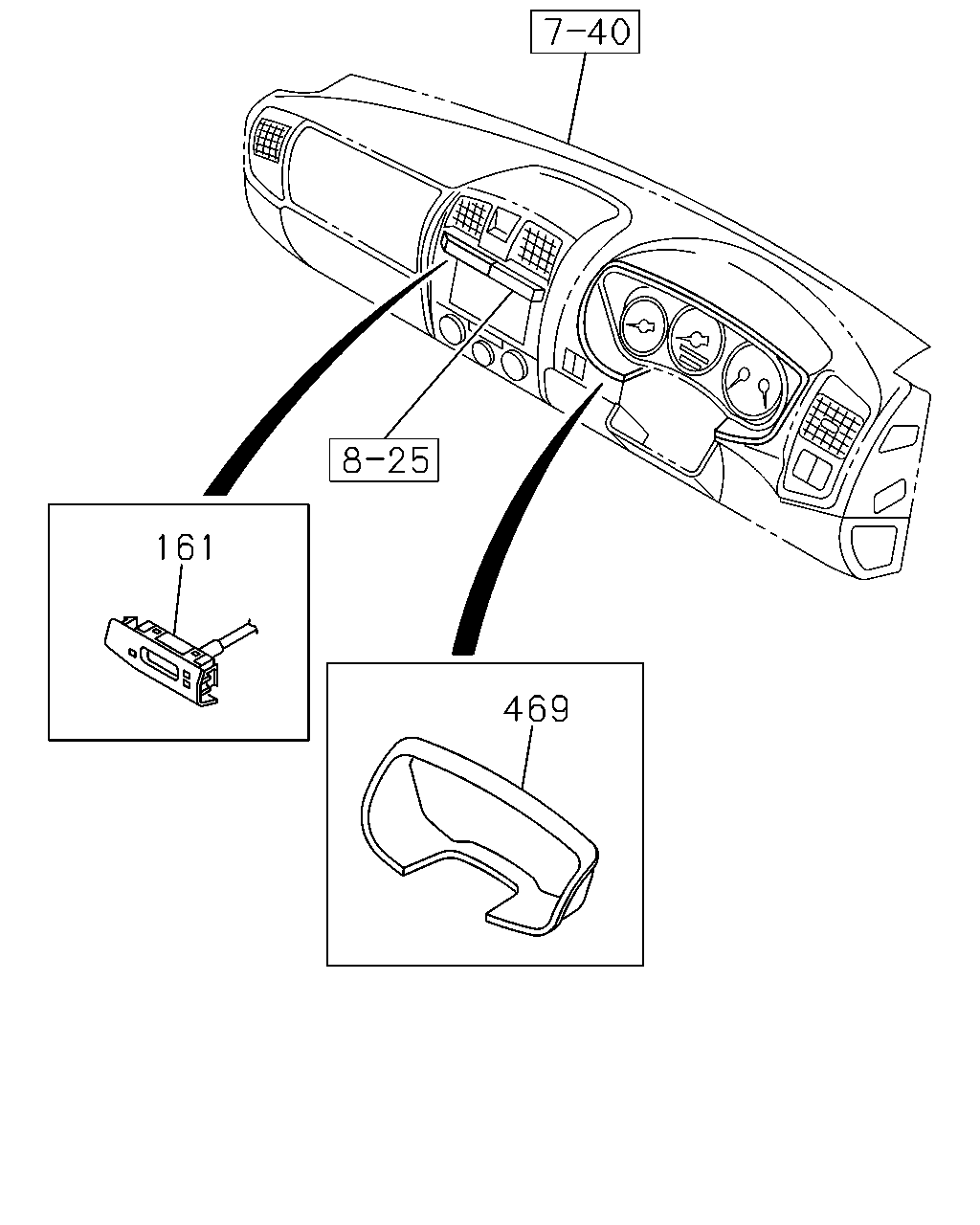

çizim 185857
161 469
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY 		8-97407-359-0 01 1 0805- ● ● ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY 		8-97407-360-0 01 1 0805- ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
EXC. TILT STEERING<N33> DARK GRAY 		8-97421-861-0 01 1 1005- ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97409-178-0 01 1 0805-1004 ● ● ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
DARK GRAY 		8-97409-178-0 01 1 1005- ● ● ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
TILT STEERING<N33> DARK GRAY 		8-97409-178-0 01 1 1005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
