Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#74816) — 209 parça

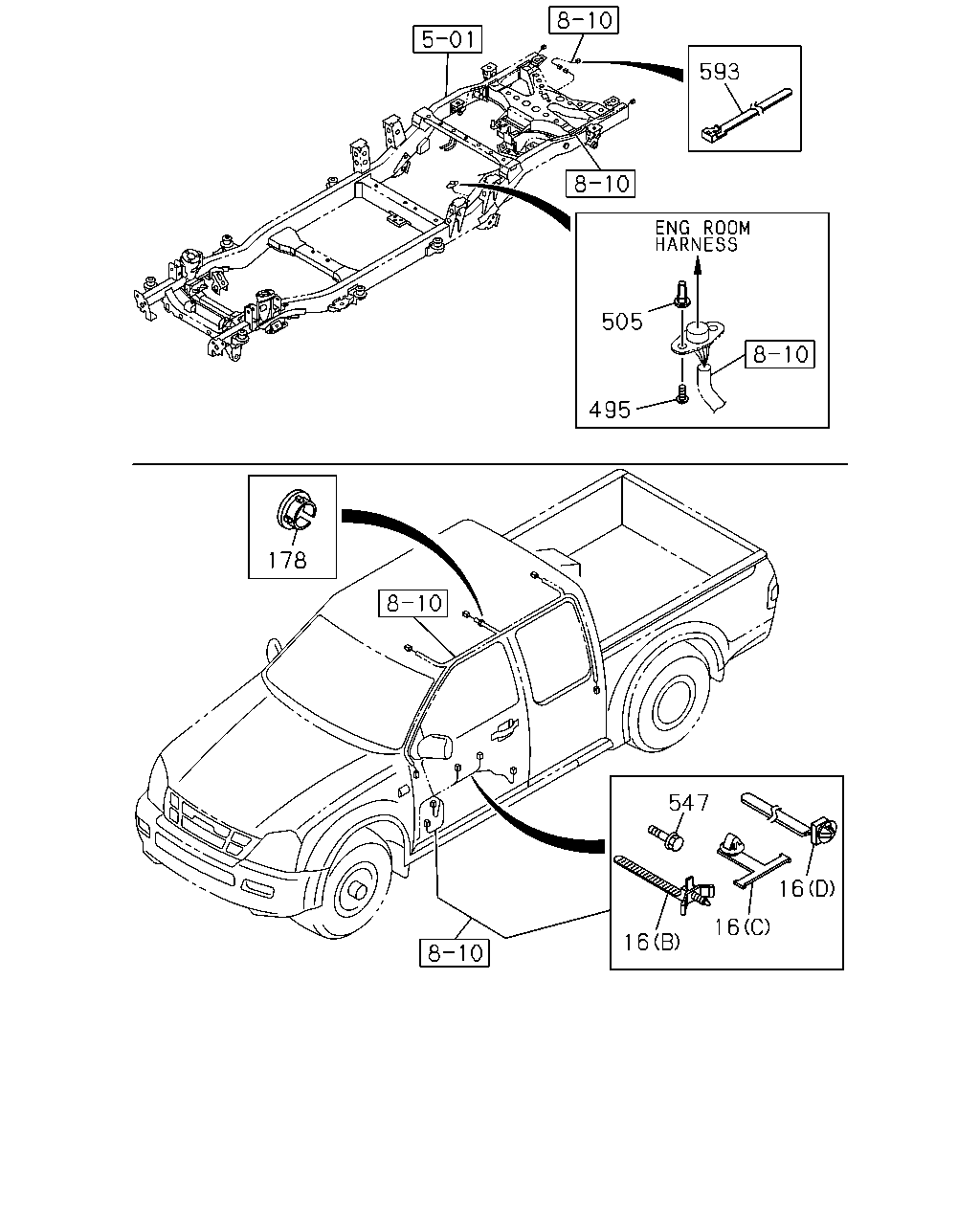

593 505 495 178 547 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (B) L=135	8-94473-399-0	02	1	0805-1007	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	02	1	0805-1007	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) L=135	8-94473-399-0	02	1	1008-	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (B) L=135	8-94473-399-0	02	1	1008-				●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809	●	●	●
16	02.559 CLIP; HARNESS (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809						●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809						●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS HF V6 ENG(LCA) 03.483 (A) ID=6 & 11	8-97368-292-0	01	1	0805-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	04	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	04	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0911-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0911-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9> (D) L=155	8-97173-307-0	03	1	0805-0809				●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9> (D) L=155	8-97173-307-0	03	1	0805-0809				●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809					●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809					●
16	02.559 CLIP; HARNESS 4X4 EXTEND CAB LONG(TFS*CF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809						●
16	02.559 CLIP; HARNESS 4X4 EXTEND CAB LONG(TFS*CF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809						●
16	02.559 CLIP; HARNESS 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809								●
16	02.559 CLIP; HARNESS 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809								●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0805-0809				●		●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0810-1003				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	1004-1007				●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (D) L=155	8-97173-307-0	06	1	0805-0809				●		●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (D) L=155	8-97173-307-0	06	1	0810-1003				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (D) L=155	8-97173-307-0	06	1	1004-1007				●			●
178	02.559 GROMMET; HARNESS 09.647	8-97027-381-0	01	1	0805-	●	●			●	●		●
495	00.685 BOLT; CABLE TO BODY 10.240 M5X14	8-94120-095-0	02	1	0805-	●	●	●	●	●	●	●	●
505	02.559 RETAINER; HARNESS 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	0805-	●	●	●	●	●	●	●	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0805-	●	●	●	●	●	●	●	●
593	02.559 CLIP REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER CHROME(V42) L=250	5-09707-030-1	01	1	0805-	●	●	●	●	●	●	●	●

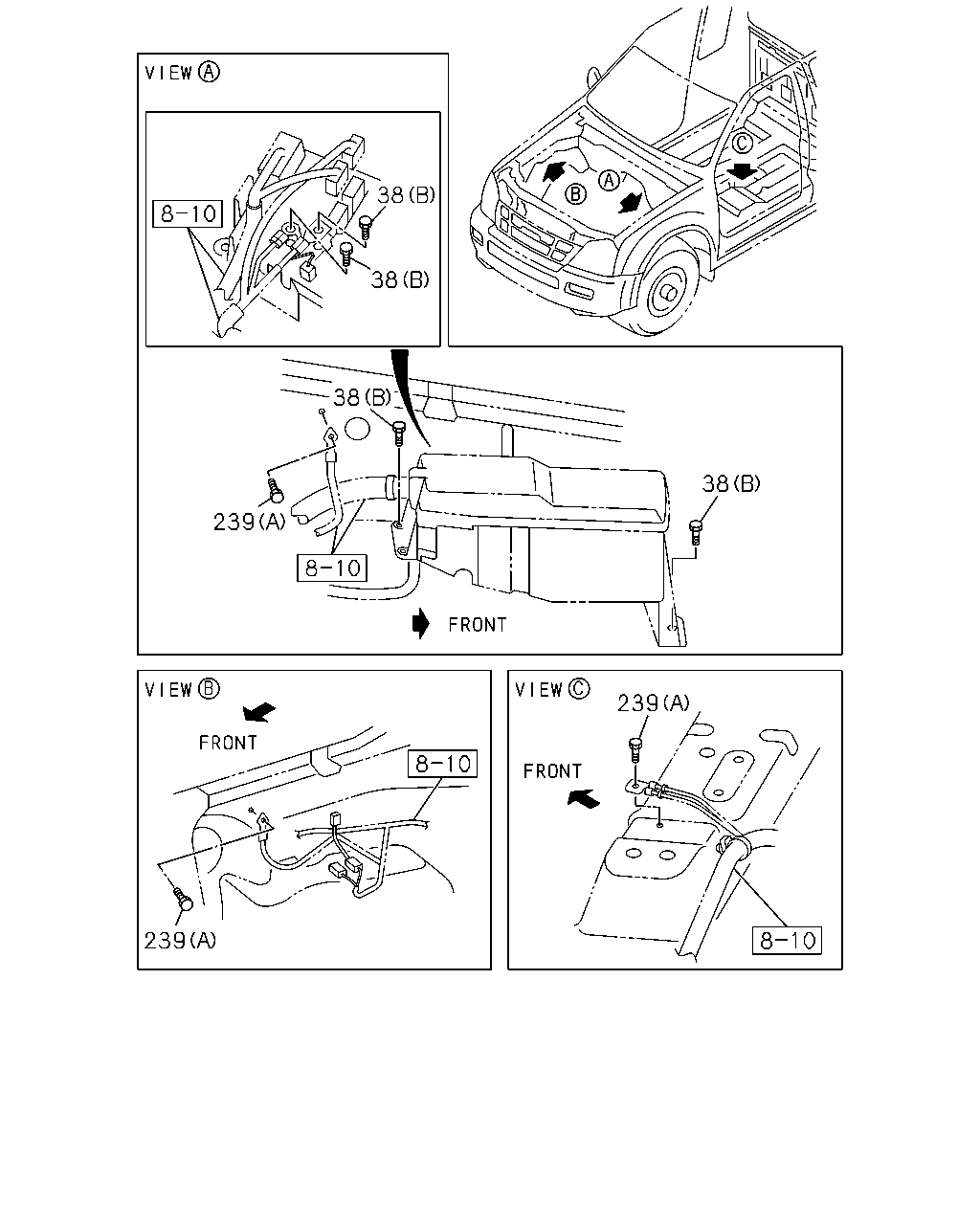

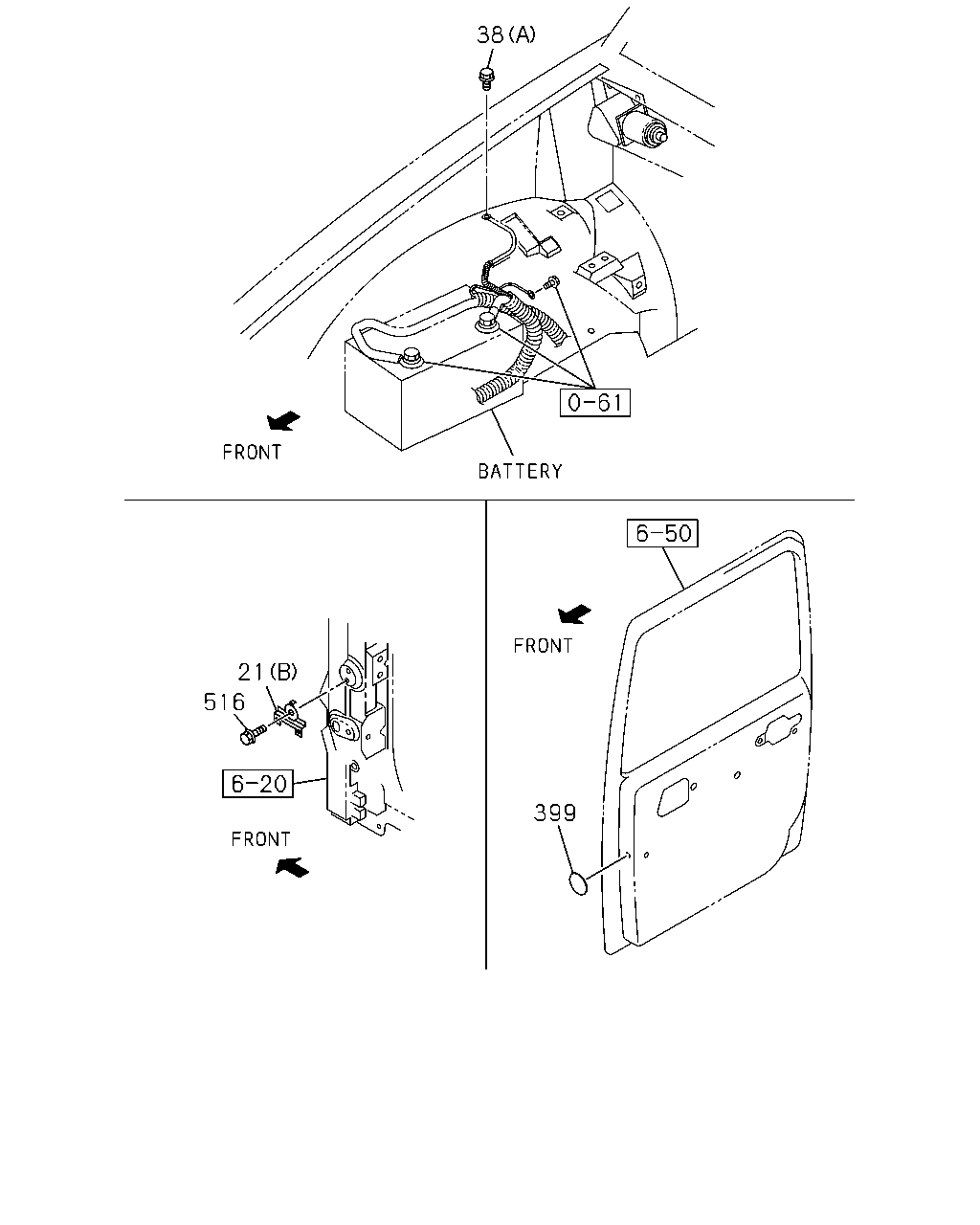

21 16 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (B) L=135	8-94473-399-0	02	1	0805-1007	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	02	1	0805-1007	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (B) L=135	8-94473-399-0	02	1	1008-	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (B) L=135	8-94473-399-0	02	1	1008-				●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (B) L=135	8-94473-399-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809	●	●	●
16	02.559 CLIP; HARNESS (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809						●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0805-0809						●		●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	01	1	0810-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS HF V6 ENG(LCA) 03.483 (A) ID=6 & 11	8-97368-292-0	01	1	0805-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0805-0809	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	04	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	04	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0911-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) (D) L=155	8-97173-307-0	04	1	0911-	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0805-0809				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9> (D) L=155	8-97173-307-0	03	1	0805-0809				●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9> (D) L=155	8-97173-307-0	03	1	0805-0809				●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809					●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809					●
16	02.559 CLIP; HARNESS 4X4 EXTEND CAB LONG(TFS*CF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809						●
16	02.559 CLIP; HARNESS 4X4 EXTEND CAB LONG(TFS*CF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809						●
16	02.559 CLIP; HARNESS 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809								●
16	02.559 CLIP; HARNESS 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0805-0809								●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0810-0910	●	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=155	8-97173-307-0	03	1	0911-			●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0805-0809				●		●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	0810-1003				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (C) L=60 H=10.9	8-97128-114-0	02	1	1004-1007				●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (D) L=155	8-97173-307-0	06	1	0805-0809				●		●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (D) L=155	8-97173-307-0	06	1	0810-1003				●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> (D) L=155	8-97173-307-0	06	1	1004-1007				●			●
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCX ENG(LS0) (B)	8-97373-034-0	01	1	0805-	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> (A)	8-98050-842-0	01	1	0805-0910					●
239	02.559 BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	0805-	●	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND HF V6 ENG(LCA) (B)	8-11610-066-0	01	1	0805-	●	●	●	●	●	●	●	●

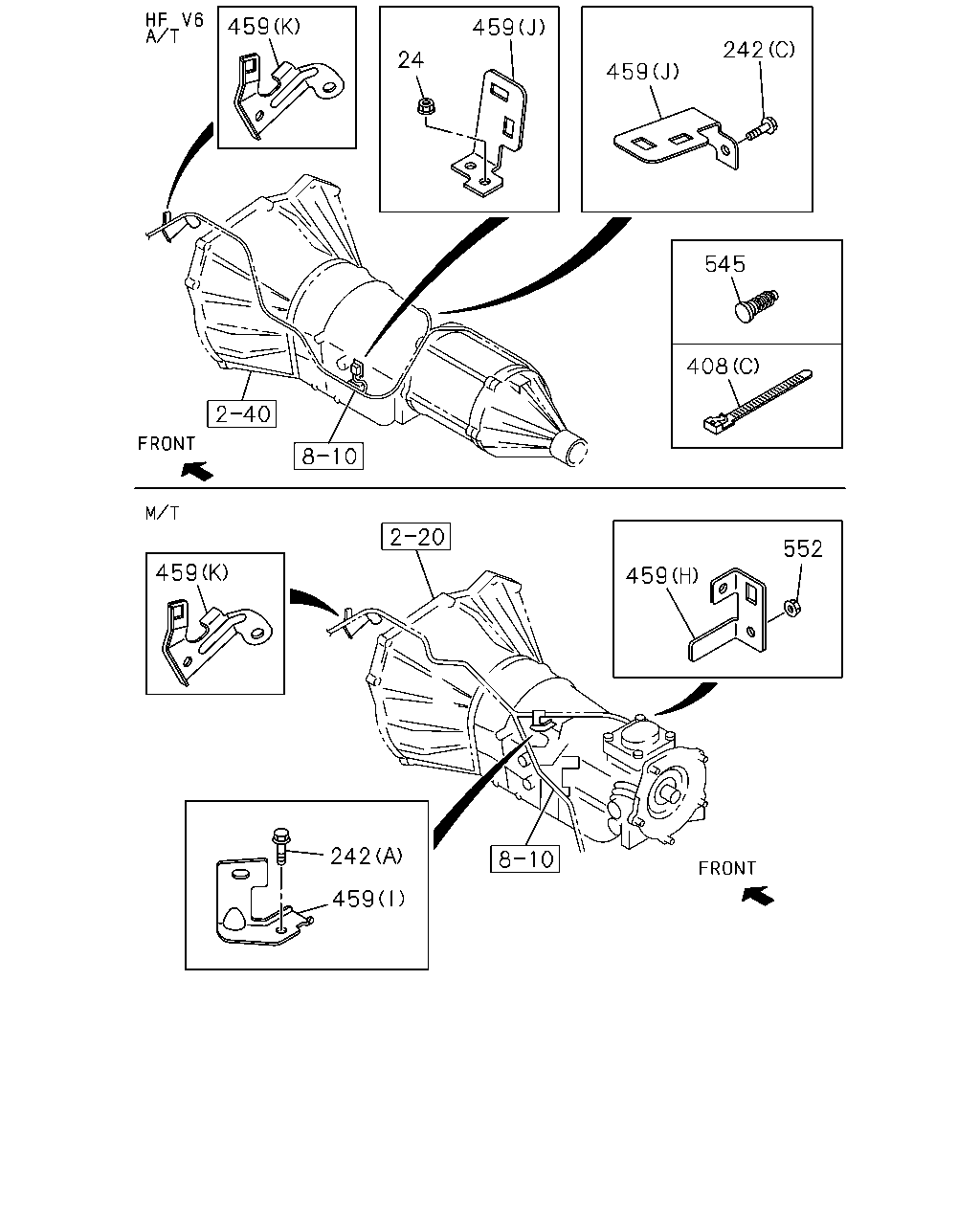

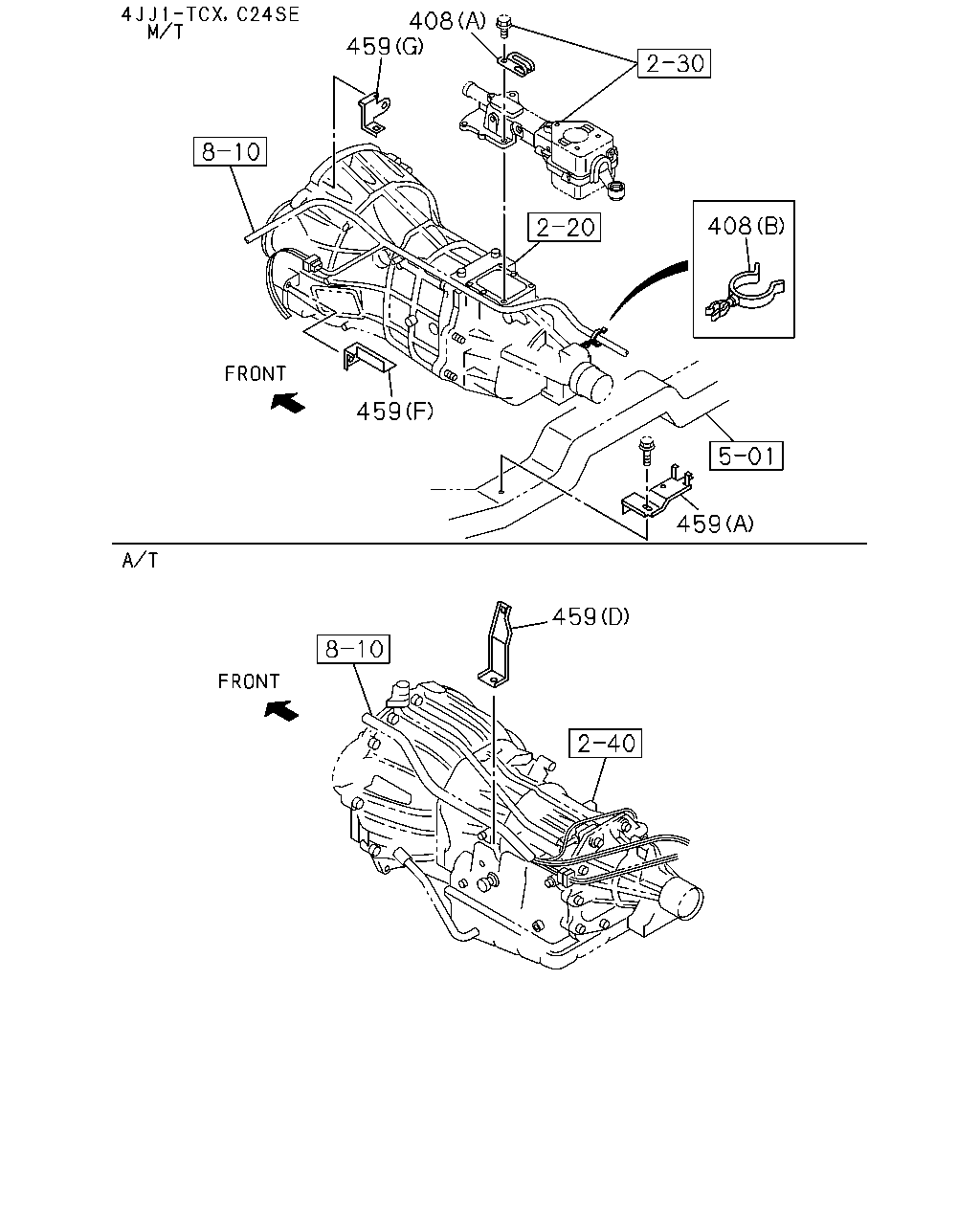

408 459 408 459 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
408	02.559 CLIP; TRANS HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.363 (C) L=140	8-97920-656-0	01	1	0805-	●	●		●	●			●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) 03.163 (B) ID=13 & 4.75	8-94447-856-0	01	1	0805-1003				●	●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) (K)	8-98025-426-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (H)	8-92177-951-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (I)	8-98004-147-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E)	8-97382-804-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C)	8-98035-740-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)	8-98035-741-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0805-	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-98050-883-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (A)	8-98035-653-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0805-					●			●

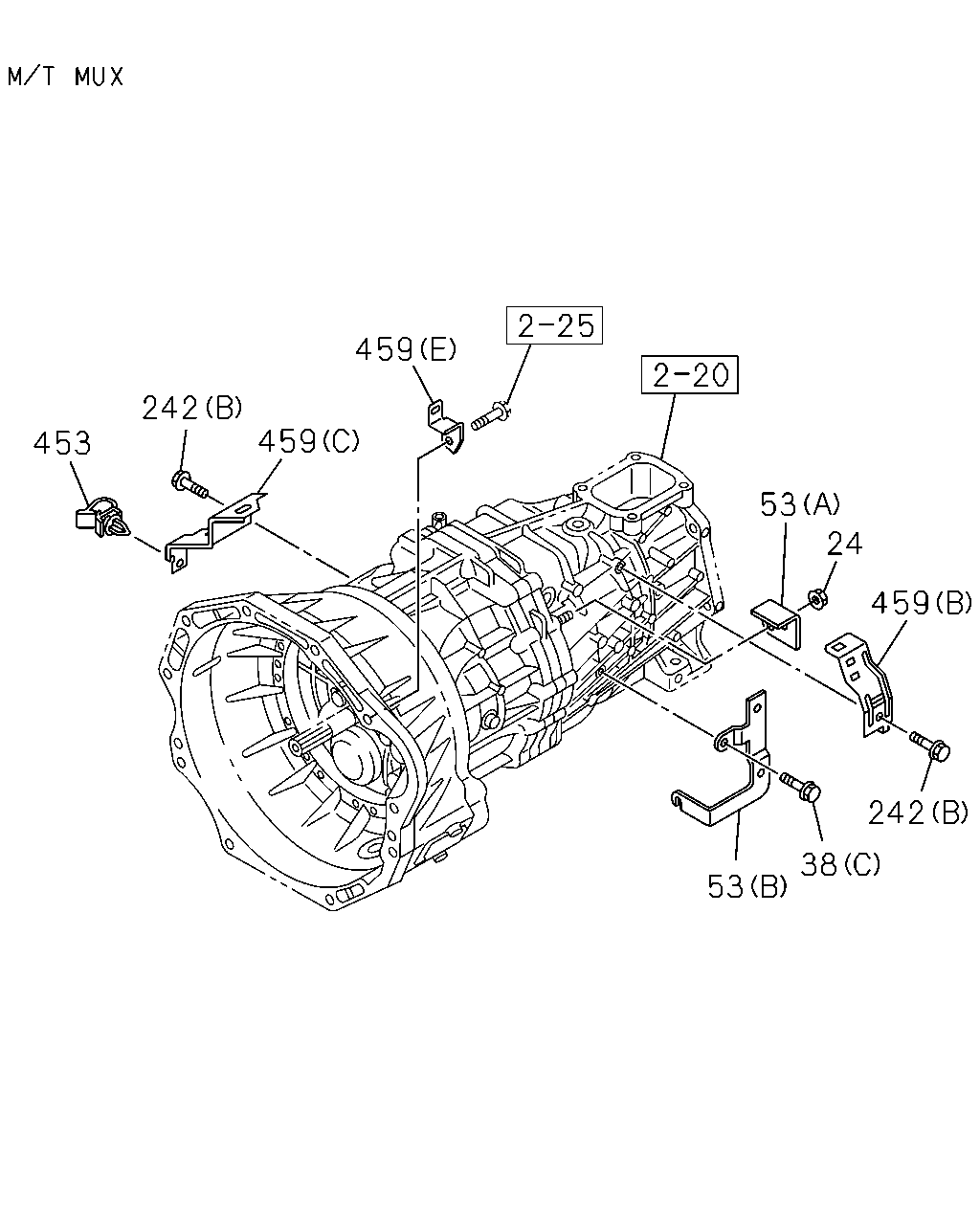

459 459 24 24 459 545 408 552 459 459 242 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
24	02.559 NUT; HARNESS M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE	0-91180-206-0	01	1	0805-	●	●	●	●	●	●	●	●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-	●	●		●	●			●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A) M10X16 FLANGE	0-28051-016-0	01	1	0805-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0805-	●	●		●	●			●
408	02.559 CLIP; TRANS HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.363 (C) L=140	8-97920-656-0	01	1	0805-	●	●		●	●			●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) 03.163 (B) ID=13 & 4.75	8-94447-856-0	01	1	0805-1003				●	●
408	02.559 CLIP; TRANS HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) (K)	8-98025-426-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (H)	8-92177-951-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (I)	8-98004-147-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E)	8-97382-804-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C)	8-98035-740-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)	8-98035-741-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0805-	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-98050-883-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (A)	8-98035-653-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0805-					●			●
545	02.559 STUD; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 15.280	8-98056-307-0	01	1	0805-	●	●		●	●
545	02.559 STUD; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 15.280	8-98056-307-0	01	1	0805-								●
552	02.483 NUT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0805-	●	●	●	●	●	●	●	●

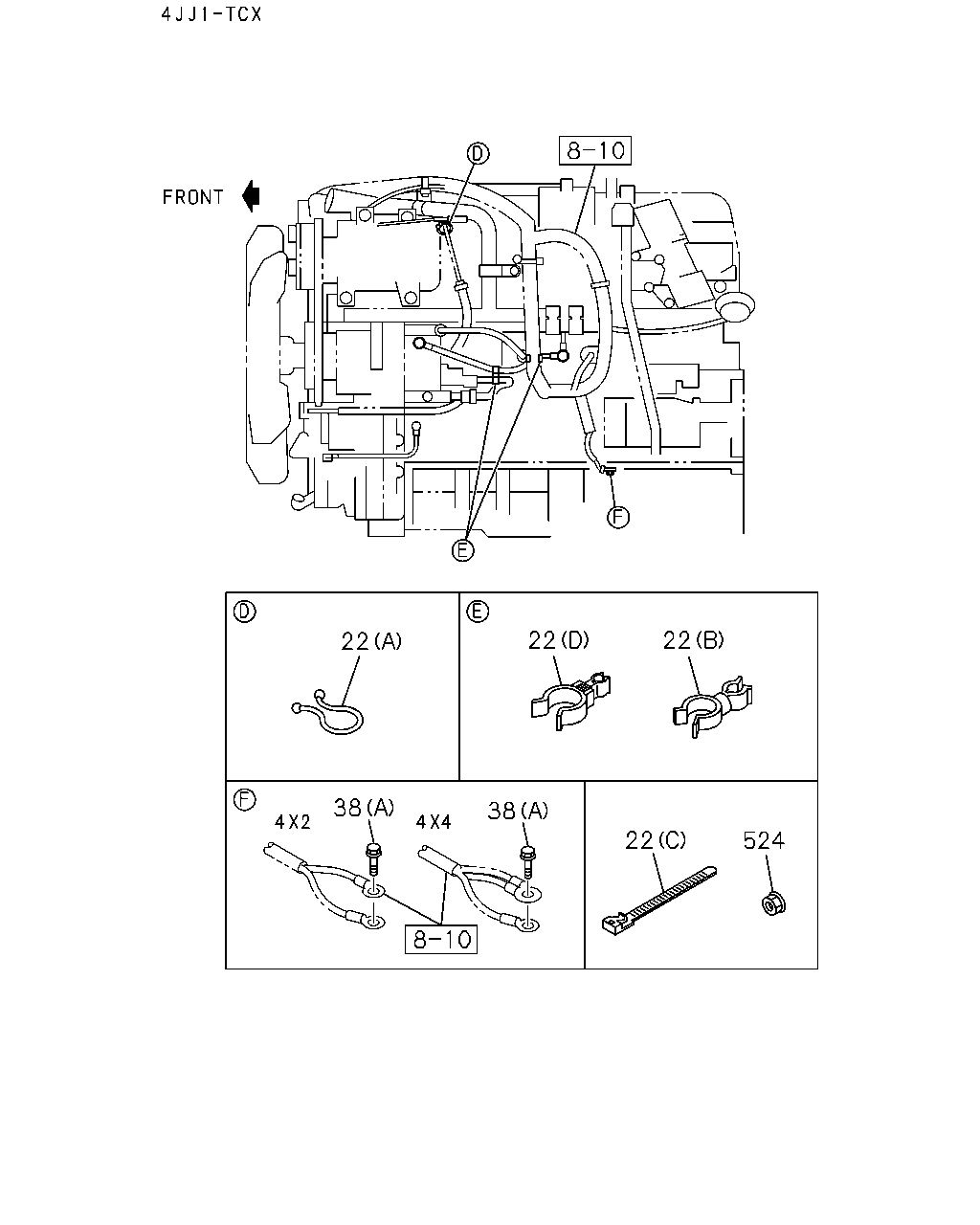

22 22 22 38 38 22 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (A) ID=15	1-09709-003-0	01	1	0805-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0805-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (D) ID=10 & 11	8-94438-996-0	01	1	0805-	●	●	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.363 (C) L=140	8-97920-656-0	01	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●	●	●	●	●	●	●	●

459 242 459 453 53 24 459 242 38 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
24	02.559 NUT; HARNESS M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE	0-91180-206-0	01	1	0805-	●	●	●	●	●	●	●	●
24	02.559 NUT; HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-	●	●		●	●			●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S(MZJ) (A)	8-97944-510-1	01	1	0805-	●	●	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MUX 5 SPEED 5S(MZJ) (B)	8-97944-511-1	01	1	0805-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (A) M10X16 FLANGE	0-28051-016-0	01	1	0805-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0805-	●	●		●	●			●
453	02.559 CLIP; CABLE HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5	5-09709-117-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) (K)	8-98025-426-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (H)	8-92177-951-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) (I)	8-98004-147-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E)	8-97382-804-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C)	8-98035-740-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)	8-98035-741-0	01	1	0805-	●	●	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) (J)	8-92177-953-1	02	1	0805-	●	●		●	●			●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) (G)	8-98050-883-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) EURO3 SPECIFICATION<NT3> (A)	8-98035-653-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (F)	8-97237-168-0	01	1	0805-1003				●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (D)	8-98050-720-0	01	1	0805-					●			●

38 38 38 38 239 239 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	0805-	●	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND HF V6 ENG(LCA) (B)	8-11610-066-0	01	1	0805-	●	●	●	●	●	●	●	●

38 21 516 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
21	02.483 BRACKET; ENG HARNESS 4JJ1-TCX ENG(LS0) (B)	8-97373-034-0	01	1	0805-	●	●	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> (A)	8-98050-842-0	01	1	0805-0910					●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M6X16 FLANGE	0-28650-616-0	05	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0805-	●	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●	●	●	●	●	●	●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. POWER WINDOW<A31>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK	8-94111-754-0	02	1	0805-0809					●
399	02.559 COVER; HOLE,HARNESS,RR DOOR 4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT(RBD) EXC. POWER WINDOW<A31>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BAS E<UW5> 16.165 OD=50 T=0.08 BLACK	8-94111-754-0	02	1	0805-0809								●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. POWER WINDOW<A31>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK	8-94111-754-0	02	1	0810-1003					●
516	02.559 BOLT; HARNESS 4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0805-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
