◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#74815) — 461 parça

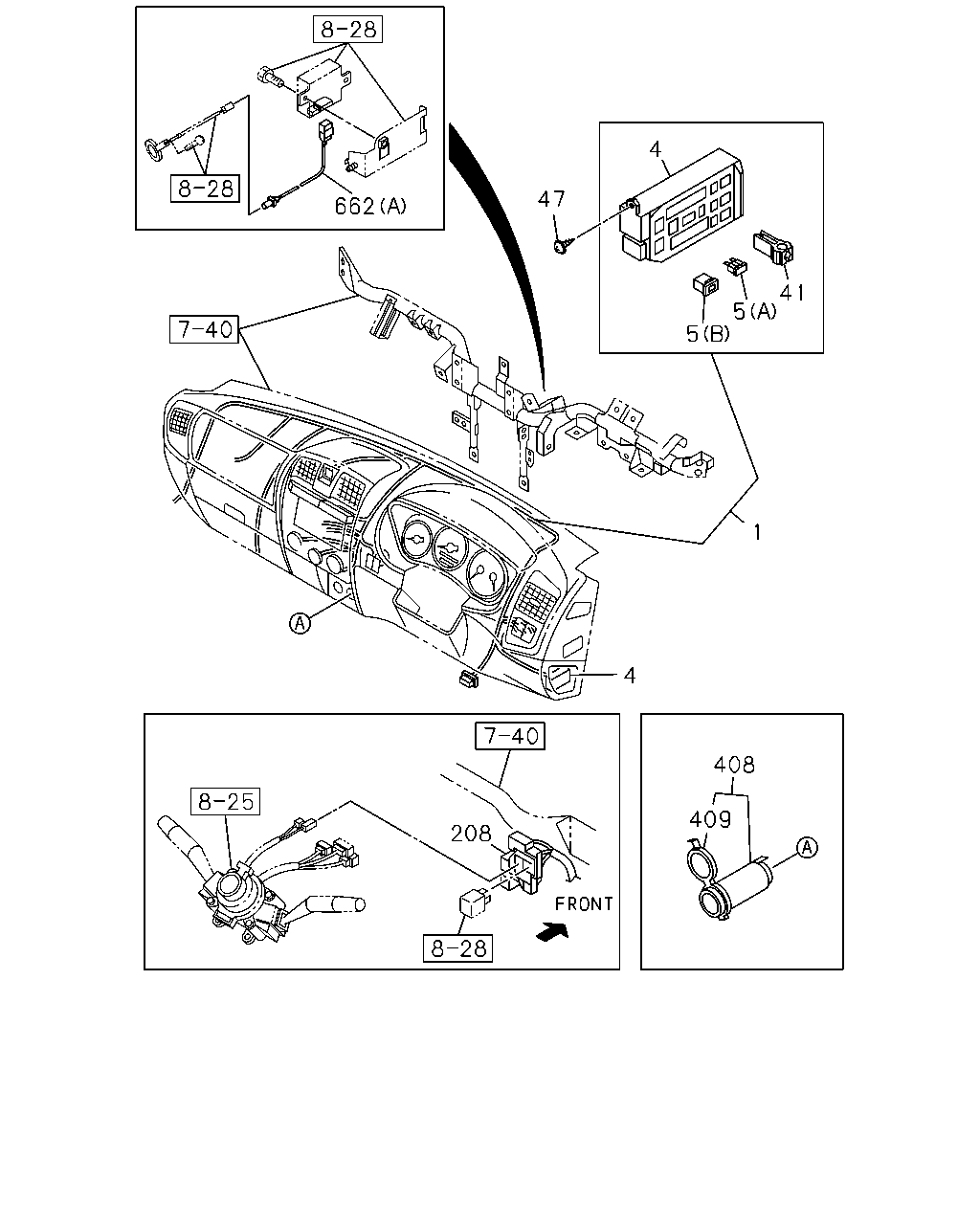

çizim 136051
4 47 662 41 5 5 1 4 408 409 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-334-0 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-334-0 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-335-0 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-335-0 01 1 1004- ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-369-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-369-3 01 1 0810- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-365-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-365-3 01 1 0810- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-370-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-370-3 01 1 0810-1002 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> EXC. AUTO CRUISE CONT<K30> 		8-98053-370-3 01 1 1003- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-372-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-372-3 01 1 0810-1002 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> EXC. AUTO CRUISE CONT<K30> 		8-98053-372-3 01 1 1003- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-364-3 01 1 0805-0809 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-364-3 01 1 0810-1003 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-364-3 01 1 1004- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-368-3 01 1 0805-0809 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-368-3 01 1 0810-1003 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-368-3 01 1 1004- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98069-123-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> 		8-98069-124-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98069-125-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98069-126-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> 		8-98053-378-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98053-383-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0810-0910 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0911-1001 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) DIGITAL CLOCK<UE8> EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1002-1003 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) DIGITAL CLOCK<UE8> EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0810-0910 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0911-1001 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 1002- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-376-3 01 1 0805-1002 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1008- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) 		8-98053-377-3 01 1 0805-1002 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98053-377-3 01 1 1003- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-374-3 01 1 0805-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-374-3 01 1 1003- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) 		8-98053-375-3 01 1 0805-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98053-375-3 01 1 1003- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-379-3 01 1 0805-0809 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-379-3 01 1 0810- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-381-3 01 1 0805-0809 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-381-3 01 1 0810-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-381-3 01 1 1003- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97245-601-0 01 1 0805- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 20A MINI YELLOW 		8-97062-024-0 04 1 0805- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 01 1 0805- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (B) 30A PINK 		8-97183-643-0 01 1 0805- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) 08.965 (A) 10A MINI RED 		8-97062-022-0 12 1 0805- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) 08.965 (A) 15A MINI BLUE 		8-97062-023-0 04 1 0805- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 08.965 (A) 10A MINI RED 		8-97062-022-0 11 1 0805- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 08.965 (A) 15A MINI BLUE 		8-97062-023-0 05 1 0805- ● ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0805- ● ● ● ● ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98061-685-0 01 1 0805-1004 ● ● ● ● ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98167-449-0 01 1 1005- ● ● ● ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97245-597-0 01 1 0805- ● ● ● ● ● ● ● ●
408 02.575 SOCKET ASM; ACCESSORY 8-97288-746-0 01 1 0805- ● ● ● ● ● ● ● ●
409 02.530 CAP; ACCESSORY SOCKET 8-97327-326-0 01 1 0805- ● ● ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) 		8-98040-808-0 01 1 0805- ● ● ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
C24SE ENG(LG1) 01.150 (A) 		8-97303-923-0 01 1 0805-1003 ● ●

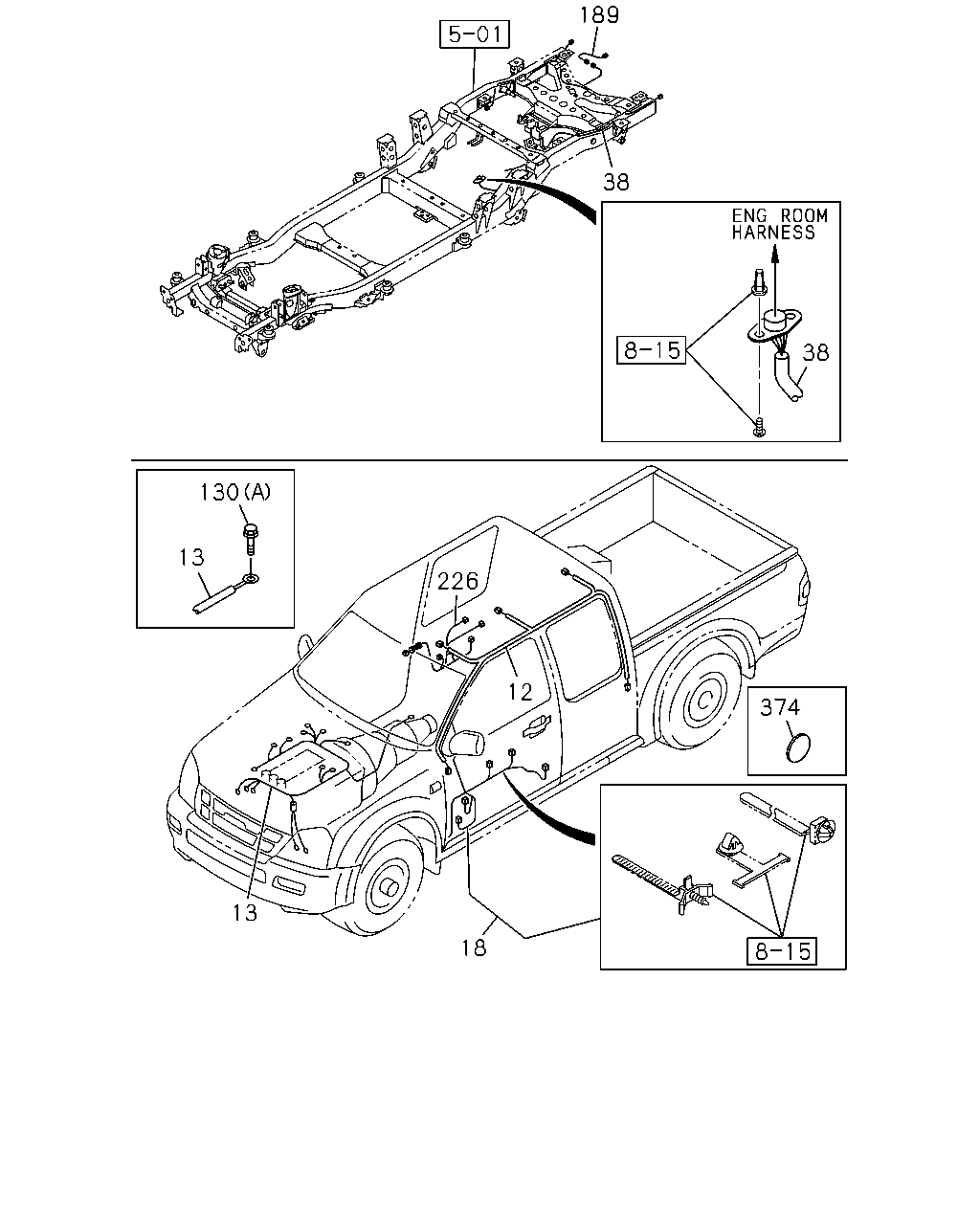

çizim 136241
189 38 38 130 13 226 12 374 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-430-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-429-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-443-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-441-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-454-0 01 1 0805-0809 ● ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98053-454-0 01 1 0810-0910 ● ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-454-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB EXTRA LONG(TFS*CK) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98053-454-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-454-0 01 1 0911- ● ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6>,ROOF RADIOANTENNA<U71> 		8-98053-457-1 01 1 0805-0809 ● ● ●
12 02.480 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6> 		8-98053-457-1 01 1 0810-0910 ● ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6>,ROOF RADIOANTENNA<U71> 		8-98053-457-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. HEADER CONSOLE<DK6> 		8-98053-457-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6>,ROOF RADIOANTENNA<U71> 		8-98053-457-1 01 1 0911- ● ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-97384-921-0 01 1 0805- ● ● ●
12 02.480 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6> 		8-97385-699-0 01 1 0805- ● ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-433-0 01 1 0805-0809 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-433-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 CREW CAB LONG(TFS*WF) HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-433-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-433-0 01 1 0911-1003 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-434-1 01 1 0805-0809 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-434-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 CREW CAB LONG(TFS*WF) HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-434-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-434-1 01 1 0911-1003 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-447-1 01 1 0805-0809 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-447-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 CREW CAB LONG(TFS*WF) EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-447-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-447-1 01 1 0911-1003 ●
12 02.480 HARNESS; ROOF
ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-449-1 01 1 0805-0809 ●
12 02.480 HARNESS; ROOF
ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-449-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 CREW CAB LONG(TFS*WF) ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-449-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-449-1 01 1 0911-1003 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 0805-0809 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 CREW CAB LONG(TFS*WF) REAR DEFOGGER<C49> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 0911-1007 ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 1008- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-465-0 01 1 0805-0809 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-465-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 CREW CAB LONG(TFS*WF) REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-465-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
CREW CAB EXTRA LONG(TF**WK) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98053-465-0 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-465-0 01 1 0911- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6>,ROOF RADIOANTENNA<U71> 		8-98053-468-1 01 1 0805- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-545-1 01 1 0805-0809 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-545-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 CREW CAB LONG(TFS*WF) REAR DEFOGGER<C49> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-545-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-545-1 01 1 0911- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-453-1 01 1 0805-0809 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) REAR DEFOGGER<C49> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-453-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-453-1 01 1 0911- ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-460-1 01 1 0805-0809 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) REAR DEFOGGER<C49> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-460-1 01 1 0810-0910 ●
12 02.480 HARNESS; ROOF
4X4 EXTEND CAB LONG(TFS*CF) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-460-1 01 1 0911- ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> POWER STEERING<N40> 		8-98011-543-6 01 1 0805-1003 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-543-6 01 1 1004- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> POWER STEERING<N40> 		8-98011-545-6 01 1 0805-1003 ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98011-545-6 01 1 1004- ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> POWER STEERING<N40> 		8-98011-544-6 01 1 0805-1003 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-544-6 01 1 1004- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> POWER STEERING<N40> 		8-98011-546-6 01 1 0805-1003 ●
13 02.525 HARNESS; ENG
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98011-546-6 01 1 1004- ●
18 02.480 HARNESS; DOOR 8-98053-486-0 01 1 0805- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A31> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) 		8-98053-486-0 01 1 0805- ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-98089-330-0 01 1 0805- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHEVROLET EQUIPMENT(8JF) 		8-98089-330-0 01 1 0805- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-98053-488-0 01 1 0805-0910 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-98053-488-0 01 1 0911- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-98053-479-0 01 1 0805-0910 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-98053-479-0 01 1 0911- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> 		8-98053-474-0 01 1 0805-1003 ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> 		8-98053-474-0 01 1 1004- ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> 		8-98053-473-0 01 1 0805-1003 ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> 		8-98053-473-0 01 1 1004- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-98053-489-0 01 1 0805-0809 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-98053-489-0 01 1 0810-1003 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-98053-489-0 01 1 1004-1007 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-98053-475-0 01 1 0805-0809 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-98053-475-0 01 1 0810-1003 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-98053-475-0 01 1 1004-1007 ● ●
38 02.480 HARNESS; CHAS
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-597-0 01 1 0805- ● ● ● ● ●
38 02.480 HARNESS; CHAS
HF V6 ENG(LCA),C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-596-0 01 1 0805-1003 ● ● ● ● ●
38 02.480 HARNESS; CHAS
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-596-0 01 1 1004- ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-196-0 01 1 0805- ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-197-0 01 1 0805- ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-198-0 01 1 0805- ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-199-0 01 1 0805- ● ● ● ● ●
38 02.480 HARNESS; CHAS
HF V6 ENG(LCA) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-605-0 01 1 0805- ● ● ● ●
38 02.480 HARNESS; CHAS
HF V6 ENG(LCA),C24SE ENG(LG1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-598-0 01 1 0805-1003 ● ● ● ●
38 02.480 HARNESS; CHAS
HF V6 ENG(LCA) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98007-598-0 01 1 1004- ● ● ● ●

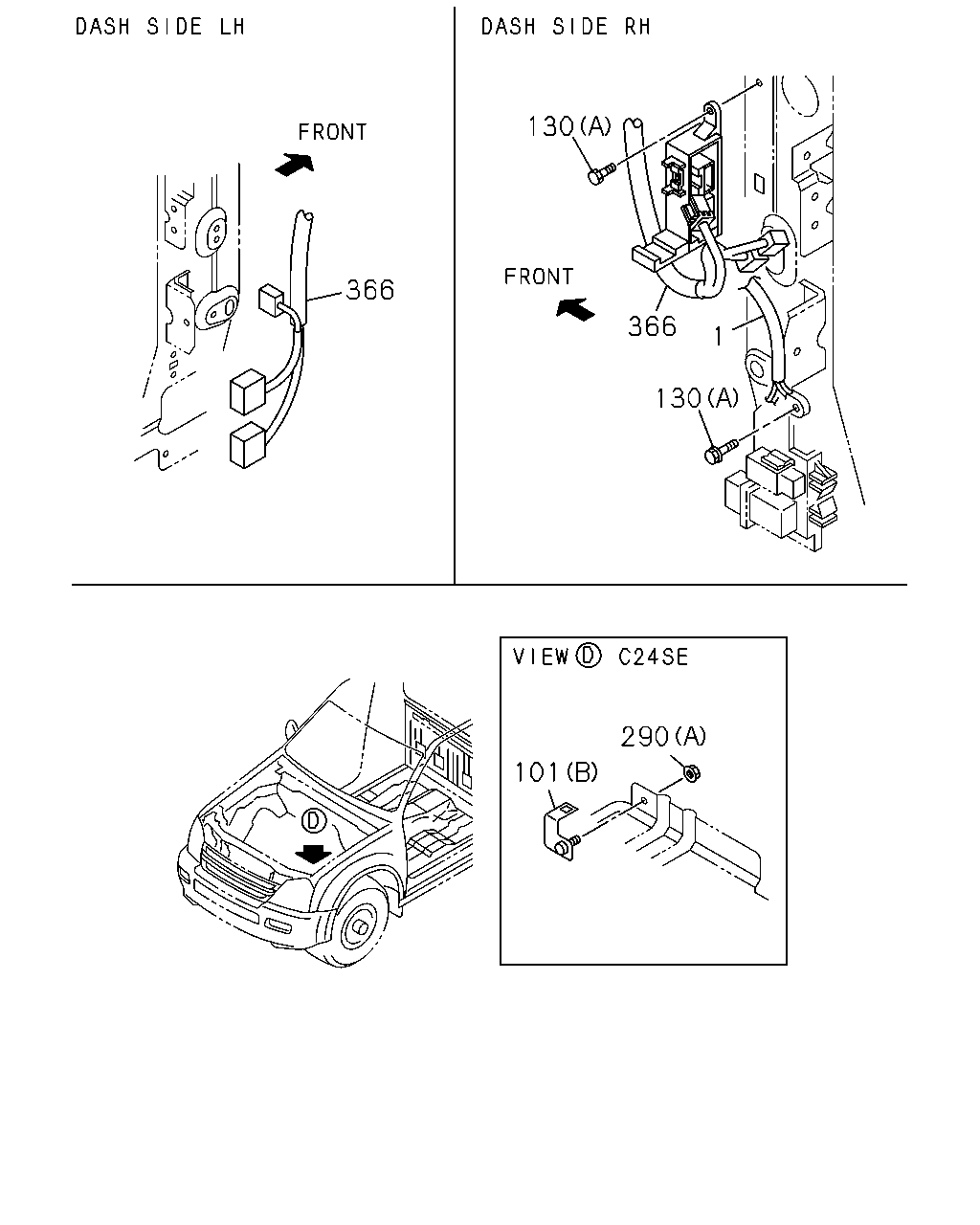

130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 01 1 0805- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 02 1 0805- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
HF V6 ENG(LCA) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ● ● ● ● ● ● ● ●
189 02.480 HARNESS; EXT 8-98085-269-0 01 1 0805- ● ● ● ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER CHROME(V42) 		8-98085-269-0 01 1 0805- ● ● ●
226 02.480 HARNESS; RR DOOR
GRADE LX(RBB),GRADE LT(RBD) 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> 		8-98053-409-1 02 1 0805-1003 ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW<A31> 		8-98053-408-1 02 1 0805-0809 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW<A31> 		8-98053-408-1 02 1 0810-1003 ●
226 02.480 HARNESS; RR DOOR 8-98053-408-1 02 1 0810-1003 ●
226 02.480 HARNESS; RR DOOR 8-98053-408-1 02 1 1004- ● ●
226 02.480 HARNESS; RR DOOR
EXC. POWER WINDOW<A31> 		8-98053-410-1 02 1 0805-0809 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A31> 		8-98053-410-1 02 1 0810-1003 ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. POWER WINDOW<A31>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0805-0809 ●
374 02.530 PLUG; HARNESS CONNECTOR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT(RBD) EXC. POWER WINDOW<A31>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BAS E<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0805-0809 ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. POWER WINDOW<A31>,4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0810-1003 ●

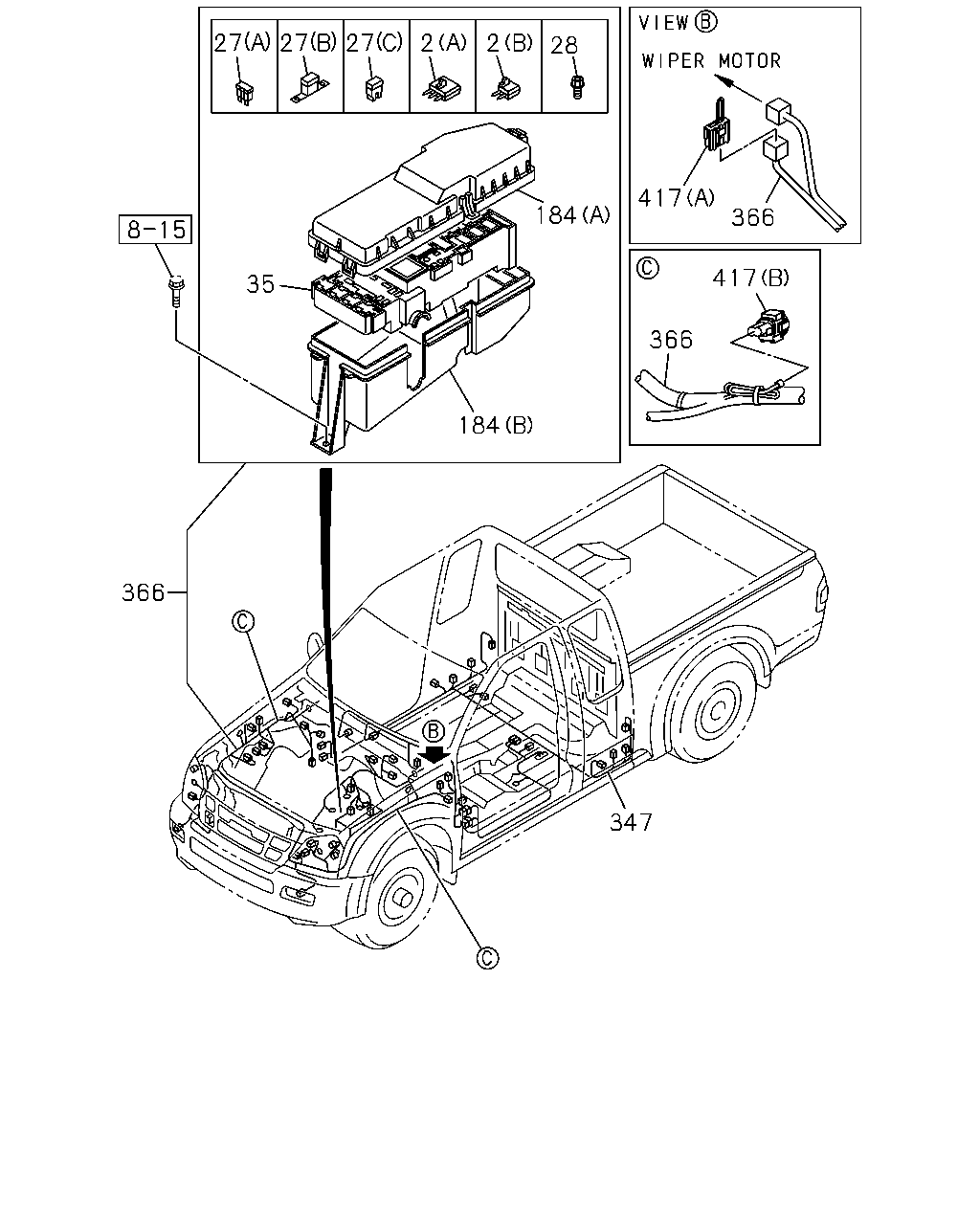

çizim 136499
27 27 27 2 2 28 417 184 366 417 35 366 184 366 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0805- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 01 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) (A) 20A MINI YELLOW 		8-97062-024-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (A) 20A MINI YELLOW 		8-97062-024-0 02 1 1004- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) 02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) (A) 10A MINI RED 		8-97062-022-0 12 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) (A) 15A MINI BLUE 		8-97062-023-0 05 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) (A) 20A MINI YELLOW 		8-97062-024-0 01 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) 02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 03 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4 SPEED-HMD,E LEC(M30) (C) 40A GREEN 		8-97183-644-0 02 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD) (C) 60A YELLOW 		8-97219-407-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 60A YELLOW 		8-97219-407-0 02 1 1004- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (A) 10A MINI RED 		8-97062-022-0 14 1 0805- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (C) 40A GREEN 		8-97183-644-0 03 1 0805-1003 ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (B) 100A BLUE 		8-94388-306-1 01 1 0805-0809 ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) (B) 100A BLUE 		8-94388-306-1 01 1 0810-1003 ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (A) 10A MINI RED 		8-97062-022-0 11 1 0805-0809 ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) (A) 10A MINI RED 		8-97062-022-0 11 1 0810-1003 ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (A) 15A MINI BLUE 		8-97062-023-0 01 1 0805-1003 ● ●
27 08.965 FUSE UNIT
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> (A) 15A MINI BLUE 		8-97062-023-0 01 1 0805-1003 ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (C) 40A GREEN 		8-97183-644-0 01 1 0805-0809 ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) (C) 40A GREEN 		8-97183-644-0 01 1 0810-1003 ● ●
27 08.965 FUSE UNIT
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) (C) 40A GREEN 		8-97183-644-0 03 1 1004- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> (C) 50A RED 		8-97183-645-0 01 1 0805-0809 ● ●
27 08.965 FUSE UNIT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) (C) 50A RED 		8-97183-645-0 01 1 0810-1003 ● ●
27 08.965 FUSE UNIT
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> (B) 120A WHITE 		1-82516-028-1 01 1 0805-1003 ●
27 08.965 FUSE UNIT
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> (A) 10A MINI RED 		8-97062-022-0 13 1 0805-1003 ●
27 08.965 FUSE UNIT
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 01 1 0805-1003 ●
27 08.965 FUSE UNIT
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) 02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 02 1 1004- ● ● ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 0805- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97251-395-0 01 1 0805- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 0805- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 0805- ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE LX(RBB),GRADE LT(RBD) 		8-98053-420-1 01 1 0805- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-419-1 01 1 0805-0809 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-419-1 01 1 0810-0910 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE DX(RBA) 		8-98053-419-1 01 1 0810-0910 ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-419-1 01 1 0911- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98053-422-1 01 1 0805-0809 ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-422-1 01 1 0805-0809 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98053-422-1 01 1 0810-0910 ●
347 02.480 HARNESS; CABLE,RR BODY
4X4 CREW CAB LONG(TFS*WF) AUTO DOOR LOCK<AU4> 		8-98053-422-1 01 1 0810-0910 ●
347 02.480 HARNESS; CABLE,RR BODY
CREW CAB EXTRA LONG(TF**WK) 		8-98053-422-1 01 1 0810-0910 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98053-422-1 01 1 0911-1003 ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-422-1 01 1 0911-1003 ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-422-1 01 1 1004- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98053-421-1 01 1 0805-0809 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98053-421-1 01 1 0810-0910 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98053-421-1 01 1 0911-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-319-0 01 1 0805- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-320-0 01 1 0805- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-310-0 01 1 0805-1003 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-310-0 01 1 1004- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-309-0 01 1 0805-1003 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-309-0 01 1 1004- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-323-0 01 1 0805- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-324-0 01 1 0805- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) EXC. LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> 		8-98089-326-1 01 1 0805- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 		8-98089-327-0 01 1 0805-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) 		8-98089-327-0 01 1 0810-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-314-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-314-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-313-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-313-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-321-1 01 1 0805- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-322-1 01 1 0805- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-312-0 01 1 0805-1003 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-312-0 01 1 1004- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-311-0 01 1 0805-1003 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-311-0 01 1 1004- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-325-1 01 1 0805- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-316-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-316-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 		8-98060-885-3 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-315-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-315-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 		8-98060-884-3 01 1 0805-1003 ●
417 02.530 CONNECTOR ASM; ENG HARNESS
(B) 		8-97385-263-0 02 1 0805-0809 ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) 		8-97385-263-0 02 1 0805-0809 ● ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
(B) 		8-97385-263-0 02 1 0810- ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) 		8-97385-263-0 02 1 0810- ● ● ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JJ1-TCX ENG(LS0) EXC. VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTENT WIPER<C13> (A) 		8-97327-713-0 01 1 0805- ● ● ●
çizim 136631
130 366 366 1 130 290 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-334-0 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-334-0 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-335-0 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-335-0 01 1 1004- ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-369-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-369-3 01 1 0810- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-365-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-365-3 01 1 0810- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-370-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-370-3 01 1 0810-1002 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> EXC. AUTO CRUISE CONT<K30> 		8-98053-370-3 01 1 1003- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-372-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-372-3 01 1 0810-1002 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> EXC. AUTO CRUISE CONT<K30> 		8-98053-372-3 01 1 1003- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-364-3 01 1 0805-0809 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-364-3 01 1 0810-1003 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-364-3 01 1 1004- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-368-3 01 1 0805-0809 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-368-3 01 1 0810-1003 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-368-3 01 1 1004- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98069-123-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> 		8-98069-124-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98069-125-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98069-126-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> 		8-98053-378-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98053-383-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0810-0910 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0911-1001 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) DIGITAL CLOCK<UE8> EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1002-1003 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) DIGITAL CLOCK<UE8> EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0810-0910 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0911-1001 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 1002- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-376-3 01 1 0805-1002 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1008- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) 		8-98053-377-3 01 1 0805-1002 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98053-377-3 01 1 1003- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-374-3 01 1 0805-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-374-3 01 1 1003- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) 		8-98053-375-3 01 1 0805-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98053-375-3 01 1 1003- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-379-3 01 1 0805-0809 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-379-3 01 1 0810- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-381-3 01 1 0805-0809 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-381-3 01 1 0810-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-381-3 01 1 1003- ● ●

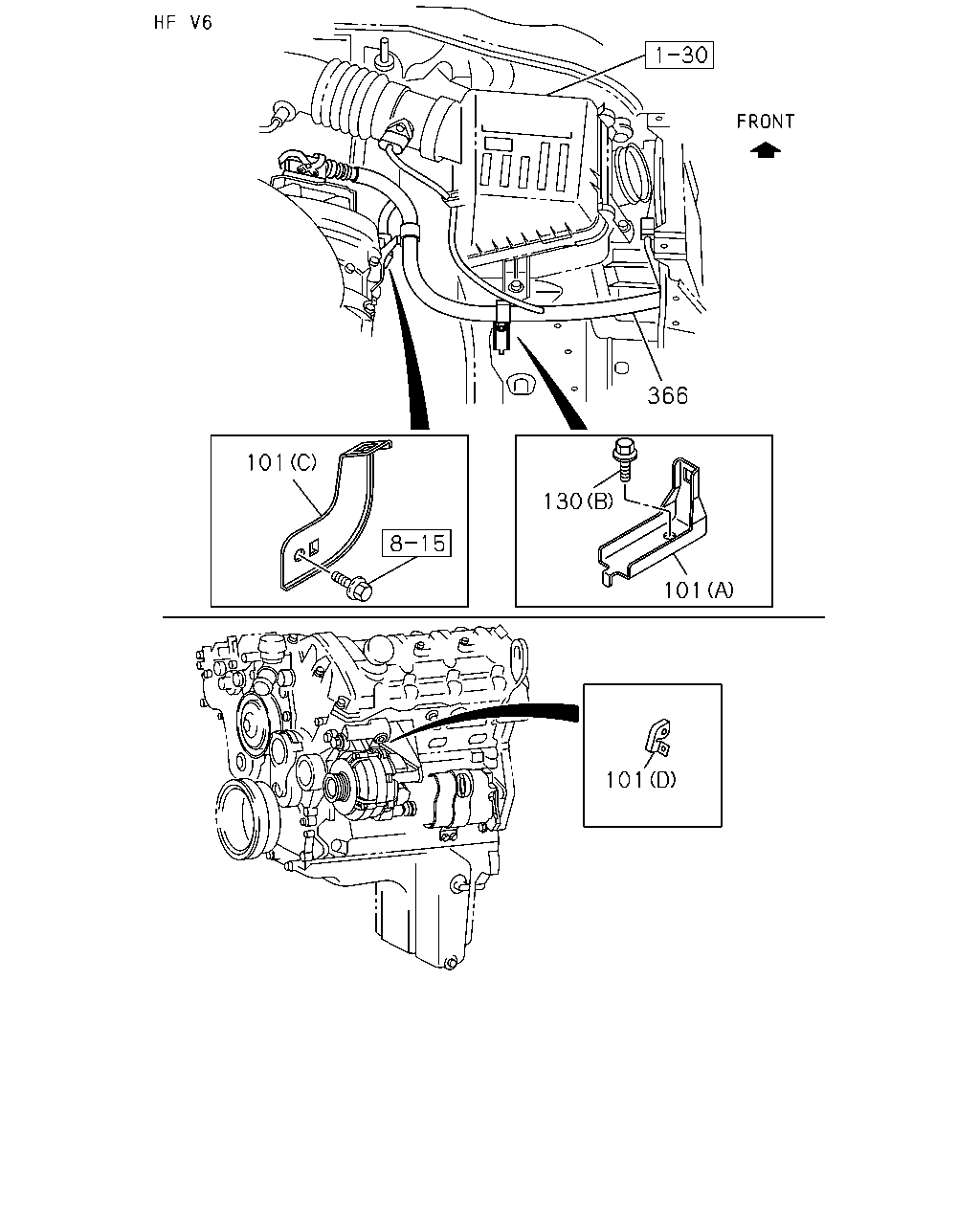

101 02.483 BRACKET; HARNESS CONNECTOR
HF V6 ENG(LCA) (C) 		8-92177-955-0 01 1 0805- ● ● ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
HF V6 ENG(LCA) (D) 		8-97237-379-0 01 1 0805- ● ● ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
HF V6 ENG(LCA) (A) 		8-98004-146-0 01 1 0805- ● ● ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> (B) 		8-97250-352-1 01 1 0805-0910 ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 01 1 0805- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 02 1 0805- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
HF V6 ENG(LCA) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ● ● ● ● ● ● ● ●

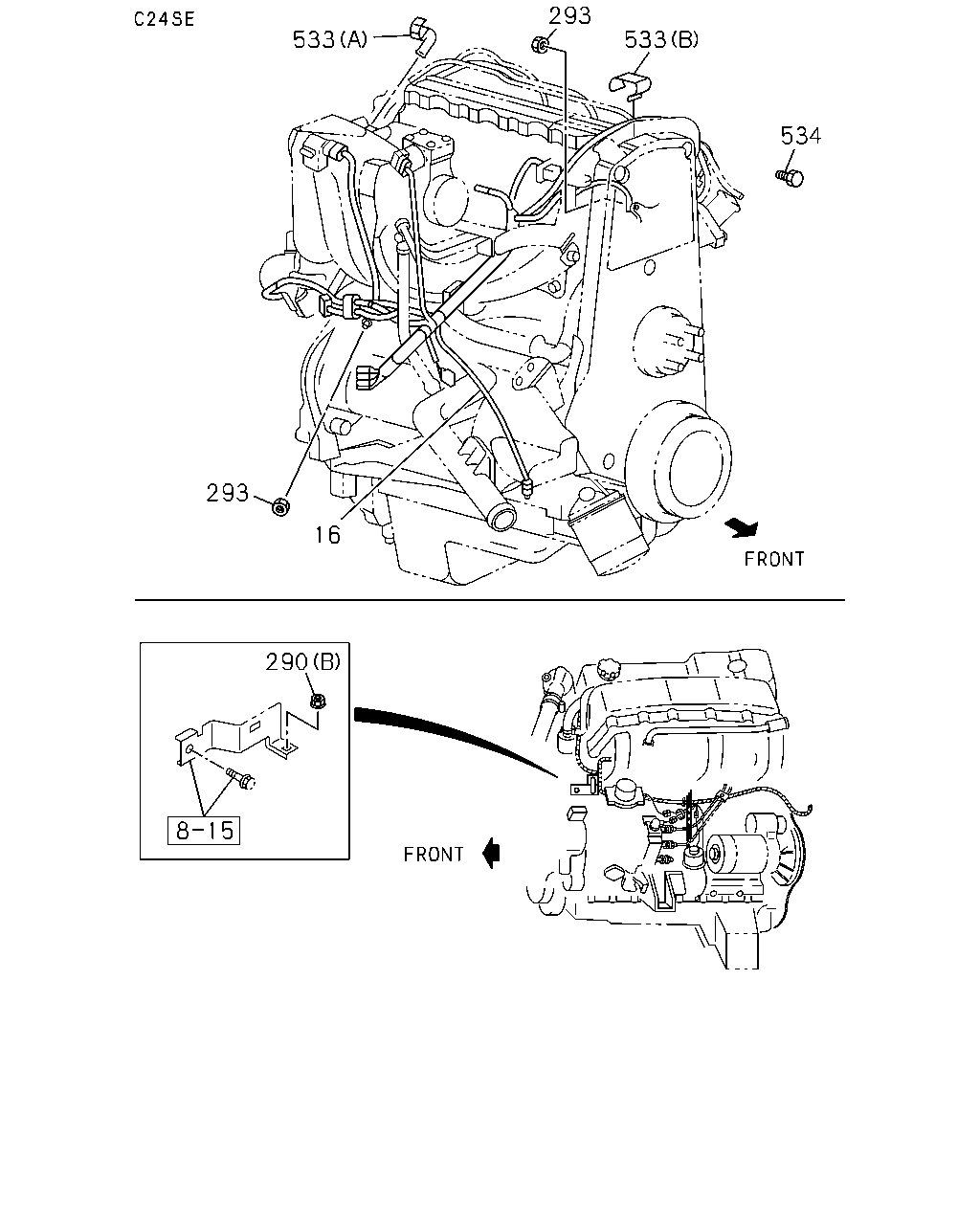

290 02.483 NUT; BRKT
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-0910 ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0805-0910 ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-319-0 01 1 0805- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-320-0 01 1 0805- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-310-0 01 1 0805-1003 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-310-0 01 1 1004- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-309-0 01 1 0805-1003 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-309-0 01 1 1004- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-323-0 01 1 0805- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-324-0 01 1 0805- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) EXC. LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> 		8-98089-326-1 01 1 0805- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 		8-98089-327-0 01 1 0805-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) 		8-98089-327-0 01 1 0810-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-314-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-314-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-313-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-313-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-321-1 01 1 0805- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-322-1 01 1 0805- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-312-0 01 1 0805-1003 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-312-0 01 1 1004- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-311-0 01 1 0805-1003 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-311-0 01 1 1004- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-325-1 01 1 0805- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-316-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-316-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 		8-98060-885-3 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-315-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-315-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 		8-98060-884-3 01 1 0805-1003 ●

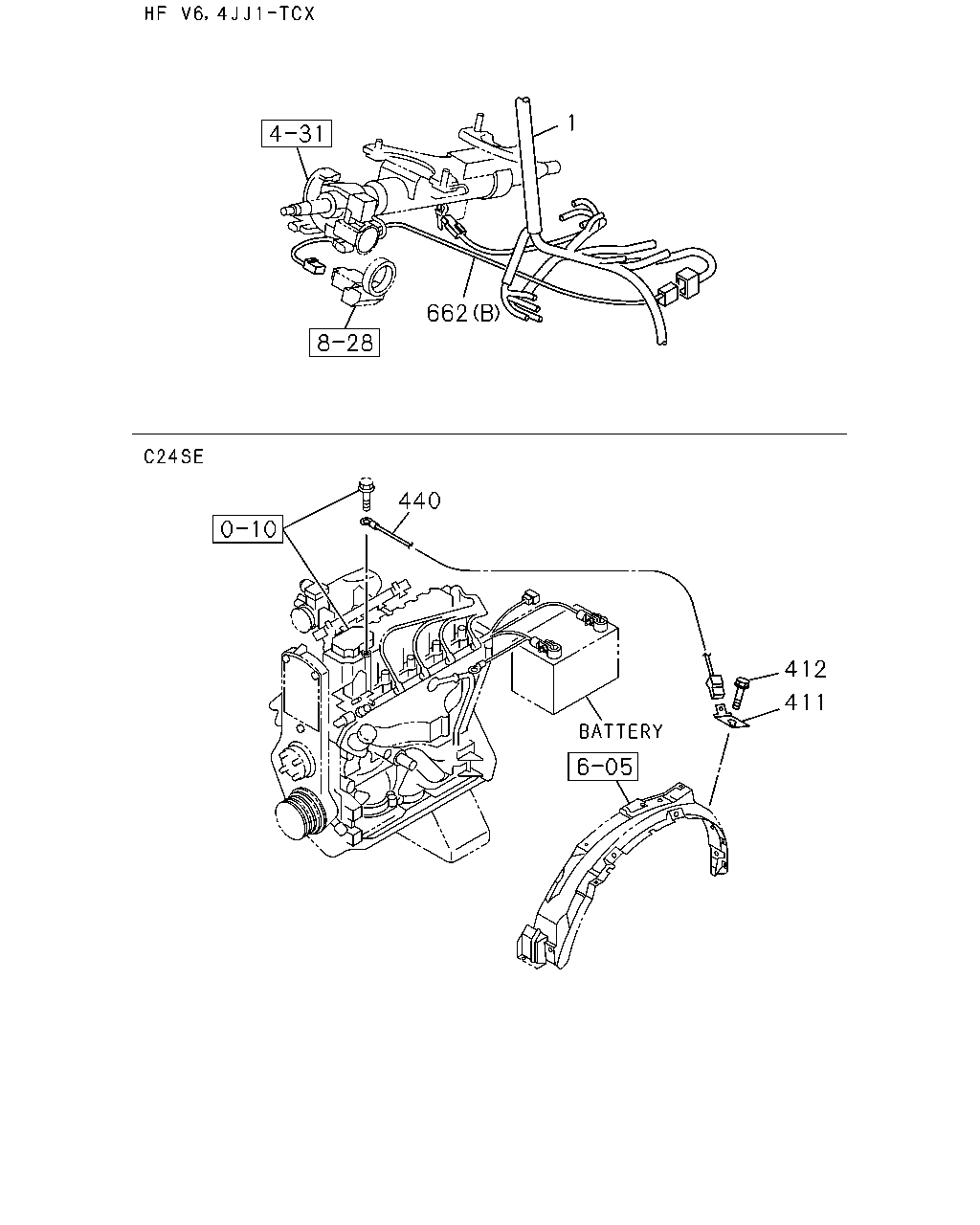

çizim 136641
1 662 440 412 411
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-334-0 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-334-0 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-335-0 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4>,DIGITAL CLOCK<UE8> 		8-98164-335-0 01 1 1004- ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-369-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-369-3 01 1 0810- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-365-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-365-3 01 1 0810- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-370-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-370-3 01 1 0810-1002 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> EXC. AUTO CRUISE CONT<K30> 		8-98053-370-3 01 1 1003- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-372-3 01 1 0805-0809 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-372-3 01 1 0810-1002 ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> EXC. AUTO CRUISE CONT<K30> 		8-98053-372-3 01 1 1003- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-364-3 01 1 0805-0809 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-364-3 01 1 0810-1003 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-364-3 01 1 1004- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-368-3 01 1 0805-0809 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-368-3 01 1 0810-1003 ● ● ● ● ●
1 02.480 HARNESS; CAB
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-368-3 01 1 1004- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98069-123-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> 		8-98069-124-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98069-125-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98069-126-2 01 1 0805-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> 		8-98053-378-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> 		8-98053-383-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0810-0910 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 0911-1001 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) DIGITAL CLOCK<UE8> EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1002-1003 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1002-1003 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) DIGITAL CLOCK<UE8> EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4> 		8-98053-384-3 01 1 1004- ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0805-0809 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0810-0910 ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 0911-1001 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE DX(RBA) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4> 		8-98053-385-3 01 1 1002- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-376-3 01 1 0805-1002 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1003-1007 ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-376-3 01 1 1008- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) 		8-98053-377-3 01 1 0805-1002 ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98053-377-3 01 1 1003- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-374-3 01 1 0805-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) AUSTRALIA EQUIPMENT(B13) 		8-98053-374-3 01 1 1003- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER DELETE(AK6) AUSTRALIA EQUIPMENT(B13) 		8-98053-375-3 01 1 0805-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98053-375-3 01 1 1003- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-379-3 01 1 0805-0809 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A31> 		8-98053-379-3 01 1 0810- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> AUSTRALIA EQUIPMENT(B13) 		8-98053-381-3 01 1 0805-0809 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER DELETE(AK6) POWER WINDOW<A31> 		8-98053-381-3 01 1 0810-1002 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) 		8-98053-381-3 01 1 1003- ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
C24SE ENG(LG1) 		8-98050-904-0 01 1 0805-1003 ● ●
412 02.559 BOLT; TERMINAL TO ENG,HANGER RR
C24SE ENG(LG1) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0805-1003 ● ●
440 02.480 CABLE; EARTH
C24SE ENG(LG1) 		8-97317-387-0 01 1 0805-1003 ● ●
662 02.525 HARNESS; IMMOBILIZER
HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) (B) 		8-98040-808-0 01 1 0805- ● ● ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
C24SE ENG(LG1) 01.150 (A) 		8-97303-923-0 01 1 0805-1003 ● ●
çizim 137133
366 101 130 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
101 02.483 BRACKET; HARNESS CONNECTOR
HF V6 ENG(LCA) (C) 		8-92177-955-0 01 1 0805- ● ● ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
HF V6 ENG(LCA) (D) 		8-97237-379-0 01 1 0805- ● ● ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
HF V6 ENG(LCA) (A) 		8-98004-146-0 01 1 0805- ● ● ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> (B) 		8-97250-352-1 01 1 0805-0910 ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 01 1 0805- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (A) M6X20 W/WASHER 		8-98056-282-0 02 1 0805- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
HF V6 ENG(LCA) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0805- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-319-0 01 1 0805- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-320-0 01 1 0805- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-310-0 01 1 0805-1003 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-310-0 01 1 1004- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-309-0 01 1 0805-1003 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-309-0 01 1 1004- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-323-0 01 1 0805- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-324-0 01 1 0805- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) EXC. LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> 		8-98089-326-1 01 1 0805- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 		8-98089-327-0 01 1 0805-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) AUSTRALIA EQUIPMENT(B13) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) 		8-98089-327-0 01 1 0810-1003 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-314-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-314-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-313-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-313-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-321-1 01 1 0805- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-322-1 01 1 0805- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-312-0 01 1 0805-1003 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-312-0 01 1 1004- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-311-0 01 1 0805-1003 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-311-0 01 1 1004- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-325-1 01 1 0805- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-316-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-316-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 		8-98060-885-3 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION<NT4> 		8-98089-315-0 01 1 0805-1003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98089-315-0 01 1 1004- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> DOOR MIR ELEC DUAL FOLDING COLOR TU RN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EURO3 SPECIFICATION<NT3> 		8-98060-884-3 01 1 0805-1003 ●

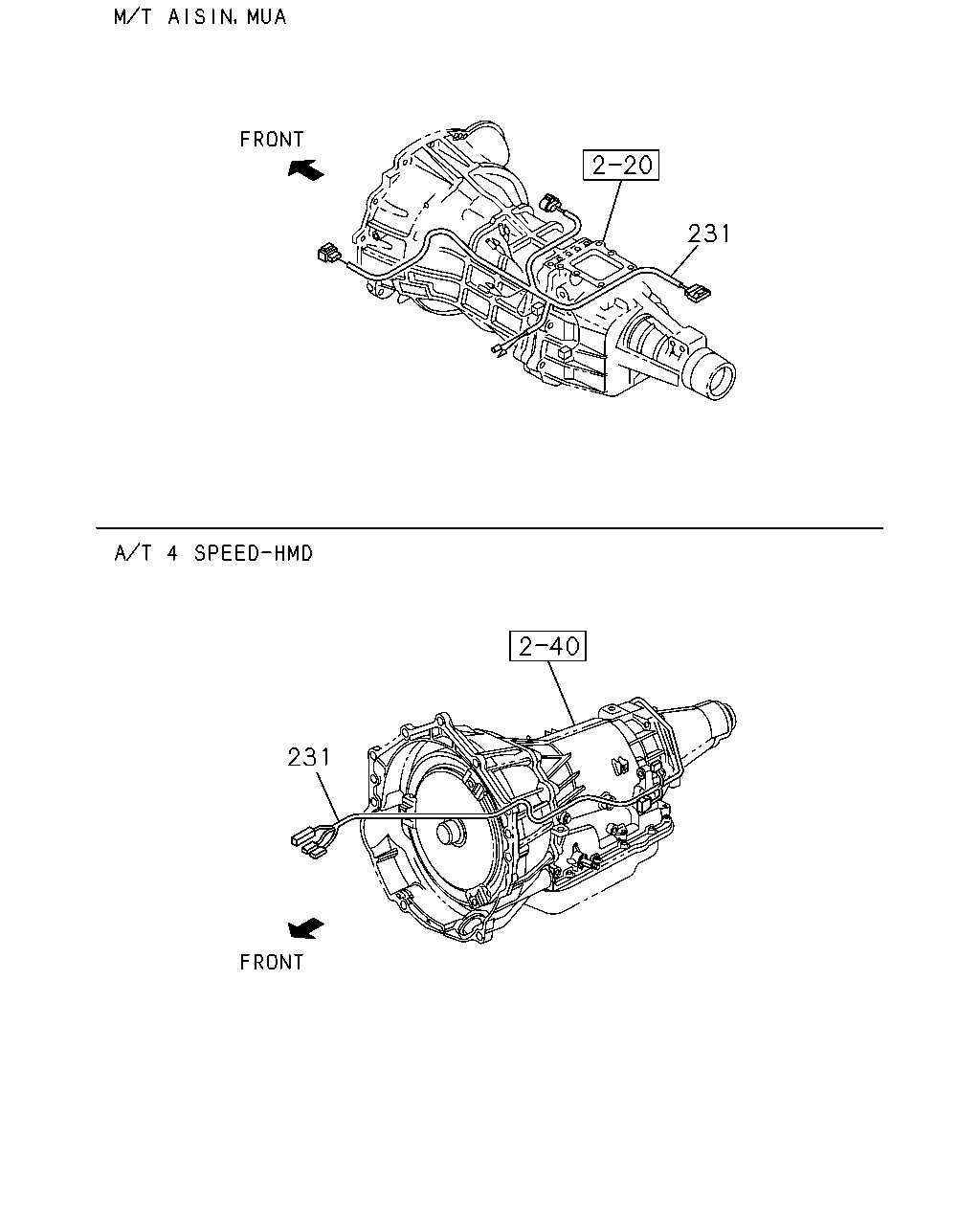

çizim 185853
231 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
231 02.480 HARNESS; TRANS
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 		8-98025-567-0 01 1 0805- ● ● ● ● ●
231 02.480 HARNESS; TRANS
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) 		8-98025-564-0 01 1 0805- ● ● ● ●
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EURO3 SPECIFICATION<NT3> 		8-98047-135-0 01 1 0805-1003 ● ●
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) EMISSION SYSTEM R15-04<K75> 		8-97357-460-0 01 1 0805-0910 ●
231 02.480 HARNESS; TRANS
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) 		8-98025-568-0 01 1 0805- ● ● ●
231 02.480 HARNESS; TRANS
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98025-565-0 01 1 0805- ●
çizim 185855
293 533 533 534 293 16 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.525 HARNESS; ENG,ECGI
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) 		8-92065-291-0 01 1 0805-1003 ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0805-0910 ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) EMISSION SYSTEM R15-04<K75> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0805-0910 ●
293 02.559 NUT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) 00.004 		8-11014-038-0 02 1 0805-1003 ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) (A) 		8-92065-418-0 02 1 0805-1003 ● ●
533 02.559 CLIP
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) (B) 		8-92065-422-0 01 1 0805-1003 ● ●
534 02.483 BOLT
C24SE ENG(LG1) M/T MUA 5 SPEED 5S(RSQ) 		8-90412-680-0 01 1 0805-1003 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
