◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#74813) — 44 parça

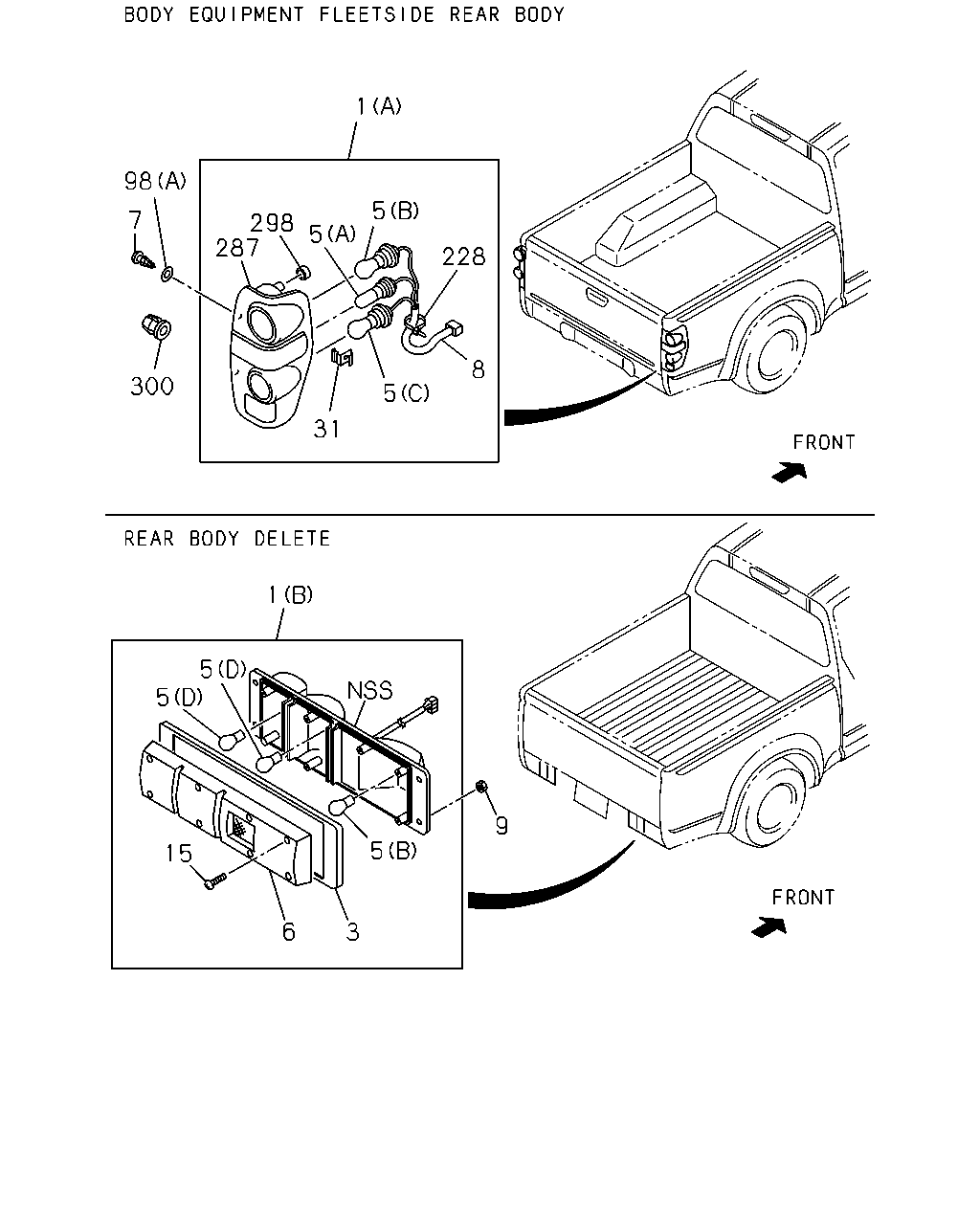

çizim 136446
1 98 5 7 298 287 5 228 8 300 5 31 1 5 5 9 5 15 6 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (B) 		8-97137-732-0 01 1 0805- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DELETE(8HH) (B) 		8-97137-731-0 01 1 0805- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98019-885-1 01 1 0805- ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98019-884-1 01 1 0805- ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-002-0 01 1 0805- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
REAR BODY DELETE(8HH) 02.689 		5-82236-001-0 01 1 0805- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0805- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DELETE(8HH) (D) 12V 21W 		8-94124-074-0 04 1 0805- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W 		8-94372-897-0 02 1 0805- ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W 		8-98100-011-0 02 1 0805- ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-002-0 01 1 0805- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
REAR BODY DELETE(8HH) 		5-82235-001-0 01 1 0805- ● ● ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0805- ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98046-511-0 02 1 0805- ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
REAR BODY DELETE(8HH) M5 FLANGE 		8-98049-363-0 08 1 0805- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
REAR BODY DELETE(8HH) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0805- ● ● ● ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98046-509-0 01 1 0805- ● ● ● ● ●
31 02.664 BRACKET; RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-98046-508-0 01 1 0805- ● ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0805- ● ● ● ● ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0805- ● ● ● ● ●
228 02.689 CLIP; COVER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97376-769-0 02 1 0805- ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) 		8-98046-496-0 01 1 0805- ● ● ● ● ●
287 02.679 LAMP UNIT; RR COMB
REAR BODY DBL WALL CTR PULL(E63) 		8-98046-495-0 01 1 0805- ● ● ● ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97289-148-0 02 1 0805- ● ● ● ● ●
300 16.494 HOLDER; LAMP
REAR BODY DBL WALL CTR PULL(E63) 		8-97372-854-0 04 1 0805- ● ● ● ● ●

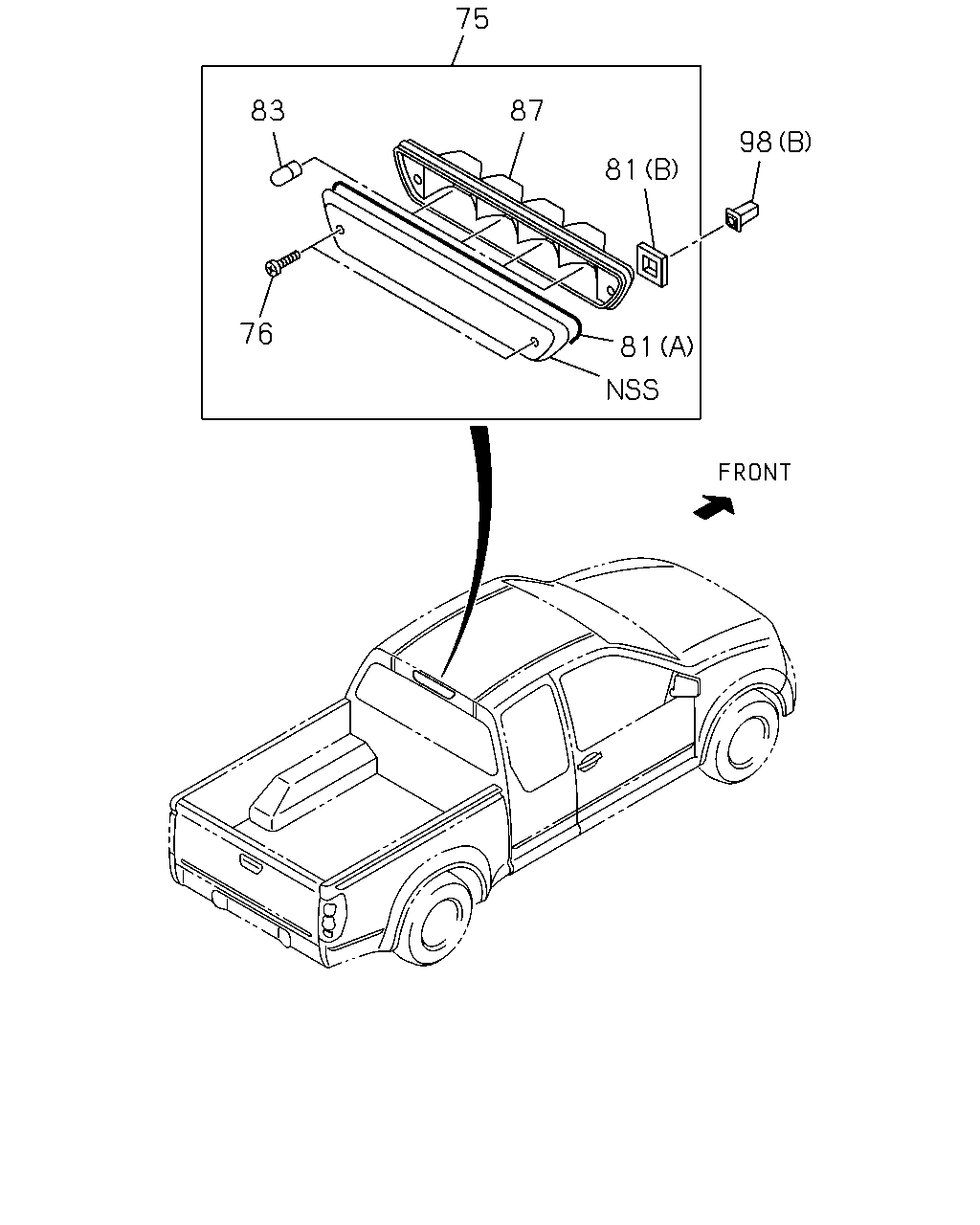

çizim 136486
75 83 87 98 81 76 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-97381-629-0 01 1 0805- ● ● ● ● ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-97333-426-0 02 1 0805- ● ● ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP
(A) 		8-97333-427-0 01 1 0805- ● ● ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP
(B) 		8-97333-428-0 01 1 0805- ● ● ● ● ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W 		8-97333-424-0 04 1 0805- ● ● ● ● ● ● ● ●
87 02.694 SOCKET; STOP LAMP 8-97333-425-0 01 1 0805- ● ● ● ● ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0805- ● ● ● ● ● ● ● ●
98 02.708 WASHER
REAR BODY DBL WALL CTR PULL(E63) 08.054 (A) D=16 		8-94427-941-0 04 1 0805- ● ● ● ● ●

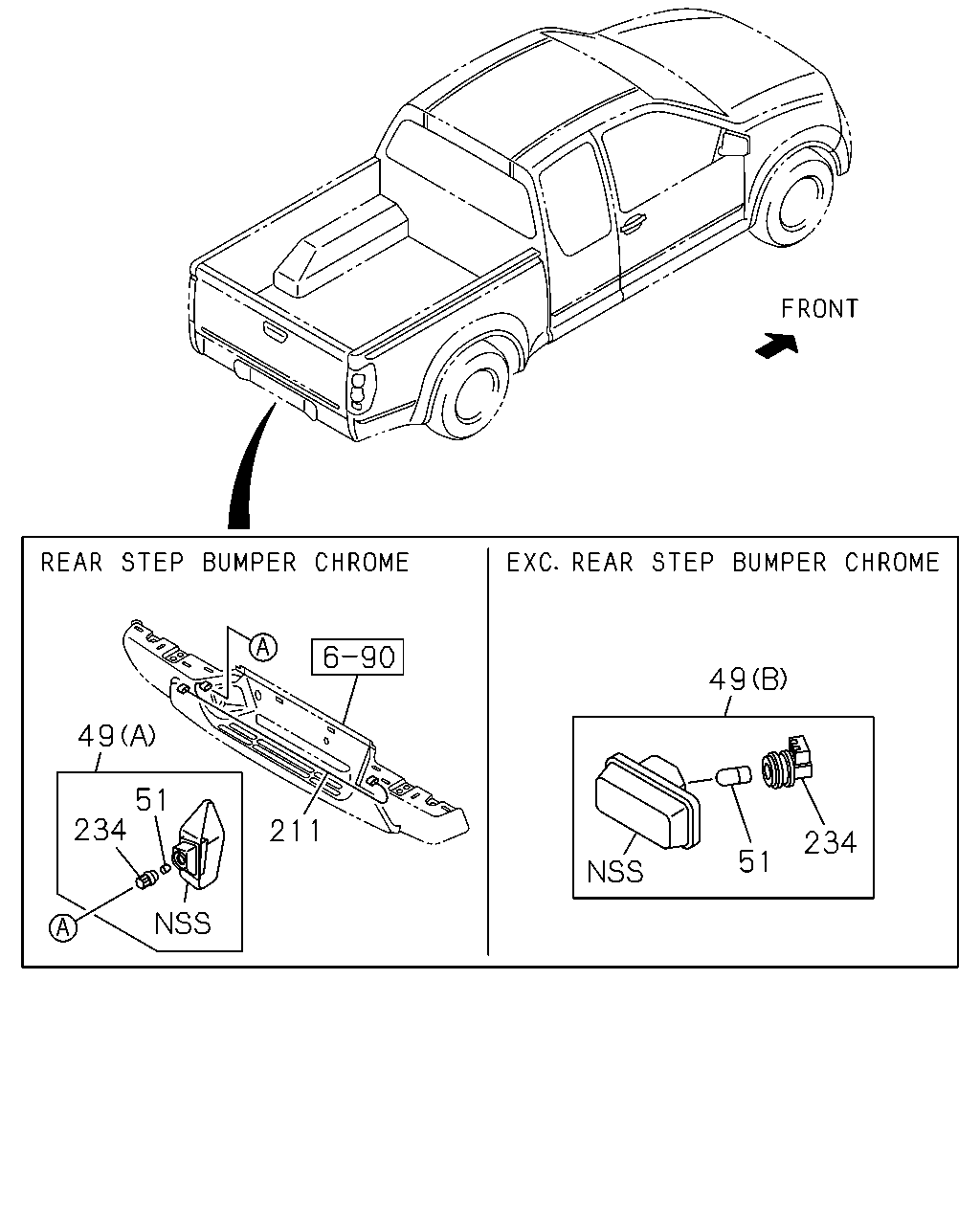

çizim 185852
49 49 51 234 211 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
49 02.700 LAMP; LICENSE PLATE
(B) 		8-97236-690-1 02 1 0805-1306 ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER CHROME(V42) (B) 		8-97236-690-1 02 1 0805-1306 ● ● ●
49 02.700 LAMP; LICENSE PLATE
(B) 		8-98224-482-0 02 1 1307- ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER CHROME(V42) (B) 		8-98224-482-0 02 1 1307- ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER CHROME(V42) (A) 		8-98070-867-0 01 1 0805- ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER CHROME(V42) (A) 		8-98070-866-0 01 1 0805- ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 0805- ● ● ● ● ● ● ● ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER CHROME(V42) 		8-98025-099-0 01 1 0805- ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 1-82119-148-0 02 1 0805- ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER CHROME(V42) 		1-82119-148-0 02 1 0805- ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER CHROME(V42) 		8-97184-970-0 02 1 0805- ● ● ●
