8-01 — LAMP; FRONT AND FRONT SIDE (#74812) — 32 parça

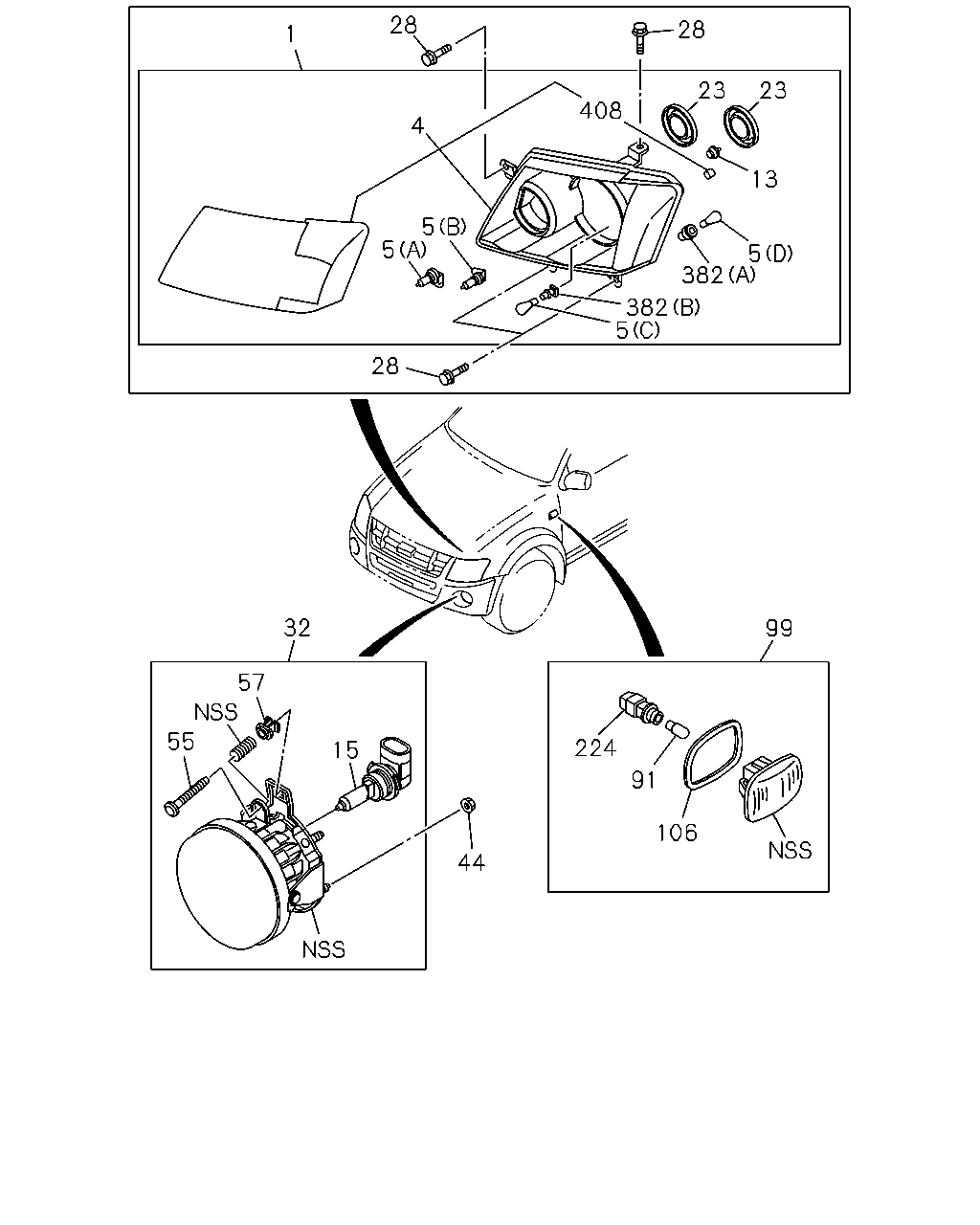

çizim 135740
28 28 1 23 23 408 4 13 5 5 5 382 382 5 28 32 99 57 55 224 15 91 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD 8-98019-882-2 01 1 0805- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98019-881-2 01 1 0805- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98092-675-0 01 1 0805- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98092-674-0 01 1 0805- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (C) 12V 5W 		8-94124-595-0 02 1 0805- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 51W 		8-97286-998-0 02 1 0805- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(A) 12V 60W 		8-97289-997-0 02 1 0805- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(D) 12V 21W 		8-98046-499-0 02 1 0805- ● ● ● ● ● ● ● ●
13 02.736 CLIP; HEADLAMP 8-97378-145-0 02 1 0805- ● ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0805- ● ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97675-961-0 04 1 0805- ● ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0805- ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0805-0904 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0805- ● ● ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0805- ● ● ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0805- ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W 		8-97310-952-0 02 1 0805-0809 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 12V 5W 		8-97310-952-0 02 1 0810- ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97237-378-1 02 1 0805-0809 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97237-378-1 02 1 0810- ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97333-420-0 02 1 0805-0809 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97333-420-0 02 1 0810- ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97310-953-0 02 1 0805-0809 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COL OR TURN SIGNAL<DF9>,DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-97310-953-0 02 1 0810- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-98012-761-0 02 1 0805- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-98012-788-0 02 1 0805- ● ● ● ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 04 1 0805- ● ● ● ● ● ● ● ●

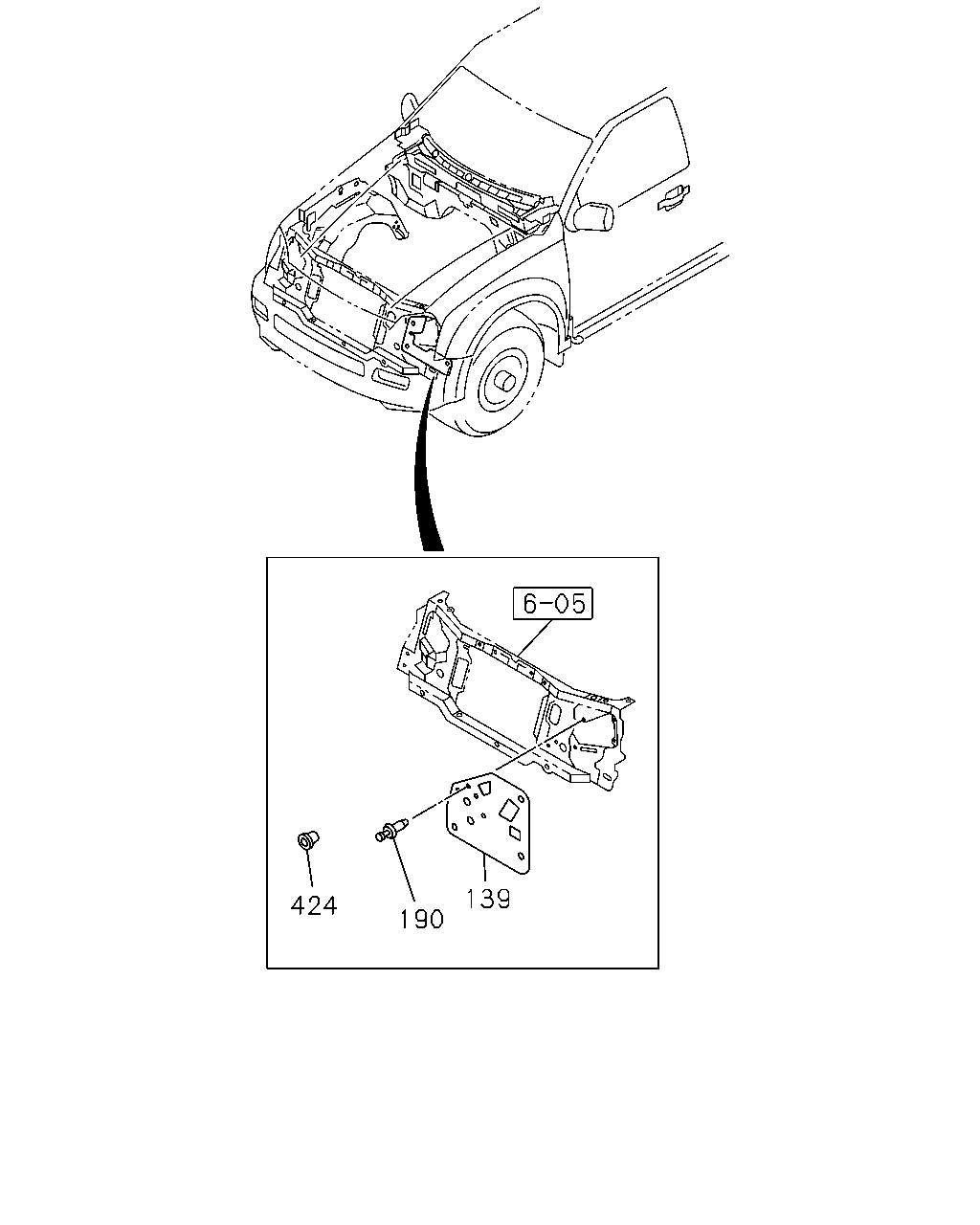

çizim 135989
139 424 190
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
139 02.726 COVER; HEADLAMP 8-98079-195-1 02 1 0805- ● ● ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
16.150 		8-94279-954-0 08 1 0805- ● ● ● ● ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0808- ● ● ● ● ● ● ● ●
