◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#74811) — 88 parça

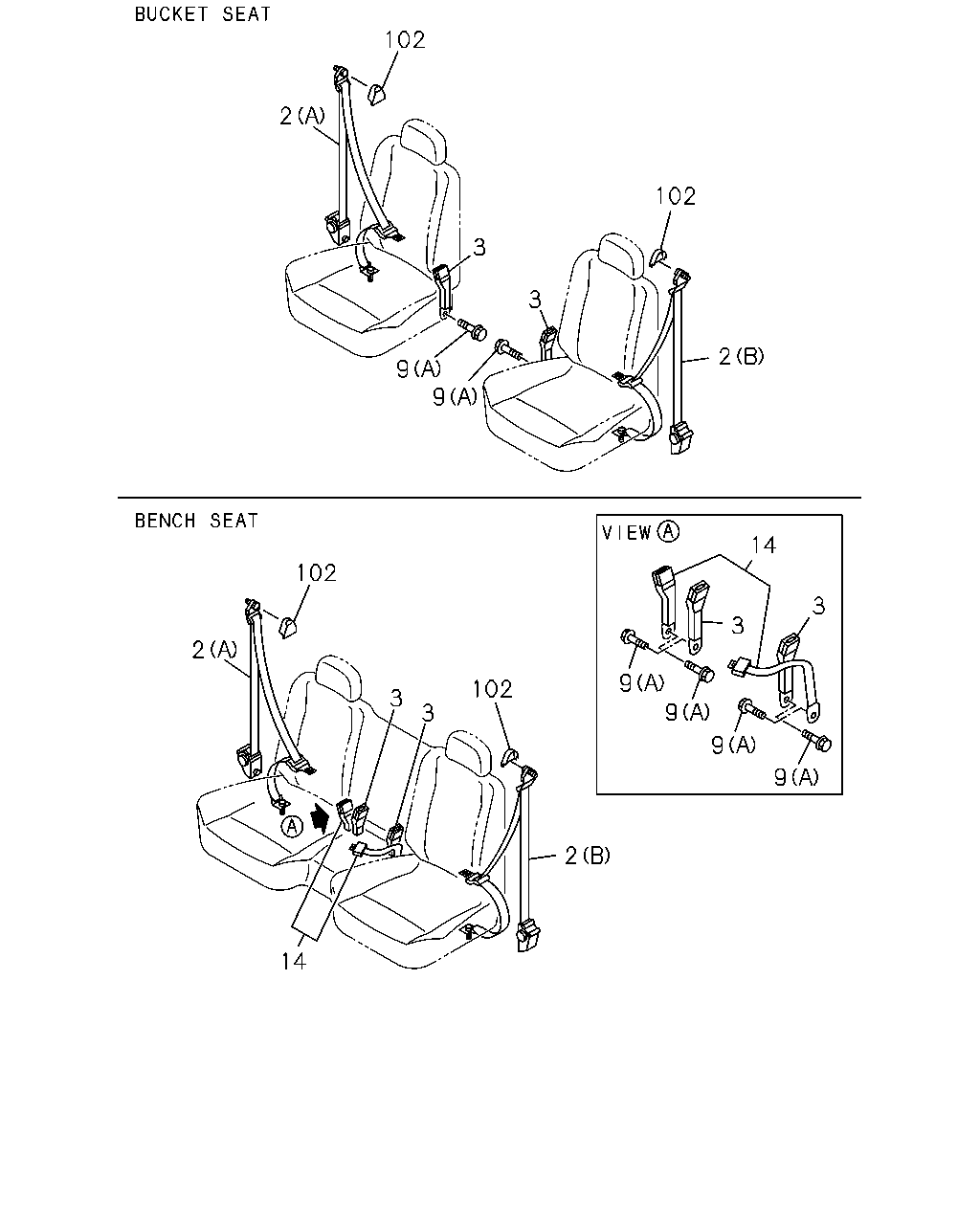

çizim 135766
102 2 102 3 3 2 9 9 14 102 3 3 2 9 9 102 3 3 9 9 2 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DARK GRAY 		8-97415-657-0 01 1 0805-0811 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DARK GRAY 		8-97417-046-0 01 1 0812-1303 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) DARK GRAY 		8-97424-032-0 01 1 1304- ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97413-223-0 01 1 0805-0811 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97417-040-0 01 1 0812-1303 ● ● ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) DARK GRAY 		8-97424-030-0 01 1 1304- ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> DARK GRAY 		8-97405-237-0 02 1 1011- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0805- ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0805- ● ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0805- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 01 1 0805- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97398-481-1 02 1 0805- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> DARK GRAY 		8-97405-237-0 02 1 0805-1009 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> DARK GRAY 		8-97405-237-0 01 1 1010-1010 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> DARK GRAY 		8-97405-237-0 01 1 1010-1010 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0805- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 02 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0805- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0805- ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1011- ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> DARK GRAY 		8-97414-784-0 01 1 1011- ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> DARK GRAY 		8-97414-784-0 01 1 0805-1009 ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0805-1009 ● ●
14 16.714 BELT; SEAT,CENTER
VINYL TRIM<8LJ> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1010-1010 ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> DARK GRAY 		8-97414-784-0 01 1 1010-1010 ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ●

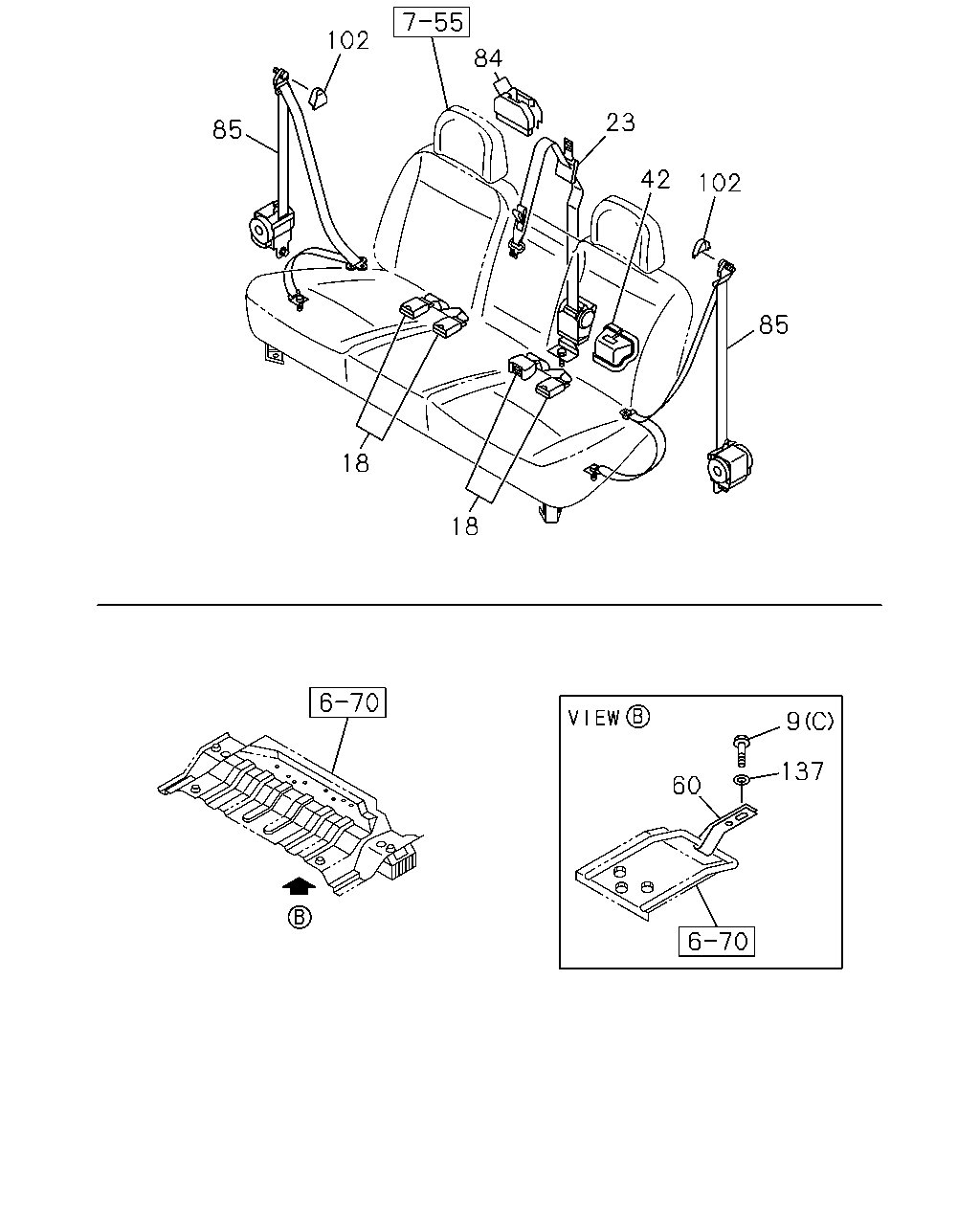

çizim 135923
102 84 23 85 42 102 85 18 18 9 137 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0805- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 02 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0805- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0805- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97407-564-0 01 1 0805- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97407-563-0 01 1 0805- ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97413-224-0 01 1 0805-0811 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97417-047-0 01 1 0812-1303 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97424-034-0 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0805-0809 ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0810-0910 ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0911-1003 ●
60 16.714 BRACKET; SHOULDER RETRACTOR 8-97324-174-1 01 1 0805- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97403-355-0 01 1 0805- ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97413-226-0 02 1 0805-0811 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97417-045-0 02 1 0812-1303 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97424-037-0 02 1 1304- ● ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-225-0 02 1 0805-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97417-044-0 02 1 0812-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97424-036-0 02 1 1304- ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ●
137 16.714 WASHER; PL,SEAT BELT
02.812 ID=12.5 OD=26 		0-91610-612-0 02 1 0805- ● ●

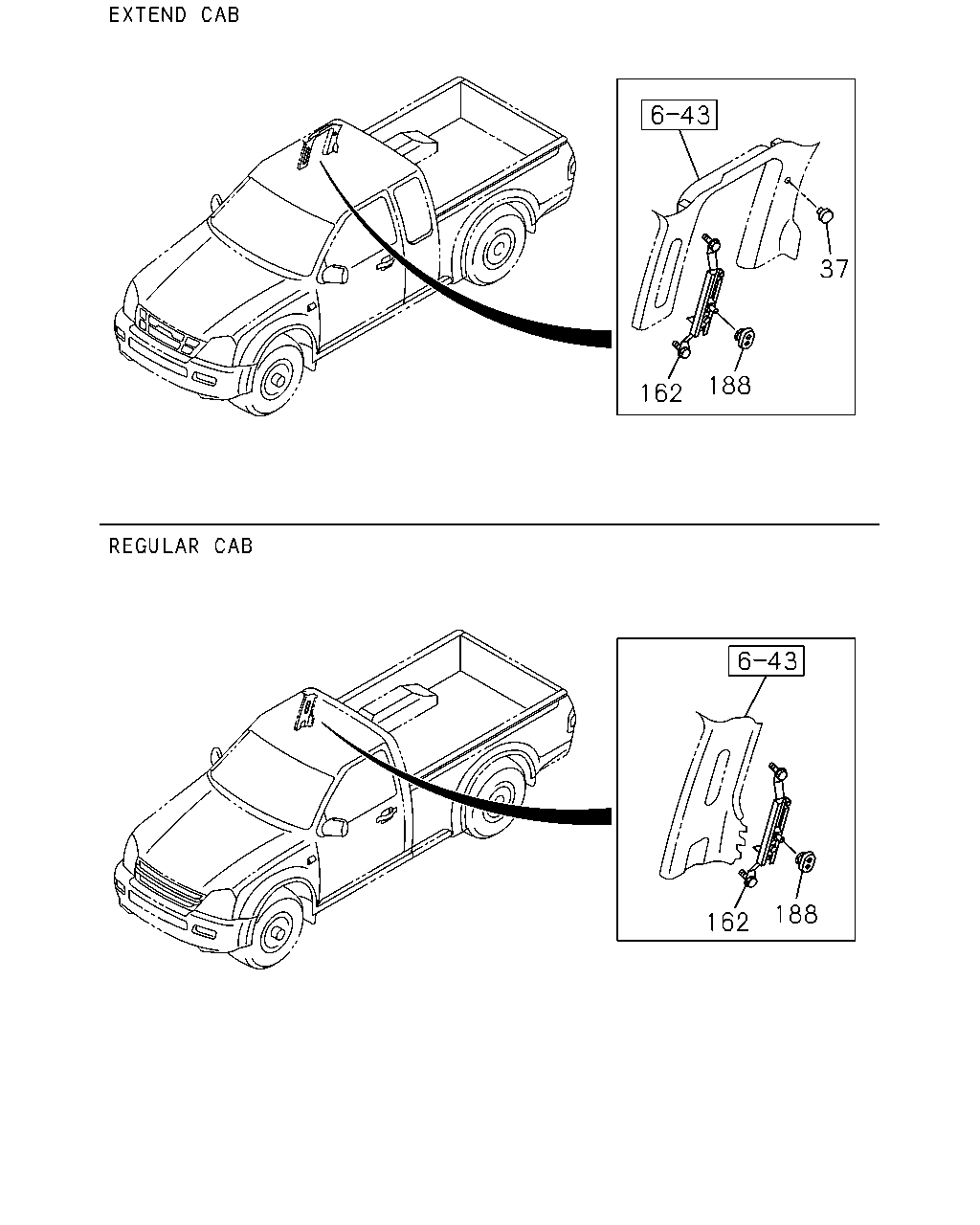

çizim 135946
37 188 162 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-353-0 02 1 0805- ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0805- ● ● ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0805- ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0805- ● ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0805- ● ●

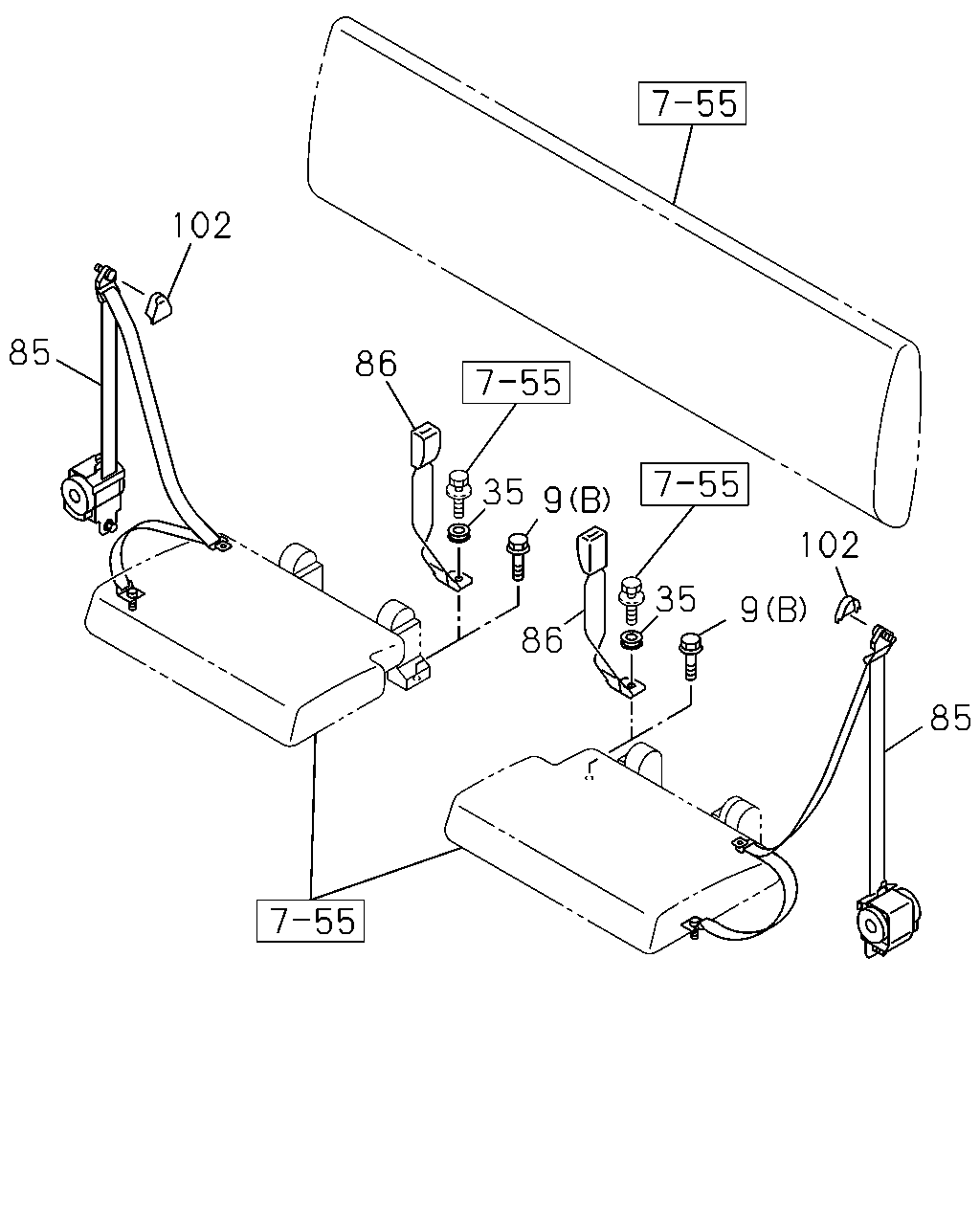

çizim 185849
102 85 86 35 9 102 35 9 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 01 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> 16.682 (B) M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 0805- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) (A) 		8-97332-665-0 02 1 0805- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> BENCH SEAT<A52> (A) 		8-97332-665-0 04 1 0805- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0805- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97370-311-0 02 1 0805- ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97413-226-0 02 1 0805-0811 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97417-045-0 02 1 0812-1303 ● ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97424-037-0 02 1 1304- ● ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-225-0 02 1 0805-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97417-044-0 02 1 0812-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97424-036-0 02 1 1304- ● ●
86 16.714 BELT; SEAT,RR INNER
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97404-957-0 02 1 0805- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ● ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
LIGHT GRAY 		8-97403-340-0 02 1 0805- ● ●

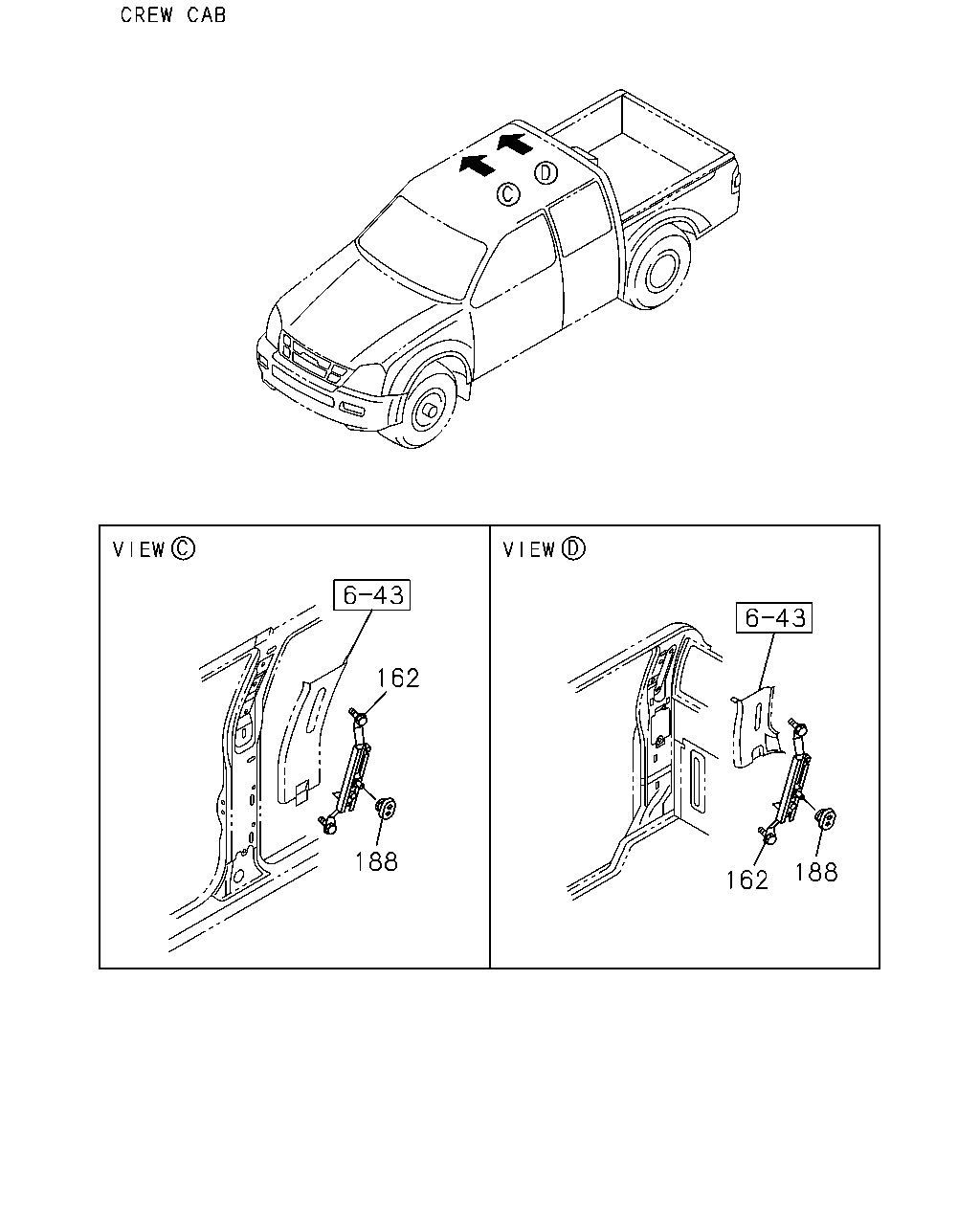

çizim 185850
162 188 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0805- ● ● ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0805- ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0805- ● ● ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0805- ● ●
