7-55 — REAR SEAT (#74810) — 67 parça

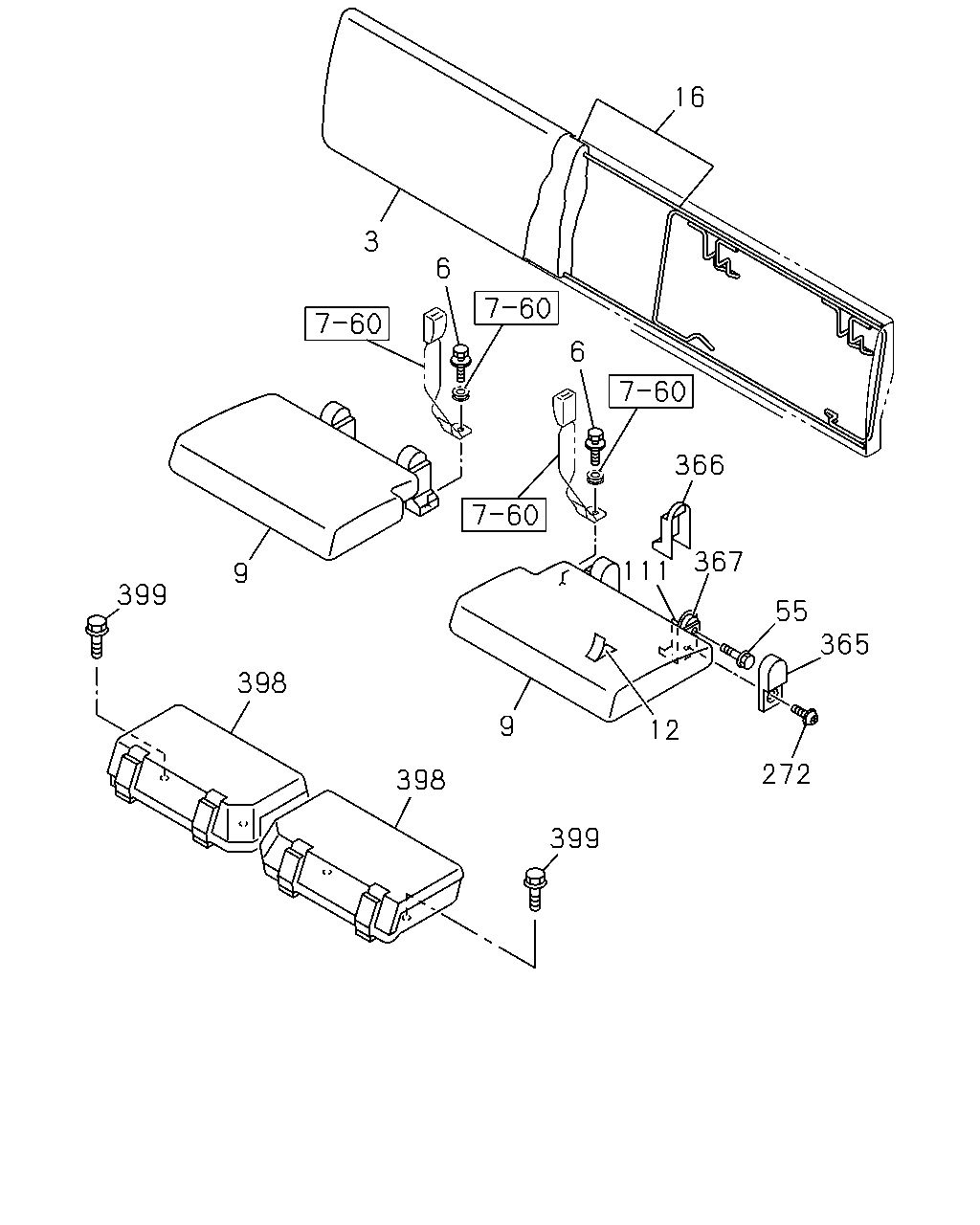

çizim 135837
16 3 6 6 366 367 111 9 399 55 365 398 9 12 272 398 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> JUMP SEAT<AJ2> DARK GRAY 		8-97414-550-0 01 1 0805- ● ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-310-0 01 1 0805-0809 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97416-849-0 01 1 0810- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97414-543-0 01 1 0805-0809 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97416-850-0 01 1 0810- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
VINYL TRIM<8LJ> GRAY 		8-97407-571-0 01 1 0805- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97414-551-0 01 1 0805- ●
6 16.679 BOLT; RR SEAT
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 04 1 0805- ● ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL> JUMP SEAT<AJ2> DARK GRAY 		8-97414-546-0 01 1 0805- ● ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL> JUMP SEAT<AJ2> DARK GRAY 		8-97414-548-0 01 1 0805- ● ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-309-0 01 1 0805- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97414-542-0 01 1 0805- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
VINYL TRIM<8LJ> GRAY 		8-97407-558-0 01 1 0805- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97414-547-0 01 1 0805- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97414-549-0 01 1 0805- ●
12 16.717 PAD & FRAME ASM; RR CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97353-256-0 01 1 0805- ● ● ●
12 16.717 PAD & FRAME ASM; RR CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97353-255-0 01 1 0805- ● ● ●
16 16.720 PAD & FRAME ASM; RR BACK SIDE
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97332-775-0 01 1 0805- ● ● ●
55 16.716 BOLT; HINGE,RR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97353-257-0 04 1 0805- ● ● ●
55 16.716 BOLT; HINGE,RR SEAT
16.682 		8-97332-815-0 02 1 0805- ● ●
111 16.716 BRACKET; HINGE,JUMP SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97355-211-0 02 1 0805- ● ● ●
111 16.716 BRACKET; HINGE,JUMP SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97355-210-0 02 1 0805- ● ● ●
272 16.720 SCREW; COVER
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97354-993-0 04 1 0805- ● ● ●
365 16.717 COVER; PIVOT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> INNER DARK GRAY 		8-97404-946-0 01 1 0805- ● ● ●
365 16.717 COVER; PIVOT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> OUTER DARK GRAY 		8-97404-947-0 01 1 0805- ● ● ●
365 16.717 COVER; PIVOT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> INNER DARK GRAY 		8-97404-950-0 01 1 0805- ● ● ●
365 16.717 COVER; PIVOT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> OUTER DARK GRAY 		8-97404-951-0 01 1 0805- ● ● ●
366 16.717 LID; PIVOT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97404-955-0 04 1 0805- ● ● ●
367 16.717 DETENT; RR JUMP PIVOT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97355-209-0 02 1 0805- ● ● ●
367 16.717 DETENT; RR JUMP PIVOT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97355-208-0 02 1 0805- ● ● ●
398 16.650 COMPARTMENT; FLOOR
JUMP SEAT<AJ2> 16.545 		8-97360-813-0 01 1 0805- ● ● ●
398 16.650 COMPARTMENT; FLOOR
JUMP SEAT<AJ2> 16.545 		8-97360-814-0 01 1 0805- ● ● ●
399 16.650 BOLT; COMPARTMENT
JUMP SEAT<AJ2> M6X18 W/LK&PL WASHER 		8-98061-682-0 04 1 0805- ● ● ●

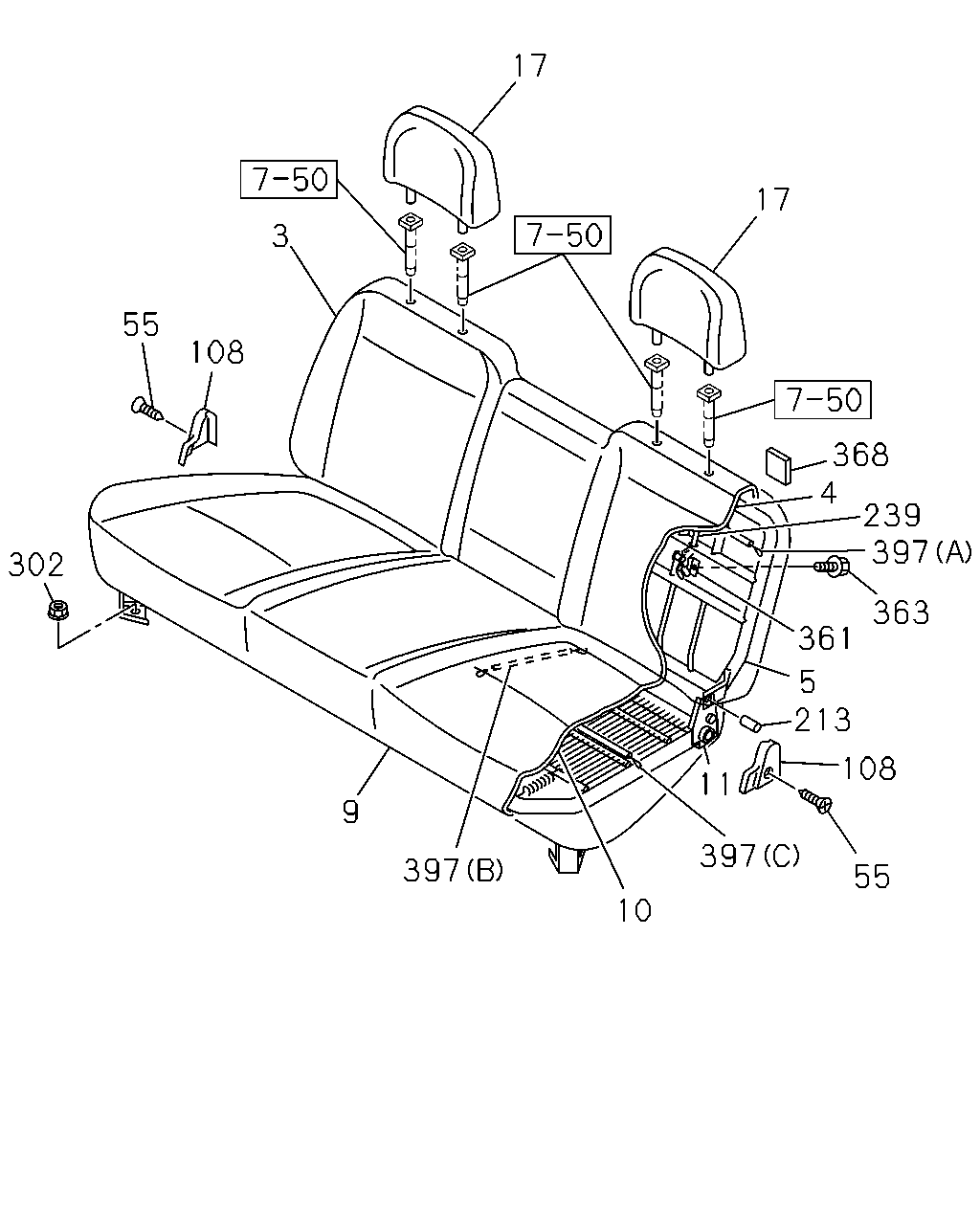

çizim 135956
17 17 3 55 108 368 4 239 397 302 363 361 5 213 108 11 9 397 397 55 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> JUMP SEAT<AJ2> DARK GRAY 		8-97414-550-0 01 1 0805- ● ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-310-0 01 1 0805-0809 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97416-849-0 01 1 0810- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97414-543-0 01 1 0805-0809 ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97416-850-0 01 1 0810- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
VINYL TRIM<8LJ> GRAY 		8-97407-571-0 01 1 0805- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97414-551-0 01 1 0805- ●
4 16.720 PAD; RR,SEAT BACK 8-98028-774-0 01 1 0805- ● ●
5 16.720 FRAME ASM; RR SEAT BACK 8-98028-772-0 01 1 0805- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL> JUMP SEAT<AJ2> DARK GRAY 		8-97414-546-0 01 1 0805- ● ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL> JUMP SEAT<AJ2> DARK GRAY 		8-97414-548-0 01 1 0805- ● ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-309-0 01 1 0805- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97414-542-0 01 1 0805- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
VINYL TRIM<8LJ> GRAY 		8-97407-558-0 01 1 0805- ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97414-547-0 01 1 0805- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> DARK GRAY 		8-97414-549-0 01 1 0805- ●
10 16.716 PAD; CUSHION,RR SEAT 8-98028-694-0 01 1 0805- ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT 8-98028-686-0 01 1 0805- ● ●
17 16.718 REST; HD,RR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-311-0 02 1 0805- ● ●
17 16.718 REST; HD,RR SEAT
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97414-544-0 02 1 0805- ● ●
17 16.718 REST; HD,RR SEAT
VINYL TRIM<8LJ> GRAY 		8-97407-580-0 02 1 0805- ● ●
55 16.716 BOLT; HINGE,RR SEAT
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> JUMP SEAT<AJ2> 		8-97353-257-0 04 1 0805- ● ● ●
55 16.716 BOLT; HINGE,RR SEAT
16.682 		8-97332-815-0 02 1 0805- ● ●
108 16.714 COVER; HINGE BRKT
DARK GRAY 		8-97407-577-0 01 1 0805- ● ●
108 16.714 COVER; HINGE BRKT
DARK GRAY 		8-97407-576-0 01 1 0805- ● ●
213 16.716 BUSHING; RR SEAT HINGE 8-97354-675-0 02 1 0805- ● ●
239 16.682 CABLE; CONT,LEVER 8-97332-828-0 01 1 0805- ● ●
302 16.715 NUT; RR SEAT
05.816 M12 FLANGE 		0-91180-212-0 04 1 0805- ● ●
361 16.682 LATCH; REAR SEAT 8-98004-027-0 02 1 0805- ● ●
363 16.682 BOLT; REAR SEAT LATCH 8-97332-815-0 08 1 0805- ● ●
368 16.720 PAD; BACK FORM 8-98028-775-0 02 1 0805- ● ●
397 16.686 CABLE; SEAT
(B) 		8-98028-780-0 04 1 0805- ● ●
397 16.686 CABLE; SEAT
(C) 		8-98028-781-0 02 1 0805- ● ●
397 16.686 CABLE; SEAT
(A) 		8-98028-782-0 02 1 0805- ● ●
