6-32 — FRONT DOOR LOCK AND HANDLE (#7481) — 27 parça

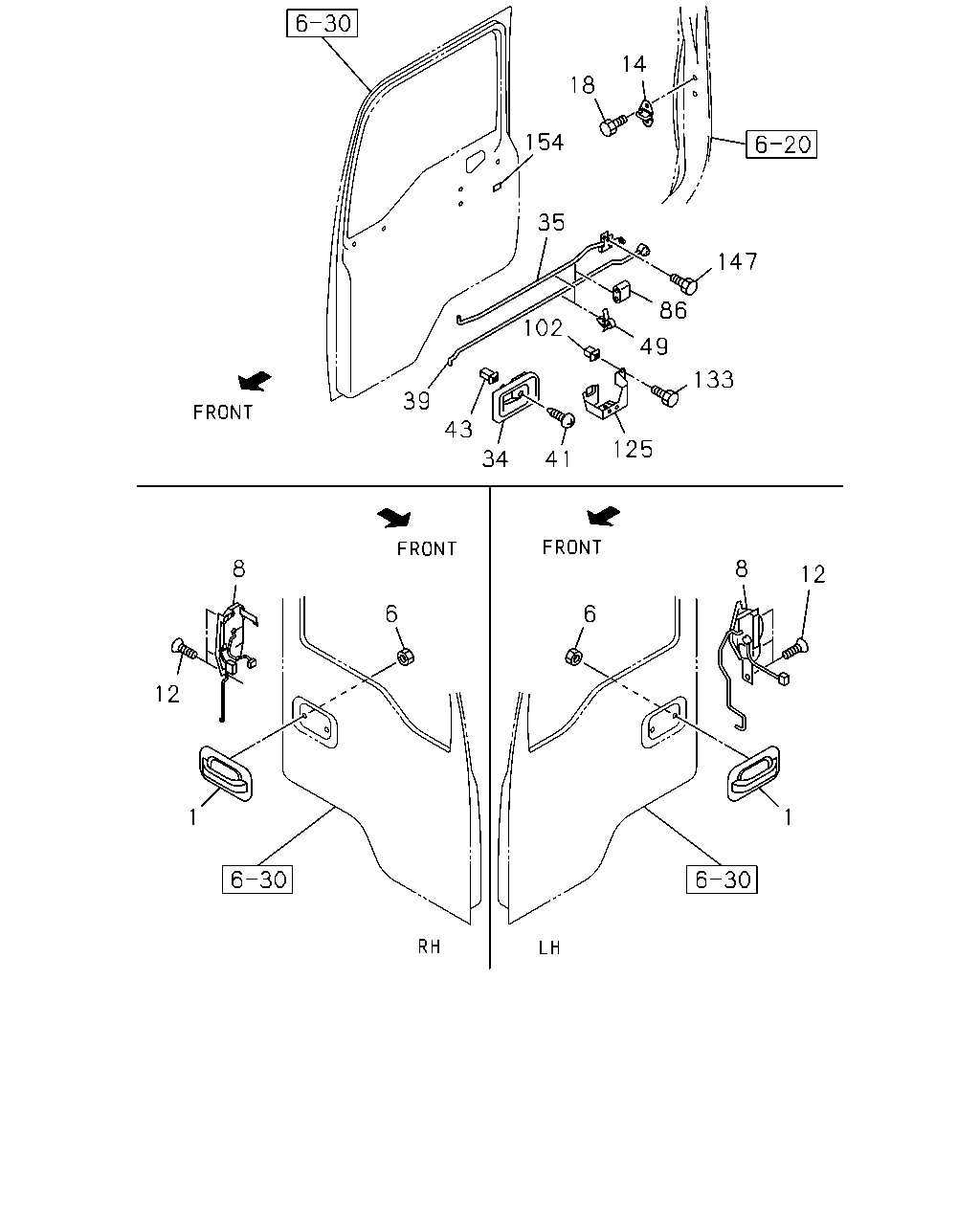

çizim 26251
14 18 154 35 147 86 102 49 133 39 43 125 34 41 8 8 12 6 6 12 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-024-4 02 1 9811- ● ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER TAI 		1-09984-180-0 04 1 9811- ● ●
8 LOCK; DOOR,FRT DOOR 1-74518-114-3 01 1 9811- ● ●
8 LOCK; DOOR,FRT DOOR 1-74518-113-3 01 1 9811- ● ●
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9811- ● ●
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 9811- ● ●
14 STRIKER; FRT DOOR 8-97852-106-1 02 1 9811-9903 ● ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 9904- ● ●
18 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9811-9903 ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 9904- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 9811- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 9811- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 9811- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 9811- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 9811- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 9811- ● ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 9811- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 02 1 9811- ● ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 9811- ● ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 9811- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL TAI 		8-94279-043-0 04 1 9811- ● ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 9811- ● ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 9811- ● ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING TAI 		8-94279-123-0 04 1 9811- ● ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 02 1 9811- ● ●
154 SEAL; DOOR
15X30 		1-74998-069-0 02 1 9811-0210 ● ●
154 SEAL; DOOR
30X30 		1-74998-128-1 02 1 0211- ● ●
