◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#74807) — 30 parça

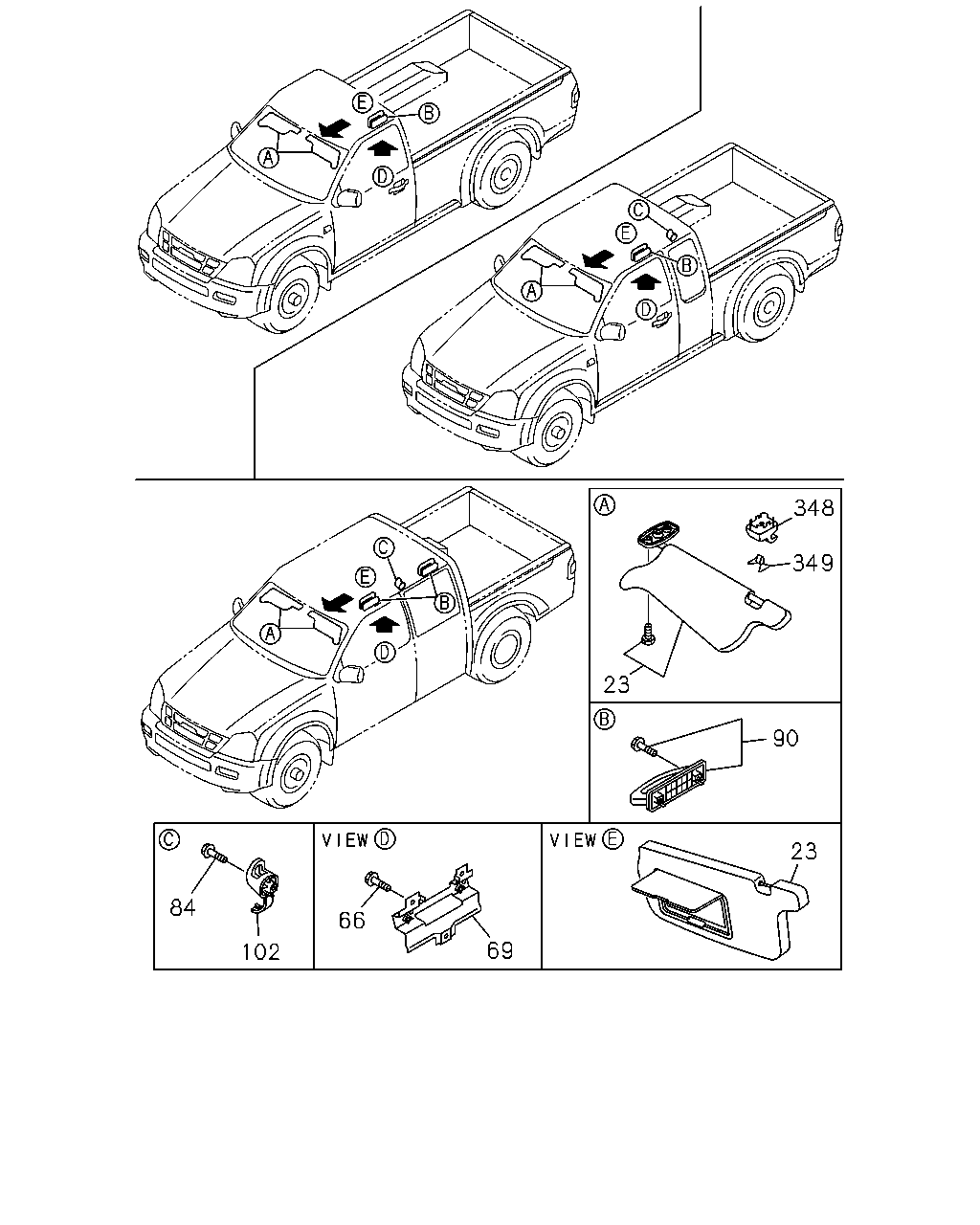

çizim 133256
348 349 23 90 23 69 66 102 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> LIGHT GRAY 		8-97403-480-1 01 1 0805- ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34> LIGHT GRAY 		8-97403-478-1 01 1 0805- ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> LIGHT GRAY 		8-97403-495-0 01 1 0805- ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34> LIGHT GRAY 		8-97403-493-0 01 1 0805- ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> LIGHT GRAY 		8-97403-484-3 01 1 0805-0807 ● ● ● ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> LIGHT GRAY 		8-97415-952-0 01 1 0808- ● ● ● ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34> LIGHT GRAY 		8-97403-475-1 01 1 0805- ● ● ● ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> LIGHT GRAY 		8-97403-496-2 01 1 0805-0807 ● ● ● ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> LIGHT GRAY 		8-97415-956-0 01 1 0808- ● ● ● ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34> LIGHT GRAY 		8-97403-494-0 01 1 0805- ● ● ● ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SHIFT ON THE FLY<NR4> EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34> LIGHT GRAY 		8-97403-497-2 01 1 0805- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> SHIFT ON THE FLY<NR4> LIGHT GRAY 		8-97403-499-2 01 1 0805- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> EXC. SHIFT ON THE FLY<NR4> LIGHT GRAY 		8-97403-506-0 01 1 0805- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34>,SHIFT ON THE FLY<NR4> LIGHT GRAY 		8-97403-504-0 01 1 0805- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SHIFT ON THE FLY<NR4> EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34> LIGHT GRAY 		8-97403-498-2 01 1 0805- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> SHIFT ON THE FLY<NR4> LIGHT GRAY 		8-97403-500-2 01 1 0805- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> EXC. SHIFT ON THE FLY<NR4> LIGHT GRAY 		8-97403-507-0 01 1 0805- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) EXC. SUNVISOR PASSENGER SIDE W/VANI TY MIRROR<D34>,SHIFT ON THE FLY<NR4> LIGHT GRAY 		8-97403-505-0 01 1 0805- ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 03 1 0805- ● ● ● ● ● ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 03 1 0805- ● ● ● ● ● ● ● ●
69 16.450 BRACKET; ASSIST GRIP 8-97360-907-0 01 1 0805- ● ● ● ● ● ● ● ●
69 16.450 BRACKET; ASSIST GRIP 8-97360-907-0 01 1 0805- ● ● ● ● ● ● ● ●
84 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 02 1 0805- ● ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> LIGHT GRAY 		8-97408-305-0 01 1 0805- ● ● ● ● ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
LIGHT GRAY 		8-97408-305-0 02 1 0805- ● ●
102 16.450 HOOK; COAT HANGER
LIGHT GRAY 		8-97403-720-0 02 1 0805- ● ● ● ● ●
348 16.070 RETAINER; SUNSHADE
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> LIGHT GRAY 		8-97403-991-0 02 1 0805- ● ● ● ● ● ● ● ●
348 16.070 RETAINER; SUNSHADE
EXC. MAP LAMP<C74> LIGHT GRAY 		8-97403-991-0 02 1 0805- ● ● ● ● ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98039-903-0 02 1 0805- ● ● ● ● ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE
EXC. MAP LAMP<C74> 		8-98039-903-0 02 1 0805- ● ● ● ● ● ● ● ●
