◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#74801) — 15 parça

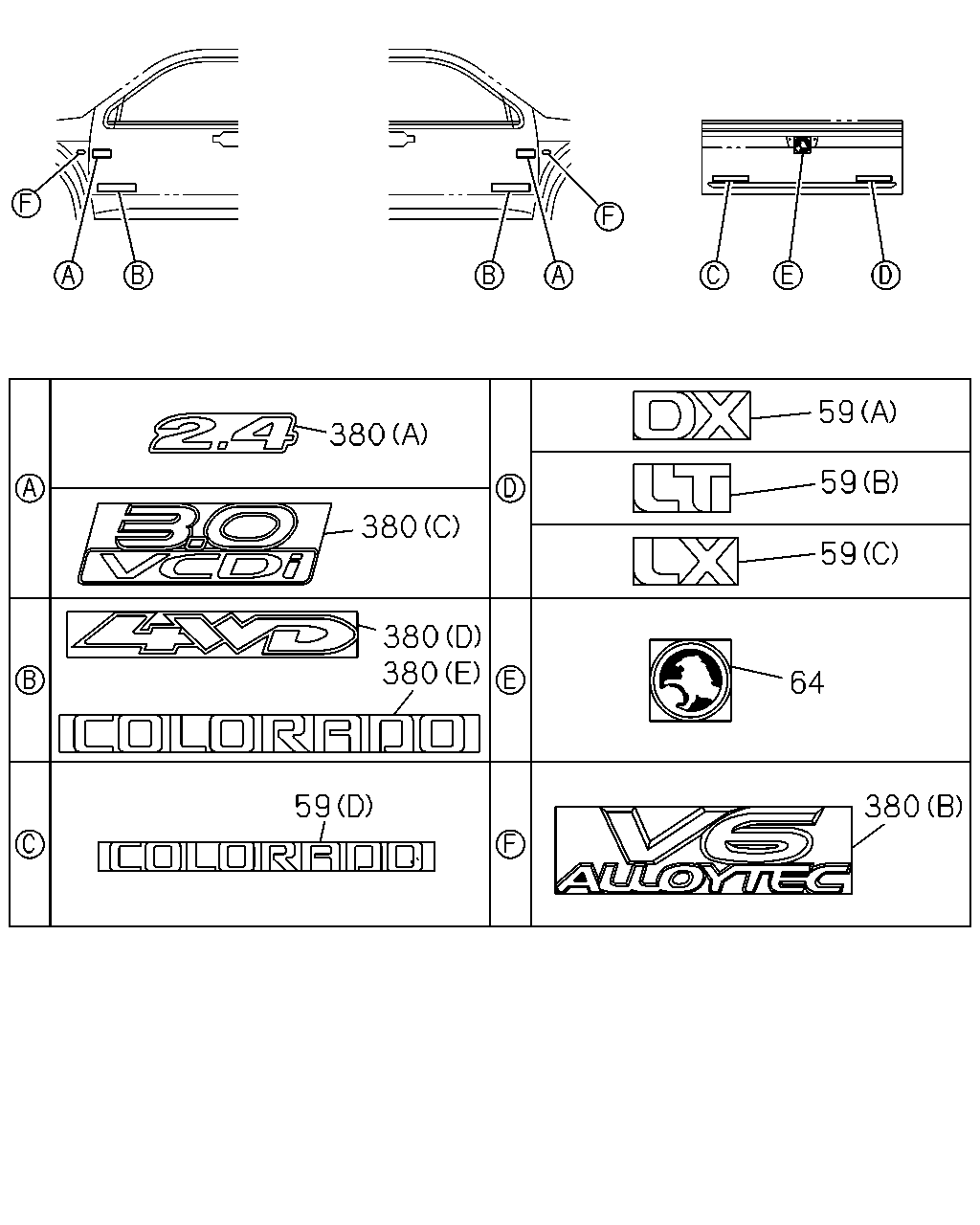

çizim 132546
59 380 59 380 59 380 380 64 59 380
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
59 01.303 DECAL; TAIL GATE
GRADE LX(RBB) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97324-676-0 01 1 0805- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.215 (D) 		8-97371-388-0 01 1 0805- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97324-677-0 01 1 0805-0809 ●
59 01.303 DECAL; TAIL GATE
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97324-677-0 01 1 0810-0910 ● ● ●
59 01.303 DECAL; TAIL GATE
GRADE DX(RBA) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97324-677-0 01 1 0911-1003 ●
59 01.303 DECAL; TAIL GATE
GRADE LT(RBD) REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97324-675-1 01 1 0805- ● ● ●
64 16.507 EMBLEM; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97324-678-0 01 1 0805- ● ● ● ● ●
380 17.215 PLATE; SIDE
(E) 		8-97371-388-0 02 1 0902-0910 ● ● ● ● ● ●
380 17.215 PLATE; SIDE
GRADE DX(RBA),GRADE LX(RBB) (E) 		8-97371-388-0 02 1 0902-0910 ● ●
380 17.215 PLATE; SIDE
(E) 		8-97371-388-0 02 1 0911- ● ● ● ● ● ● ● ●
380 17.215 PLATE; SIDE
HF V6 ENG(LCA) (B) 		8-92162-907-0 02 1 0805- ● ● ● ● ● ● ● ●
380 17.215 PLATE; SIDE
4JJ1-TCX ENG(LS0) (C) 		8-98028-079-0 02 1 0805- ● ● ● ● ● ● ● ●
380 17.215 PLATE; SIDE
C24SE ENG(LG1) 01.303 (A) 		8-97324-673-1 02 1 0805-1003 ● ●
380 17.215 PLATE; SIDE
01.303 (D) 		8-97324-670-0 02 1 0805- ● ● ●

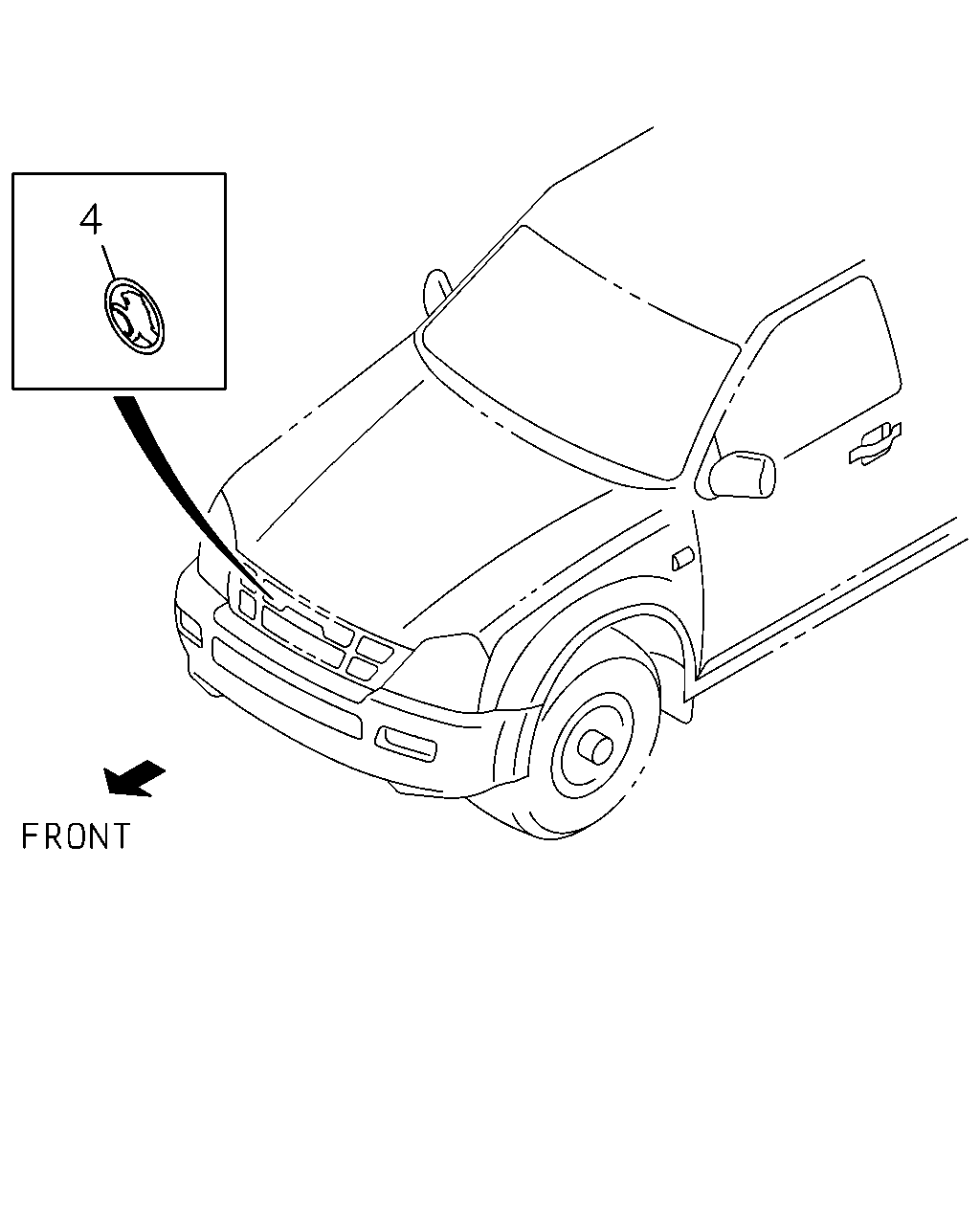

çizim 185799
4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 01.303 EMBLEM; RAD GRILLE 8-98089-743-0 01 1 0805- ● ● ● ● ● ● ● ●
