6-90 — REAR BUMPER (#74800) — 26 parça

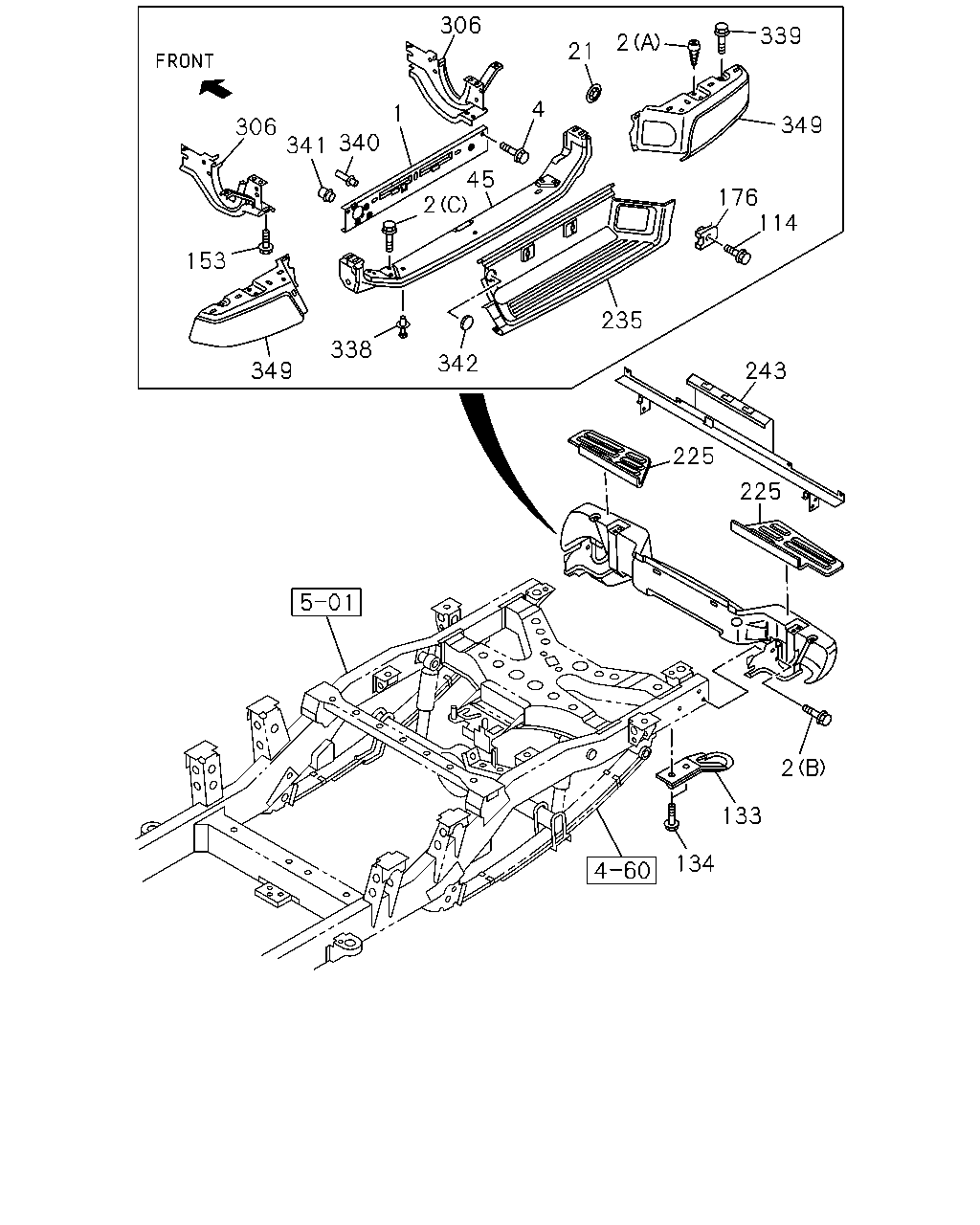

çizim 132013
306 340 1 341 306 4 21 2 339 349 176 235 114 45 2 338 153 349 342 243 225 2 225 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(V42) 		8-98030-185-3 01 1 0805- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER CHROME(V42) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0805- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0805- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER CHROME(V42) (B) M12X30 		8-98062-142-0 06 1 0805- ● ● ●
4 07.070 BOLT; BUMPER
REAR STEP BUMPER CHROME(V42) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0805- ● ● ●
21 07.070 WASHER; LK,BUMPER
REAR STEP BUMPER CHROME(V42) 01.269 		8-97182-223-0 02 1 0805- ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 0805- ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
REAR STEP BUMPER CHROME(V42) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0805- ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0805- ● ● ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0805- ● ● ● ● ● ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 0805- ● ● ●
176 07.068 NUT
REAR STEP BUMPER CHROME(V42) 07.831 		8-98054-813-0 02 1 0805- ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 0805- ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 0805- ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 0805- ● ● ●
243 07.869 BRACKET
REAR BODY DELETE(8HH) 		8-97373-668-1 01 1 1309- ● ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 0805- ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 0805- ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 1008- ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 0805-1007 ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 0805- ● ● ●
340 07.875 RIVET
REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 0805- ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 0805- ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 0805- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-167-1 01 1 0805- ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-181-1 01 1 0805- ● ● ●
