◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#7480) — 65 parça

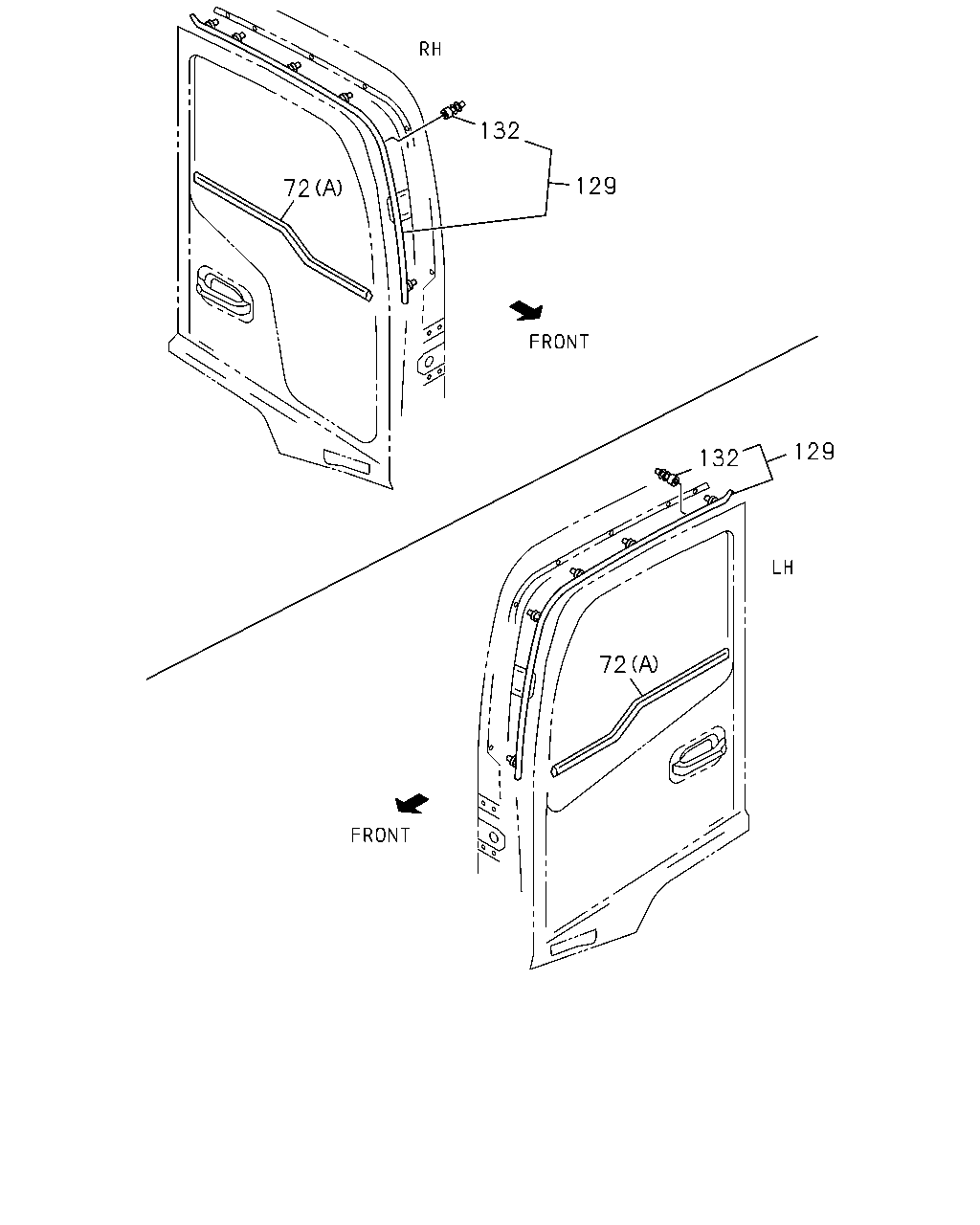

çizim 26252
132 129 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-9 01 1 9811- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-6 01 1 9811- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-9 01 1 9811- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-6 01 1 9811- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9811- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9811- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9811- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9811- ● ●

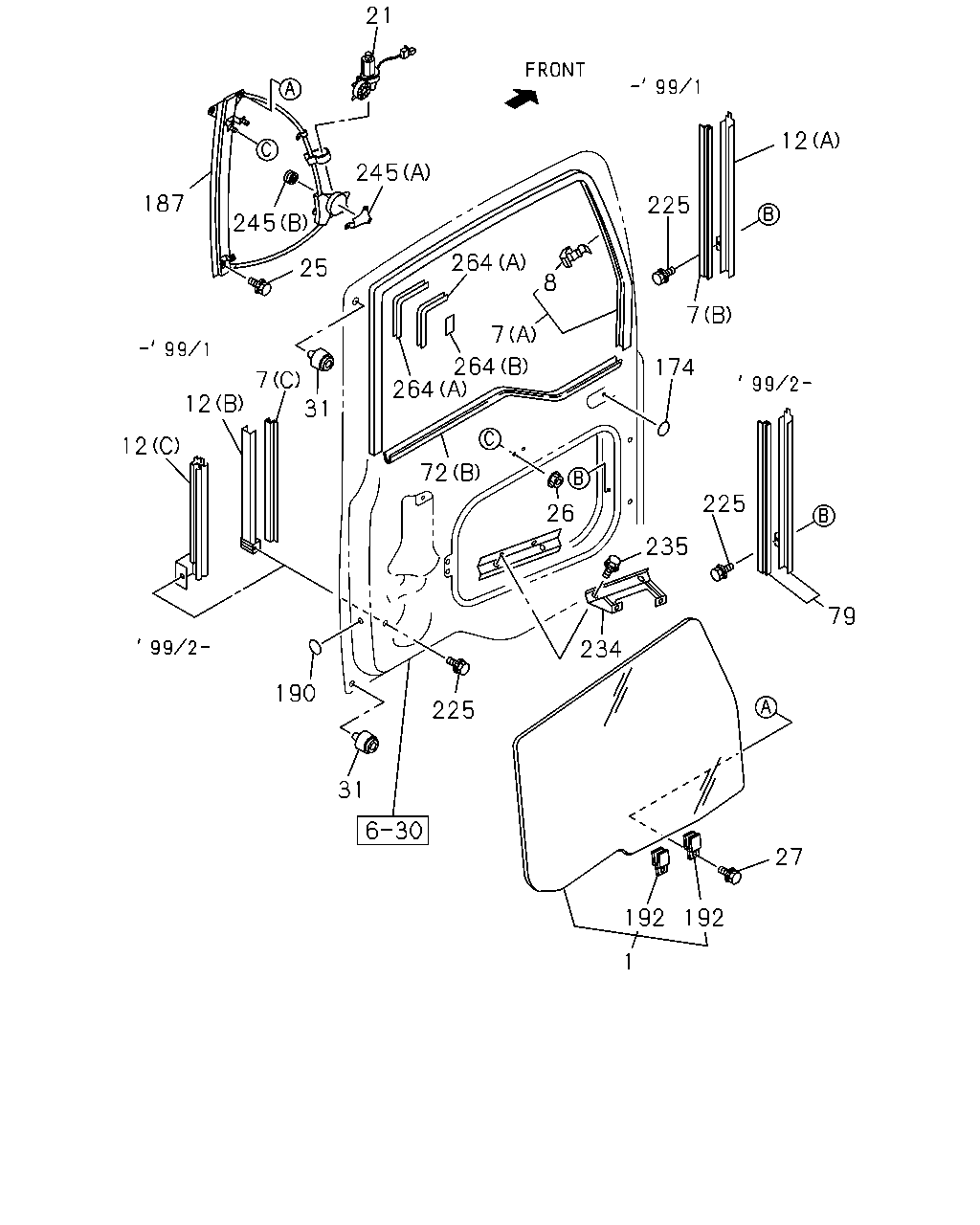

çizim 26942
21 12 245 187 225 245 264 25 8 7 7 264 264 174 7 31 12 12 72 225 26 235 79 234 190 225 31 27 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
TAI 		1-76148-095-2 01 1 0611- ●
1 GLASS; FRT DOOR
TAI 		1-76167-177-2 01 1 0611- ●
1 GLASS; FRT DOOR
TAI 		8-97535-004-0 01 1 9811-0610 ● ●
1 GLASS; FRT DOOR
TAI 		8-97535-004-0 01 1 0611- ●
1 GLASS; FRT DOOR
TAI 		8-97535-003-0 01 1 9811-0610 ● ●
1 GLASS; FRT DOOR
TAI 		8-97535-003-0 01 1 0611- ●
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 02 1 9811-9901 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 9811- ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9811-9901 ● ●
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 9811- ● ●
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9811-9901 ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9811- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-037-1 01 1 9811-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9811-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-3 01 1 9902- ● ●
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9811-9901 ● ●
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-070-3 01 1 9902- ● ●
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9811-9901 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-164-0 01 1 9811-0003 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0004- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-161-0 01 1 9811-0003 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0004- ● ●
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 10 1 9811-0405 ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ● ●
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710 ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 0711- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE TAI 		1-09984-141-0 06 1 9811- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9811- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9811- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-9 01 1 9811- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-6 01 1 9811- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-9 01 1 9811- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-6 01 1 9811- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 9902- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9902- ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK TAI 		1-76798-019-0 14 1 9811-0212 ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK TAI 		1-76798-019-0 16 1 0301- ● ●
187 REGULATOR ASM; DOOR 1-74418-167-1 01 1 9811-0003 ● ●
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 0004- ● ●
187 REGULATOR ASM; DOOR 1-74418-165-1 01 1 9811-0003 ● ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0004- ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9811- ● ●
192 HOLDER; DOOR GLASS
TAI 		1-74427-170-0 04 1 9811- ● ●
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 04 1 9811-0003 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0512 ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9811- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9811- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 08 1 9811- ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 0106- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 02 1 9907-0003 ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0004- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 0004- ● ●
264 SEAL; GLASS RUN
(B) TAI 		8-97535-140-0 02 1 0004-0702 ● ●
264 SEAL; GLASS RUN
(B) TAI 		8-97535-140-0 02 1 0703- ● ●
264 SEAL; GLASS RUN
(A) TAI 		8-97535-141-0 04 1 0004-0702 ● ●
264 SEAL; GLASS RUN
(A) TAI 		8-97535-141-0 04 1 0703- ● ●
