◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#748) — 29 parça

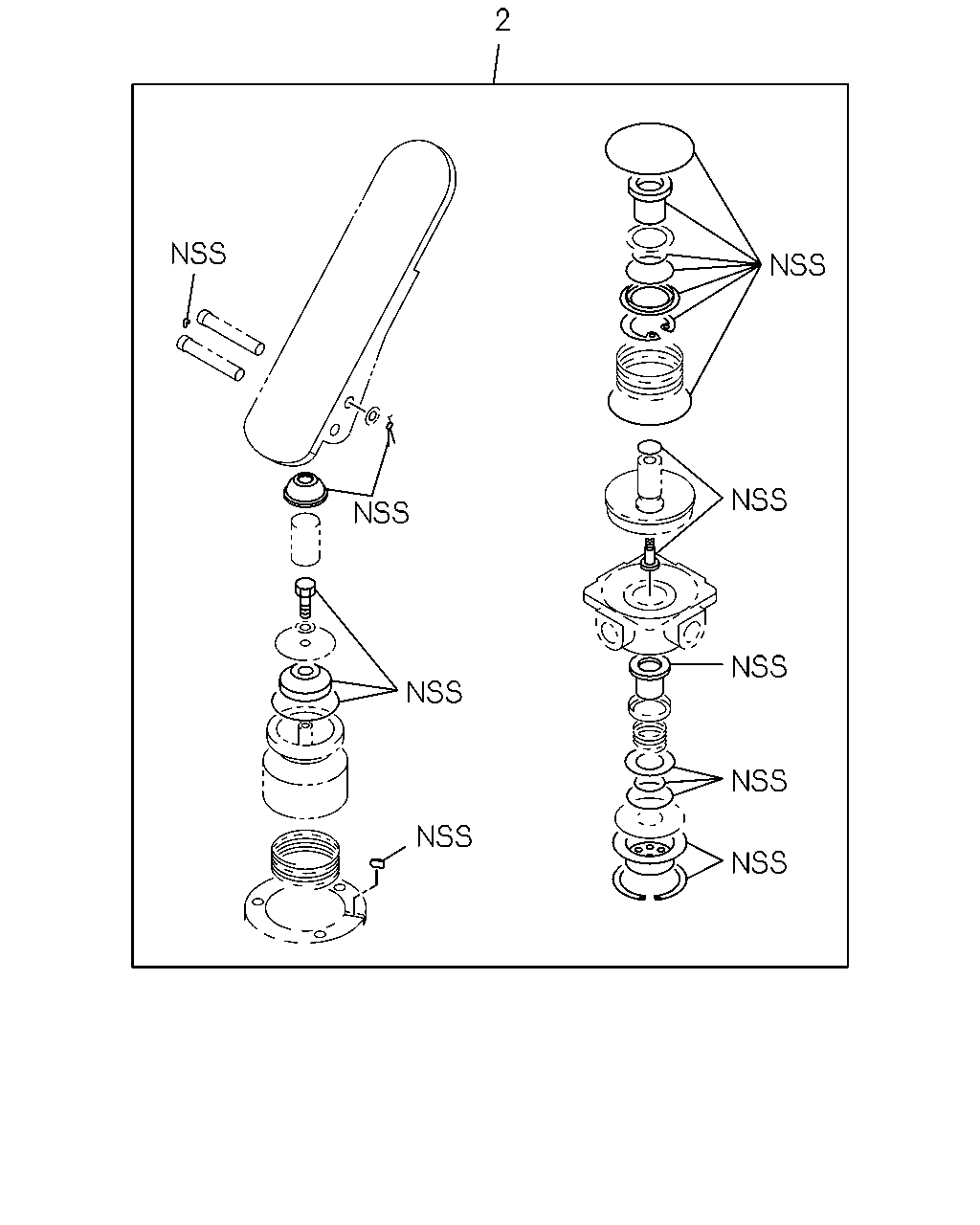

çizim 28795
2 7
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; BRK VLV 1-87520-234-0 01 1 9204-
7 PIN; PEDAL,BRK VLV 1-48119-244-0 01 1 9204-

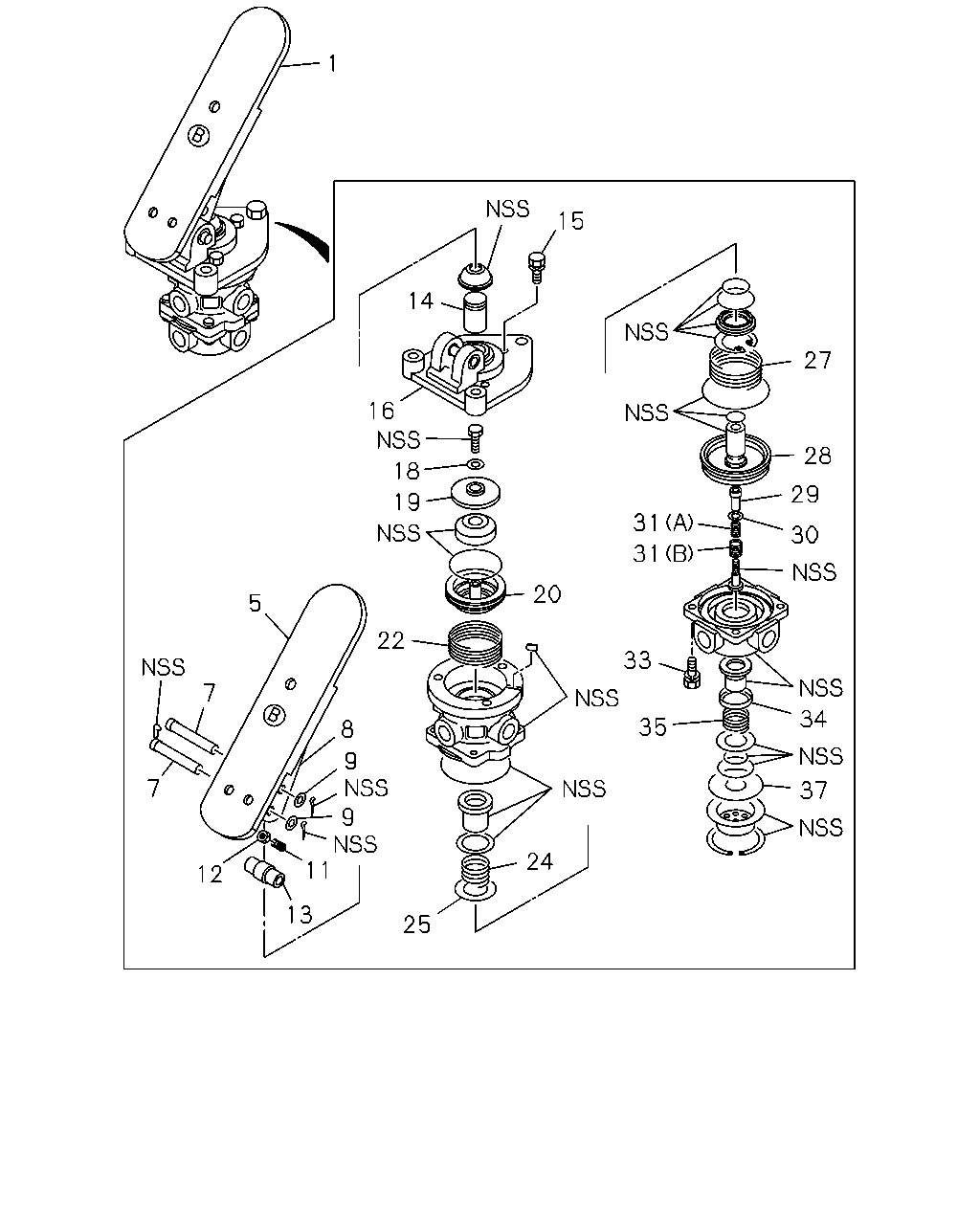

çizim 95475
1 15 14 27 16 28 18 29 19 31 30 31 20 5 22 33 7 34 35 8 9 9 11 7 37 24 12 13 25
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; BRK 1-48100-628-0 01 1 9204-
5 COVER; PEDAL,BRK VLV 1-48119-246-0 01 1 9204-
7 PIN; PEDAL,BRK VLV 1-48119-244-0 01 1 9204-
8 PEDAL; BRK VLV 1-48129-174-0 01 1 9204-
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9204-
11 SCREW; SET,BRK VLV 1-48119-300-0 01 1 9204-
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9204-
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9204-
14 PLUNGER; BRK VLV 1-48119-277-0 01 1 9204-
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9204-
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9204-
18 WASHER; LK,SEAT,BRK VLV 1-48149-002-0 01 1 9204-
19 SEAT; SPRING,BRK VLV 1-48123-044-0 01 1 9204-
20 PISTON; UPR,BRK VLV 1-48119-272-0 01 1 9204-
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9204-
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9204-
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9204-
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9204-
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9204-
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9204-
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9204-
31 SPRING; VLV,BRK VLV
(B) 		1-48123-032-0 01 1 9204-
31 SPRING; VLV,BRK VLV
(A) 		1-48123-064-0 01 1 9204-
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9204-
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9204-
35 SPRING; VLV,BRK VLV 1-48129-019-0 01 1 9204-
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9204-
