Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-86 - TRUNK OPENER AND FUEL LID
▶

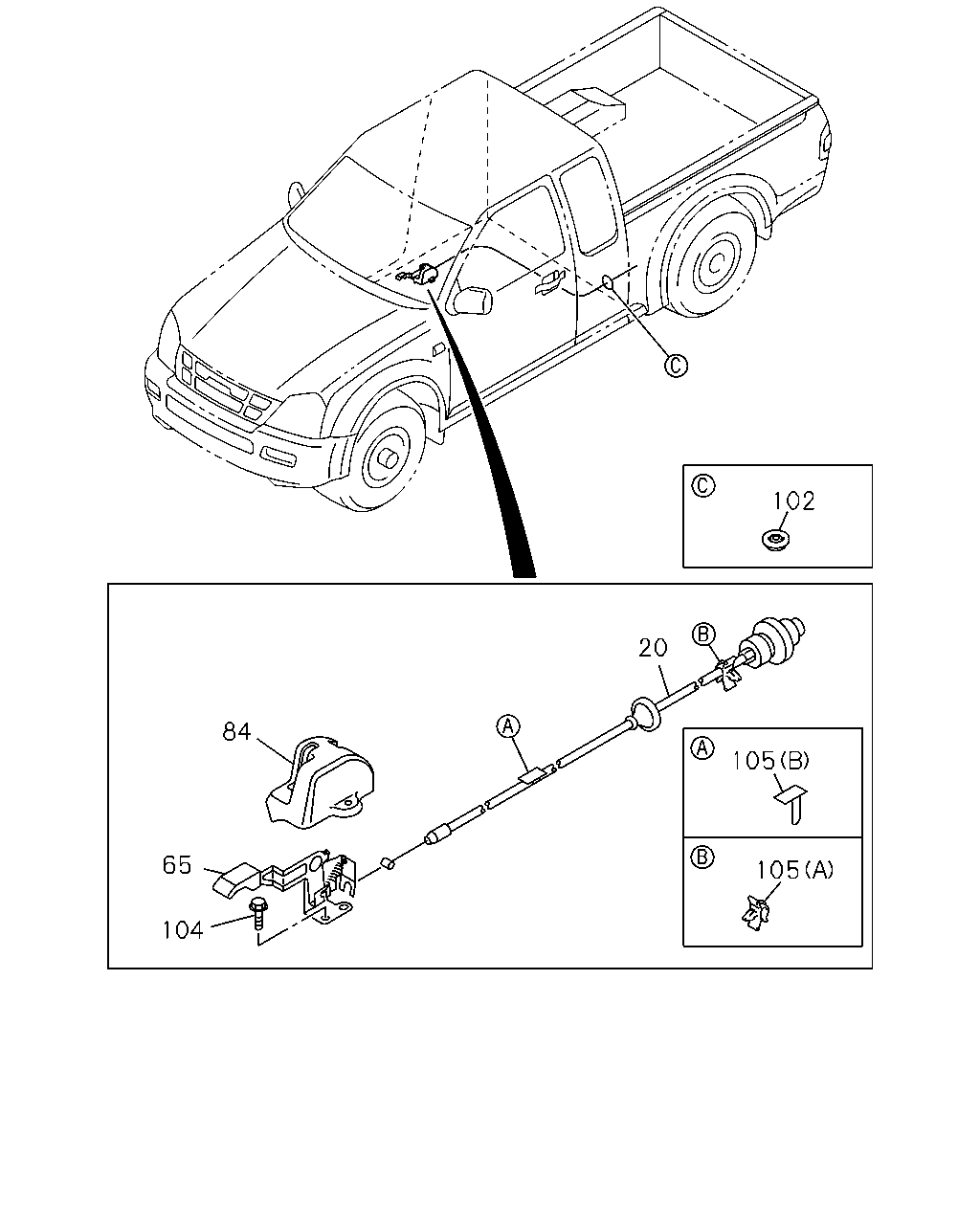

6-86 — TRUNK OPENER AND FUEL LID
(#74799) — 11 parça
Tümü
A - TFB5CF
B - TFS5C
C - TFB5SF
D - TFB5WF
E - TFS5W
F - TFB5CK
G - TFB5SK
H - TFS5SK
102
20
84
105
65
105
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
20
17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08>
8-98072-757-0
01
1
0805-
●
●
20
17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08>
8-98072-755-0
01
1
0805-
●
20
17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08>
8-98072-759-0
01
1
0805-
●
●
65
17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY
8-97405-953-0
01
1
0805-
●
●
●
●
●
84
17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY
8-97403-681-2
01
1
0805-
●
●
●
●
●
102
17.505 GROMMET
EXC. FUEL LID OPENER<N08>
8-97321-645-1
01
1
0805-
●
●
●
●
●
102
17.505 GROMMET
8-97321-645-1
01
1
0805-
●
●
●
104
17.505 BOLT; KNOB
FUEL LID OPENER<N08> 02.343 M6X16 FLANGE
0-28650-616-0
02
1
0805-
●
●
●
●
●
105
17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 16.065 (B) ID=7
1-09987-055-0
04
1
0805-1110
●
●
●
●
●
105
17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7
8-98158-303-0
04
1
1111-
●
●
●
●
●
105
17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 02.559 (A) D=5.8
5-09709-081-0
02
1
0805-
●
