◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#74798) — 40 parça

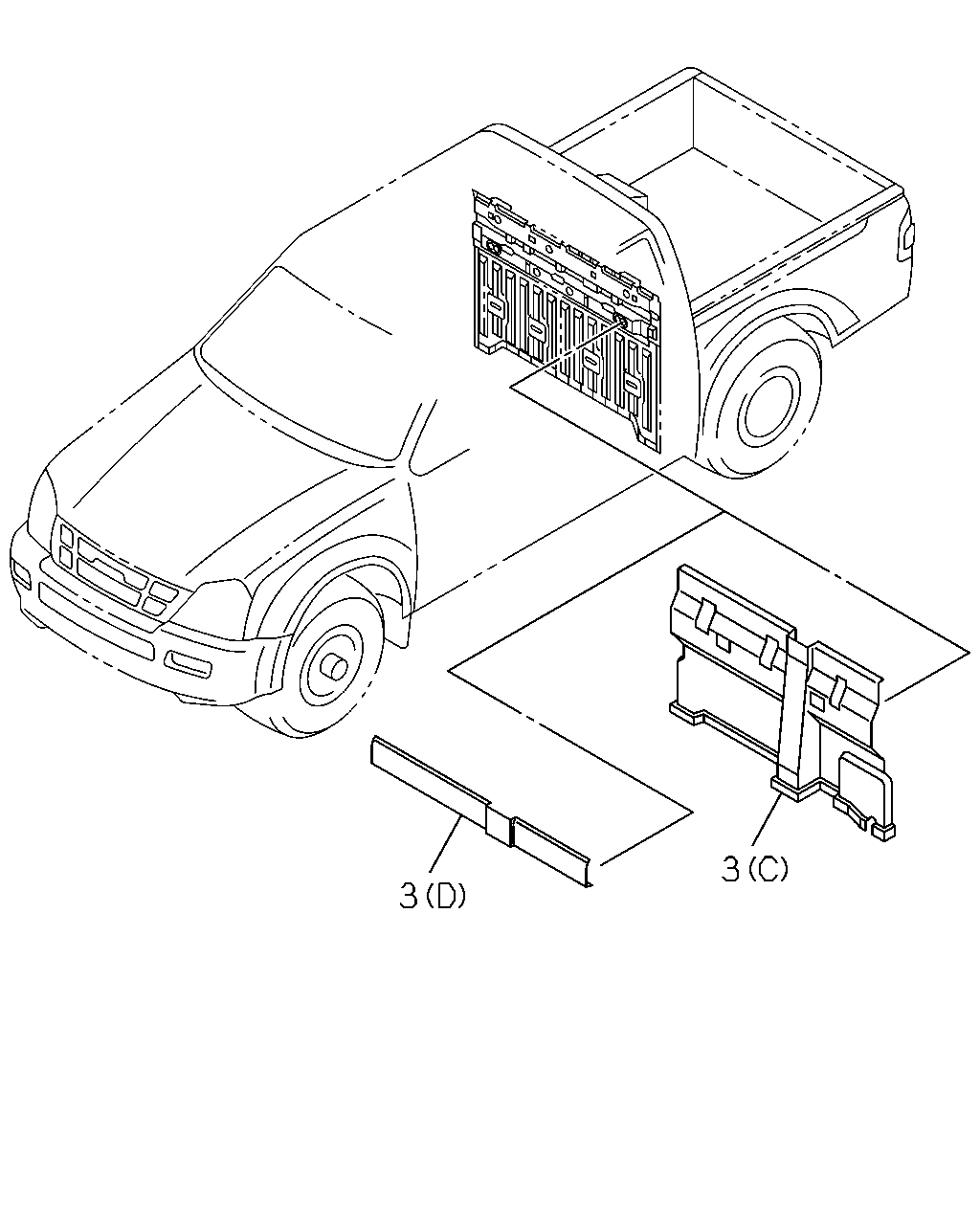

çizim 132534
3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.578 TRIM; FULL,BACK UPR
EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97413-255-0 01 1 0805-0808 ● ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97413-255-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97413-255-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-639-0 01 1 0809- ● ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-639-0 01 1 0809- ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-639-0 01 1 0809- ●
3 16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97403-581-0 01 1 0805-0812 ● ● ●
3 16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-637-0 01 1 0901- ● ● ●
3 16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY 		8-97403-575-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB) (A) DARK GRAY 		8-97403-575-0 01 1 0805-0808 ● ●
3 16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY 		8-97415-635-0 01 1 0809- ●
3 16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB) (A) DARK GRAY 		8-97415-635-0 01 1 0809- ● ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY 		8-97403-578-0 01 1 0805- ● ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY 		8-97403-580-0 01 1 0805-0809 ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY 		8-97403-580-0 01 1 0810-0910 ● ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY 		8-97403-580-0 01 1 0911-1003 ●
3 16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97403-574-2 01 1 0805- ●
3 16.578 TRIM; FULL,BACK UPR
(C) DARK GRAY 		8-97403-574-2 01 1 0805- ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) VINYL TRIM<8LJ> EXC. JUMP SEAT<AJ2> (A) GRAY 		8-97403-586-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) VINYL TRIM<8LJ> EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-638-0 01 1 0809- ●

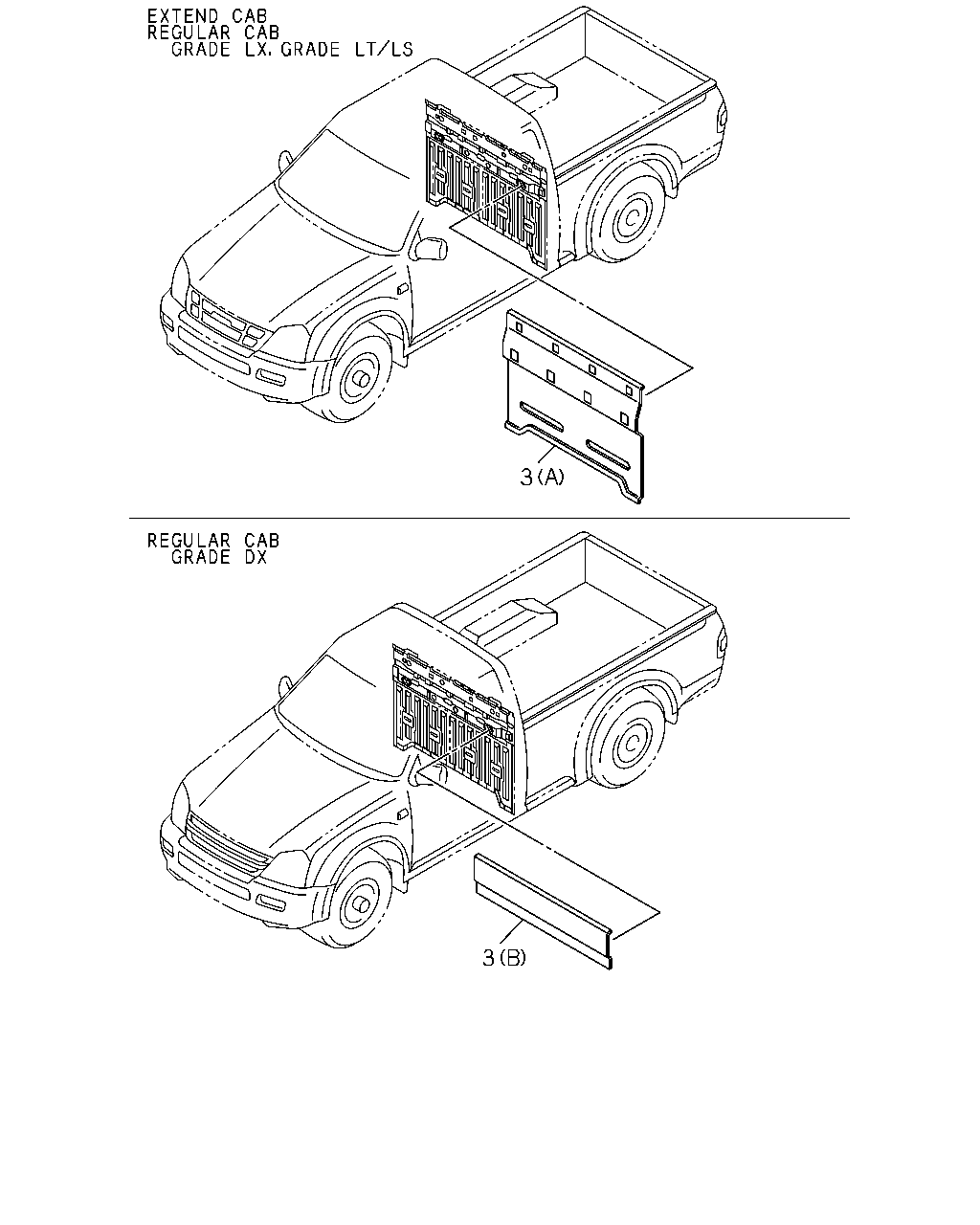

çizim 185800
3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.578 TRIM; FULL,BACK UPR
EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97413-255-0 01 1 0805-0808 ● ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97413-255-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97413-255-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-639-0 01 1 0809- ● ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-639-0 01 1 0809- ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB EXTRA LONG(TFS*CK) EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-639-0 01 1 0809- ●
3 16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97403-581-0 01 1 0805-0812 ● ● ●
3 16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-637-0 01 1 0901- ● ● ●
3 16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY 		8-97403-575-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB) (A) DARK GRAY 		8-97403-575-0 01 1 0805-0808 ● ●
3 16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY 		8-97415-635-0 01 1 0809- ●
3 16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB) (A) DARK GRAY 		8-97415-635-0 01 1 0809- ● ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY 		8-97403-578-0 01 1 0805- ● ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY 		8-97403-580-0 01 1 0805-0809 ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY 		8-97403-580-0 01 1 0810-0910 ● ●
3 16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY 		8-97403-580-0 01 1 0911-1003 ●
3 16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97403-574-2 01 1 0805- ●
3 16.578 TRIM; FULL,BACK UPR
(C) DARK GRAY 		8-97403-574-2 01 1 0805- ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) VINYL TRIM<8LJ> EXC. JUMP SEAT<AJ2> (A) GRAY 		8-97403-586-0 01 1 0805-0808 ●
3 16.578 TRIM; FULL,BACK UPR
4X4 EXTEND CAB LONG(TFS*CF) VINYL TRIM<8LJ> EXC. JUMP SEAT<AJ2> (A) DARK GRAY 		8-97415-638-0 01 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
