6-82 — BACK GLASS AND WEATHERSTRIP (#74797) — 30 parça

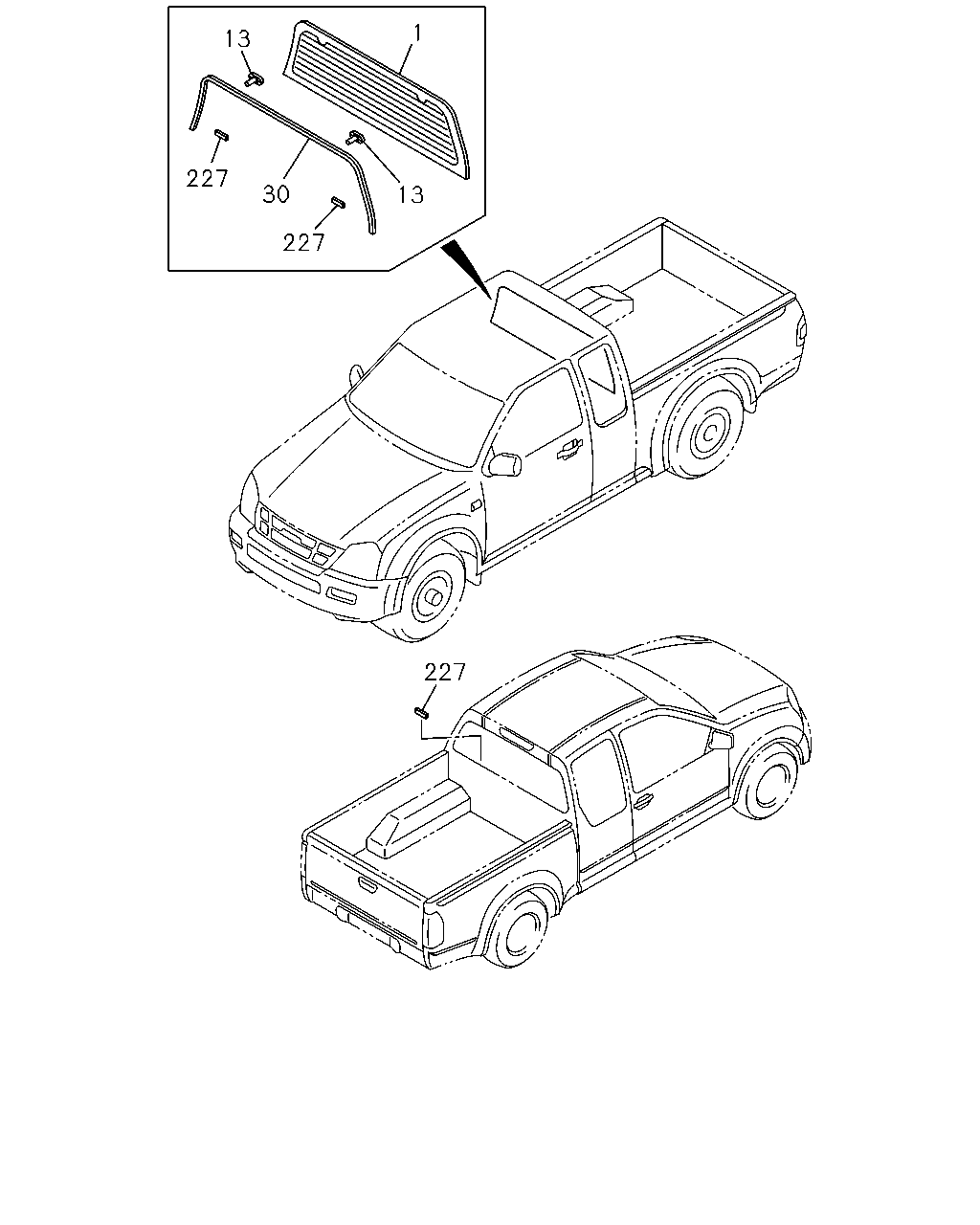

çizim 132196
1 13 227 30 13 227 227
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.464 GLASS; BACKLIGHT 8-97331-610-0 01 1 0805-0808 ● ● ● ●
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-97331-610-0 01 1 0805-0808 ●
1 16.464 GLASS; BACKLIGHT 8-98134-282-0 01 1 0809-0809 ● ● ● ●
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0809-0809 ●
1 16.464 GLASS; BACKLIGHT 8-98134-282-0 01 1 0810-0910 ● ●
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT
4X4 EXTEND CAB LONG(TFS*CF) REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT
4X4 EXTEND CAB EXTRA LONG(TFS*CK) 		8-98134-282-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT
4X4 CREW CAB LONG(TFS*WF) REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT
CREW CAB EXTRA LONG(TF**WK) 		8-98134-282-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT 8-98134-282-0 01 1 0911-1003 ● ● ● ●
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-98134-282-0 01 1 0911-1003 ●
1 16.464 GLASS; BACKLIGHT 8-98134-282-0 01 1 1004- ● ● ● ● ●
1 16.464 GLASS; BACKLIGHT 8-97331-609-0 01 1 0805-0808 ● ● ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-97331-609-0 01 1 0805-0808 ●
1 16.464 GLASS; BACKLIGHT 8-98134-281-0 01 1 0809-0809 ● ● ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0809-0809 ●
1 16.464 GLASS; BACKLIGHT 8-98134-281-0 01 1 0810-0910 ● ● ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT
4X4 EXTEND CAB LONG(TFS*CF) EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT
4X4 CREW CAB LONG(TFS*WF) EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0810-0910 ●
1 16.464 GLASS; BACKLIGHT 8-98134-281-0 01 1 0911-1003 ● ● ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-98134-281-0 01 1 0911-1003 ●
1 16.464 GLASS; BACKLIGHT 8-98134-281-0 01 1 1004- ● ● ●
13 16.464 SUPPORT; BACKLIGHT GLASS 8-97244-819-0 02 1 0805- ● ● ● ● ● ● ● ●
30 16.475 SEAL; BACKLIGHT GLASS 8-97371-385-0 01 1 0805- ● ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0805-1101 ● ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0805-1101 ● ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW
30X8 		8-98187-720-0 02 1 1102- ● ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW
30X8 		8-98187-720-0 02 1 1102- ● ● ● ● ● ● ● ●
