6-76 — FLOOR EQUIPMENT AND SEALING (#74794) — 12 parça

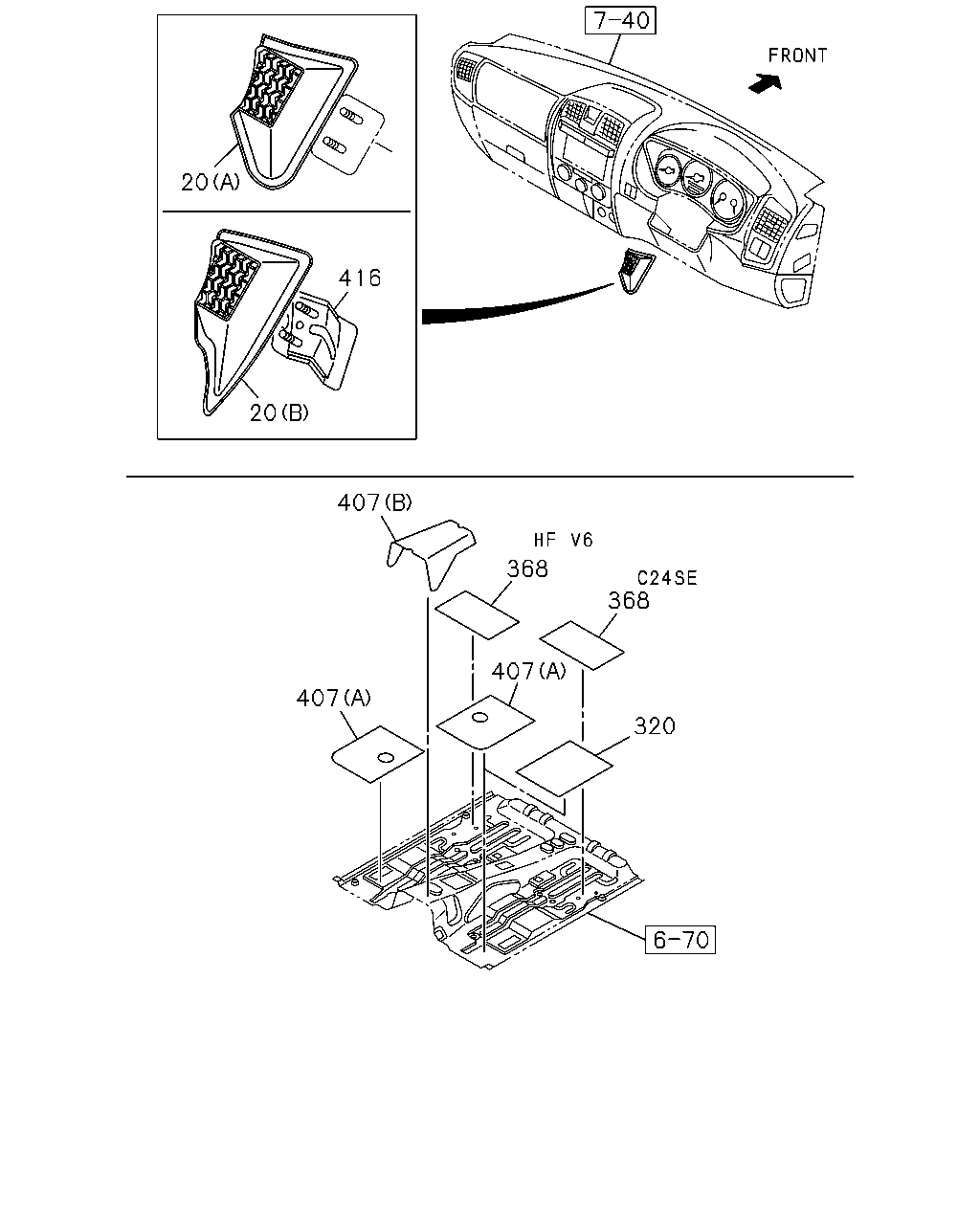

çizim 131985
20 416 20 407 368 368 407 407 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 16.547 REST; FOOT
M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) PARKING BRAKE FLOOR<7XW> (A) 		8-97236-450-1 01 1 0805- ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT
A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) PARKING BRAKE FLOOR<7XW> (B) 		8-98007-894-0 01 1 0805- ● ● ● ● ●
20 16.547 REST; FOOT
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-97365-724-0 01 1 0805- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
HF V6 ENG(LCA) 		8-97329-088-1 01 1 0805- ● ● ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION<NT4> 		8-97329-088-1 01 1 0805- ● ● ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-97329-088-1 01 1 0805- ● ● ● ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-97329-089-1 01 1 0805-1003 ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
HF V6 ENG(LCA) 		8-97329-089-1 01 1 1004- ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 0805- ● ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 0805- ● ● ● ● ● ● ● ●
416 16.549 BRACKET; FOOT REST
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-98061-157-0 01 1 0805- ● ● ● ●
416 16.549 BRACKET; FOOT REST
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-98061-157-0 01 1 0805- ●
