Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#74792) — 221 parça

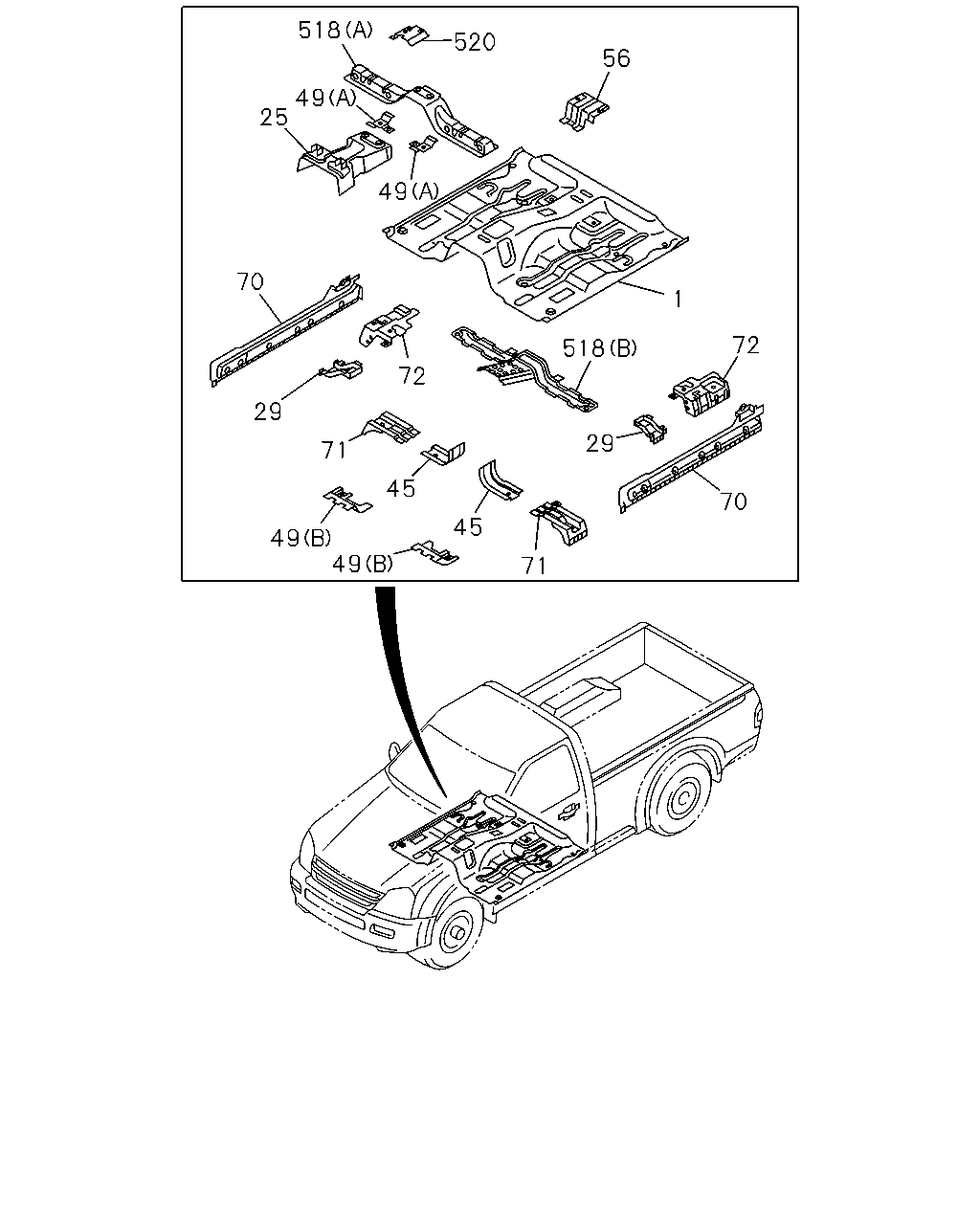

518 520 56 49 25 49 70 1 72 518 72 29 29 71 45 70 45 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30)	8-98004-038-0	01	1	0805-	●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-97357-508-0	01	1	0805-0910	●	●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T 4 SPEED-HMD, ELEC(M30)	8-97357-508-0	01	1	0911-	●	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0805-1003				●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97357-507-0	01	1	0805-1003						●
1	16.545 PANEL; FLOOR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97357-507-0	01	1	0805-1003						●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ)	8-97357-507-0	01	1	1004-				●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-						●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T 4 SPEED-HMD, ELEC(M30)	8-97357-507-0	01	1	1004-						●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-					●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-					●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-037-0	01	1	0805-						●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30)	8-98004-039-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-039-0	01	1	0911-1003							●
1	16.545 PANEL; FLOOR 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-98004-039-0	01	1	0911-1003								●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30)	8-98004-039-0	01	1	1004-							●
1	16.545 PANEL; FLOOR 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-98004-039-0	01	1	1004-								●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97357-509-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97357-509-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97357-509-0	01	1	0911-1003							●	●
1	16.545 PANEL; FLOOR C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97357-509-0	01	1	0911-1003							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97357-509-0	01	1	1004-							●	●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97357-509-0	01	1	1004-							●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0805-0809	●	●	●	●				●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0805-0809					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0810-0910	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0810-0910					●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0911-1003	●	●	●	●				●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0911-1003					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	1004-	●	●	●	●			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	1004-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0805-0809					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0810-0910					●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0911-1003					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1004-					●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0805-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) FRONT CONSOLE<D55>	8-97235-811-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97235-811-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97235-811-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97235-811-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97235-811-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97235-811-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) FRONT CONSOLE<D55>	8-97235-810-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97235-810-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97235-810-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97235-810-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97235-810-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97235-810-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-169-0	01	1	0805-	●	●				●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-168-0	01	1	0805-	●	●				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (A)	8-97333-851-1	02	1	0805-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (B)	8-97334-435-0	01	1	0805-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (B)	8-97334-434-0	01	1	0805-	●	●	●	●	●	●	●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0805-				●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0805-	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0805-	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0805-				●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0805-				●	●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0805-							●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0805-							●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0805-	●	●	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0805-	●	●	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0805-	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0805-	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0805-				●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0805-				●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0805-							●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0805-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0805-	●	●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0805-	●	●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0805-				●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	0805-	●	●	●	●	●	●	●	●

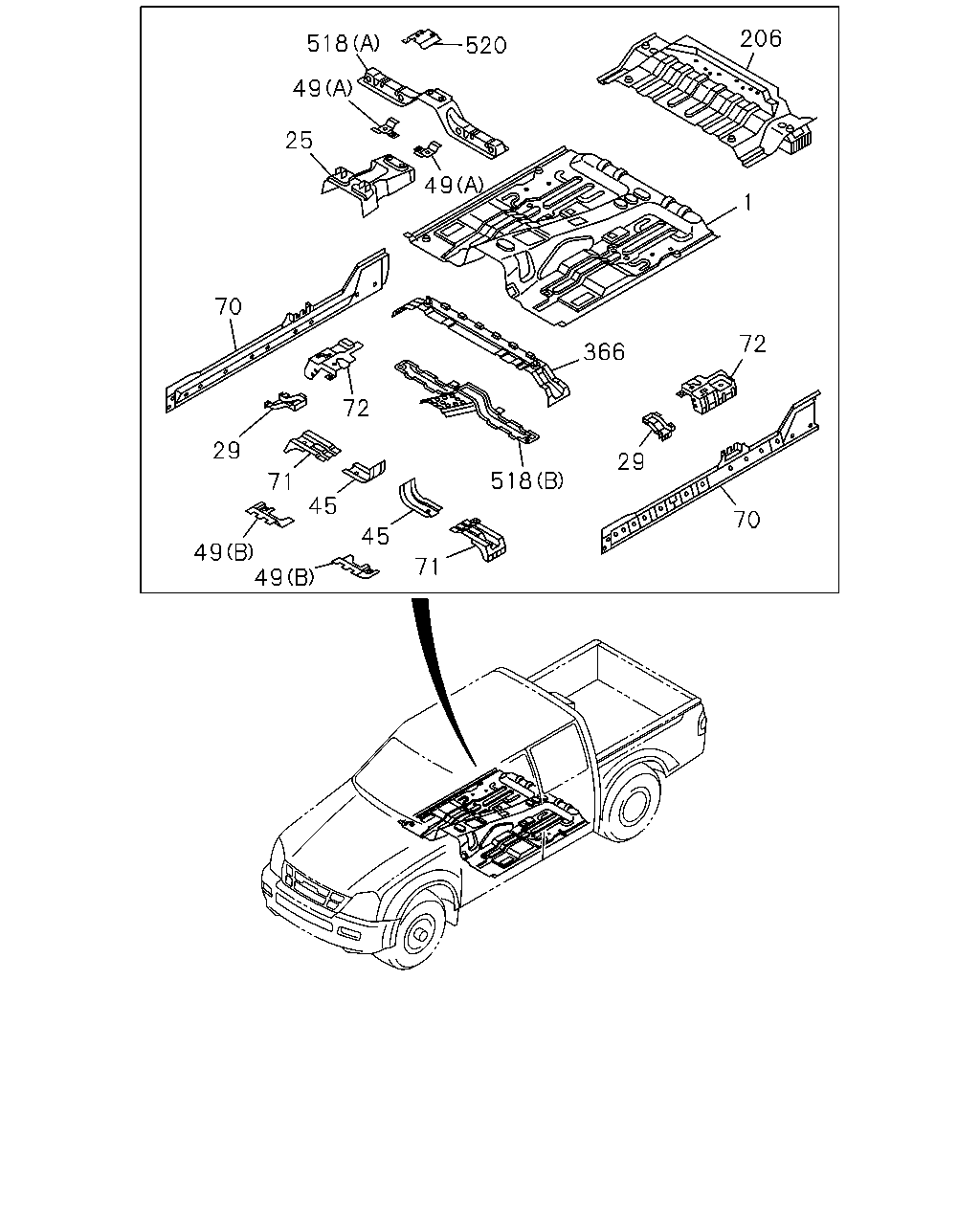

206 518 520 49 25 49 1 70 72 366 72 29 29 518 71 45 70 45 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30)	8-98004-038-0	01	1	0805-	●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-97357-508-0	01	1	0805-0910	●	●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T 4 SPEED-HMD, ELEC(M30)	8-97357-508-0	01	1	0911-	●	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0805-1003				●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97357-507-0	01	1	0805-1003						●
1	16.545 PANEL; FLOOR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97357-507-0	01	1	0805-1003						●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ)	8-97357-507-0	01	1	1004-				●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-						●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T 4 SPEED-HMD, ELEC(M30)	8-97357-507-0	01	1	1004-						●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-					●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-					●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-037-0	01	1	0805-						●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30)	8-98004-039-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-039-0	01	1	0911-1003							●
1	16.545 PANEL; FLOOR 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-98004-039-0	01	1	0911-1003								●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30)	8-98004-039-0	01	1	1004-							●
1	16.545 PANEL; FLOOR 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-98004-039-0	01	1	1004-								●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97357-509-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97357-509-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97357-509-0	01	1	0911-1003							●	●
1	16.545 PANEL; FLOOR C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97357-509-0	01	1	0911-1003							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97357-509-0	01	1	1004-							●	●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97357-509-0	01	1	1004-							●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0805-0809	●	●	●	●				●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0805-0809					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0810-0910	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0810-0910					●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0911-1003	●	●	●	●				●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0911-1003					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	1004-	●	●	●	●			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	1004-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0805-0809					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0810-0910					●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0911-1003					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1004-					●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0805-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) FRONT CONSOLE<D55>	8-97235-811-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97235-811-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97235-811-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97235-811-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97235-811-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97235-811-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) FRONT CONSOLE<D55>	8-97235-810-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97235-810-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97235-810-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97235-810-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97235-810-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97235-810-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-169-0	01	1	0805-	●	●				●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-168-0	01	1	0805-	●	●				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (A)	8-97333-851-1	02	1	0805-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (B)	8-97334-435-0	01	1	0805-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (B)	8-97334-434-0	01	1	0805-	●	●	●	●	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0805-	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0805-	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0805-				●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0805-				●	●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0805-							●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0805-							●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0805-	●	●	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0805-	●	●	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0805-	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0805-	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0805-				●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0805-				●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0805-							●	●
206	16.545 PANEL; FLOOR BOARD RR	8-98090-608-0	01	1	0805-							●	●
366	16.674 BAR ASM; FRT SEAT MTG	8-93333-631-3	01	1	0805-							●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0805-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0805-	●	●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0805-	●	●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0805-				●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	0805-	●	●	●	●	●	●	●	●

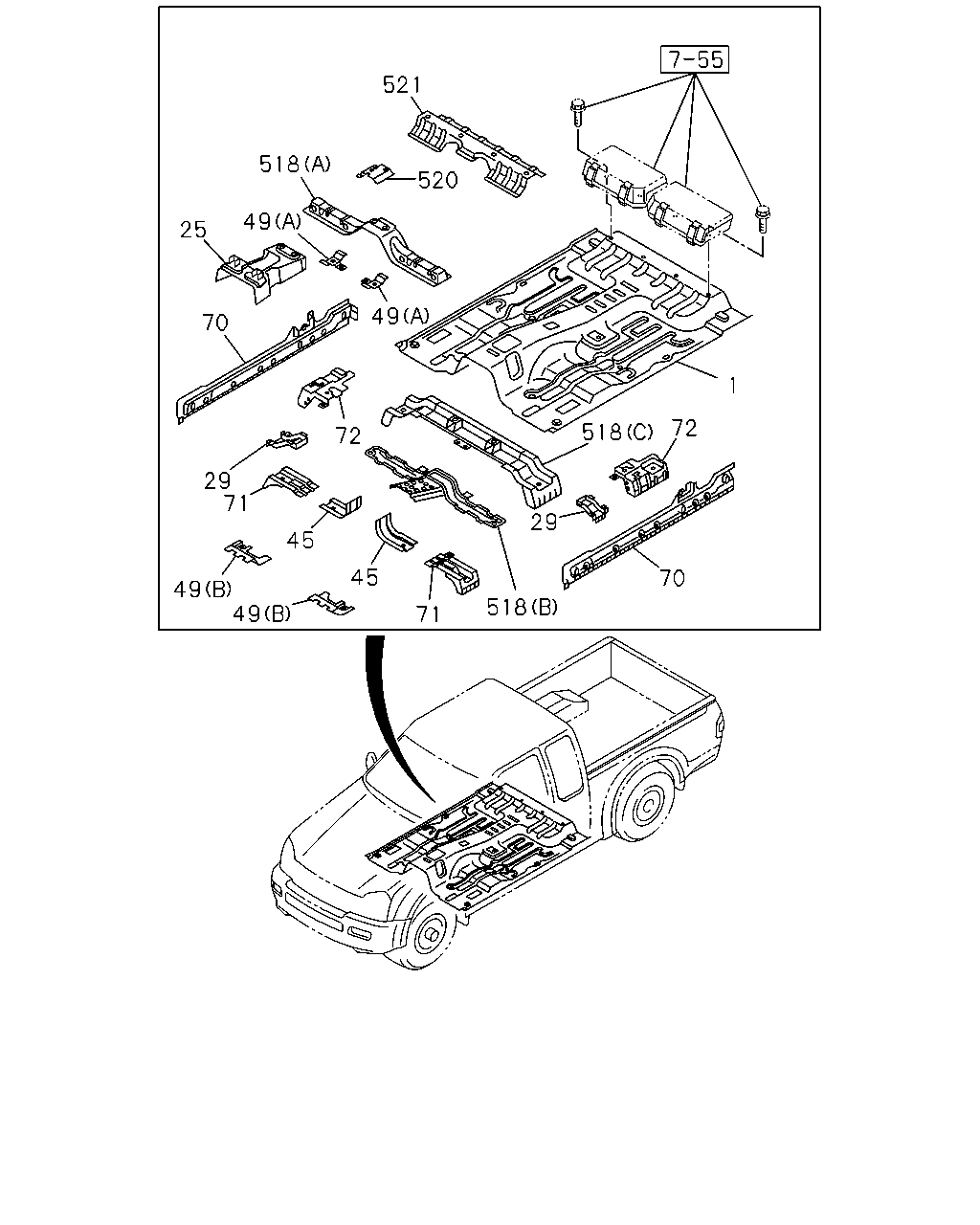

521 518 520 49 25 49 70 1 72 518 72 29 71 29 45 45 70 49 49 518 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30)	8-98004-038-0	01	1	0805-	●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD)	8-97357-508-0	01	1	0805-0910	●	●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T 4 SPEED-HMD, ELEC(M30)	8-97357-508-0	01	1	0911-	●	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0805-1003				●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97357-507-0	01	1	0805-1003						●
1	16.545 PANEL; FLOOR C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97357-507-0	01	1	0805-1003						●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ)	8-97357-507-0	01	1	1004-				●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-						●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T 4 SPEED-HMD, ELEC(M30)	8-97357-507-0	01	1	1004-						●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) EXC. FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-					●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA),4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE<D55>	8-97357-507-0	01	1	1004-					●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-037-0	01	1	0805-						●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30)	8-98004-039-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-039-0	01	1	0911-1003							●
1	16.545 PANEL; FLOOR 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-98004-039-0	01	1	0911-1003								●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30)	8-98004-039-0	01	1	1004-							●
1	16.545 PANEL; FLOOR 4X4 CREW CAB LONG(TFS*WF) HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)	8-98004-039-0	01	1	1004-								●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)	8-97357-509-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97357-509-0	01	1	0805-0910							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97357-509-0	01	1	0911-1003							●	●
1	16.545 PANEL; FLOOR C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97357-509-0	01	1	0911-1003							●	●
1	16.545 PANEL; FLOOR HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97357-509-0	01	1	1004-							●	●
1	16.545 PANEL; FLOOR 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97357-509-0	01	1	1004-							●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0805-0809	●	●	●	●				●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0805-0809					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0810-0910	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0810-0910					●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0911-1003	●	●	●	●				●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0911-1003					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	1004-	●	●	●	●			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	1004-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0805-0809					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0810-0910					●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0911-1003					●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	1004-					●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0805-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) FRONT CONSOLE<D55>	8-97235-811-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97235-811-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97235-811-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97235-811-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97235-811-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97235-811-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) FRONT CONSOLE<D55>	8-97235-810-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ)	8-97235-810-1	01	1	0805-0809	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE<D55>	8-97235-810-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT C24SE ENG(LG1),4JJ1-TCX ENG(LS0)	8-97235-810-1	01	1	0810-1003	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) FRONT CONSOLE<D55>	8-97235-810-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT 4JJ1-TCX ENG(LS0) M/T AISIN 5 SPEED(MA5),A/T 4 SPEED-HMD,ELEC,PTU(MK2),M/T MUX 5 SPEED 5 S(MZJ),A/T 4 SPEED-HMD,ELEC(M30), A/T AISIN(RMD)	8-97235-810-1	01	1	1004-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-169-0	01	1	0805-	●	●				●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30) FRONT CONSOLE<D55>	8-98004-168-0	01	1	0805-	●	●				●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (A)	8-97333-851-1	02	1	0805-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (B)	8-97334-435-0	01	1	0805-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT HF V6 ENG(LCA) (B)	8-97334-434-0	01	1	0805-	●	●	●	●	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0805-	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0805-	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0805-				●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0805-				●	●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0805-							●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0805-							●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0805-	●	●	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0805-	●	●	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0805-	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0805-	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0805-				●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0805-				●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0805-							●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0805-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0805-	●	●	●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0805-	●	●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0805-				●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	0805-	●	●	●	●	●	●	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0805-	●	●	●

385

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

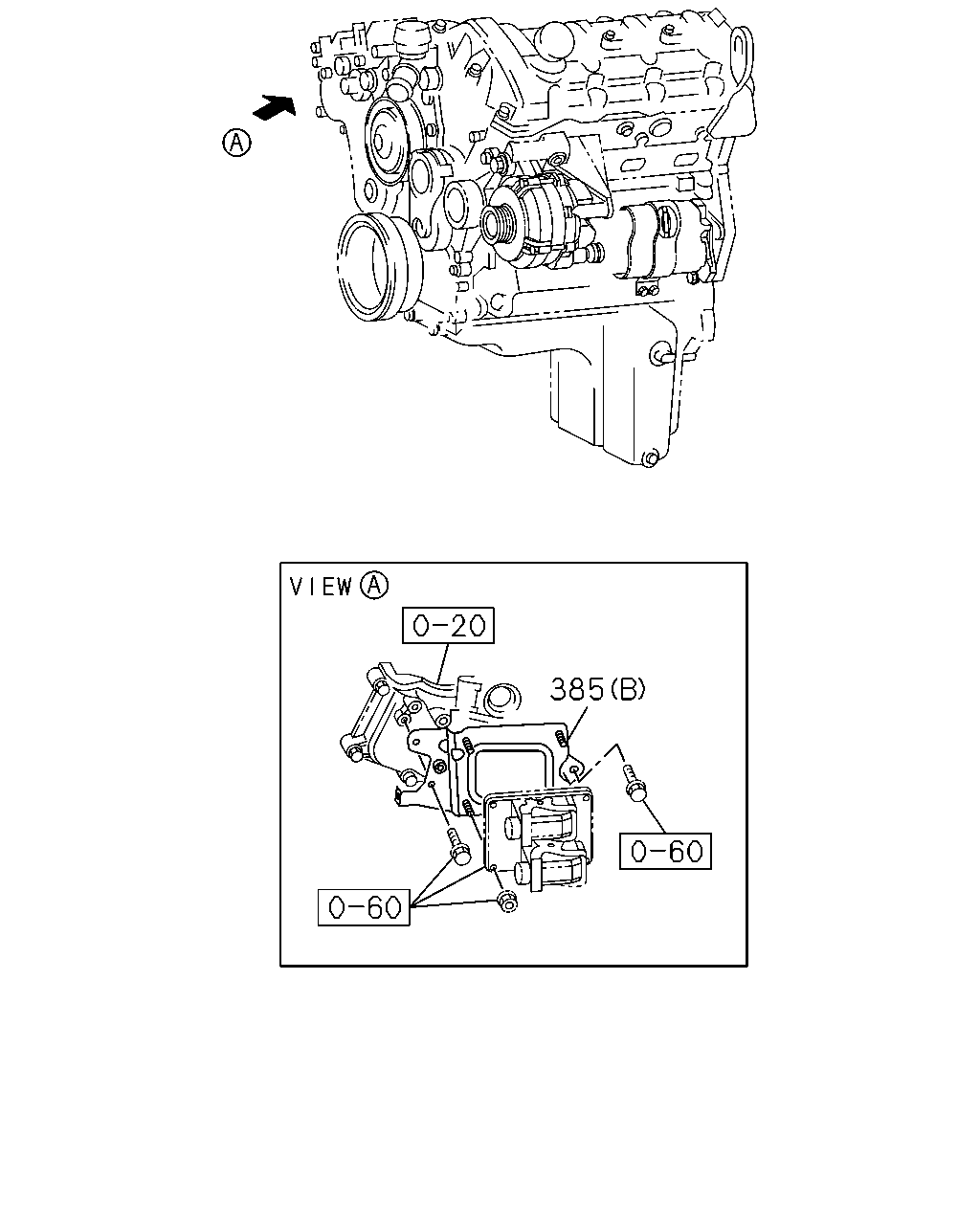

	385	16.545 BRACKET HF V6 ENG(LCA) (B)	8-92067-768-0	01	1	0805-	●	●	●	●	●	●	●	●

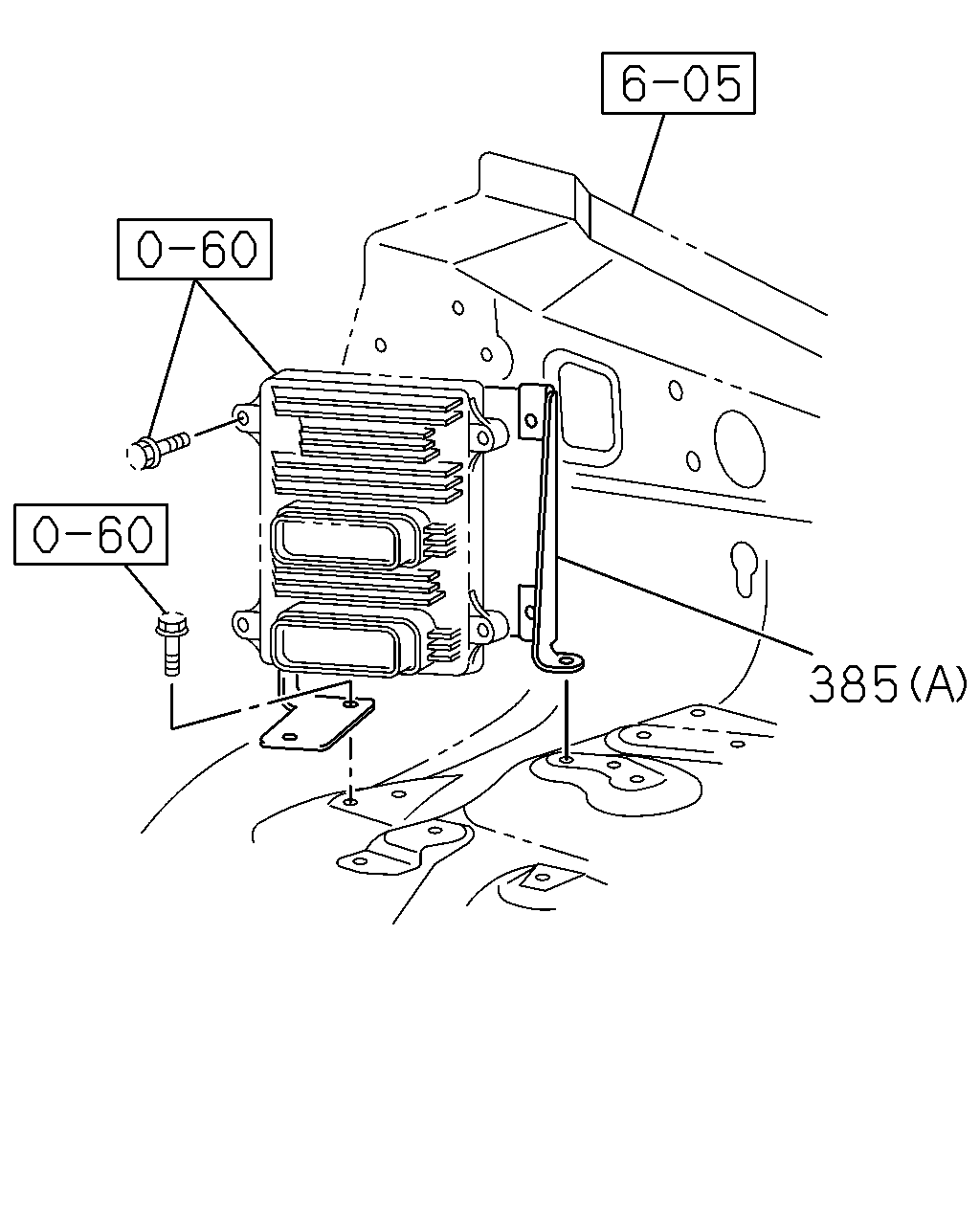

	385	16.545 BRACKET C24SE ENG(LG1) (A)	8-92189-218-0	01	1	0805-1003						●	●

385

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	385	16.545 BRACKET HF V6 ENG(LCA) (B)	8-92067-768-0	01	1	0805-	●	●	●	●	●	●	●	●
	385	16.545 BRACKET C24SE ENG(LG1) (A)	8-92189-218-0	01	1	0805-1003						●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
