6-55 — REAR DOOR TRIM (#74789) — 63 parça

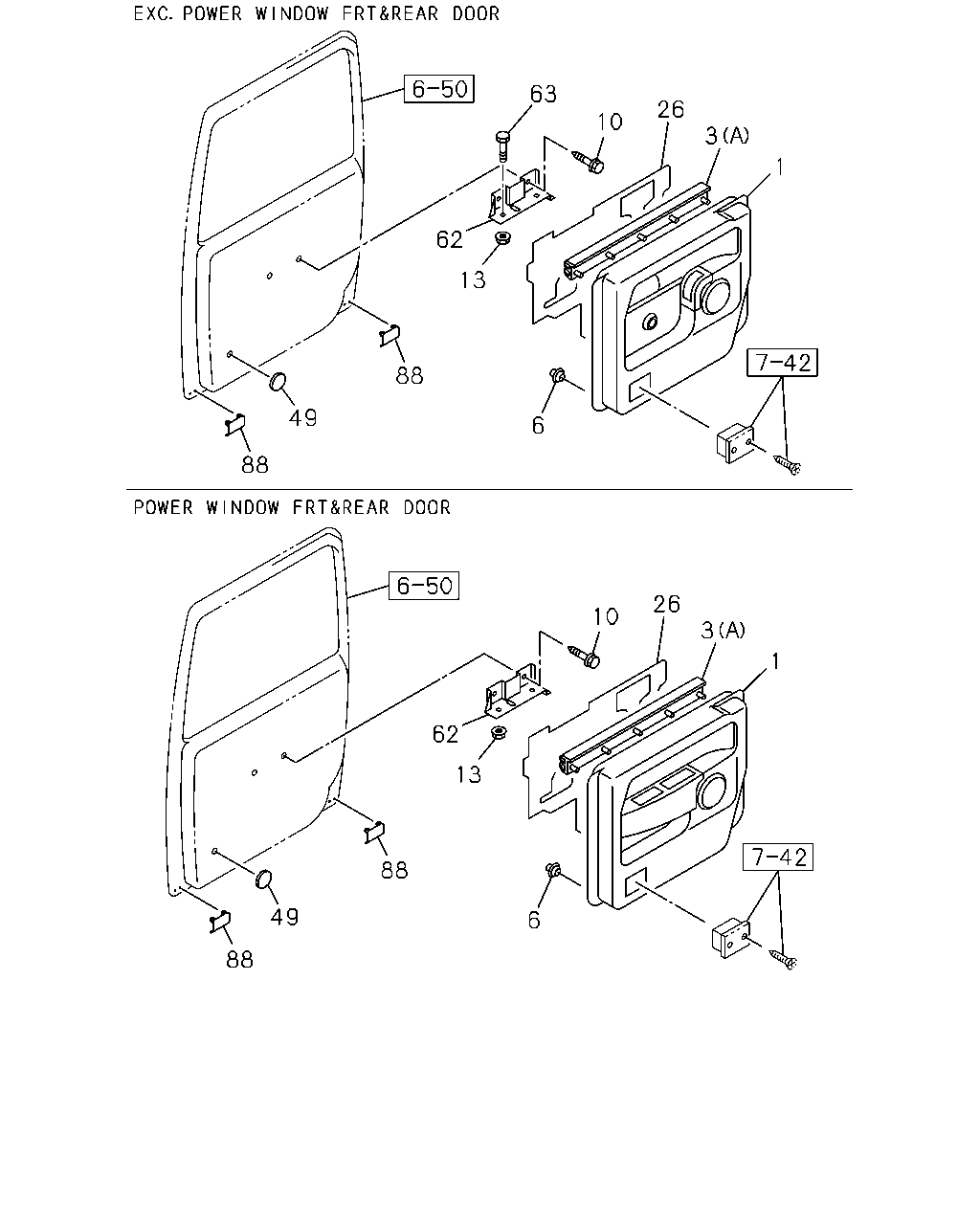

çizim 131179
63 26 10 3 1 62 13 88 49 6 88 26 10 3 1 62 13 88 49 6 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> DARK GRAY 		8-97413-295-0 01 1 0805-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-295-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-295-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97413-295-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> DARK GRAY 		8-97413-296-0 01 1 0805-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-296-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM STANDARD, VAR 2<8LL> DARK GRAY 		8-97413-296-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB EXTRA LONG(TF**WK) DARK GRAY 		8-97413-296-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY 		8-97413-293-0 01 1 0805-0809 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY 		8-97413-293-0 01 1 0810-1003 ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY 		8-97413-294-0 01 1 0805-0809 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY 		8-97413-294-0 01 1 0810-1003 ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> DARK GRAY 		8-97413-298-0 01 1 0805-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97413-298-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97413-298-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> DARK GRAY 		8-97413-297-0 01 1 0805-1003 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97413-297-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY 		8-97413-297-0 01 1 1004- ●
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY 		8-97403-922-3 01 1 0805-0809 ● ●
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY 		8-97403-922-3 01 1 0810-1003 ●
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY 		8-97403-924-3 01 1 0805-0809 ● ●
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY 		8-97403-924-3 01 1 0810-1003 ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-594-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-227-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-233-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-596-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-228-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-234-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> (A) 		8-97364-725-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (A) 		8-97364-725-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> (A) 		8-97364-725-0 01 1 1004- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> (A) 		8-97364-724-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (A) 		8-97364-724-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> (A) 		8-97364-724-0 01 1 1004- ● ●
6 16.165 CLIP; DOOR PAD
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> H=16.7 		8-97022-017-0 14 1 0805-1003 ● ●
6 16.165 CLIP; DOOR PAD
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> H=16.7 		8-97022-017-0 14 1 0805-1003 ● ●
6 16.165 CLIP; DOOR PAD
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> H=16.7 		8-97022-017-0 14 1 1004- ● ●
10 16.155 SCREW; ARM REST
12.182 M5X14 		8-94152-495-0 04 1 0805- ● ●
13 16.165 GROMMET; SCREW,ARM REST
10.565 		8-94152-494-0 04 1 0805- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER 8-97360-890-0 01 1 0805- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER 8-97360-889-0 01 1 0805- ● ●
49 16.165 SEAL; DOOR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 02 1 0805-0809 ●
49 16.165 SEAL; DOOR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 02 1 0810-0910 ● ●
49 16.165 SEAL; DOOR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 02 1 0911-1003 ●
62 16.165 BRACKET 8-93358-284-2 01 1 0805- ● ●
62 16.165 BRACKET 8-93358-285-2 01 1 0805- ● ●
63 16.165 BOLT
EXC. POWER WINDOW<A31> 12.182 M5X14 		8-94152-495-0 04 1 0805-0809 ● ●
63 16.165 BOLT
EXC. POWER WINDOW<A31> 12.182 M5X14 		8-94152-495-0 04 1 0810-1003 ●
88 16.270 PLUG; DOOR
16.155 		8-98009-500-0 04 1 0805- ● ●

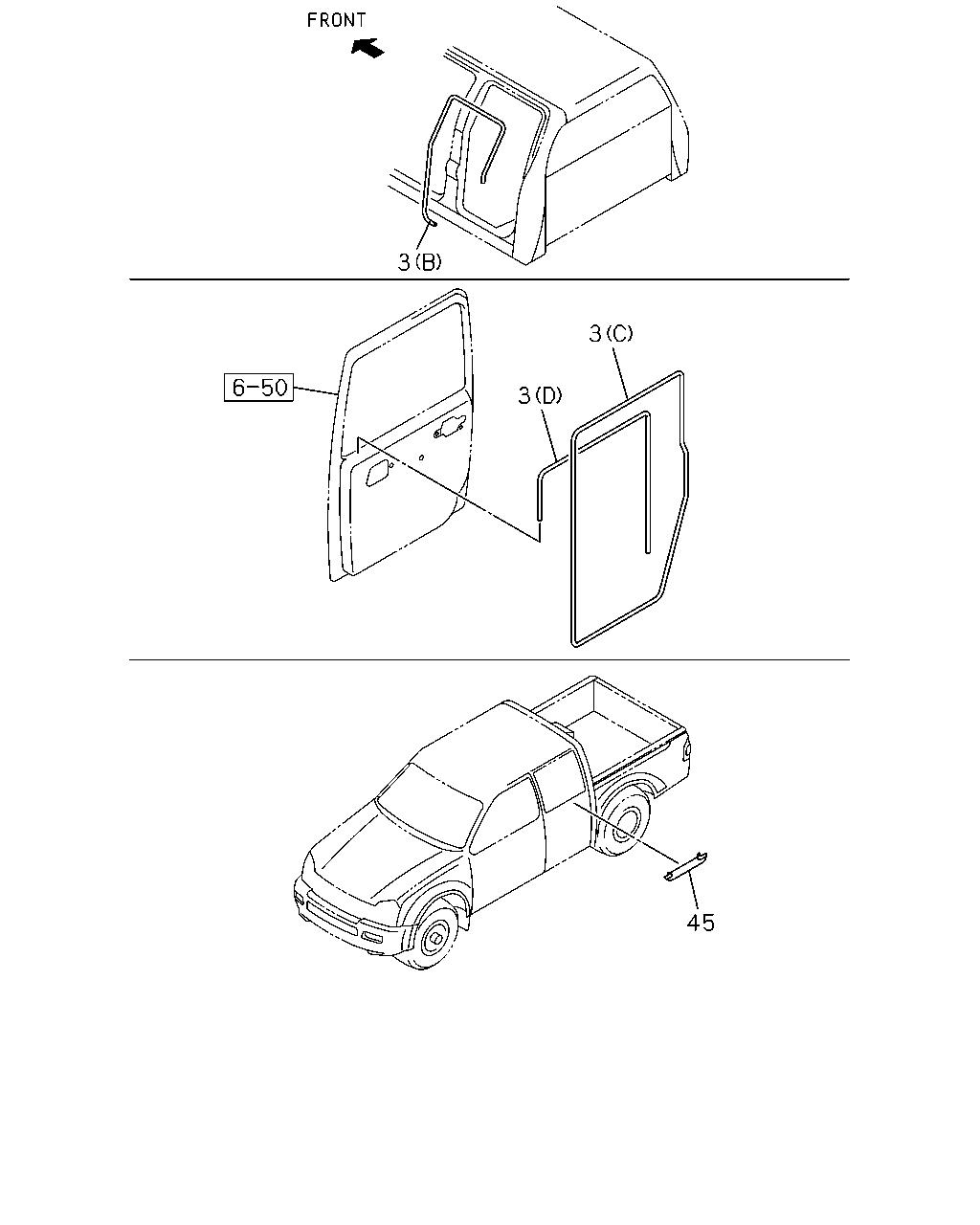

çizim 185791
3 3 3 45
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-594-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-227-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-233-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-596-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-228-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-234-0 01 1 0805- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> (A) 		8-97364-725-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (A) 		8-97364-725-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> (A) 		8-97364-725-0 01 1 1004- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 2<8LL> (A) 		8-97364-724-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> (A) 		8-97364-724-0 01 1 0805-1003 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CLOTH TRIM STANDARD, VAR 2<8LL>, CLOTH TRIM SUPER DELUXE, VAR 2<8LN> (A) 		8-97364-724-0 01 1 1004- ● ●
45 16.183 FINISHER; RR DOOR 8-98004-224-0 01 1 0805- ● ●
45 16.183 FINISHER; RR DOOR 8-98004-223-0 01 1 0805- ● ●
