◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#74788) — 99 parça

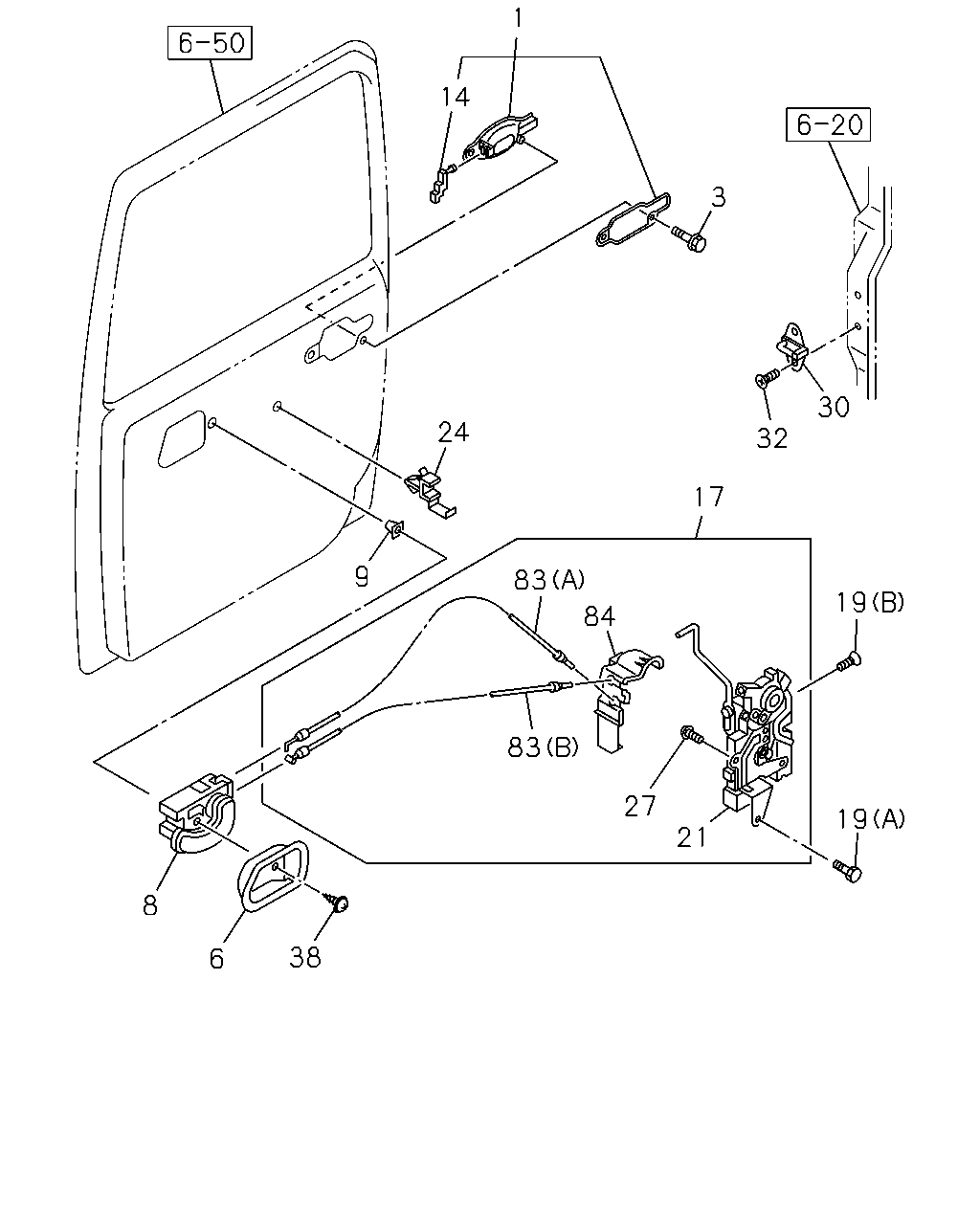

çizim 131808
1 14 3 30 24 32 17 9 83 19 84 83 27 19 21 8 38 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97408-187-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97408-172-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> BLACK 		8-97408-185-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> BLACK 		8-97408-170-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR IMPERIAL BLOND MET(688) OUTSIDE HANDLE CHROME<E20> GOLD 		8-97408-186-0 01 1 0805-1003 ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-203-0 01 1 1004- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR IMPERIAL BLOND MET(688) OUTSIDE HANDLE CHROME<E20> GOLD 		8-97408-171-0 01 1 0805-1003 ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-202-0 01 1 1004- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR IMPUL BLUE MET.(509) OUTSIDE HANDLE CHROME<E20> BLUE 		8-97408-438-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR IMPUL BLUE MET.(509) OUTSIDE HANDLE CHROME<E20> BLUE 		8-97408-434-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> DARK GRAY 		8-97408-194-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> DARK GRAY 		8-97408-179-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-189-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-174-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> RED 		8-97408-195-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> RED 		8-97408-180-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-616-0 01 1 0805- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-615-0 01 1 0805- ● ●
3 16.350 BOLT; DOOR OUTSIDE HANDLE
10.765 M6X8 FLANGE 		8-98048-996-0 04 1 0805- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97396-657-1 01 1 0805- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97396-656-1 01 1 0805- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRADE DX(RBA),GRADE LX(RBB) DARK GRAY 		8-97404-944-0 01 1 0805-1003 ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRADE LX(RBB) DARK GRAY 		8-97404-944-0 01 1 1004- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRADE DX(RBA),GRADE LX(RBB) DARK GRAY 		8-97404-960-0 01 1 0805-1003 ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRADE LX(RBB) DARK GRAY 		8-97404-960-0 01 1 1004- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRADE LT(RBD) DARK GRAY 		8-97408-668-1 01 1 0805- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
GRADE LT(RBD) DARK GRAY 		8-97408-669-1 01 1 0805- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
10.565 		8-94152-494-0 02 1 0805- ● ●
14 16.330 HOLDER; DOOR LK ROD
YELLOW 		8-97333-304-0 01 1 0805- ● ●
14 16.330 HOLDER; DOOR LK ROD
WHITE 		8-97333-303-0 01 1 0805- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-197-0 01 1 0805-0809 ●
17 16.330 LOCK; DOOR,RR DOOR 8-98012-197-0 01 1 0805-0809 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-197-0 01 1 0810-0910 ●
17 16.330 LOCK; DOOR,RR DOOR
4X4 CREW CAB LONG(TFS*WF) AUTO DOOR LOCK<AU4> 		8-98012-197-0 01 1 0810-0910 ●
17 16.330 LOCK; DOOR,RR DOOR
CREW CAB EXTRA LONG(TF**WK) 		8-98012-197-0 01 1 0810-0910 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-197-0 01 1 0911-1003 ●
17 16.330 LOCK; DOOR,RR DOOR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT(RBD) 		8-98012-197-0 01 1 0911-1003 ●
17 16.330 LOCK; DOOR,RR DOOR
CREW CAB EXTRA LONG(TF**WK) 		8-98012-197-0 01 1 0911-1003 ●
17 16.330 LOCK; DOOR,RR DOOR 8-98012-197-0 01 1 1004- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-198-0 01 1 0805-0809 ●
17 16.330 LOCK; DOOR,RR DOOR 8-98012-198-0 01 1 0805-0809 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-198-0 01 1 0810-0910 ●
17 16.330 LOCK; DOOR,RR DOOR
4X4 CREW CAB LONG(TFS*WF) AUTO DOOR LOCK<AU4> 		8-98012-198-0 01 1 0810-0910 ●
17 16.330 LOCK; DOOR,RR DOOR
CREW CAB EXTRA LONG(TF**WK) 		8-98012-198-0 01 1 0810-0910 ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-98012-198-0 01 1 0911-1003 ●
17 16.330 LOCK; DOOR,RR DOOR
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT(RBD) 		8-98012-198-0 01 1 0911-1003 ●
17 16.330 LOCK; DOOR,RR DOOR
CREW CAB EXTRA LONG(TF**WK) 		8-98012-198-0 01 1 0911-1003 ●
17 16.330 LOCK; DOOR,RR DOOR 8-98012-198-0 01 1 1004- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-195-0 01 1 0805-0809 ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-195-0 01 1 0810-0910 ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-195-0 01 1 0911-1003 ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-196-0 01 1 0805-0809 ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-196-0 01 1 0810-0910 ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-196-0 01 1 0911-1003 ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 0805-0809 ●
19 16.345 BOLT; RR DOOR LOCK
10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 0805-0809 ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 0810-0910 ●
19 16.345 BOLT; RR DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 0810-0910 ●
19 16.345 BOLT; RR DOOR LOCK
CREW CAB EXTRA LONG(TF**WK) 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 0810-0910 ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 0911-1003 ●
19 16.345 BOLT; RR DOOR LOCK
10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 0911-1003 ●
19 16.345 BOLT; RR DOOR LOCK
10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 1004- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.330 (B) M6X20 		8-98049-000-0 06 1 0805- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-081-0 01 1 0805-0809 ●
21 16.345 ACTUATOR; RR DOOR LOCK 8-97351-081-0 01 1 0805-0809 ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-081-0 01 1 0810-0910 ●
21 16.345 ACTUATOR; RR DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) AUTO DOOR LOCK<AU4> 		8-97351-081-0 01 1 0810-0910 ●
21 16.345 ACTUATOR; RR DOOR LOCK
CREW CAB EXTRA LONG(TF**WK) 		8-97351-081-0 01 1 0810-0910 ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-081-0 01 1 0911-1003 ●
21 16.345 ACTUATOR; RR DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT(RBD) 		8-97351-081-0 01 1 0911-1003 ●
21 16.345 ACTUATOR; RR DOOR LOCK
CREW CAB EXTRA LONG(TF**WK) 		8-97351-081-0 01 1 0911-1003 ●
21 16.345 ACTUATOR; RR DOOR LOCK 8-97351-081-0 01 1 1004- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-082-0 01 1 0805-0809 ●
21 16.345 ACTUATOR; RR DOOR LOCK 8-97351-082-0 01 1 0805-0809 ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-082-0 01 1 0810-0910 ●
21 16.345 ACTUATOR; RR DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) AUTO DOOR LOCK<AU4> 		8-97351-082-0 01 1 0810-0910 ●
21 16.345 ACTUATOR; RR DOOR LOCK
CREW CAB EXTRA LONG(TF**WK) 		8-97351-082-0 01 1 0810-0910 ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-082-0 01 1 0911-1003 ●
21 16.345 ACTUATOR; RR DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT(RBD) 		8-97351-082-0 01 1 0911-1003 ●
21 16.345 ACTUATOR; RR DOOR LOCK
CREW CAB EXTRA LONG(TF**WK) 		8-97351-082-0 01 1 0911-1003 ●
21 16.345 ACTUATOR; RR DOOR LOCK 8-97351-082-0 01 1 1004- ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 0805- ● ●
27 16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 0805-0809 ●
27 16.330 SCREW; RR DOOR LOCK 8-97349-997-0 04 1 0805-0809 ●
27 16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 0810-0910 ●
27 16.330 SCREW; RR DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 0810-0910 ●
27 16.330 SCREW; RR DOOR LOCK
CREW CAB EXTRA LONG(TF**WK) 		8-97349-997-0 04 1 0810-0910 ●
27 16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 0911-1003 ●
27 16.330 SCREW; RR DOOR LOCK
4X4 CREW CAB LONG(TFS*WF) GRADE LX(RBB),GRADE LT(RBD) 		8-97349-997-0 04 1 0911-1003 ●
27 16.330 SCREW; RR DOOR LOCK
CREW CAB EXTRA LONG(TF**WK) 		8-97349-997-0 04 1 0911-1003 ●
27 16.330 SCREW; RR DOOR LOCK 8-97349-997-0 04 1 1004- ● ●
30 16.335 STRIKER; RR DOOR 8-98012-203-0 02 1 0805- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 0805- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
12.182 M5X14 		8-94152-495-0 02 1 0805- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97351-077-0 02 1 0805- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97351-075-0 01 1 0805- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97351-076-0 01 1 0805- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-079-1 01 1 0805- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-080-1 01 1 0805- ● ●
