◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#74787) — 52 parça

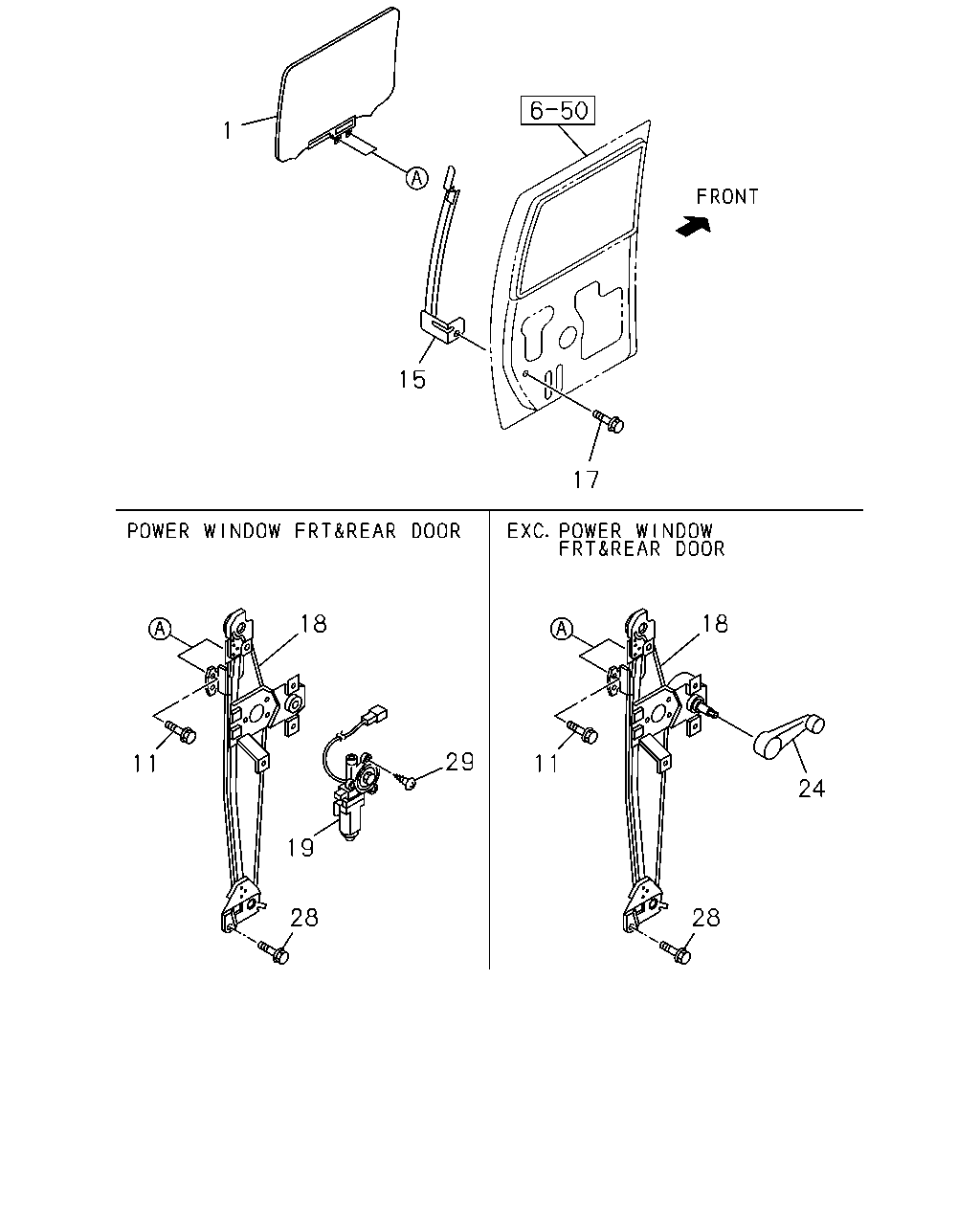

çizim 131374
1 15 17 18 18 29 11 11 24 19 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; RR DOOR 8-98002-757-0 01 1 0805-0808 ● ●
1 16.180 GLASS; RR DOOR 8-98130-014-0 01 1 0809- ● ●
1 16.180 GLASS; RR DOOR 8-98002-758-0 01 1 0805-0808 ● ●
1 16.180 GLASS; RR DOOR 8-98130-015-0 01 1 0809- ● ●
11 16.183 BOLT; GLASS
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ●
15 16.190 RAIL; RR GUIDE,RR DOOR 8-93298-412-0 01 1 0805- ● ●
15 16.190 RAIL; RR GUIDE,RR DOOR 8-93298-413-0 01 1 0805- ● ●
17 10.765 BOLT; RR GUIDE RAIL
M6X8 FLANGE 		8-98048-996-0 02 1 0805- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A31> 		8-98009-813-0 01 1 0805-0809 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A31> 		8-98009-813-0 01 1 0810-0908 ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98009-813-0 01 1 0810-0908 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A31> 		8-98150-526-0 01 1 0909-1003 ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98150-526-0 01 1 0909-1003 ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98150-526-0 01 1 1004- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A31> 		8-98009-812-0 01 1 0805-0809 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A31> 		8-98009-812-0 01 1 0810-0908 ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98009-812-0 01 1 0810-0908 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A31> 		8-98150-525-0 01 1 0909-1003 ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98150-525-0 01 1 0909-1003 ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98150-525-0 01 1 1004- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A31> 		8-98005-169-3 01 1 0805-0809 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A31> 		8-98005-169-3 01 1 0810-0906 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A31> 		8-98150-522-0 01 1 0907-1003 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A31> 		8-98005-168-3 01 1 0805-0809 ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A31> 		8-98005-168-3 01 1 0810-0906 ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A31> 		8-98150-521-0 01 1 0907-1003 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A31> 		8-98009-804-0 01 1 0805-0809 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A31> 		8-98009-804-0 01 1 0810-0908 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98009-804-0 01 1 0810-0908 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A31> 		8-98151-594-0 01 1 0909-1003 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98151-594-0 01 1 0909-1003 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98151-594-0 01 1 1004-1107 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98196-062-0 01 1 1108- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A31> 		8-98009-803-0 01 1 0805-0809 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A31> 		8-98009-803-0 01 1 0810-0908 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98009-803-0 01 1 0810-0908 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A31> 		8-98151-593-0 01 1 0909-1003 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98151-593-0 01 1 0909-1003 ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98151-593-0 01 1 1004-1107 ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR 8-98196-061-0 01 1 1108- ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A31> DARK GRAY 		8-97408-066-0 02 1 0805-0809 ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A31> DARK GRAY 		8-97408-066-0 02 1 0810-1003 ●
28 16.181 BOLT; WINDOW REG
POWER WINDOW<A31> 10.765 M6X8 FLANGE 		8-98048-996-0 06 1 0805-0809 ● ●
28 16.181 BOLT; WINDOW REG
POWER WINDOW<A31> 10.765 M6X8 FLANGE 		8-98048-996-0 06 1 0810-1003 ●
28 16.181 BOLT; WINDOW REG
10.765 M6X8 FLANGE 		8-98048-996-0 06 1 0810-1003 ●
28 16.181 BOLT; WINDOW REG
10.765 M6X8 FLANGE 		8-98048-996-0 06 1 1004- ● ●
28 16.181 BOLT; WINDOW REG
EXC. POWER WINDOW<A31> 10.765 M6X8 FLANGE 		8-98048-996-0 08 1 0805-0809 ● ●
28 16.181 BOLT; WINDOW REG
EXC. POWER WINDOW<A31> 10.765 M6X8 FLANGE 		8-98048-996-0 08 1 0810-1003 ●
29 16.270 SCREW; WINDOW REG
POWER WINDOW<A31> 		8-98009-809-0 06 1 0805-0809 ● ●
29 16.270 SCREW; WINDOW REG
POWER WINDOW<A31> 		8-98009-809-0 06 1 0810-1003 ●
29 16.270 SCREW; WINDOW REG 8-98009-809-0 06 1 0810-1003 ●
29 16.270 SCREW; WINDOW REG 8-98009-809-0 06 1 1004- ● ●
