◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-50 - REAR DOOR AND HINGE ▶
6-50 — REAR DOOR AND HINGE (#74786) — 14 parça

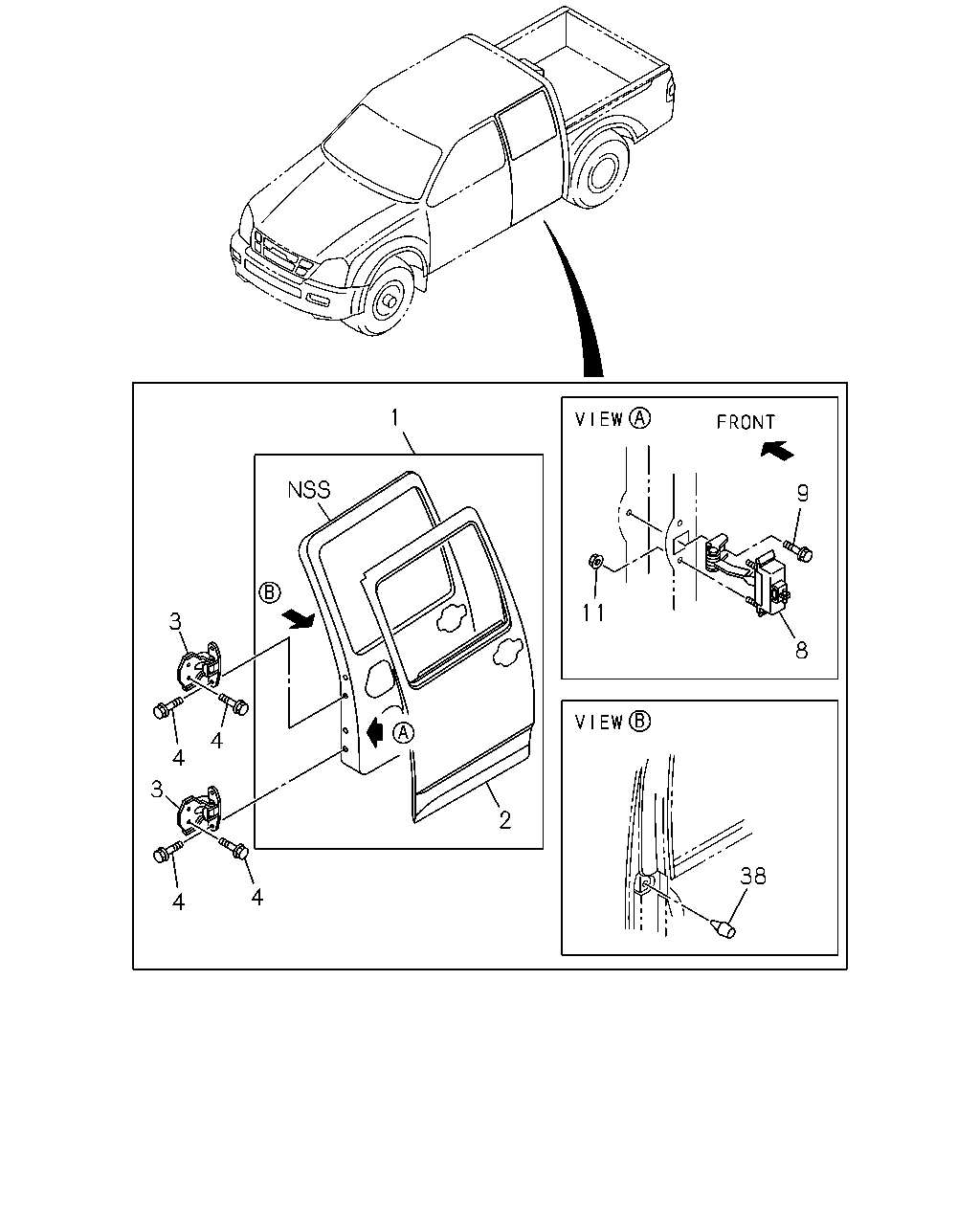

çizim 131690
1 9 11 3 8 4 4 3 2 38 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; REAR 8-98042-901-0 01 1 0805- ● ●
1 16.150 DOOR ASM; REAR 8-98042-902-0 01 1 0805- ● ●
2 16.152 PANEL; RR DOOR OUTER 8-93291-097-6 01 1 0805- ● ●
2 16.152 PANEL; RR DOOR OUTER 8-93291-098-6 01 1 0805- ● ●
3 16.335 HINGE; RR DOOR
LH LOWER,RH UPPER 		8-98057-550-0 02 1 0805- ● ●
3 16.335 HINGE; RR DOOR
LH UPPER,RH LOWER 		8-98057-551-0 02 1 0805- ● ●
4 16.335 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 0805-1007 ● ●
4 16.335 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1008- ● ●
4 16.335 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1008- ● ●
8 16.320 ARM; CHECK,RR DOOR 8-97369-017-0 02 1 0805- ● ●
9 16.323 BOLT; CHECK ARM
16.320 M8X23 		8-98062-206-0 02 1 0805-1110 ● ●
9 16.323 BOLT; CHECK ARM
16.320 M8X23 		8-98166-694-0 02 1 1111- ● ●
11 16.320 NUT
M6 FLANGE 		8-98049-362-0 04 1 0805- ● ●
38 16.152 PROTECTOR; RR DOOR
16.165 		8-97301-795-1 02 1 0805- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
