6-47 — MUD GUARD AND INSULATOR (#74785) — 157 parça

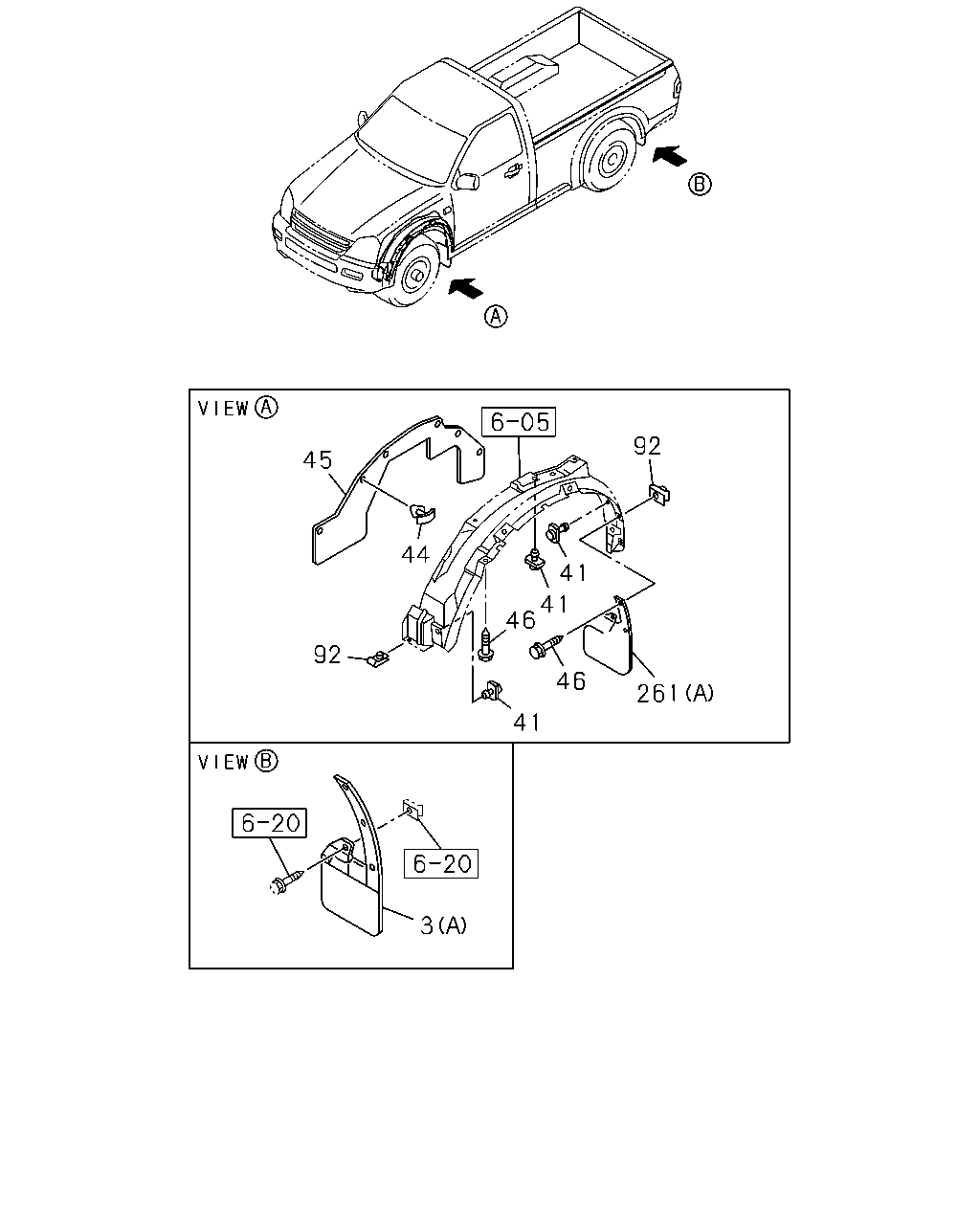

çizim 131361
92 45 44 41 41 46 92 46 261 41 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-726-0 01 1 0805- ● ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-725-0 01 1 0805- ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (B) 		8-98023-660-0 01 1 0805- ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (B) 		8-98023-659-0 01 1 0805- ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (C) 		8-97364-442-0 01 1 0805- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (C) 		8-97364-441-0 01 1 0805- ● ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 08.154 		8-94221-150-0 14 1 0805- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 		8-94221-150-0 12 1 0805- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 12 1 0805- ● ● ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 08.154 		8-94221-150-0 20 1 0805- ● ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 12 1 0805- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-462-0 01 1 0805- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-462-0 01 1 0805- ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-460-1 01 1 0805- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-460-1 01 1 0805- ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-457-2 01 1 0805- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-458-1 01 1 0805- ● ● ● ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0805-1003 ● ● ● ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 12 1 1004- ● ● ● ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0805-1003 ● ● ● ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0805-1003 ● ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 14 1 1004- ● ● ● ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 14 1 1004- ● ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 07.833 M6X20 TAPPING 		8-98052-950-0 06 1 0805-1003 ● ● ● ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1004- ● ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 		8-97125-519-0 14 1 0805- ● ● ● ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> 		8-97125-519-0 16 1 0805- ● ● ● ● ●
92 08.155 NUT; MUD COVER 8-97125-519-0 16 1 0805- ● ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 		8-97125-519-0 08 1 0805- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-722-0 01 1 0805- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-721-0 01 1 0805- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> (B) 		8-98002-237-0 01 1 0805-0910 ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) (B) 		8-98002-237-0 01 1 0911- ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> (B) 		8-98002-239-0 01 1 0805-0910 ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) (B) 		8-98002-239-0 01 1 0911- ● ● ● ● ● ● ● ●

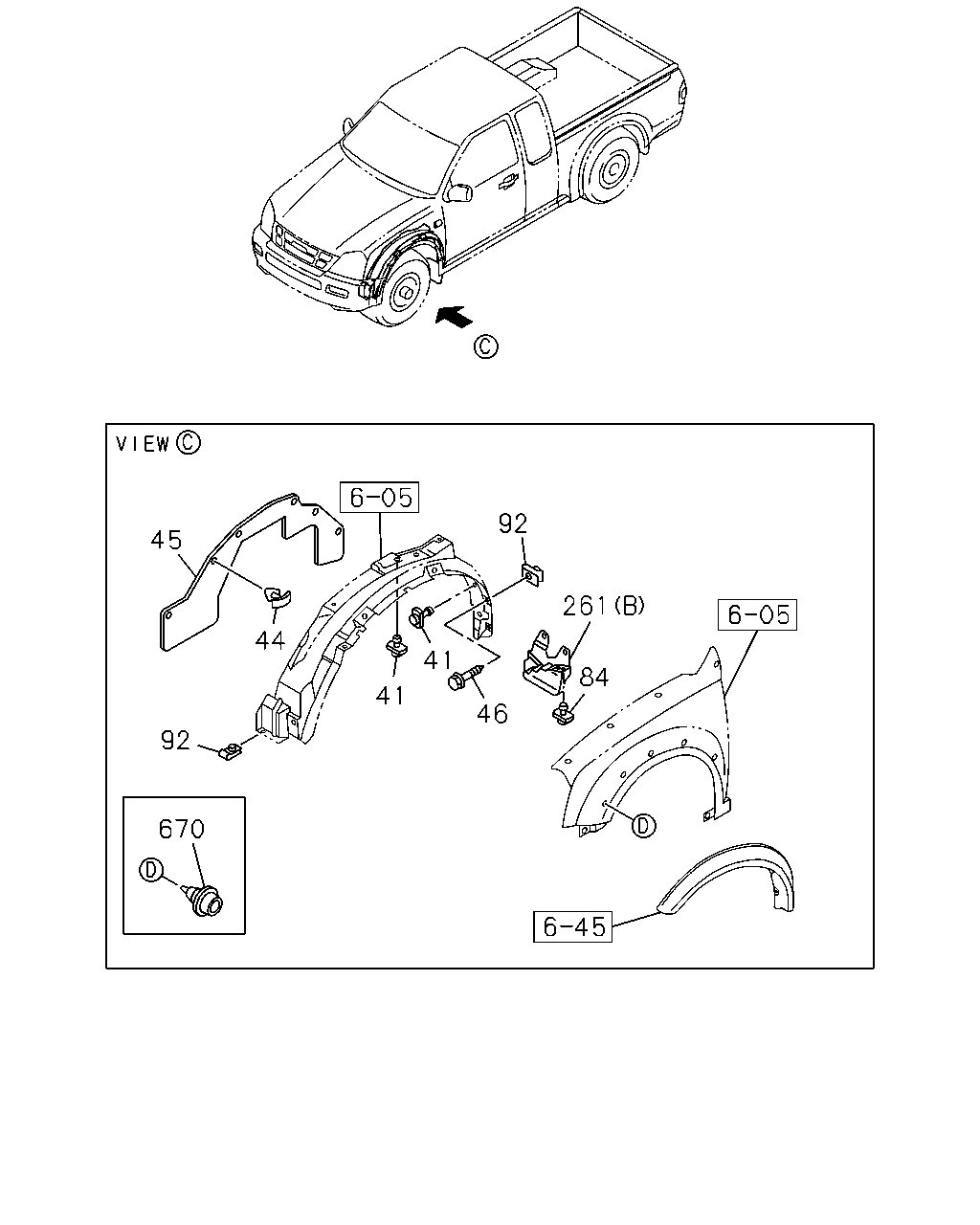

çizim 131757
92 45 261 44 84 41 41 46 92 670
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 08.154 		8-94221-150-0 14 1 0805- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
OVER FENDER<B74> 08.154 		8-94221-150-0 12 1 0805- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 12 1 0805- ● ● ●
41 08.155 RIVET; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 08.154 		8-94221-150-0 20 1 0805- ● ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 12 1 0805- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-462-0 01 1 0805- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-462-0 01 1 0805- ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-460-1 01 1 0805- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-460-1 01 1 0805- ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-457-2 01 1 0805- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-458-1 01 1 0805- ● ● ● ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 12 1 0805-1003 ● ● ● ● ●
46 08.155 SCREW; INNER LINER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 12 1 1004- ● ● ● ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0805-1003 ● ● ● ● ●
46 08.155 SCREW; INNER LINER
07.833 M6X20 TAPPING 		8-98052-950-0 14 1 0805-1003 ● ● ●
46 08.155 SCREW; INNER LINER
OVER FENDER<B74> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 14 1 1004- ● ● ● ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 14 1 1004- ● ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 07.833 M6X20 TAPPING 		8-98052-950-0 06 1 0805-1003 ● ● ● ● ●
46 08.155 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1004- ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 0911-1003 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 0911-1003 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 1004-1007 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 1004-1007 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 03 1 0810-0910 ● ● ● ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 03 1 0805-0809 ● ● ● ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA(685) ,BODY COLOR IMPERIAL BLOND MET(688) ,BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 06 1 0805-0809 ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0805-0809 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0805-0809 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 06 1 0810-0910 ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0810-0910 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0810-0910 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0911-1003 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0911-1003 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1004-1007 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1004-1007 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1008- ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1008- ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 10 1 0805- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) NATURAL 		8-97384-015-0 10 1 0805- ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 18 1 0805- ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> EXC. OVER FENDER<B74> 		8-97125-519-0 14 1 0805- ● ● ● ● ●
92 08.155 NUT; MUD COVER
OVER FENDER<B74> 		8-97125-519-0 16 1 0805- ● ● ● ● ●
92 08.155 NUT; MUD COVER 8-97125-519-0 16 1 0805- ● ● ●
92 08.155 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4> 		8-97125-519-0 08 1 0805- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-722-0 01 1 0805- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) 		8-97386-721-0 01 1 0805- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> (B) 		8-98002-237-0 01 1 0805-0910 ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) (B) 		8-98002-237-0 01 1 0911- ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> (B) 		8-98002-239-0 01 1 0805-0910 ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) (B) 		8-98002-239-0 01 1 0911- ● ● ● ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 0911-1003 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 0911-1003 ● ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 1004-1007 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 1004-1007 ● ● ●
670 08.155 FASTENER
BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 06 1 0810-0910 ● ● ● ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 06 1 0805-0809 ● ● ● ● ● ● ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 		8-97359-942-0 06 1 0805- ● ● ● ● ●
670 08.155 FASTENER
07.829 		8-97359-942-0 06 1 0805- ● ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA(685) ,BODY COLOR IMPERIAL BLOND MET(688) ,BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 12 1 0805-0809 ● ● ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0805-0809 ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0805-0809 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 12 1 0810-0910 ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0810-0910 ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0810-0910 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0911-1003 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0911-1003 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1004-1007 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1004-1007 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1008- ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1008- ● ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 13 1 0805- ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 14 1 0805- ● ●

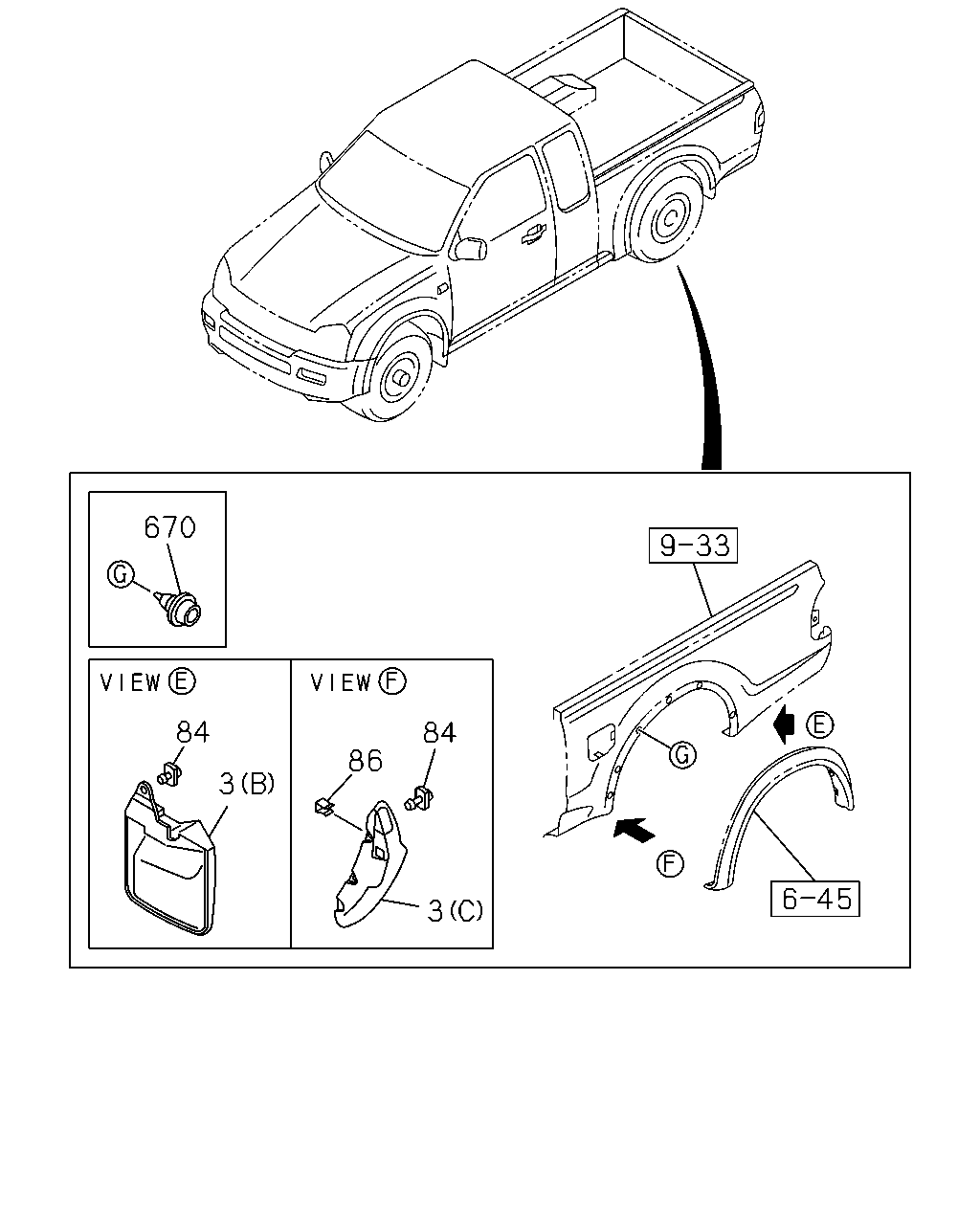

çizim 185792
670 84 84 86 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-726-0 01 1 0805- ● ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) MUD FLAP<VH4> (A) 		8-97386-725-0 01 1 0805- ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (B) 		8-98023-660-0 01 1 0805- ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (B) 		8-98023-659-0 01 1 0805- ● ● ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (C) 		8-97364-442-0 01 1 0805- ● ●
3 08.153 GUARD; MUD,RR
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) (C) 		8-97364-441-0 01 1 0805- ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 0911-1003 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 0911-1003 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 1004-1007 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 03 1 1004-1007 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 03 1 0810-0910 ● ● ● ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 03 1 0805-0809 ● ● ● ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA(685) ,BODY COLOR IMPERIAL BLOND MET(688) ,BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 06 1 0805-0809 ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0805-0809 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0805-0809 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> NATURAL 		8-97384-015-0 06 1 0810-0910 ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0810-0910 ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0810-0910 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0911-1003 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 0911-1003 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1004-1007 ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1004-1007 ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1008- ● ● ● ● ●
84 08.155 RIVET; MUD GUARD
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 06 1 1008- ● ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 10 1 0805- ● ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) NATURAL 		8-97384-015-0 10 1 0805- ●
84 08.155 RIVET; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) NATURAL 		8-97384-015-0 18 1 0805- ● ●
86 08.154 CLIP; MUD GUARD
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) 		8-97352-535-0 04 1 0805- ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 0911-1003 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 0911-1003 ● ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 1004-1007 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR IMPUL BLUE MET.(509), BODY COLOR MISTY ONYX MICA(518),BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 06 1 1004-1007 ● ● ●
670 08.155 FASTENER
BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 06 1 0810-0910 ● ● ● ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 06 1 0805-0809 ● ● ● ● ● ● ● ●
670 08.155 FASTENER
OVER FENDER<B74> 07.829 		8-97359-942-0 06 1 0805- ● ● ● ● ●
670 08.155 FASTENER
07.829 		8-97359-942-0 06 1 0805- ● ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA(685) ,BODY COLOR IMPERIAL BLOND MET(688) ,BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 12 1 0805-0809 ● ● ● ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0805-0809 ●
670 08.155 FASTENER
BODY COLOR BLACK SAPPHIRE MICA(685) BODY COLOR IMPERIAL BLOND MET(688), BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0805-0809 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF> 07.829 		8-97117-942-0 12 1 0810-0910 ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0810-0910 ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0810-0910 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0911-1003 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR IMPERIAL BLOND MET(688),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 0911-1003 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1004-1007 ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR BLACK SAPPHIRE MICA(685), BODYCOLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1004-1007 ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1008- ● ● ● ● ●
670 08.155 FASTENER
BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 12 1 1008- ● ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 13 1 0805- ● ●
670 08.155 FASTENER
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL(E63) COLOR KEYED BUMPER(VT4) 07.829 		8-97117-942-0 14 1 0805- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
