Sayfa 6-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶

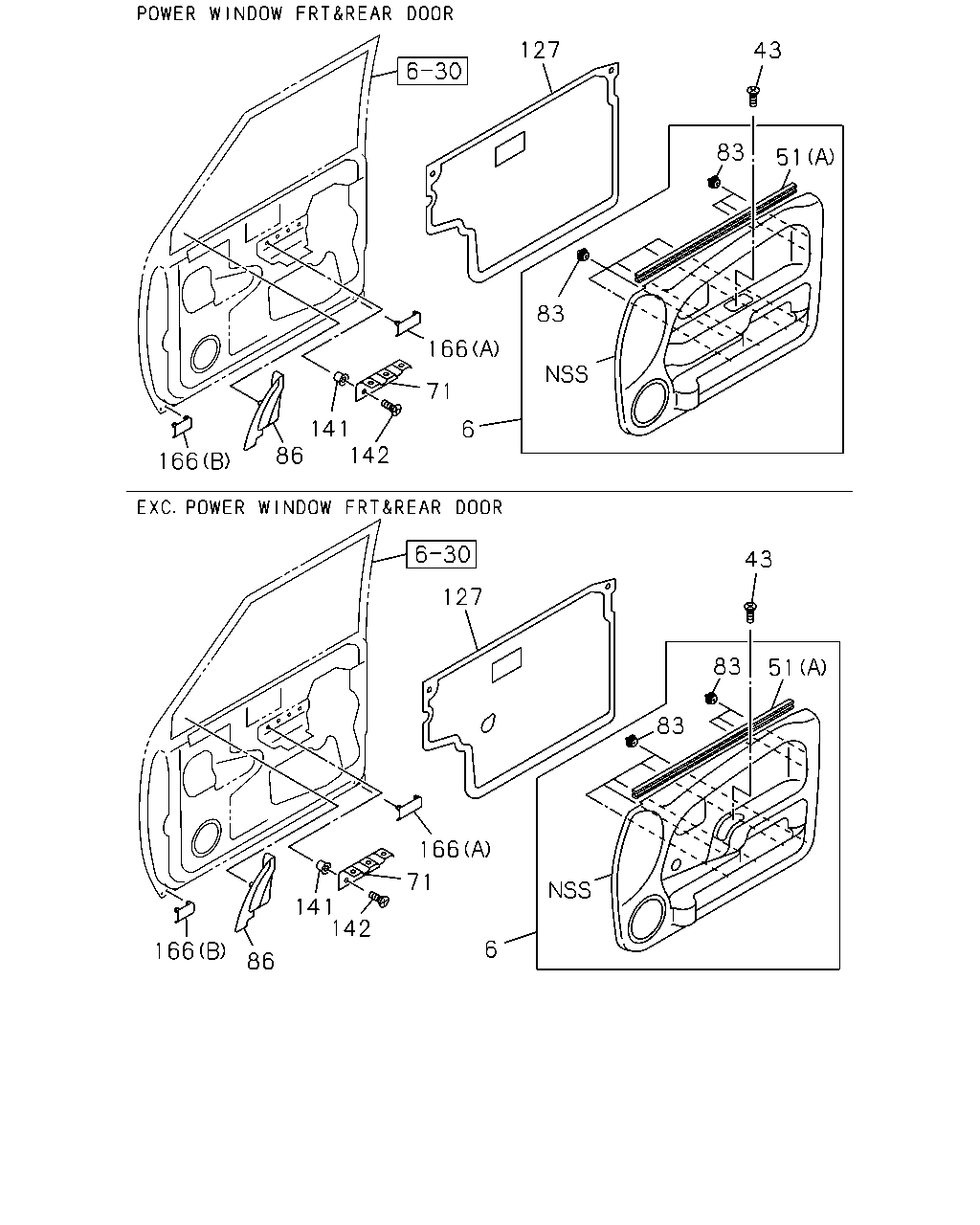

6-35 — FRONT DOOR TRIM (#74781) — 61 parça

127 43 83 51 83 166 71 141 86 142 6 166 43 127 83 51 83 166 71 141 142 6 166 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
6	16.165 TRIM; DOOR,UPR DARK GRAY	8-97413-259-0	01	1	0805-	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> DARK GRAY	8-97413-259-0	01	1	0805-				●	●	●	●	●
6	16.165 TRIM; DOOR,UPR DARK GRAY	8-97413-258-0	01	1	0805-	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> POWER WINDOW<A31> DARK GRAY	8-97413-258-0	01	1	0805-				●	●	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY	8-97413-257-0	01	1	0805-0809				●	●	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY	8-97413-257-0	01	1	0810-1003				●	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY	8-97413-257-0	01	1	1004-				●			●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY	8-97413-256-0	01	1	0805-0809				●	●	●	●	●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY	8-97413-256-0	01	1	0810-1003				●	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM STANDARD, VAR 2<8LL> EXC. POWER WINDOW<A31> DARK GRAY	8-97413-256-0	01	1	1004-				●			●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> DARK GRAY	8-97403-698-0	01	1	0805-0809				●	●	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY	8-97403-698-0	01	1	0810-1003				●	●		●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY	8-97403-698-0	01	1	1004-				●			●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> DARK GRAY	8-97403-696-0	01	1	0805-0809				●	●	●	●	●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY	8-97403-696-0	01	1	0810-1003				●	●		●
6	16.165 TRIM; DOOR,UPR VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY	8-97403-696-0	01	1	1004-				●			●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> DARK GRAY	8-97413-261-0	01	1	0805-1003					●	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY	8-97413-261-0	01	1	1004-					●	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW<A31> DARK GRAY	8-97413-260-0	01	1	0805-1003					●	●		●
6	16.165 TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 2<8LN> DARK GRAY	8-97413-260-0	01	1	1004-					●	●		●
43	16.165 SCREW; DOOR POCKET EXC. POWER WINDOW<A31> 12.182 M5X14	8-94152-495-0	04	1	0805-0809				●	●	●	●	●
43	16.165 SCREW; DOOR POCKET EXC. POWER WINDOW<A31> 12.182 M5X14	8-94152-495-0	04	1	0810-1003				●	●		●
43	16.165 SCREW; DOOR POCKET EXC. POWER WINDOW<A31> 12.182 M5X14	8-94152-495-0	04	1	1004-				●			●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-719-0	01	1	0805-	●	●	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-718-0	01	1	0805-	●	●	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-590-0	02	1	0805-	●	●	●		●	●		●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LX(RBB) (B) DARK GRAY	8-97403-590-0	02	1	0805-				●			●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97403-592-0	02	1	0805-				●			●
71	14.690 BRACKET; ARM REST 16.165	8-97238-106-2	02	1	0805-	●	●	●	●	●	●	●	●
83	16.165 CLIP; DOOR TRIM H=16.7	8-97022-017-0	16	1	0805-	●	●	●	●	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97298-456-2	01	1	0805-	●	●	●	●	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97298-455-2	01	1	0805-	●	●	●	●	●	●	●	●
127	16.183 SEAL; DOOR INNER	8-97360-885-0	01	1	0805-0809	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31>	8-97360-885-0	01	1	0805-0809				●	●	●	●	●
127	16.183 SEAL; DOOR INNER	8-97360-885-0	01	1	0810-1003	●	●	●			●		●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31>	8-97360-885-0	01	1	0810-1003				●	●		●
127	16.183 SEAL; DOOR INNER	8-97360-885-0	01	1	1004-	●	●	●		●	●		●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31>	8-97360-885-0	01	1	1004-				●			●
127	16.183 SEAL; DOOR INNER	8-97360-884-0	01	1	0805-0809	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31>	8-97360-884-0	01	1	0805-0809				●	●	●	●	●
127	16.183 SEAL; DOOR INNER	8-97360-884-0	01	1	0810-1003	●	●	●			●		●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31>	8-97360-884-0	01	1	0810-1003				●	●		●
127	16.183 SEAL; DOOR INNER	8-97360-884-0	01	1	1004-	●	●	●		●	●		●
127	16.183 SEAL; DOOR INNER POWER WINDOW<A31>	8-97360-884-0	01	1	1004-				●			●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31>	8-97360-883-0	01	1	0805-0809				●	●	●	●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31>	8-97360-883-0	01	1	0810-1003				●	●		●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31>	8-97360-883-0	01	1	1004-				●			●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31>	8-97360-882-0	01	1	0805-0809				●	●	●	●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31>	8-97360-882-0	01	1	0810-1003				●	●		●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW<A31>	8-97360-882-0	01	1	1004-				●			●
141	16.165 GROMMET; SCREW,LWR COVER 10.565	8-94152-494-0	04	1	0805-	●	●	●	●	●	●	●	●
142	16.165 SCREW; LWR COVER,DOOR TRIM 12.182 M5X14	8-94152-495-0	04	1	0805-	●	●	●	●	●	●	●	●
166	16.155 PLUG; HOLE (A)	8-98009-499-0	02	1	0805-	●	●	●		●	●		●
166	16.155 PLUG; HOLE GRADE LX(RBB) (A)	8-98009-499-0	02	1	0805-				●			●
166	16.155 PLUG; HOLE (B)	8-98009-500-0	02	1	0805-	●	●	●		●	●		●
166	16.155 PLUG; HOLE GRADE LX(RBB) (B)	8-98009-500-0	02	1	0805-				●			●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

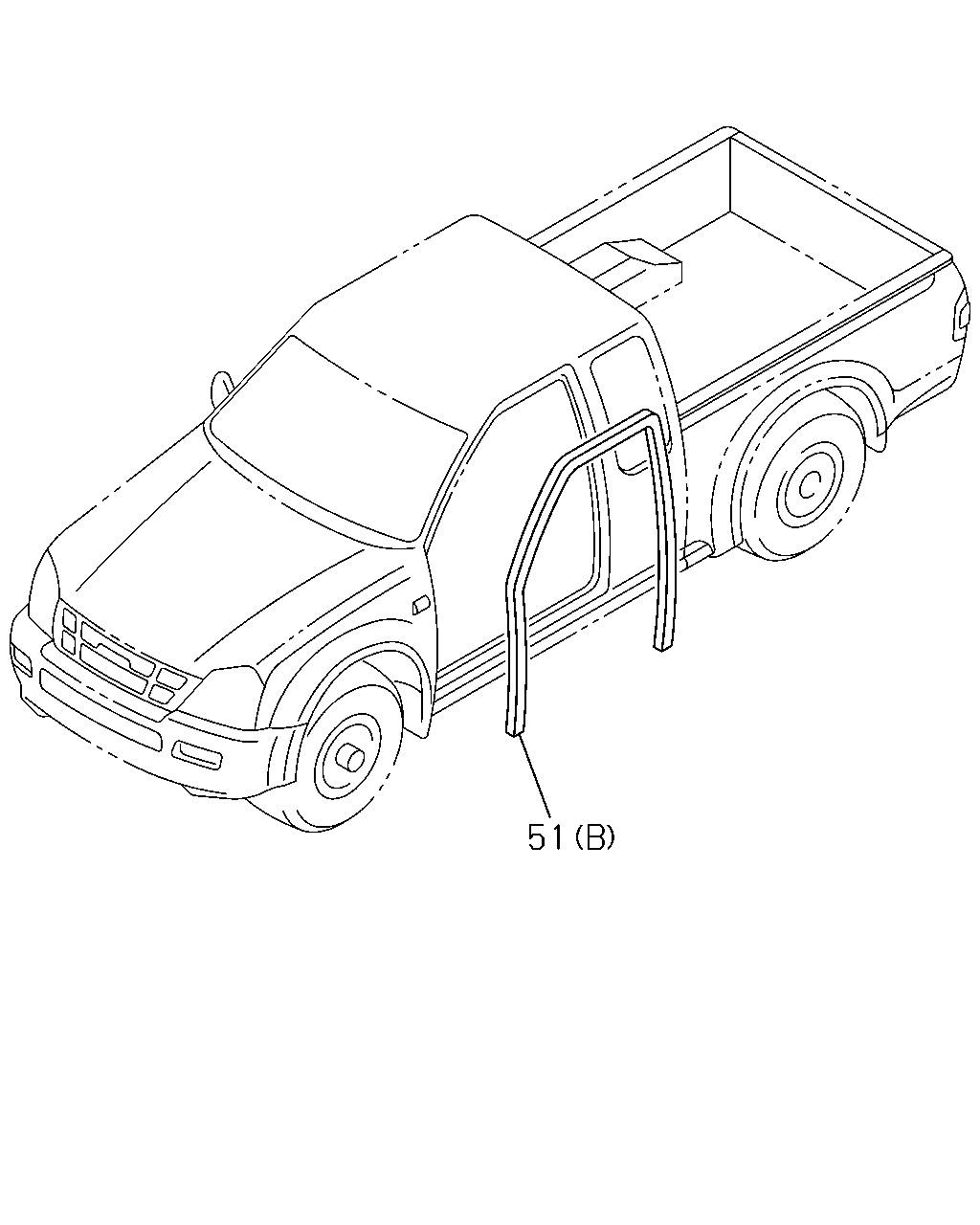

51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-719-0	01	1	0805-	●	●	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-97364-718-0	01	1	0805-	●	●	●	●	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B) DARK GRAY	8-97403-590-0	02	1	0805-	●	●	●		●	●		●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE LX(RBB) (B) DARK GRAY	8-97403-590-0	02	1	0805-				●			●
51	16.225 WEATHERSTRIP; FRONT DOOR GRADE DX(RBA) (B) DARK GRAY	8-97403-592-0	02	1	0805-				●			●
