◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#74780) — 95 parça

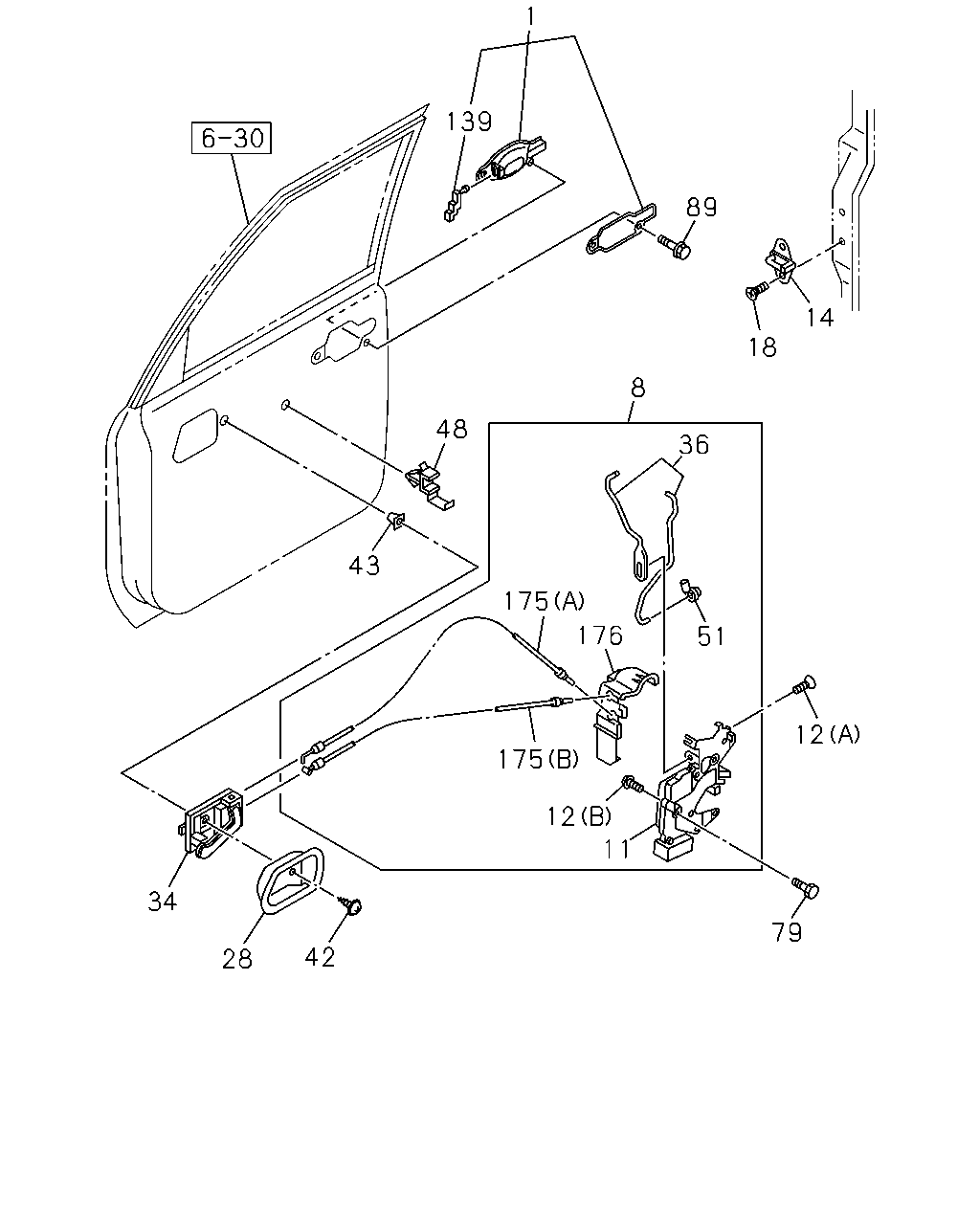

çizim 131066
1 139 89 14 18 8 48 36 43 175 176 51 12 175 12 11 34 79 42 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97408-114-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE CHROME<E20> WHITE 		8-97408-099-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> BLACK 		8-97408-112-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR BLACK SAPPHIRE MICA(685) OUTSIDE HANDLE CHROME<E20> BLACK 		8-97408-097-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET(688) OUTSIDE HANDLE CHROME<E20> GOLD 		8-97408-113-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-199-0 01 1 1004- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPERIAL BLOND MET(688) OUTSIDE HANDLE CHROME<E20> GOLD 		8-97408-098-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR MISTY ONYX MICA(518) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-198-0 01 1 1004- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPUL BLUE MET.(509) OUTSIDE HANDLE CHROME<E20> BLUE 		8-97408-421-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR IMPUL BLUE MET.(509) OUTSIDE HANDLE CHROME<E20> BLUE 		8-97408-417-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> DARK GRAY 		8-97408-121-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ROYAL GRAY MET.(505) OUTSIDE HANDLE CHROME<E20> DARK GRAY 		8-97408-106-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-116-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STERLING SILVER MET(936) OUTSIDE HANDLE CHROME<E20> SILVER 		8-97408-101-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> RED 		8-97408-122-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR TORNADE RED MICA(504) OUTSIDE HANDLE CHROME<E20> RED 		8-97408-107-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-606-0 01 1 0805- ● ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98050-605-0 01 1 0805- ● ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR 8-98012-187-0 01 1 0805-0809 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-98012-187-0 01 1 0805-0809 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR 8-98012-187-0 01 1 0810- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-98012-187-0 01 1 0810- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR 8-98012-188-0 01 1 0805-0809 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-98012-188-0 01 1 0805-0809 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR 8-98012-188-0 01 1 0810- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-98012-188-0 01 1 0810- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-185-0 01 1 0805-0809 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-185-0 01 1 0810-0910 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-185-0 01 1 0911-1003 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE DX(RBA),GRADE LX(RBB) EXC. AUTO DOOR LOCK<AU4> 		8-98012-185-0 01 1 1004- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-186-0 01 1 0805-0809 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-186-0 01 1 0810-0910 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98012-186-0 01 1 0911-1003 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRADE DX(RBA),GRADE LX(RBB) EXC. AUTO DOOR LOCK<AU4> 		8-98012-186-0 01 1 1004- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-97349-993-0 01 1 0805-0809 ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-993-0 01 1 0805-0809 ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-97349-993-0 01 1 0810- ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-993-0 01 1 0810- ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-97351-085-0 01 1 0805-0809 ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97351-085-0 01 1 0805-0809 ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-97351-085-0 01 1 0810- ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97351-085-0 01 1 0810- ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X20 		8-98049-000-0 06 1 0805- ● ● ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(B) 		8-97349-997-0 02 1 0805-0809 ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(B) 		8-97349-997-0 02 1 0805-0809 ● ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 0805-0809 ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 0805-0809 ● ● ●
12 16.330 SCREW; DOOR LK
(B) 		8-97349-997-0 02 1 0810- ● ● ●
12 16.330 SCREW; DOOR LK
(B) 		8-97349-997-0 02 1 0810- ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 0810- ● ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 0810- ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-98012-203-0 02 1 0805- ● ● ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 0805- ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97396-657-1 01 1 0805- ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97396-656-1 01 1 0805- ● ● ● ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY 		8-97404-944-0 01 1 0805- ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE DX(RBA),GRADE LX(RBB) DARK GRAY 		8-97404-944-0 01 1 0805- ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY 		8-97404-960-0 01 1 0805- ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE DX(RBA),GRADE LX(RBB) DARK GRAY 		8-97404-960-0 01 1 0805- ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT(RBD) DARK GRAY 		8-97408-668-1 01 1 0805- ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRADE LT(RBD) DARK GRAY 		8-97408-669-1 01 1 0805- ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97349-983-0 01 1 0805- ● ● ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97349-984-0 01 1 0805- ● ● ● ● ● ● ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
12.182 M5X14 		8-94152-495-0 02 1 0805- ● ● ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 		8-94152-494-0 02 1 0805- ● ● ● ● ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 0805- ● ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 0805- ● ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-986-0 01 1 0805- ● ● ● ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0805-0809 ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0805-0809 ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0810-0910 ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0810-0910 ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0911-1003 ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0911-1003 ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1004- ● ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1004- ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.765 M6X8 FLANGE 		8-98048-996-0 04 1 0805- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 YELLOW 		8-97333-304-0 01 1 0805- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 WHITE 		8-97333-303-0 01 1 0805- ● ● ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97349-987-0 01 1 0805- ● ● ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97349-988-0 01 1 0805- ● ● ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97349-989-0 01 1 0805-0809 ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97349-989-0 01 1 0805-0809 ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 01 1 0805-0809 ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 01 1 0805-0809 ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97349-989-0 01 1 0810- ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97349-989-0 01 1 0810- ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 01 1 0810- ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 01 1 0810- ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 02 1 0805-0809 ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 02 1 0810-0910 ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 02 1 0911-1003 ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
GRADE DX(RBA),GRADE LX(RBB) EXC. AUTO DOOR LOCK<AU4> (B) 		8-97349-989-0 02 1 1004- ● ●
176 16.270 COVER; DOOR LOCK 8-97349-991-0 01 1 0805- ● ● ● ● ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-97349-992-0 01 1 0805- ● ● ● ● ● ● ● ●
