◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#74779) — 90 parça

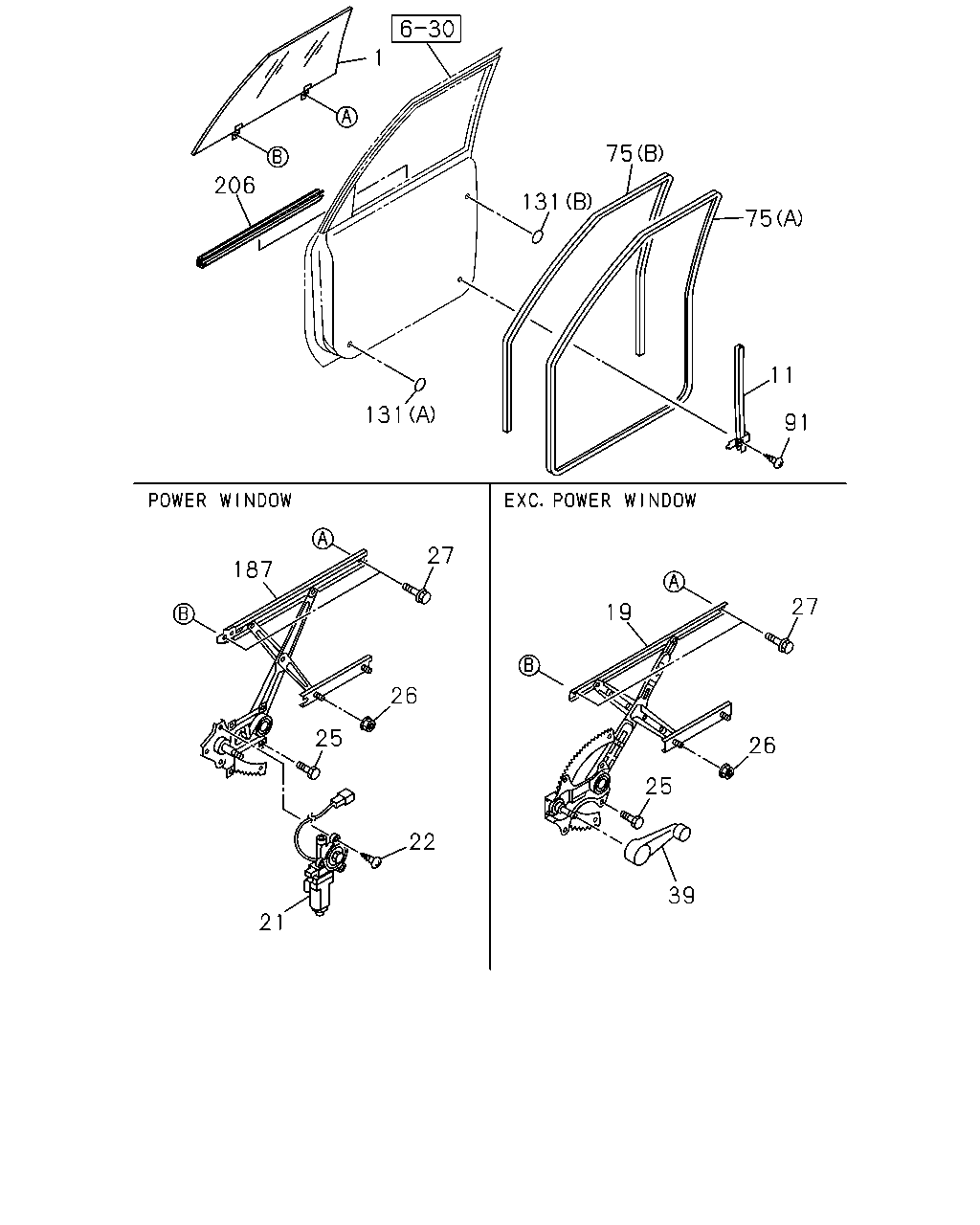

çizim 130630
1 75 206 131 75 11 131 91 27 187 27 19 26 25 26 25 22 39 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.180 GLASS; FRT DOOR 8-97236-032-2 01 1 0805-0808 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-98130-013-0 01 1 0809- ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97236-028-2 01 1 0805-0808 ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-98130-012-0 01 1 0809- ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-127-1 01 1 0805- ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97315-864-1 01 1 0805-0809 ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97315-864-1 01 1 0805-0809 ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97315-864-1 01 1 0810-0910 ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97315-864-1 01 1 0810-0910 ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97315-864-1 01 1 0911-1003 ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97315-864-1 01 1 0911-1003 ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97315-864-1 01 1 1004- ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97315-864-1 01 1 1004- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-126-1 01 1 0805-0809 ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-126-1 01 1 0810-0910 ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-126-1 01 1 0911-1003 ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-126-1 01 1 1004- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> 		8-98111-488-0 01 1 0805-0809 ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> 		8-98111-488-0 01 1 0810-1003 ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> 		8-98111-488-1 01 1 1004- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> 		8-98111-489-0 01 1 0805-0809 ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> 		8-98111-489-0 01 1 0810-1003 ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A31> 		8-98111-489-1 01 1 1004- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98009-802-0 01 1 0805-0809 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98009-802-0 01 1 0805-0809 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98009-802-0 01 1 0810-0908 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98009-802-0 01 1 0810-0908 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98152-287-0 01 1 0909-1003 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98152-287-0 01 1 0909-1003 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98152-287-0 01 1 1004-1107 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98152-287-0 01 1 1004-1107 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98196-060-0 01 1 1108- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98196-060-0 01 1 1108- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98009-801-0 01 1 0805-0809 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98009-801-0 01 1 0805-0809 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98009-801-0 01 1 0810-0908 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98009-801-0 01 1 0810-0908 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98152-286-0 01 1 0909-1003 ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98152-286-0 01 1 0909-1003 ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98152-286-0 01 1 1004-1107 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98152-286-0 01 1 1004-1107 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-98196-059-0 01 1 1108- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A31> 		8-98196-059-0 01 1 1108- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR 8-98009-809-0 06 1 0805-0809 ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A31> 		8-98009-809-0 06 1 0805-0809 ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR 8-98009-809-0 06 1 0810-1003 ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A31> 		8-98009-809-0 06 1 0810-1003 ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR 8-98009-809-0 06 1 1004- ● ● ● ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A31> 		8-98009-809-0 06 1 1004- ● ●
25 16.270 BOLT; WINDOW REG
10.765 M6X8 FLANGE 		8-98048-996-0 06 1 0805-1105 ● ● ● ● ● ● ● ●
25 16.270 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1106- ● ● ● ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-98049-362-0 04 1 0805- ● ● ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.765 M6X8 FLANGE 		8-98048-996-0 04 1 0805-1105 ● ● ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1106- ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A31> DARK GRAY 		8-97408-066-0 02 1 0805-0809 ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A31> DARK GRAY 		8-97408-066-0 02 1 0810-1003 ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A31> DARK GRAY 		8-97408-066-0 02 1 1004- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-220-0 01 1 0805- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-219-0 01 1 0805- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-217-0 01 1 0805- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-218-0 01 1 0805- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 0805- ● ● ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0805- ● ● ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0805- ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-811-0 01 1 0805-0809 ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> 		8-98009-811-0 01 1 0805-0809 ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-811-0 01 1 0810-1003 ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> 		8-98009-811-0 01 1 0810-1003 ● ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-811-3 01 1 1004- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> 		8-98009-811-3 01 1 1004- ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-810-0 01 1 0805-0809 ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> 		8-98009-810-0 01 1 0805-0809 ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-810-0 01 1 0810-1003 ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> 		8-98009-810-0 01 1 0810-1003 ● ● ●
187 16.260 REGULATOR ASM; DOOR 8-98009-810-3 01 1 1004- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A31> 		8-98009-810-3 01 1 1004- ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-222-0 01 1 0805- ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98004-221-0 01 1 0805- ● ● ● ● ● ● ● ●

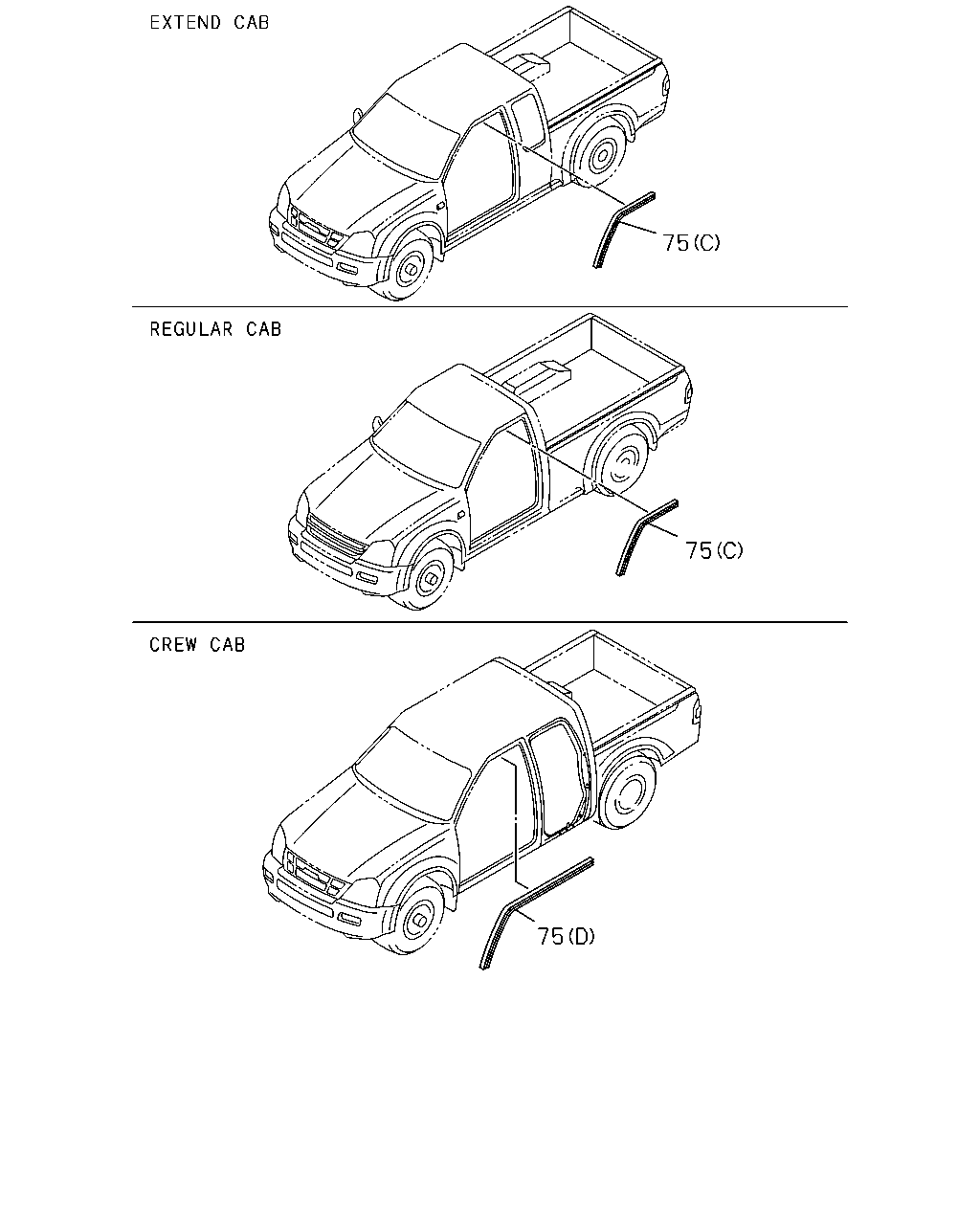

çizim 185787
75 75 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-226-0 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98004-225-0 01 1 0805- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-220-0 01 1 0805- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98004-219-0 01 1 0805- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-217-0 01 1 0805- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-98004-218-0 01 1 0805- ● ●
