6-14 — DASH PANEL AND FENDER SKIRT (#74776) — 10 parça

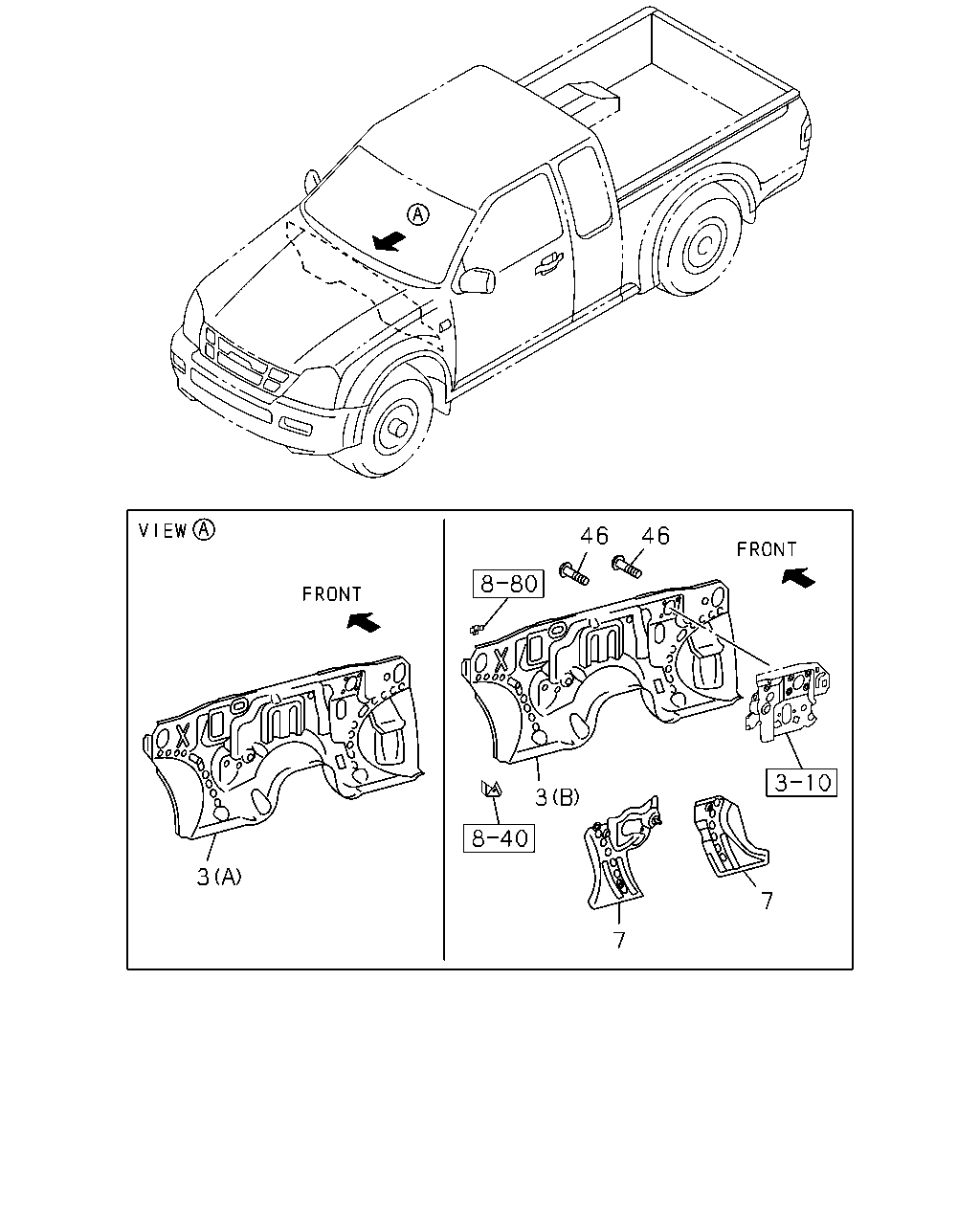

çizim 126808
46 46 3 3 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.550 PANEL; SUB,DASH LWR
C24SE ENG(LG1),4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> (A) 		8-98061-148-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> (A) 		8-98061-148-0 01 1 1004- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5) DRIVER SIDE FOOT REST<7NU> (A) 		8-98061-147-0 01 1 0805- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> (B) 		8-98004-040-0 01 1 0805- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (B) 		8-98004-040-0 01 1 0805- ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-97234-772-5 01 1 0805- ● ● ● ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-97234-772-5 01 1 0805- ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> 		8-97234-451-3 01 1 0805- ● ● ● ●
7 12.804 REINFORCEMENT; BAR,DASH LWR
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) 		8-97234-451-3 01 1 0805- ●
46 16.575 STUD; DASH PANEL
HF V6 ENG(LCA) M6X11.3 		8-90467-724-0 06 1 0805- ● ● ● ● ● ● ● ●
