◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-10 - ENGINE HOOD AND LOCK ▶
6-10 — ENGINE HOOD AND LOCK (#74775) — 52 parça

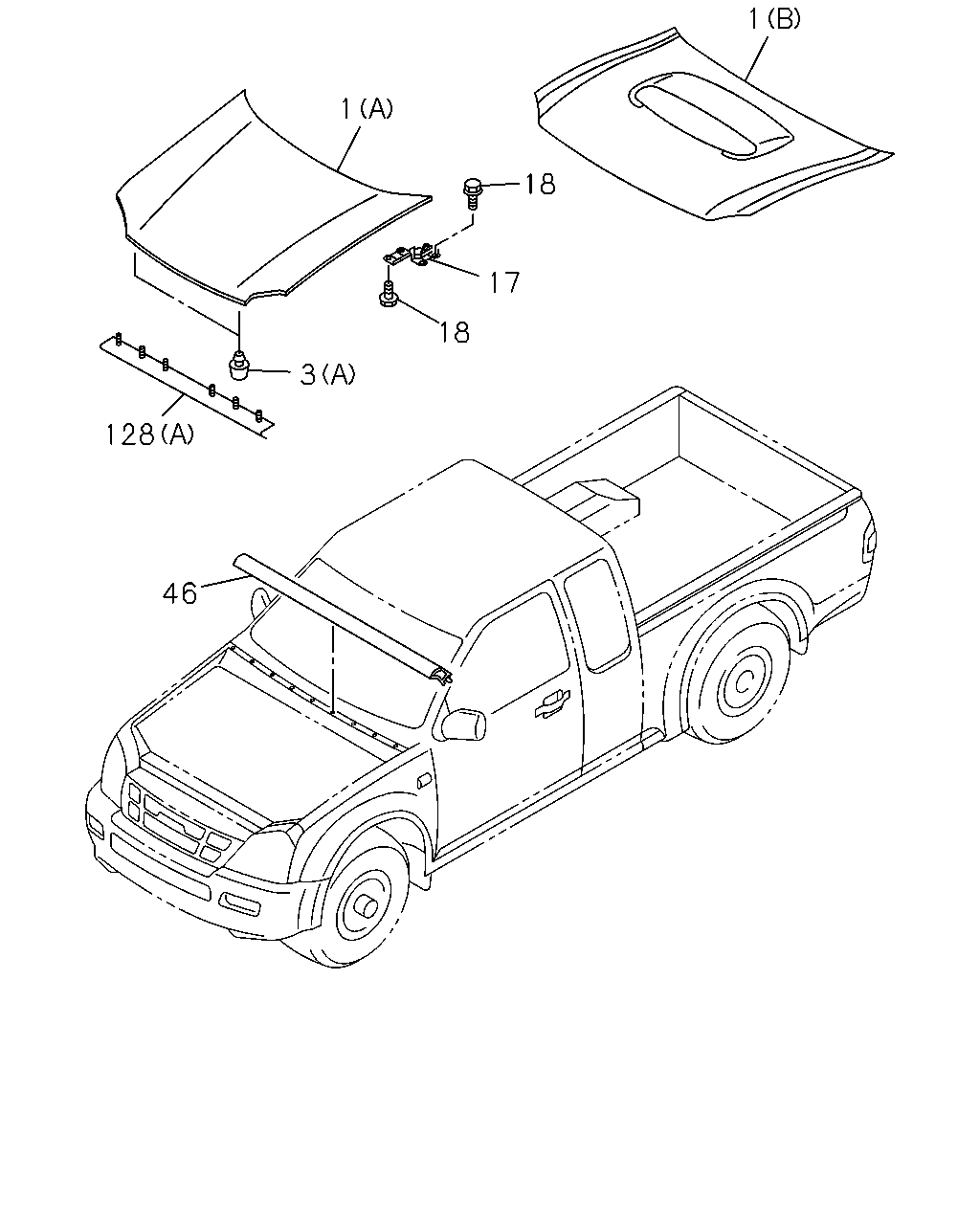

çizim 126615
1 1 18 17 18 3 128 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.000 HOOD; ENG
HF V6 ENG(LCA),C24SE ENG(LG1) (A) 		8-97364-293-2 01 1 0805-1003 ● ● ● ● ● ● ● ●
1 08.000 HOOD; ENG
HF V6 ENG(LCA) (A) 		8-97364-293-2 01 1 1004- ● ● ● ● ● ● ● ●
1 08.000 HOOD; ENG
4JJ1-TCX ENG(LS0) (B) 		8-98023-635-1 01 1 0805- ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
16.400 (A) 		8-94358-581-0 02 1 0805- ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0805- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98050-665-0 01 1 0805- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-98050-664-0 01 1 0805- ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 0805- ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-98056-122-0 04 1 0805- ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
HF V6 ENG(LCA),C24SE ENG(LG1) 		8-97235-437-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
HF V6 ENG(LCA) 		8-97235-437-0 01 1 1004- ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD
4JJ1-TCX ENG(LS0) 		8-97380-860-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98024-523-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG(LS0) (C) 		8-98023-875-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97372-864-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98023-876-0 01 1 0805-1003 ● ●

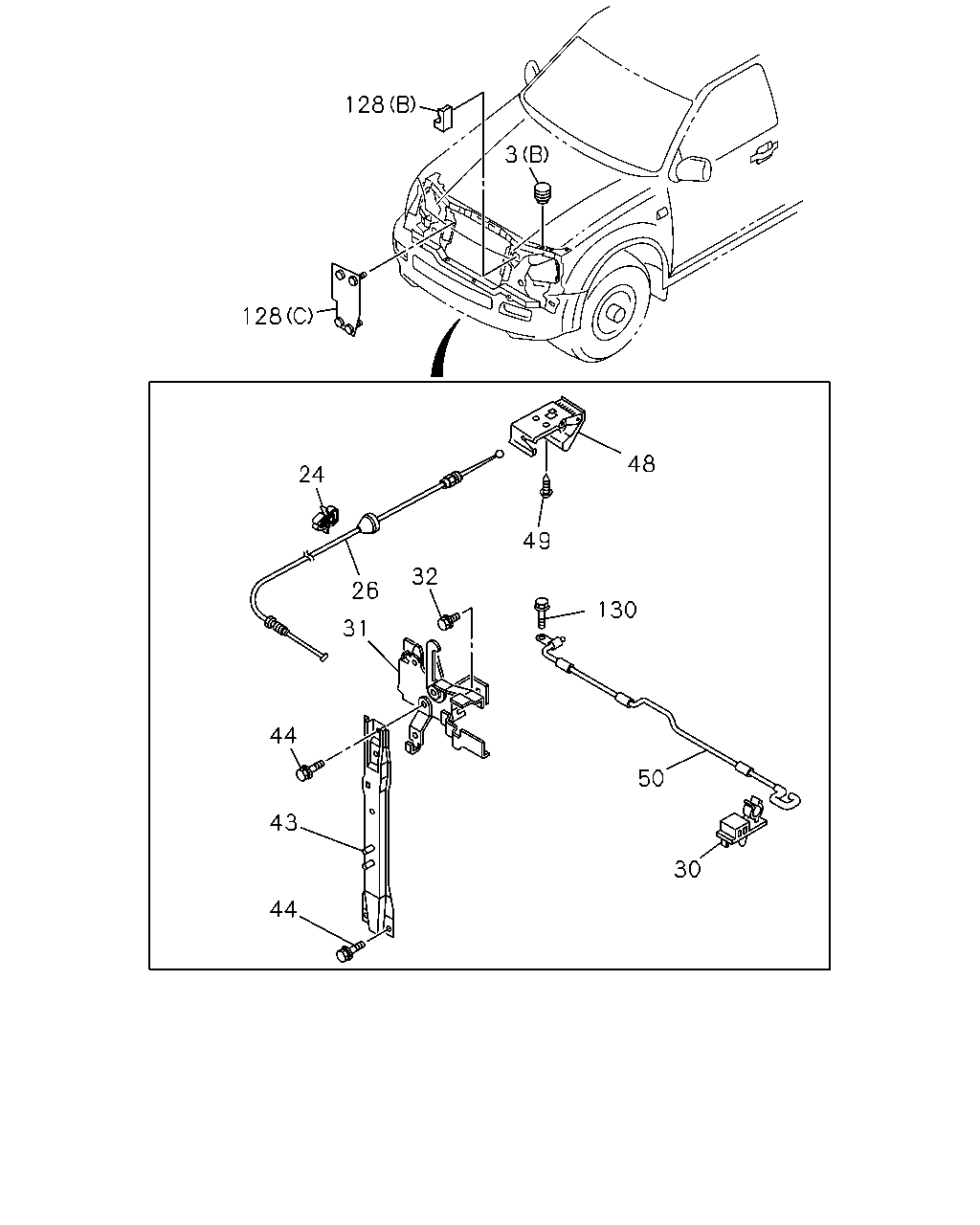

çizim 126726
128 3 128 48 24 49 32 26 130 31 44 50 43 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 08.077 BUFFER; ENG HOOD,FRT
16.400 (A) 		8-94358-581-0 02 1 0805- ● ● ● ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
(B) 		8-97311-876-0 02 1 0805- ● ● ● ● ● ● ● ●
24 08.077 CLIP; CONT CABLE 8-97182-405-0 02 1 0805- ● ● ● ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-98072-367-0 01 1 0805- ● ● ● ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD 8-97301-356-0 01 1 0805- ● ● ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD 8-97363-007-0 01 1 0805- ● ● ● ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X20 W/PL WASHER 		8-97370-668-0 02 1 0805- ● ● ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-97362-229-0 01 1 0805- ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END
EXC. OUTSIDE TEMPERATURE GAGE<UJH> 		8-97362-229-0 01 1 0805- ● ● ●
43 08.077 STAY; ENG HOOD,FRT END
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98031-229-0 01 1 0805- ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER 		8-97370-668-0 04 1 0805- ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
DARK GRAY 		8-97411-781-0 01 1 0805- ● ● ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98061-685-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING 		8-98167-449-0 02 1 1004- ● ● ● ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-98044-500-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98024-523-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG(LS0) (C) 		8-98023-875-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97372-864-0 01 1 0805- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98023-876-0 01 1 0805-1003 ● ●
130 08.077 BOLT; SUPPORT ROD,HOOD
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0805- ● ● ● ● ● ● ● ●
çizim 126805
5 155 8 154 153 1 152 8 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.000 HOOD; ENG
HF V6 ENG(LCA),C24SE ENG(LG1) (A) 		8-97364-293-2 01 1 0805-1003 ● ● ● ● ● ● ● ●
1 08.000 HOOD; ENG
HF V6 ENG(LCA) (A) 		8-97364-293-2 01 1 1004- ● ● ● ● ● ● ● ●
1 08.000 HOOD; ENG
4JJ1-TCX ENG(LS0) (B) 		8-98023-635-1 01 1 0805- ● ● ● ● ● ● ● ●
5 08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG
PRIMER 		8-98057-979-0 01 1 0805-0910 ● ● ● ● ● ● ● ●
5 08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG
4JJ1-TCX ENG(LS0) PRIMER 		8-98057-979-0 01 1 0911- ● ● ● ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
4JJ1-TCX ENG(LS0) (A) 		8-98007-127-3 01 1 0805- ● ● ● ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR BLACK SAPPHIRE MICA(685),BODY CO LOR IMPERIAL BLOND MET(688),BODY COLOR ALPINE WHITE(877),BODY COLOR ST ERLING SILVER MET(936) (B) 		8-98056-056-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) (B) 		8-98056-056-0 01 1 1004- ● ● ● ● ● ● ● ●
147 08.013 CLIP; COVER
4JJ1-TCX ENG(LS0) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 0805- ● ● ● ● ● ● ● ●
152 07.829 NUT; HOOD
4JJ1-TCX ENG(LS0) 01.062 M6 FLANGE 		0-91180-106-0 08 1 0805- ● ● ● ● ● ● ● ●
153 08.054 STOPPER; SEAL
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR BLACK SAPPHIRE MICA(685),BODY CO LOR IMPERIAL BLOND MET(688),BODY COLOR ALPINE WHITE(877),BODY COLOR ST ERLING SILVER MET(936) 		8-98056-058-0 03 1 0805-1003 ● ● ● ● ● ● ● ●
153 08.054 STOPPER; SEAL
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) 		8-98056-058-0 03 1 1004- ● ● ● ● ● ● ● ●
154 08.077 STUD
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR BLACK SAPPHIRE MICA(685),BODY CO LOR IMPERIAL BLOND MET(688),BODY COLOR ALPINE WHITE(877),BODY COLOR ST ERLING SILVER MET(936) 		8-98056-035-0 08 1 0805-1003 ● ● ● ● ● ● ● ●
154 08.077 STUD
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) 		8-98056-035-0 08 1 1004- ● ● ● ● ● ● ● ●
155 08.054 FASTENER; AIR SCOOP
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR BLACK SAPPHIRE MICA(685),BODY CO LOR IMPERIAL BLOND MET(688),BODY COLOR ALPINE WHITE(877),BODY COLOR ST ERLING SILVER MET(936) 		8-98056-039-0 01 1 0805-1003 ● ● ● ● ● ● ● ●
155 08.054 FASTENER; AIR SCOOP
4JJ1-TCX ENG(LS0) BODY COLOR TORNADE RED MICA(504), BODY COLOR ROYAL GRAY MET.(505),BODY COLOR IMPUL BLUE MET.(509),BODY COLOR MISTY ONYX MICA(518),BODY COLOR BLACK SAPPHIRE MICA(685),BODY COLORALPINE WHITE(877),BODY COLOR STERL ING SILVER MET(936) 		8-98056-039-0 01 1 1004- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
