◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#74774) — 17 parça

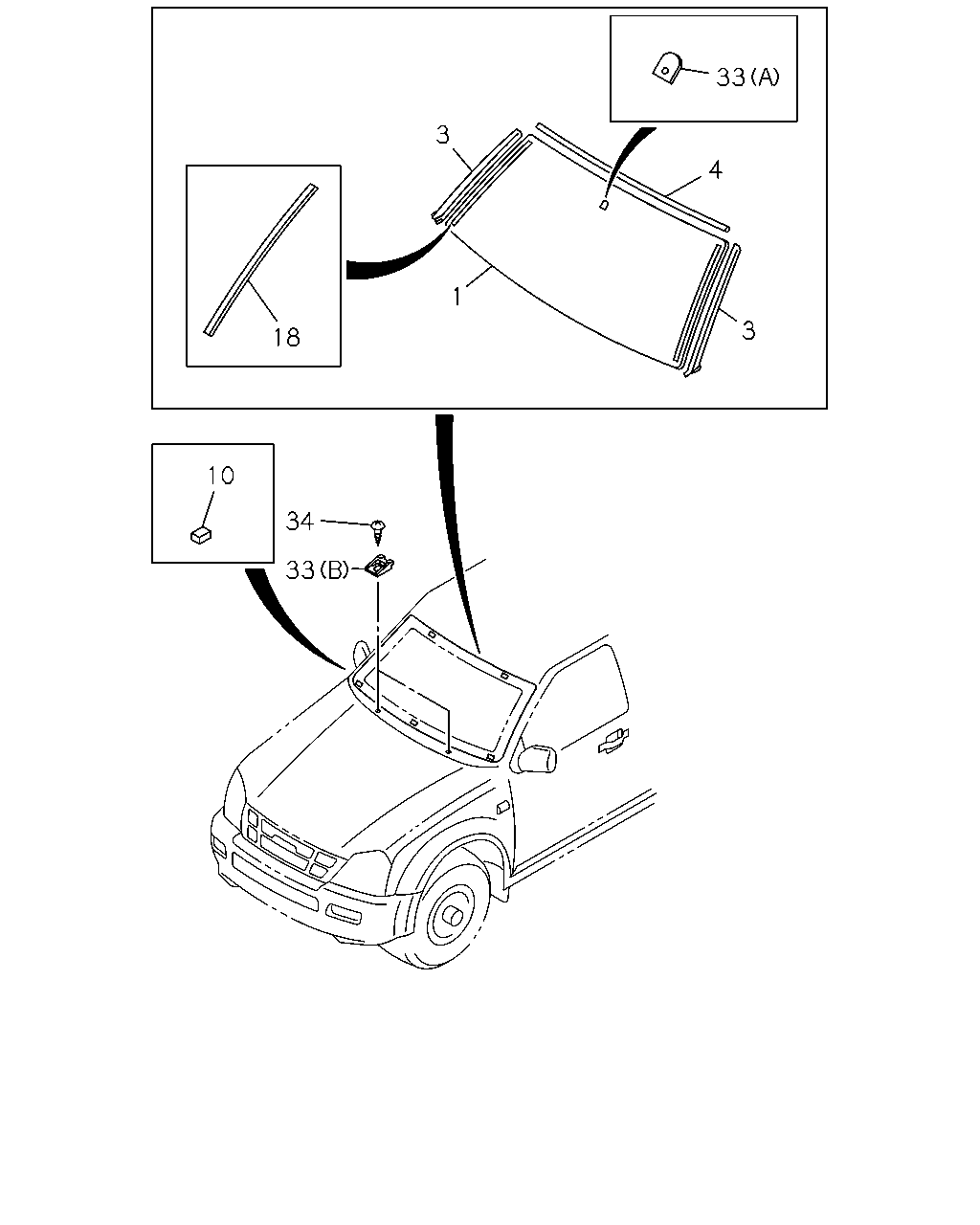

çizim 185782
33 3 4 1 3 18 10 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.005 GLASS; WINDSHIELD 8-97331-593-1 01 1 0805-0808 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> 		8-97331-593-1 01 1 0805-0808 ● ● ●
1 16.005 GLASS; WINDSHIELD 8-98134-276-0 01 1 0809- ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> 		8-98134-276-0 01 1 0809- ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-97331-594-1 01 1 0805-0808 ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98134-277-0 01 1 0809- ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98030-884-0 01 1 0805- ● ● ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98030-883-0 01 1 0805- ● ● ● ● ● ● ● ●
4 16.475 MOLDING; WINDSHIELD,UPR 8-97239-342-0 01 1 0805- ● ● ● ● ● ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
12.180 		8-94434-770-0 05 1 0805- ● ● ● ● ● ● ● ●
18 16.041 SEAL; WINDSHIELD 8-97367-390-0 02 1 0805- ● ● ● ● ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
(B) 		8-94434-771-0 02 1 0805- ● ● ● ● ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
(A) 		8-15954-649-0 01 1 0805- ● ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR DAY & NIGHT<D31> (A) 		8-15954-649-0 01 1 0805- ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR DAY & NIGHT<D31> (A) 		8-97331-592-0 01 1 0805- ● ● ●
34 08.133 SCREW; SUPPORT TO BRKT
M6X10 		8-98062-143-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
34 08.133 SCREW; SUPPORT TO BRKT
M6X10 		8-98167-450-0 02 1 1004- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
