6-03 — RADIATOR GRILLE (#74772) — 24 parça

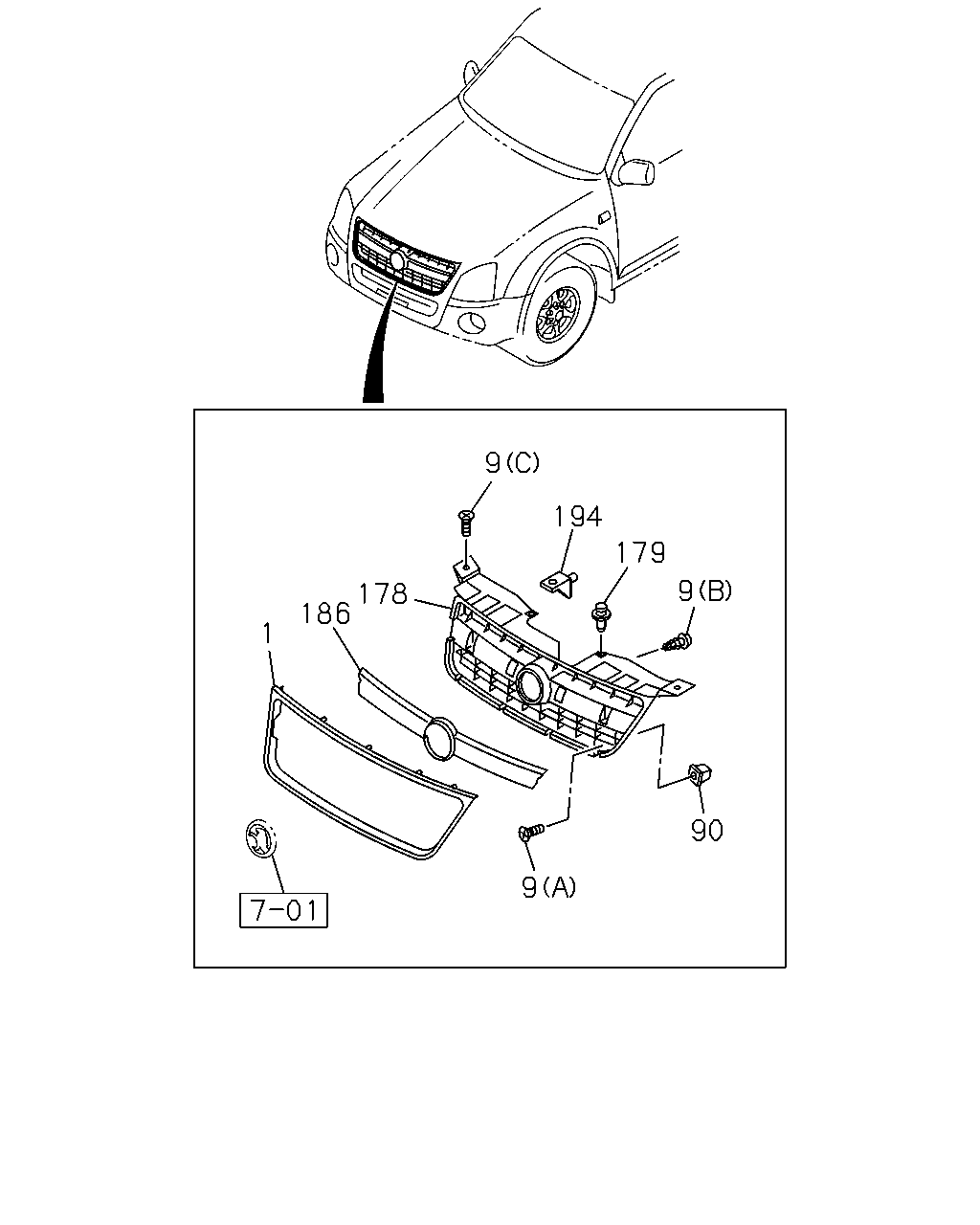

çizim 126625
9 194 179 9 178 186 1 90 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.266 GRILLE; RAD
BASE VEHICLE GRILLE<VWX> 		8-98040-602-2 01 1 0805- ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98040-601-2 01 1 0805- ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) 		8-97370-062-0 15 1 0805- ● ● ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(C) 		8-98049-358-0 02 1 0805- ● ● ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98073-081-0 03 1 0805-1003 ● ● ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 03 1 1004- ● ● ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 03 1 0805- ● ● ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98089-740-2 01 1 0805- ● ● ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 02 1 0805- ● ● ● ● ● ● ● ●
186 01.266 BAR; RAD GRILLE 8-98089-741-2 01 1 0805- ● ● ● ● ● ● ● ●
194 01.269 SUPPORT; GRILLE,RAD 8-98040-586-0 02 1 0805- ● ● ● ● ● ● ● ●

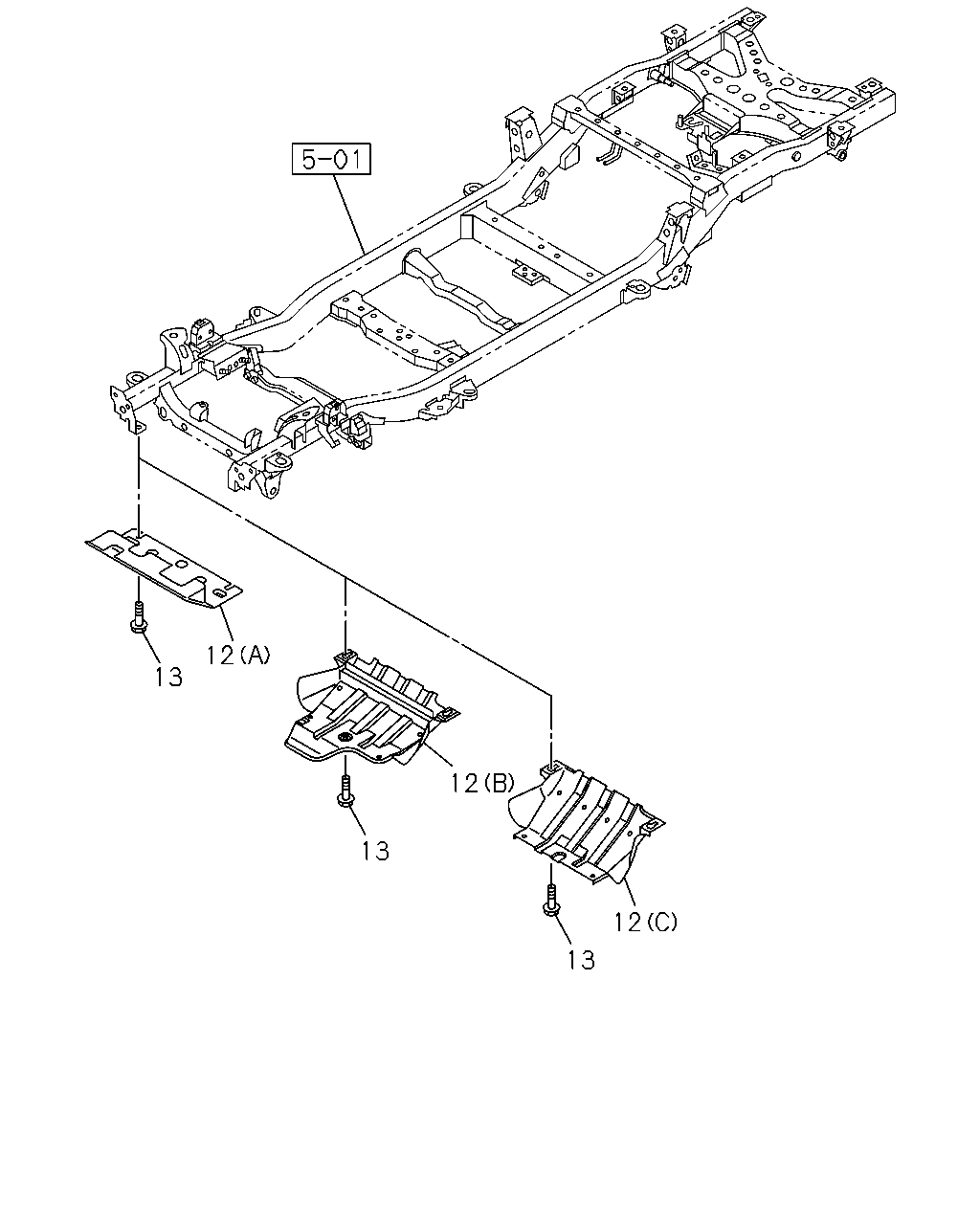

çizim 185785
12 13 12 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
12 01.274 PLATE; SKID,RAD
HF V6 ENG(LCA),C24SE ENG(LG1) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 0805-1003 ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
HF V6 ENG(LCA) (B) 		8-97943-919-0 01 1 0805-1003 ● ● ●
12 01.274 PLATE; SKID,RAD
HF V6 ENG(LCA) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-919-0 01 1 1004- ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
HF V6 ENG(LCA) (B) 		8-97943-919-0 01 1 1004- ● ● ●
12 01.274 PLATE; SKID,RAD
HF V6 ENG(LCA),C24SE ENG(LG1) SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97942-919-0 01 1 0805-1003 ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
HF V6 ENG(LCA) SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97942-919-0 01 1 1004- ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-848-1 01 1 0805- ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B) 		8-97945-193-0 01 1 0805- ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) (B) 		8-97945-193-0 01 1 0805- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 0805- ● ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0805- ● ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0805- ● ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 04 1 0805- ● ● ●
