6-01 — FRONT BUMPER (#74771) — 37 parça

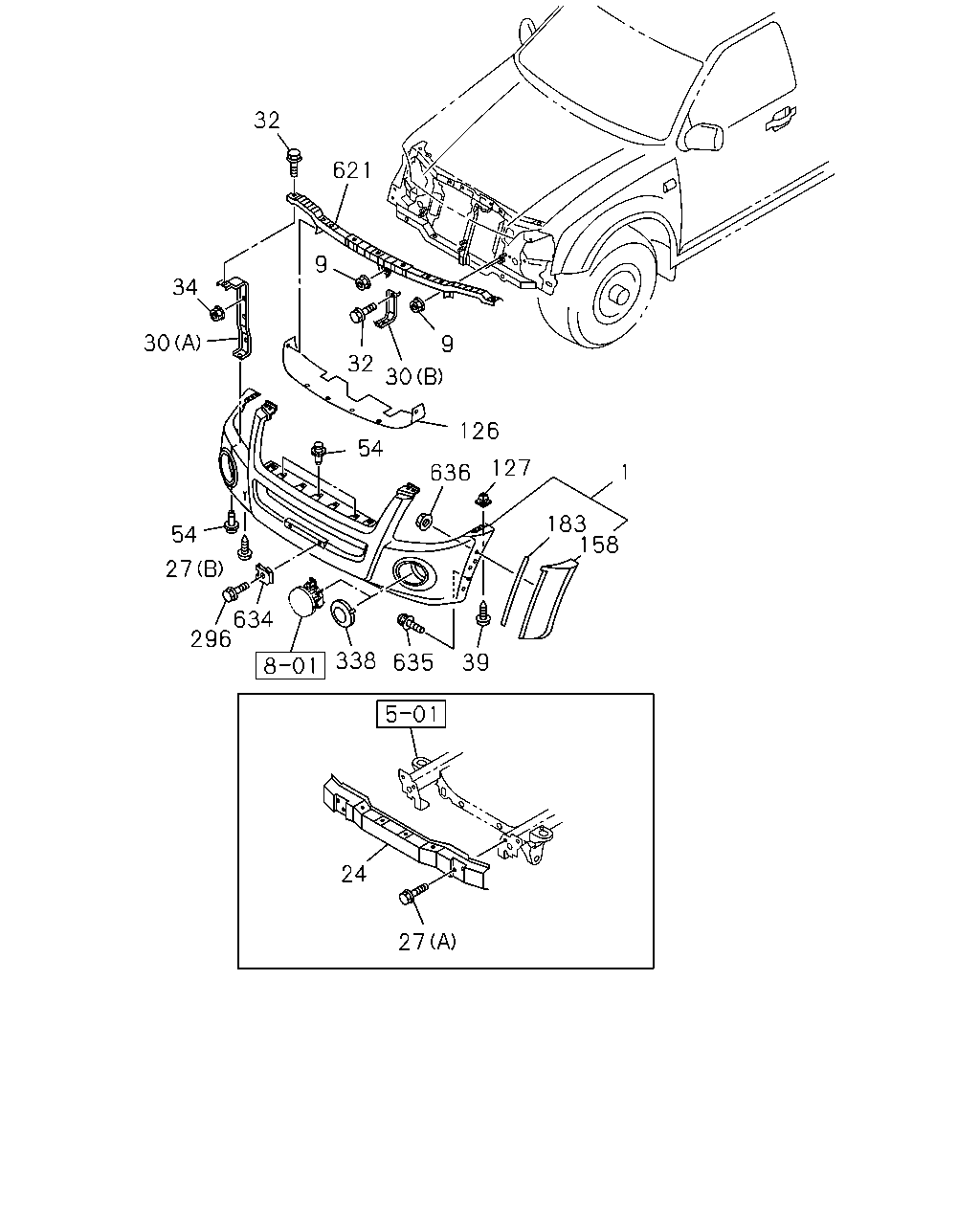

çizim 126006
32 621 9 34 30 9 32 30 126 54 127 1 636 183 158 54 27 634 296 338 635 39 24 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) PLEASE PAINT TO MATCH BODY COLOR 		8-98088-234-1 01 1 0805- ● ● ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) PLEASE PAINT TO MATCH BODY COLOR 		8-98088-234-1 01 1 0805- ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. LOW COST VARIANT PARTS PACKAGE <WNF>,HIGH RIDE SUSPENSION(7YC) PLEASE PAINT TO MATCH BODY COLOR 		8-98088-754-1 01 1 0805- ● ● ● ● ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),HIGH RIDE SUSPENSION(7YC) 		8-98040-587-2 01 1 0805- ● ● ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) LOW COST VARIANT PARTS PACKAGE<WNF> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98040-587-2 01 1 0805- ● ● ● ●
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 0805- ● ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER 8-97367-044-0 01 1 0805- ● ● ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(A) M10X25 FLANGE 		0-28661-025-0 04 1 0805- ● ● ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M6X20 TAPPING 		8-98052-950-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
07.874 (B) M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1004- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-98040-598-0 02 1 0805- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-98040-600-0 02 1 0805- ● ● ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ● ● ● ● ● ● ●
34 07.874 NUT; BRKT,BUMPER
01.062 M6 FLANGE 		0-91180-106-0 04 1 0805- ● ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
07.833 M6X20 TAPPING 		8-98052-950-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1004- ● ● ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER 8-97301-188-0 08 1 0805- ● ● ● ● ● ● ● ●
126 07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60) 		8-98007-149-1 01 1 0805- ● ● ● ● ● ● ● ●
127 07.829 NUT; FRT BUMPER
09.190 D=9.7X9.7 L=8 		8-94222-314-0 02 1 0805- ● ● ● ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) PLEASE PAINT TO MATCH BODY COLOR 		8-98088-242-1 01 1 0805- ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4) PLEASE PAINT TO MATCH BODY COLOR 		8-98088-242-1 01 1 0805- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) PLEASE PAINT TO MATCH BODY COLOR 		8-98088-241-1 01 1 0805- ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(VT4) PLEASE PAINT TO MATCH BODY COLOR 		8-98088-241-1 01 1 0805- ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR ALPINE WHITE(877) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) WHITE 		8-97413-208-0 02 1 0805- ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR BLACK SAPPHIRE MICA(685) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) BLACK 		8-97413-206-0 02 1 0805- ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR IMPERIAL BLOND MET(688) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) GOLD 		8-97413-207-0 02 1 0805-1003 ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR MISTY ONYX MICA(518) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) SILVER 		8-97419-983-0 02 1 1004- ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR IMPUL BLUE MET.(509) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) BLUE 		8-97413-205-0 02 1 0805- ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR ROYAL GRAY MET.(505) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) DARK GRAY 		8-97413-204-0 02 1 0805- ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR STERLING SILVER MET(936) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) SILVER 		8-97413-209-0 02 1 0805- ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR TORNADE RED MICA(504) OVER FENDER<B74> COLOR KEYED BUMPER(VT4) RED 		8-97413-203-0 02 1 0805- ● ● ● ● ● ● ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0805- ● ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> 		8-98007-157-1 02 1 0805- ● ● ● ● ● ● ● ●
621 07.831 SUPPORT; FRT BUMPER 8-98040-596-0 01 1 0805- ● ● ● ● ● ● ● ●
634 07.831 NUT; LICENCE PLATE 8-98054-813-0 02 1 0805- ● ● ● ● ● ● ● ●
635 07.833 BOLT; EXT,FRT BUMPER
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 		8-98088-474-0 06 1 0805- ● ● ● ● ● ● ● ●
636 07.833 NUT; EXT,FRT BUMPER
OVER FENDER<B74> COLOR KEYED BUMPER(VT4) 		8-97378-687-0 04 1 0805- ● ● ● ● ● ● ● ●
