Isuzu WW
▶
PICKUP
▶
TFR
▶
51171 - TFR/TFS CHEV HOLDEN
▶
5 - Frame, Cab Mounting
▶
5-40 - ENGINE ROOM INSULATOR
▶
5-40 — ENGINE ROOM INSULATOR
(#74770) — 14 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFB5SF
D - TFB5SK
E - TFB5WF
F - TFS5C
G - TFS5SK
H - TFS5W
◀
[540A] NO.1 (9 parça)
[540A] NO.2 (5 parça)
▶
1
6
76
75
76
9
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H

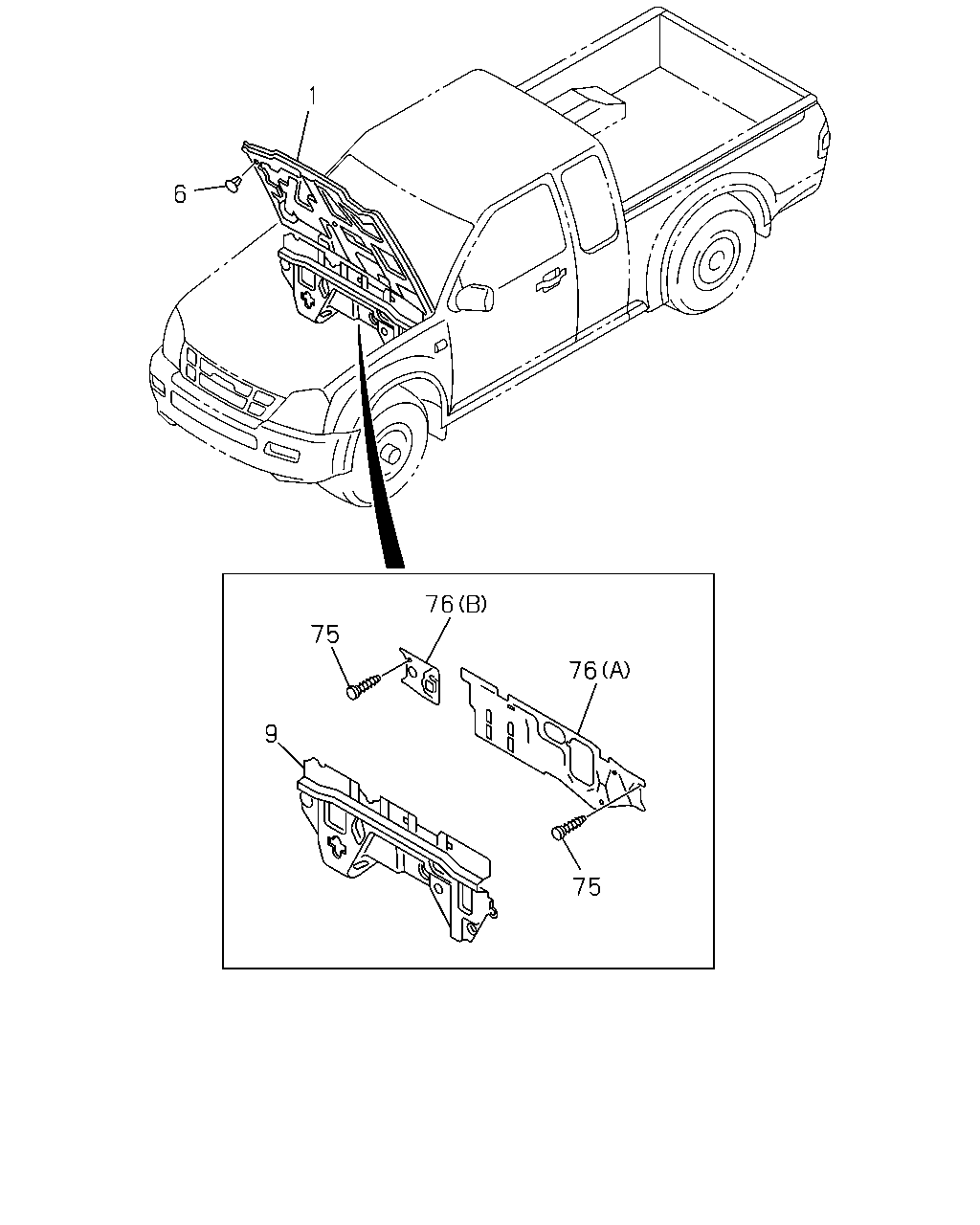

1
08.021 INSULATION; ENG HOOD
4JJ1-TCX ENG(LS0)
8-98007-123-3
01
1
0805-
●
●
●
●
●
●
●
●
6
08.021 CLIP; ENG HOOD INSULATION
4JJ1-TCX ENG(LS0) ID=6.2 L=11.4
8-97808-623-0
14
1
0805-
●
●
●
●
●
●
●
●
9
08.021 INSULATION; DASH ENG ROOM
4JJ1-TCX ENG(LS0)
8-98021-496-0
01
1
0805-
●
●
●
●
●
●
●
●
75
15.280 STUD; INSULATION
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU>
8-98056-307-0
11
1
0805-
●
●
●
●
75
15.280 STUD; INSULATION
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2)
8-98056-307-0
11
1
0805-
●
76
15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> (A)
8-97301-153-1
01
1
0805-
●
●
●
●
76
15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (A)
8-97301-153-1
01
1
0805-
●
76
15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC(M30) DRIVER SIDE FOOT REST<7NU> (B)
8-97328-715-0
01
1
0805-
●
●
●
●
76
15.280 DEADENER; DASH ENG ROOM
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2) (B)
8-97328-715-0
01
1
0805-
●
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H

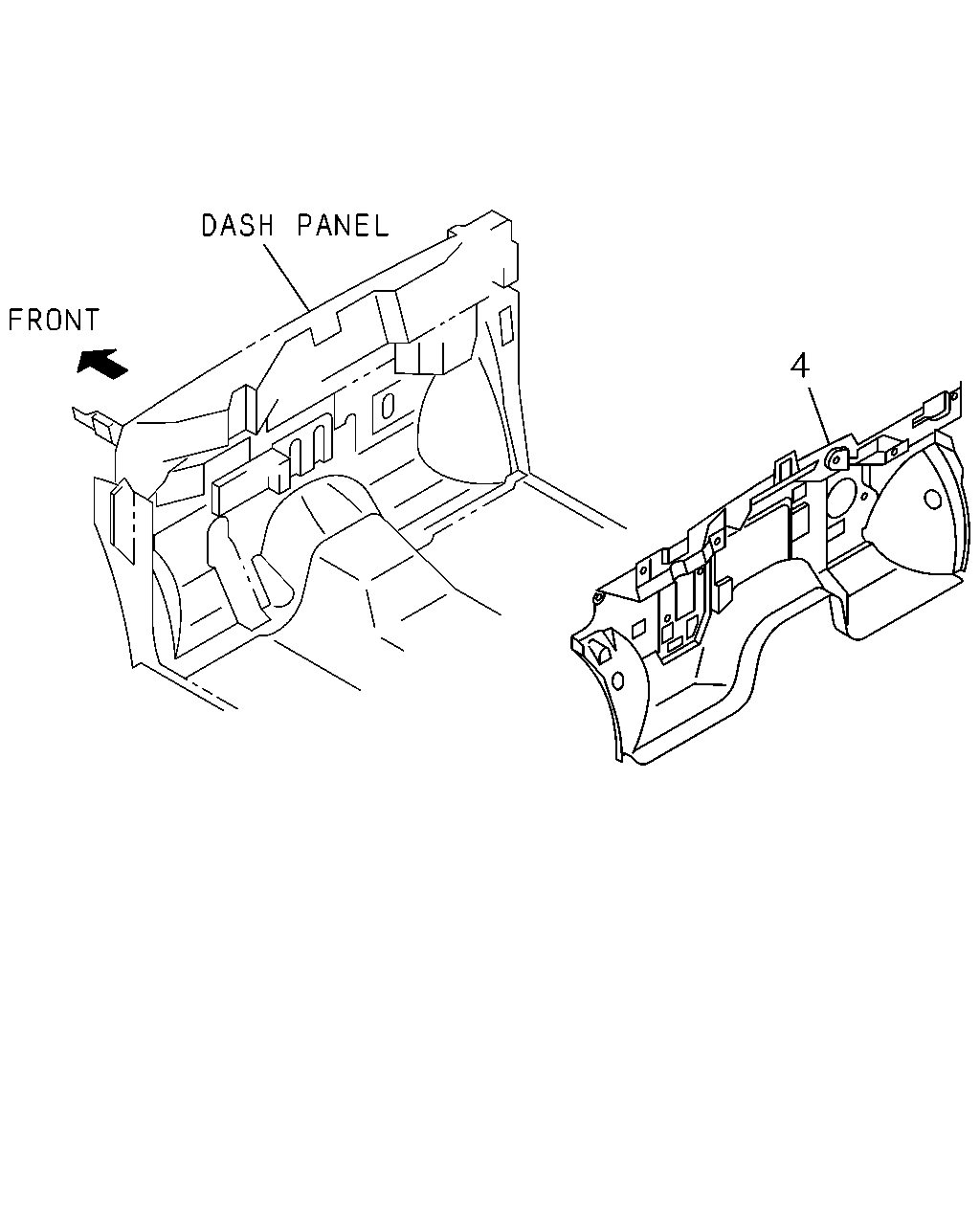

4
08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)
8-98012-634-0
01
1
0805-1003
●
●
●
●
●
●
●
●
4
08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1)
8-98012-634-0
01
1
0805-1003
●
●
4
08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) M/T AISIN 5 SPEED(MA5)
8-98012-634-0
01
1
1004-
●
●
●
●
●
●
●
●
4
08.021 INSULATION; DASH PNL,INNER
4JJ1-TCX ENG(LS0)
8-98013-149-0
01
1
0805-
●
●
●
●
●
●
●
●
4
08.021 INSULATION; DASH PNL,INNER
HF V6 ENG(LCA) A/T 4 SPEED-HMD,ELEC,PTU(MK2),A/T 4SPEED-HMD,ELEC(M30)
8-98007-901-0
01
1
0805-
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
