◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#74768) — 10 parça

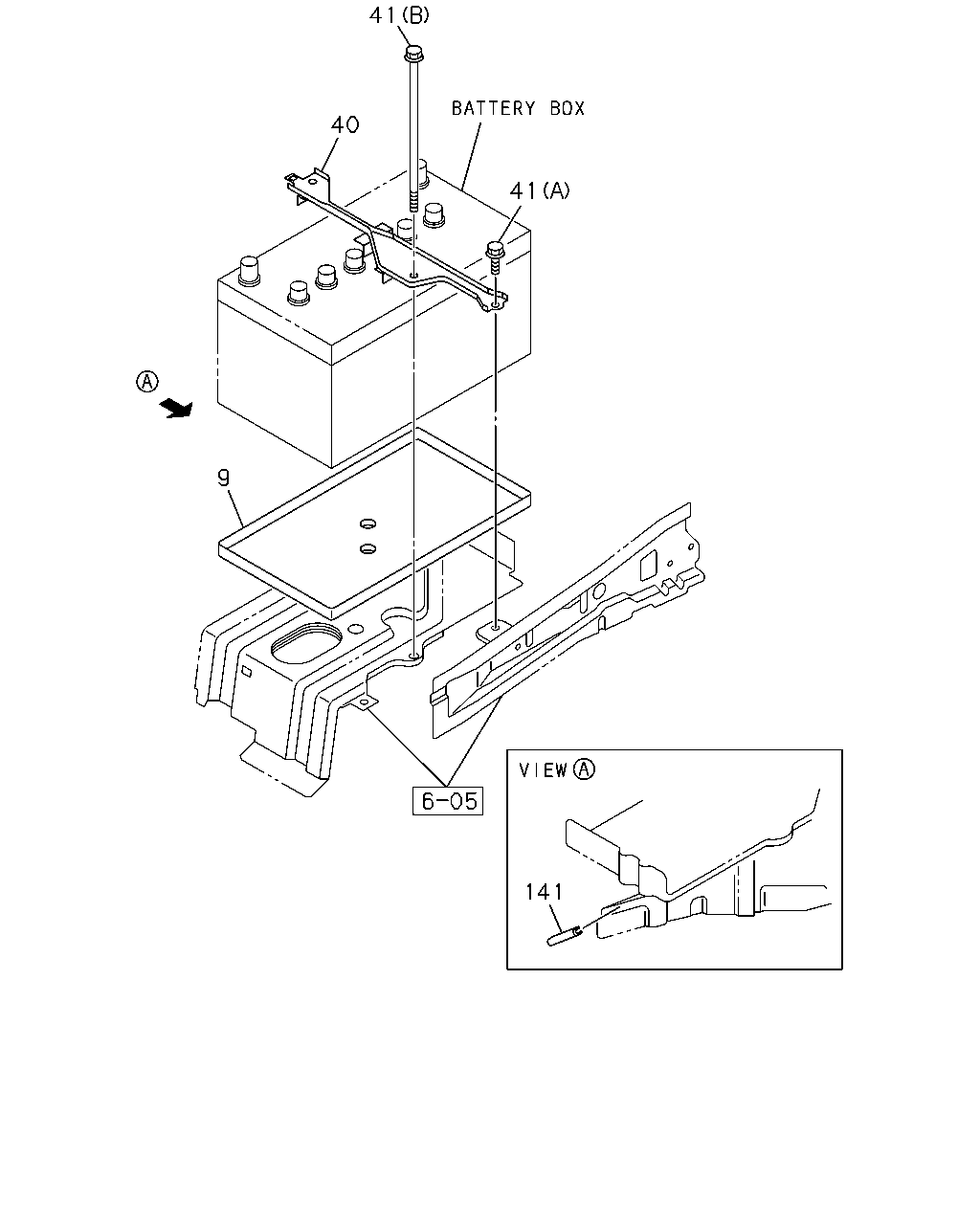

çizim 185779
41 40 41 9 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 02.333 SEAT; BATTERY
BATTERY 80D26L(TM1) 		8-97328-060-0 01 1 0805- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 95D31L(TQ8) 		8-97318-865-1 01 1 0805- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY 46B24L(TQ6) 		8-97328-059-0 01 1 0805-1003 ● ●
40 02.335 CLAMP; BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-97357-407-0 01 1 0805- ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
BATTERY 46B24L(TQ6) 		8-97352-945-0 01 1 0805-1003 ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0805- ● ● ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97378-041-0 02 1 0805- ● ● ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 02.530 		8-94235-856-0 01 1 0805-1003 ● ● ● ● ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 		8-94235-856-0 01 1 0805-1003 ● ●
141 02.334 INSULATOR; BAT TRAY
4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 02.530 		8-94235-856-0 01 1 1004- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
