◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#74767) — 32 parça

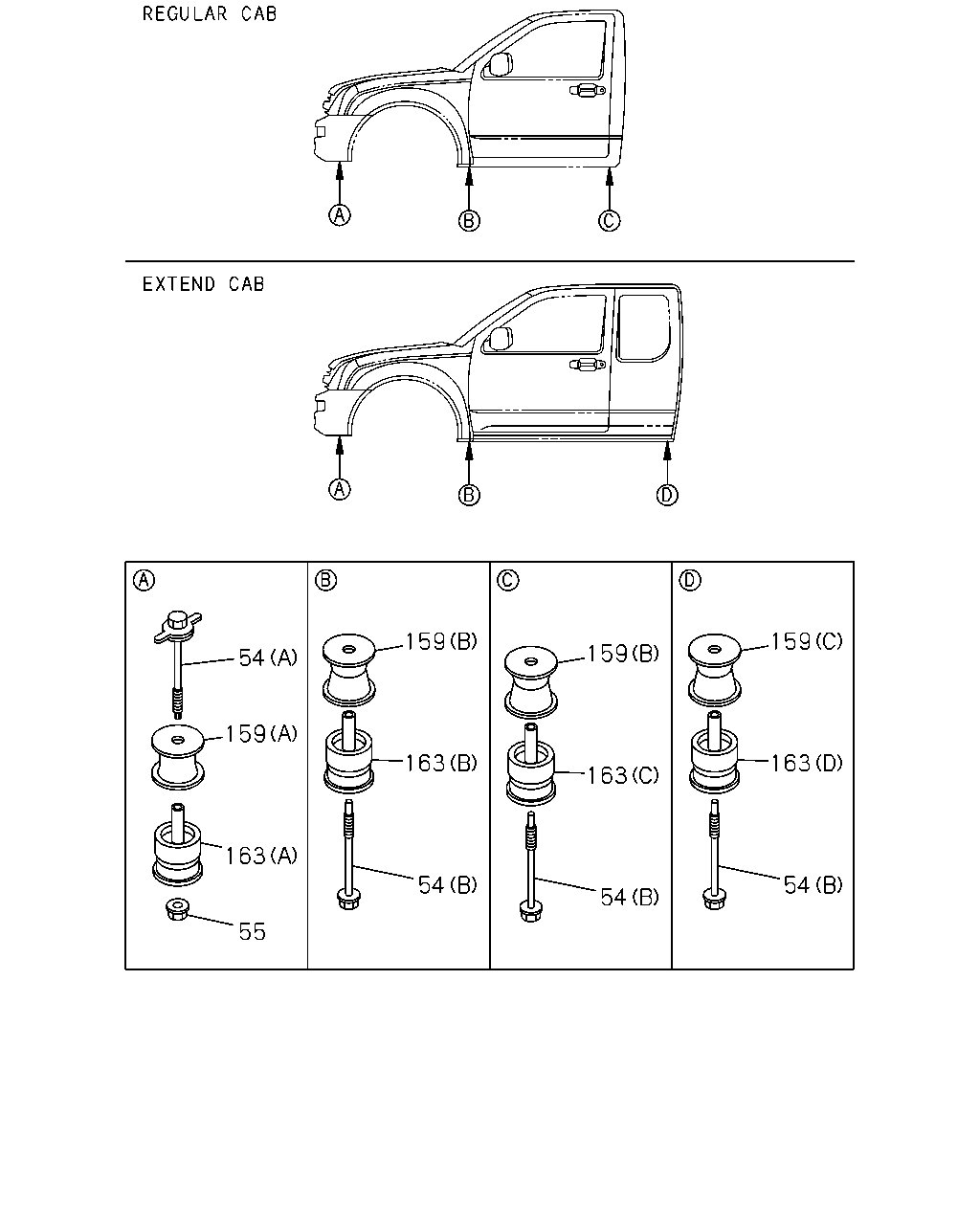

çizim 125225
159 159 159 54 159 163 163 163 163 54 54 54 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
54 09.008 BOLT; RUBBER
(A) M10X117.3 FLANGE 		8-97365-219-0 02 1 0805- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97365-220-0 04 1 0805-1009 ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-98178-536-0 04 1 1010- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97365-220-0 02 1 0805-1009 ● ●
54 09.008 BOLT; RUBBER
(B) 		8-98178-536-0 02 1 1010- ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 02 1 0805- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) STAMP SB 		8-97367-285-0 02 1 0805- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0805- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0805- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0805- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) STAMP P 		8-97367-287-0 02 1 0805- ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP 		8-98051-326-0 02 1 0805- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y 		8-98051-327-0 02 1 0805- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP B 		8-98051-329-0 02 1 0805- ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 0805- ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 0805- ● ●
çizim 125341
159 159 54 159 163 163 163 54 54 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
54 09.008 BOLT; RUBBER
(A) M10X117.3 FLANGE 		8-97365-219-0 02 1 0805- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97365-220-0 04 1 0805-1009 ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-98178-536-0 04 1 1010- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97365-220-0 02 1 0805-1009 ● ●
54 09.008 BOLT; RUBBER
(B) 		8-98178-536-0 02 1 1010- ● ●
55 09.008 NUT; RUBBER
06.672 M10 FLANGE 		0-91280-210-0 02 1 0805- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) STAMP SB 		8-97367-285-0 02 1 0805- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0805- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0805- ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0805- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) STAMP P 		8-97367-287-0 02 1 0805- ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP 		8-98051-326-0 02 1 0805- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y 		8-98051-327-0 02 1 0805- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP B 		8-98051-329-0 02 1 0805- ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 0805- ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP G 		8-98051-328-0 02 1 0805- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
