◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51171 - TFR/TFS CHEV HOLDEN ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#74765) — 32 parça

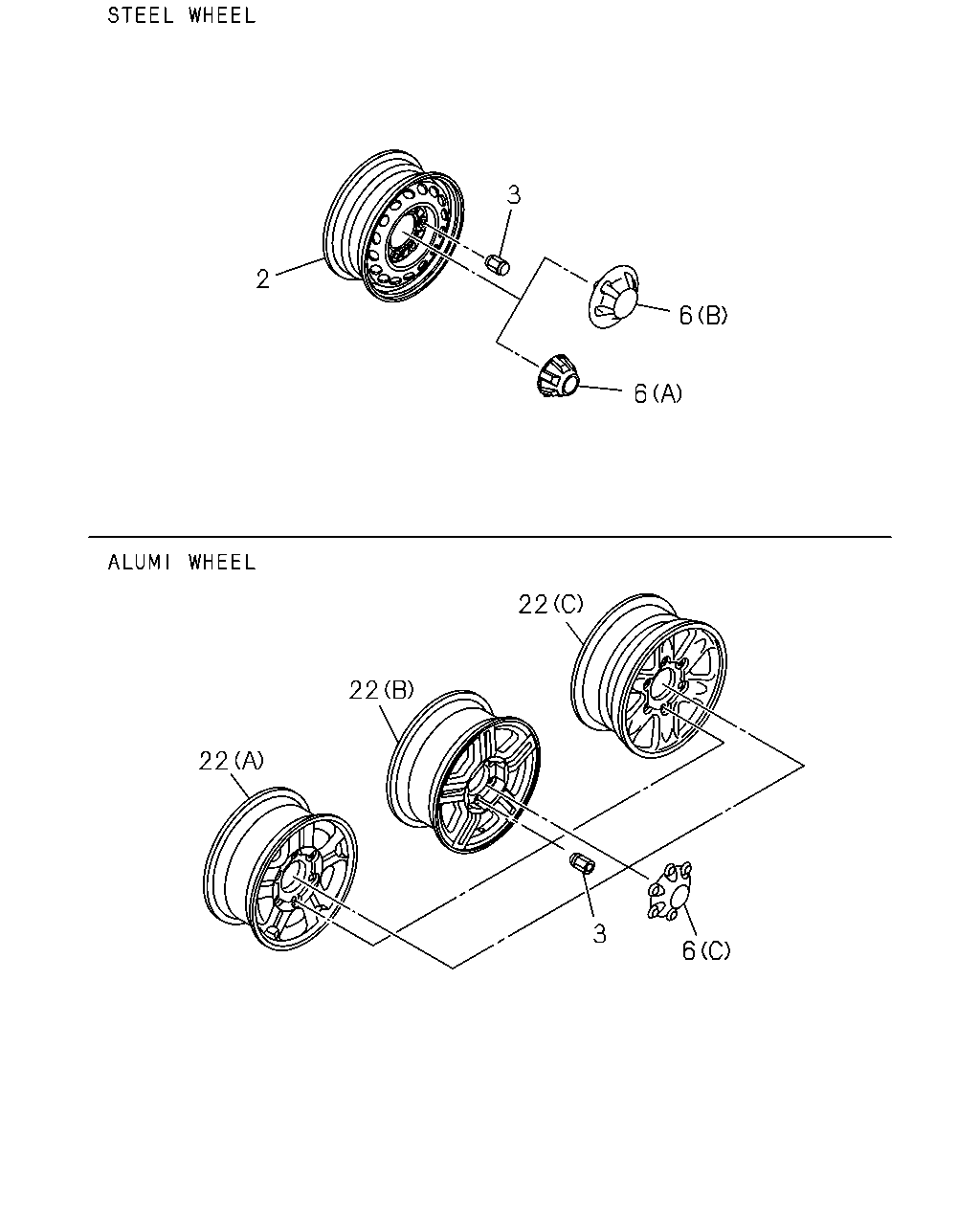

çizim 125705
3 2 6 6 22 22 22 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 05.803 WHEEL; DISC
FRT&RR 195R14C(CNU) DISC WHEEL 14X5.5-41 STEEL(BSX) FRONT,REAR,SPARE 		8-97323-282-1 05 1 0805-0809 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195R15C(QZO) DISC WHEEL 15X6-41 STEEL(PG1) FRONT,REAR,SPARE 15X6.0J OFFSET=41 6-HOLE STEEL WHEE L 		8-97946-548-0 05 1 0810-1212 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195R15C(QZO) DISC WHEEL 15X6-41 STEEL(PG1) FRONT,REAR,SPARE 15X6.0J OFFSET=41 6-HOLE STEEL WHEE L 		8-98218-142-0 05 1 1301- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 STEEL(BZE) SPARE 		8-97324-669-1 01 1 0805-1212 ● ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 STEEL(BZE) SPARE 		8-98218-141-0 01 1 1301- ● ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 STEEL(BZE) FRONT,REAR 		8-97324-669-1 04 1 0805-1212 ● ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 STEEL(BZE) FRONT,REAR 		8-98218-141-0 04 1 1301- ● ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) DISC WHEEL 15X6.5-41 STEEL(BSY) SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEE L 		8-97323-283-1 01 1 0805-1212 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) DISC WHEEL 15X6.5-41 STEEL(BSY) SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEE L 		8-98218-140-0 01 1 1301- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEE L 		8-97323-283-1 04 1 0805-1212 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEE L 		8-98218-140-0 04 1 1301- ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X7-38 ALUMI(PF4) M12 H=25.5 		8-97365-932-0 24 1 0901-0910 ● ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X7-38 ALUMI(PF4) M12 H=23 		8-98101-983-0 24 1 0911- ● ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M12 H=30.5 		8-97333-108-0 24 1 0805-0809 ● ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL(BSY), DISC WHEEL 15X6.5-41 ALUMI(BSZ),DISC WHEEL 16X7-38 ALUMI(BUA),DISC WHEEL16X7-38 STEEL(BZE),DISC WHEEL 15X6- 41 STEEL(PG1) M12 H=30.5 		8-97333-108-0 24 1 0810- ● ● ● ● ● ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI(PF4) (C) LION MARK 		8-97323-171-0 04 1 0901- ● ● ● ● ● ● ● ●
6 05.858 CAP; WHEEL
MANUAL LOCKING HUB(ED2) DISC WHEEL 16X7-38 ALUMI(PF4) (C) MARK-LESS W/HOLE 		8-97332-730-0 02 1 0901- ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 14X5.5-41 STEEL(BSX), DISC WHEEL 15X6.5-41 STEEL(BSY) EXC. HIGH RIDE SUSPENSION(7YC) (A) MARK-LESS NO-HOLE 		8-97323-167-0 04 1 0805-0809 ● ● ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 STEEL(BSY), DISC WHEEL 15X6-41 STEEL(PG1) EXC. HIGH RIDE SUSPENSION(7YC) (A) MARK-LESS NO-HOLE 		8-97323-167-0 04 1 0810- ● ● ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI(BSZ), DISC WHEEL 16X7-38 ALUMI(BUA) (C) LION MARK 		8-98048-742-0 04 1 0805- ● ● ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI(BUA) (C) LION MARK 		8-98048-742-0 04 1 0805- ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 STEEL(BSY), DISC WHEEL 16X7-38 STEEL(BZE) HIGH RIDE SUSPENSION(7YC) (B) LION MARK 		8-97352-824-0 04 1 0805- ● ● ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 STEEL(BSY), DISC WHEEL 16X7-38 STEEL(BZE) (B) LION MARK 		8-97352-824-0 04 1 0805- ● ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 STEEL(BSY), DISC WHEEL 16X7-38 STEEL(BZE) MANUAL LOCKING HUB(ED2) (B) MARK-LESS W/HOLE 		8-97352-822-0 02 1 0805- ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 ALUMI(PF4) (C) SPARE 		8-98022-974-1 01 1 0901-1212 ● ● ● ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 ALUMI(PF4) (C) SPARE 		8-98218-143-0 01 1 1301- ● ● ● ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 ALUMI(PF4) (C) FRONT,REAR 		8-98022-974-1 04 1 0901-1212 ● ● ● ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 ALUMI(PF4) (C) FRONT,REAR 		8-98218-143-0 04 1 1301- ● ● ● ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) DISC WHEEL 15X6.5-41 ALUMI(BSZ) (A) SPARE 		8-98048-643-1 01 1 0805- ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 225/75R15C(BZC),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) DISC WHEEL 15X6.5-41 ALUMI(BSZ) (A) FRONT,REAR 		8-98048-643-1 04 1 0805- ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 ALUMI(BUA) (B) SPARE 		8-98048-644-0 01 1 0805- ● ● ● ● ● ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16(BZD) DISC WHEEL 16X7-38 ALUMI(BUA) (B) FRONT,REAR 		8-98048-644-0 04 1 0805- ● ● ● ● ● ● ● ●
